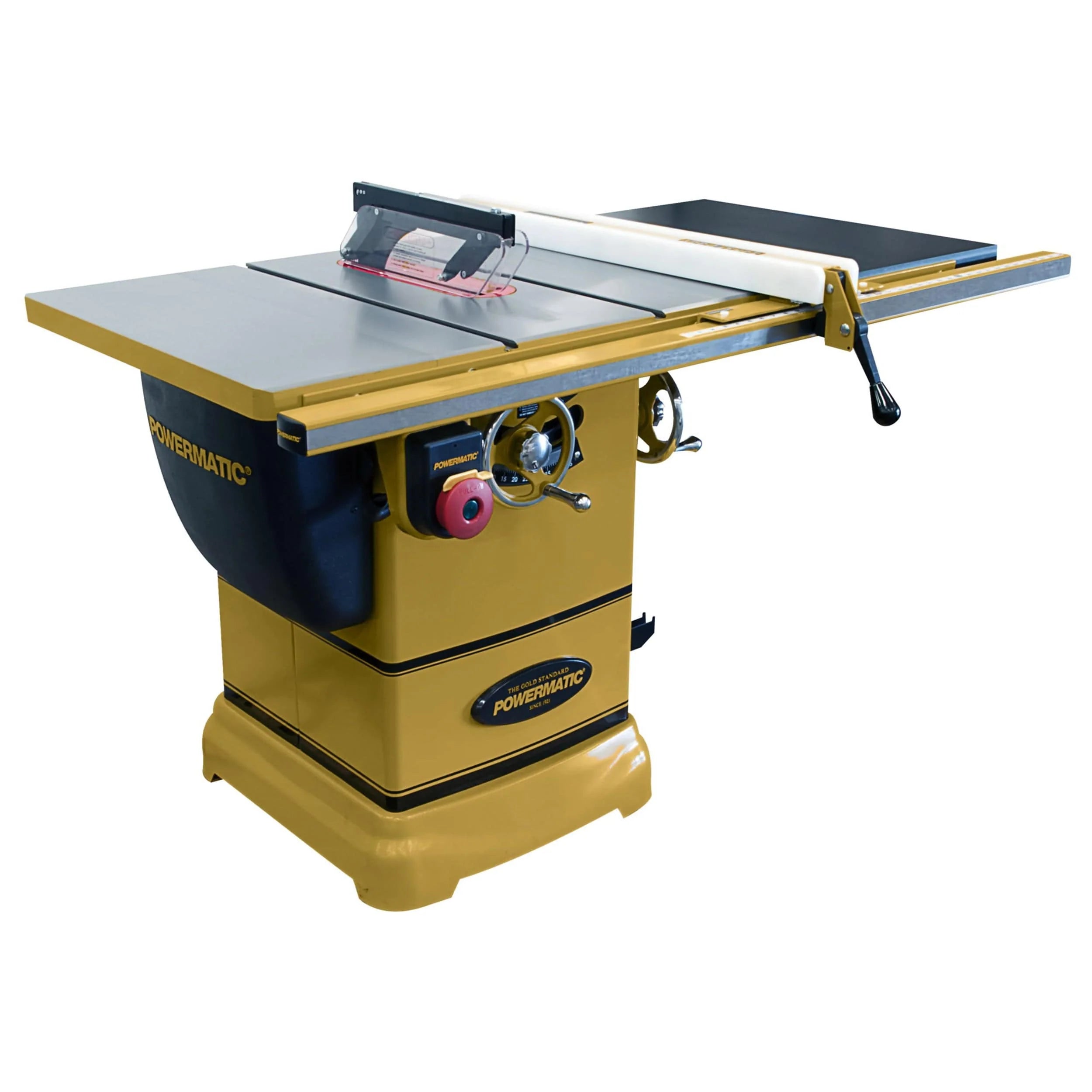

10" Table Saw with 30" Accu-Fence System - 1-3/4 HP 1 Ph 115/230V - PM1000

Features:
• A blade surround and collection hose provide an unobstructed path, maximizing dust collection
• Conveniently located hands free power switch
• Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
• The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
• Exclusive AccuFence provides rigidity and precision
• The poly-V belt drive system reduces vibration and maximizes efficiency
• Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
• Arbor lock allows for one handed blade changes with minimal tools
• Cast iron work surface features a beveled edge
• Bevel scale is conveniently located with large, easy to read numbers
• Hinged motor cover provides quick access to the interior of the cabinet
Specifications:
Motor Power: 1-3/4HP
Motor Current (Amps) : 20/10
Motor Phase : 1
Motor Voltage (V.) : 115/230
Prewired Voltage (V.) : 115
Recommended Circuit Size (Amps.) : 30A (for 115V), 20A (for 230V)
Table Height from Floor (In.) : 34-1/4
Table Size (In.) : 20 x 27
Table Type : Cast Iron
Total Work Surface (In.) : 57 x 27
Arbor Diameter (In.) : 5/8
Arbor Speed (RPM) : 4200
Blade Diameter (In.) : 10
Cast Iron Work Surface (In.) : 40 x 27
Dust Collection Minimum CFM Required (CFM) : 350
Dust Port Outside Diameter (In.) : 4
Maximum Depth of Cut (In.) : 3-1/8
Maximum Depth of Cut at 45 Degrees (In.) : 2-1/8
Maximum Diameter of Dado (In.) : 8
Maximum Rip Left of Blade (In.) : 12
Maximum Rip Right of Blade (In.) : 30
Maximum Width of Dado (In.) : 13/16
Weight (Lbs.) : 347
