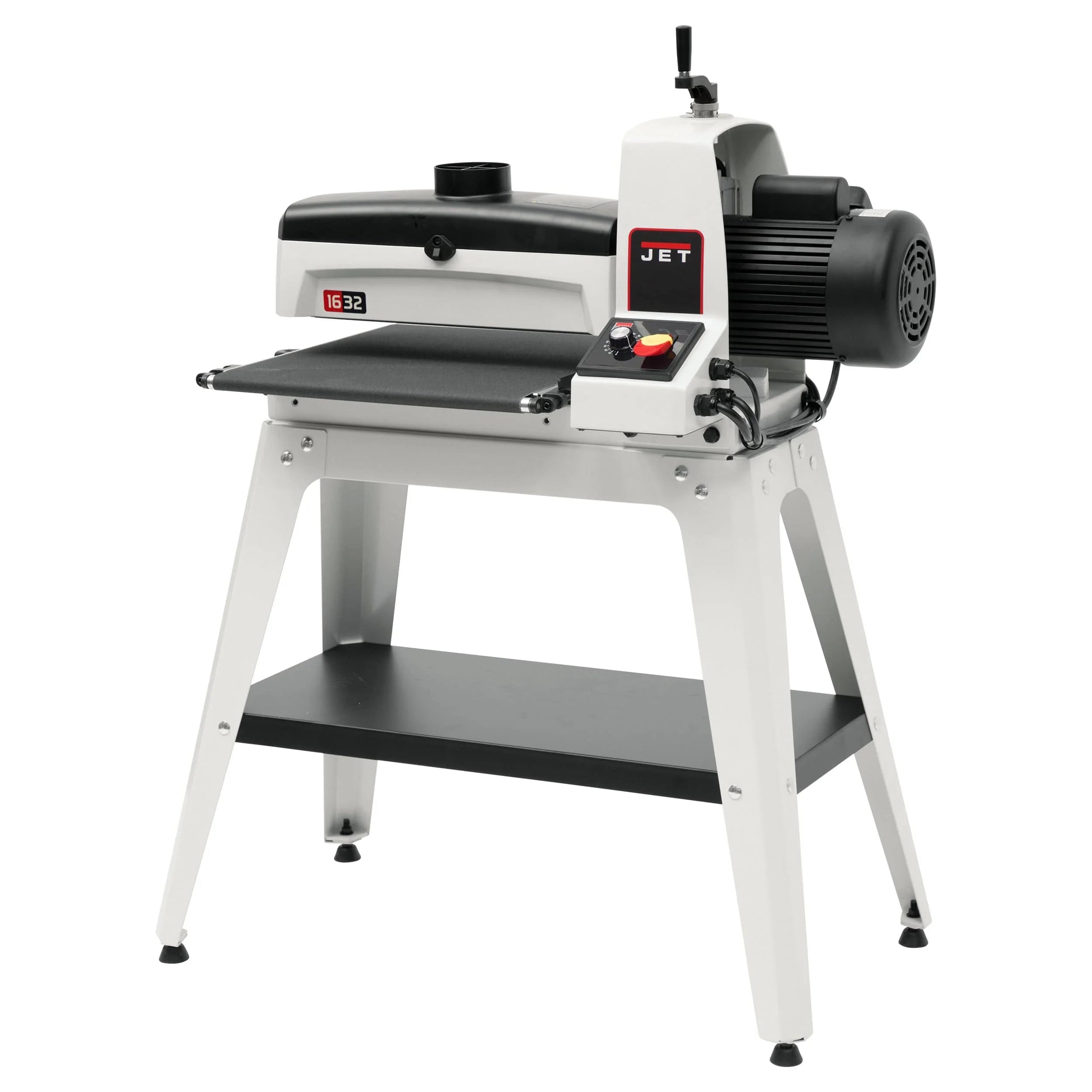

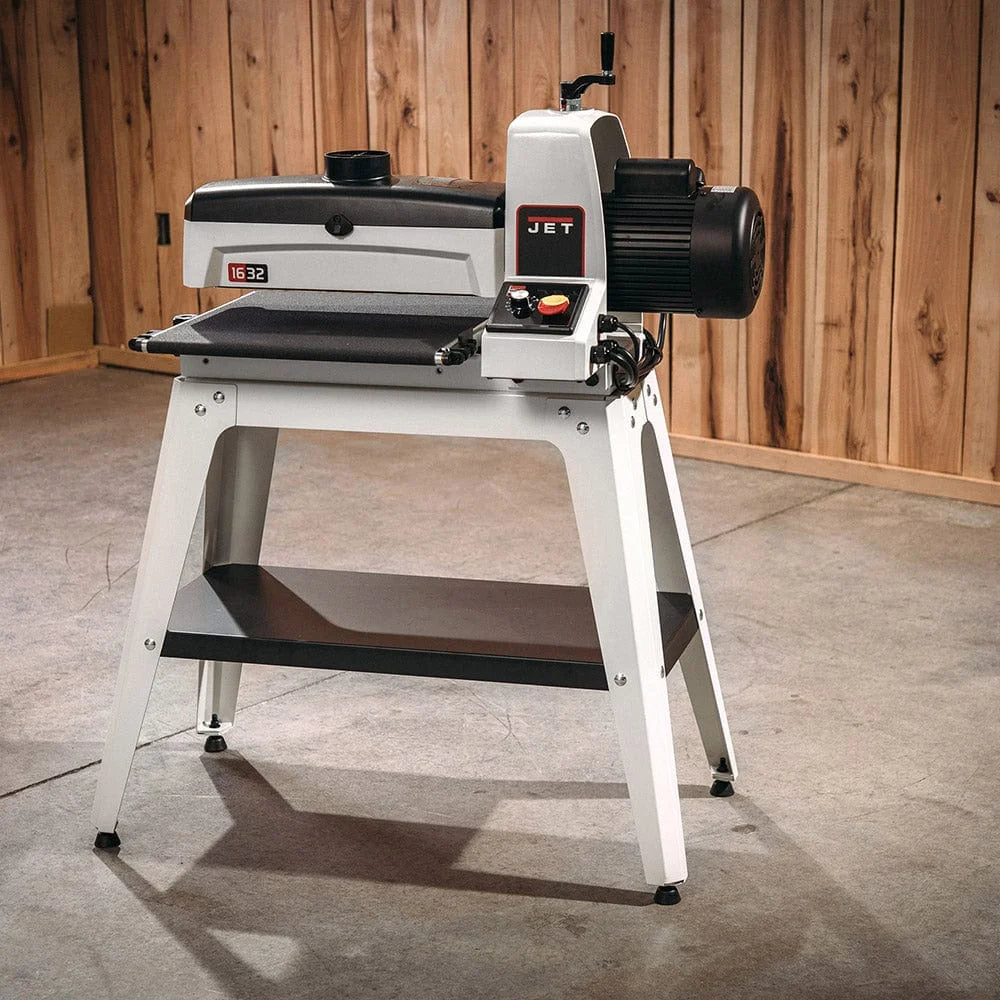

16" Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632

• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
• Self-Cooling Drum

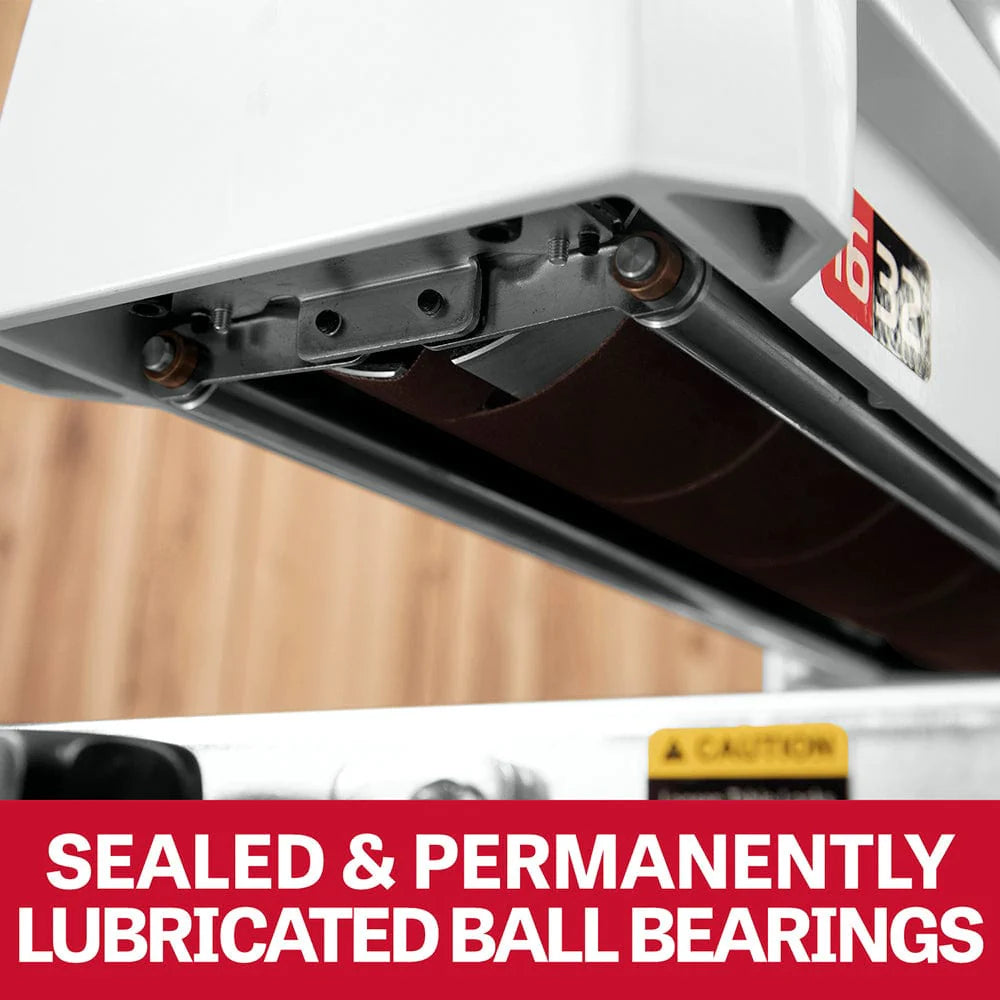

• Drum utilizes sealed and permanently lubricated ball bearings for longer life
• Separate feed and drum motors provide independent control, optimizing the performance of the sander
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
• Precision-flattened reinforced steel conveyor bed
• Drum is easily removable

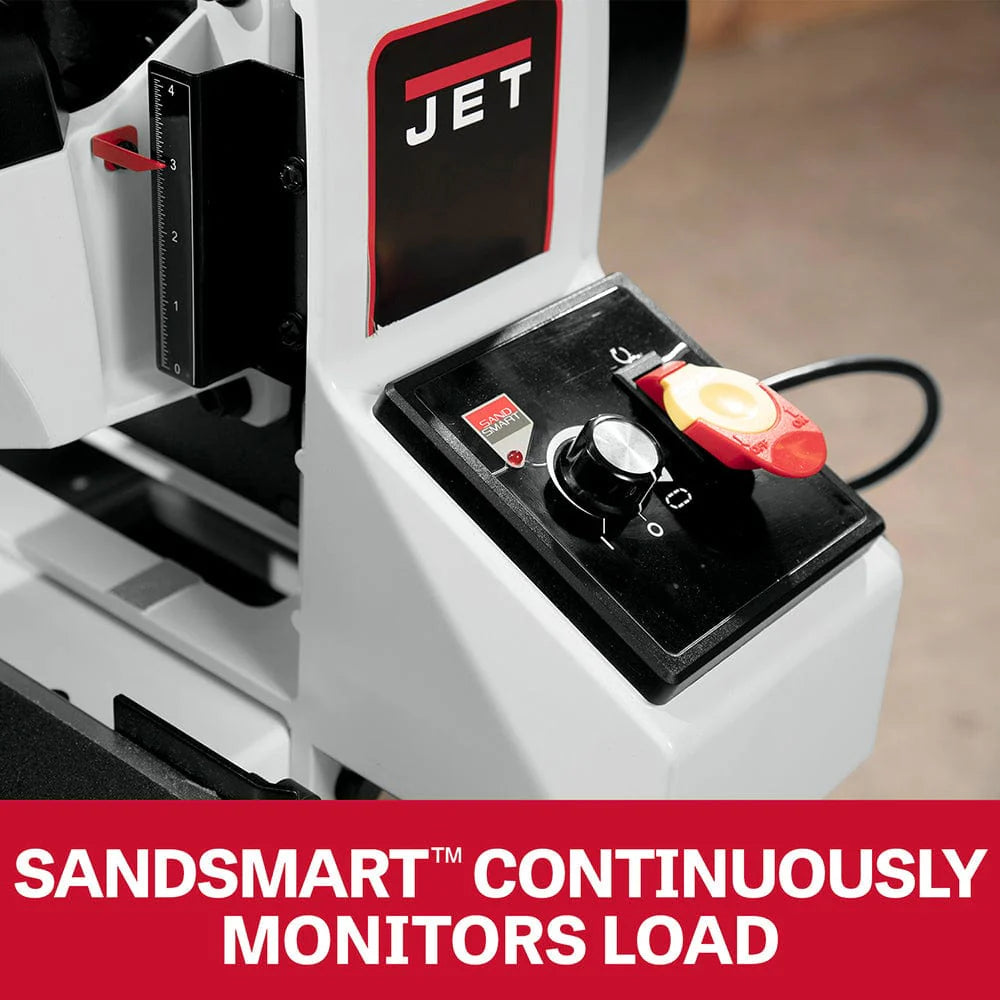

• Integrated on/off switch and variable speed control knob are conveniently located

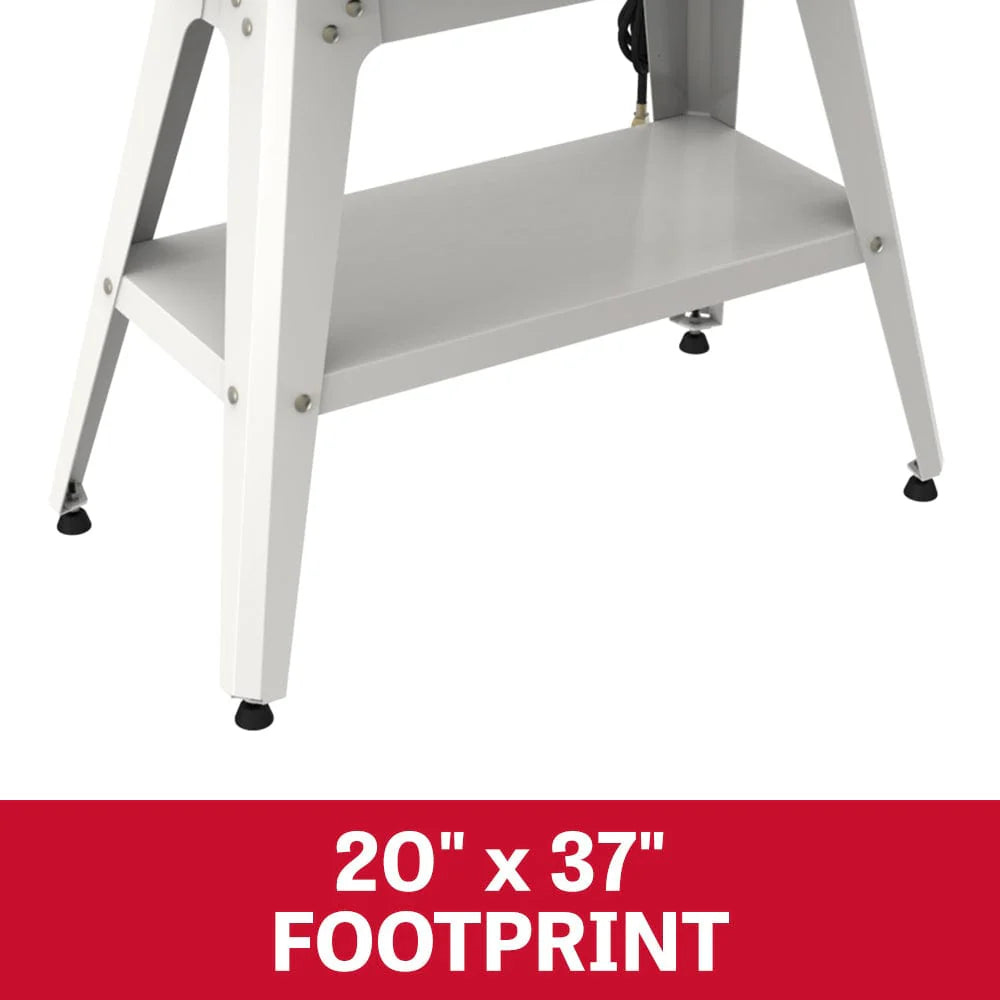

• Stand features a 20" x 37" footprint to increase stability and has a storage shelf and pre-drilled holes for casters

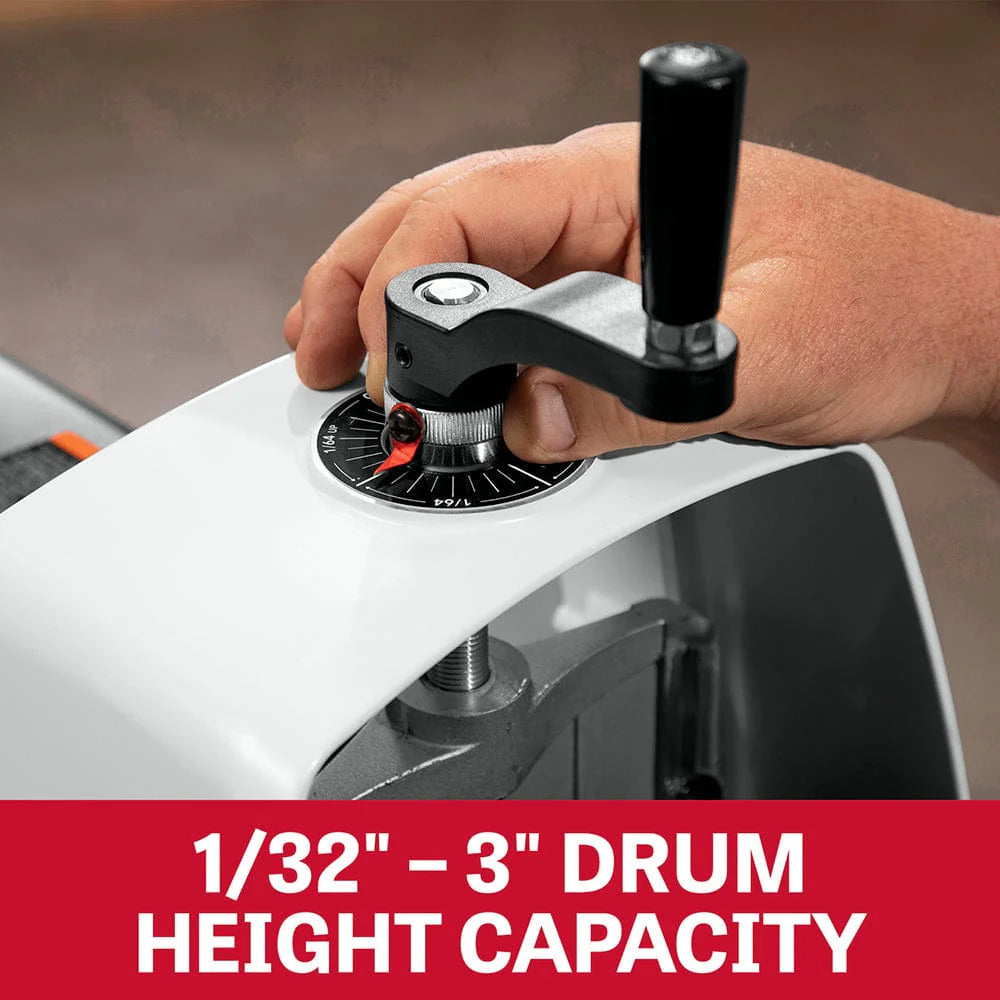

• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project

• Motor: 1-1/2HP, 1Ph, 14A, 115V 60Hz
• Drum speed (rpm): 1725
• Drum Length: 32"
• Drum Diameter: 5”
• Abrasive installed: 80 Grit

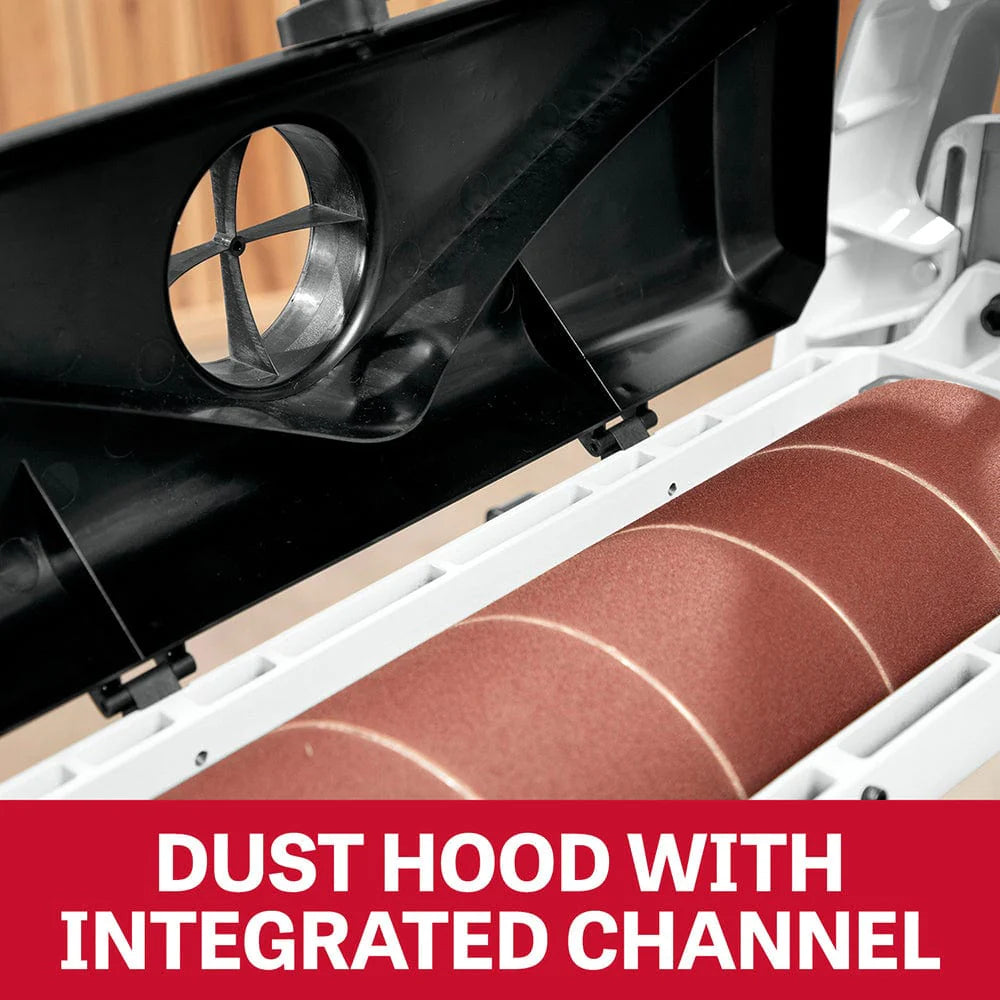

• Dust Port Diameter: 4”
• Maximum Board Thickness: 3”
• Minimum Board Length: 2-3/8”
• Minimum Board Thickness: 1/32”
• Maximum Board Width: 16" with one pass
• Maximum board Width: 32” with 2 passes
• Conveyor Seed: 0-10 FPM
• Conveyor Table Size: 16" x 39-3/4"
• Net Weight: 187 lb - machine only

• (1) Jet® 16-32 Drum Sander with Open Stand - 1-1/2 HP 1 Ph 115V - JWDS-1632

FAQs

How to use a drum sander?
Adjust the drum sander to match the thickness of your wood, feed the piece slowly, and sand in light passes until it’s smooth and flat. Always use a dust collector and make slight depth adjustments to avoid burning or overloading the machine.

Do I need a drum sander for my woodworking projects?
A drum sander is ideal if you build cabinets, tabletops, or other projects that require smooth, uniform surfaces. It saves time and delivers precision finishes that are hard to achieve with hand sanders or a planer.

How much sandpaper for drum sander?
Drum sanders use rolls of sandpaper, and the length depends on the model and drum size, but typically 3 to 4 yards per roll. Choose the grit based on your project, starting with coarse (80-120) and finishing with finer grits (150-220).
