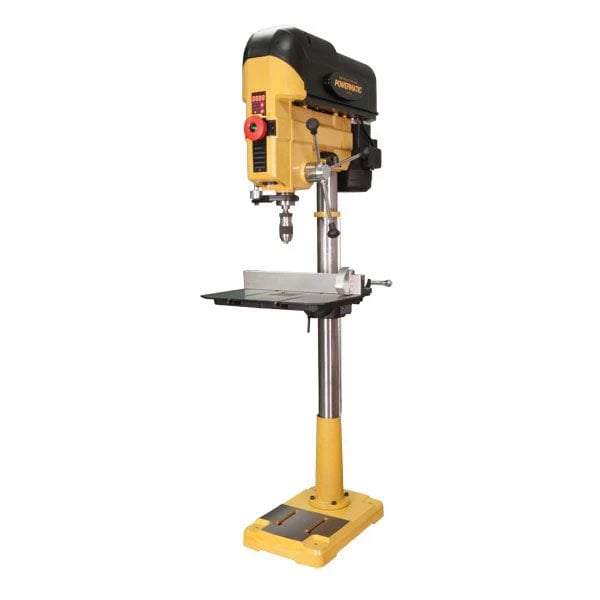

18" Variable Speed Drill Press - 1 HP 1 Ph 115/230V - PM2800B

The PM2800B with 5/8" Keyed Chuck brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you'll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.

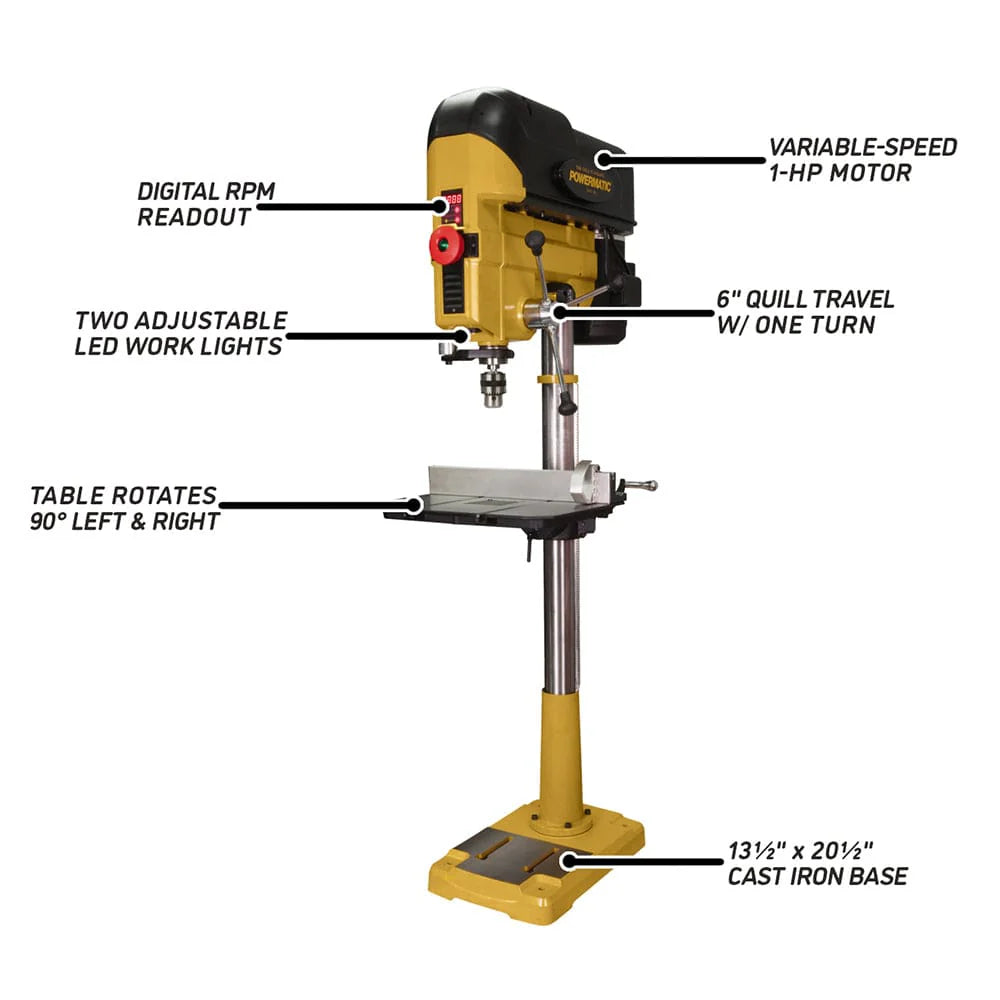

Features

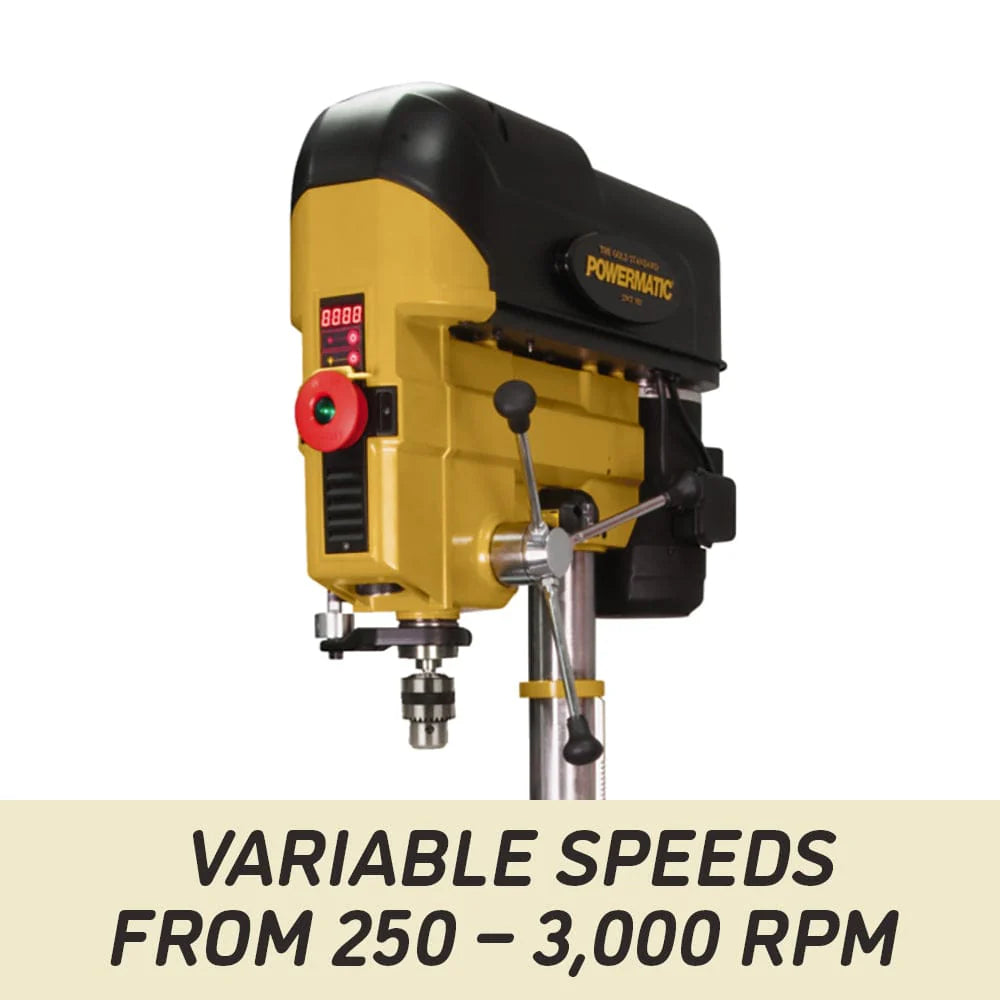

• Mechanical variable speed allows for full range of speed with no belt changes
• 6" of quill travel with one revolution of the handle

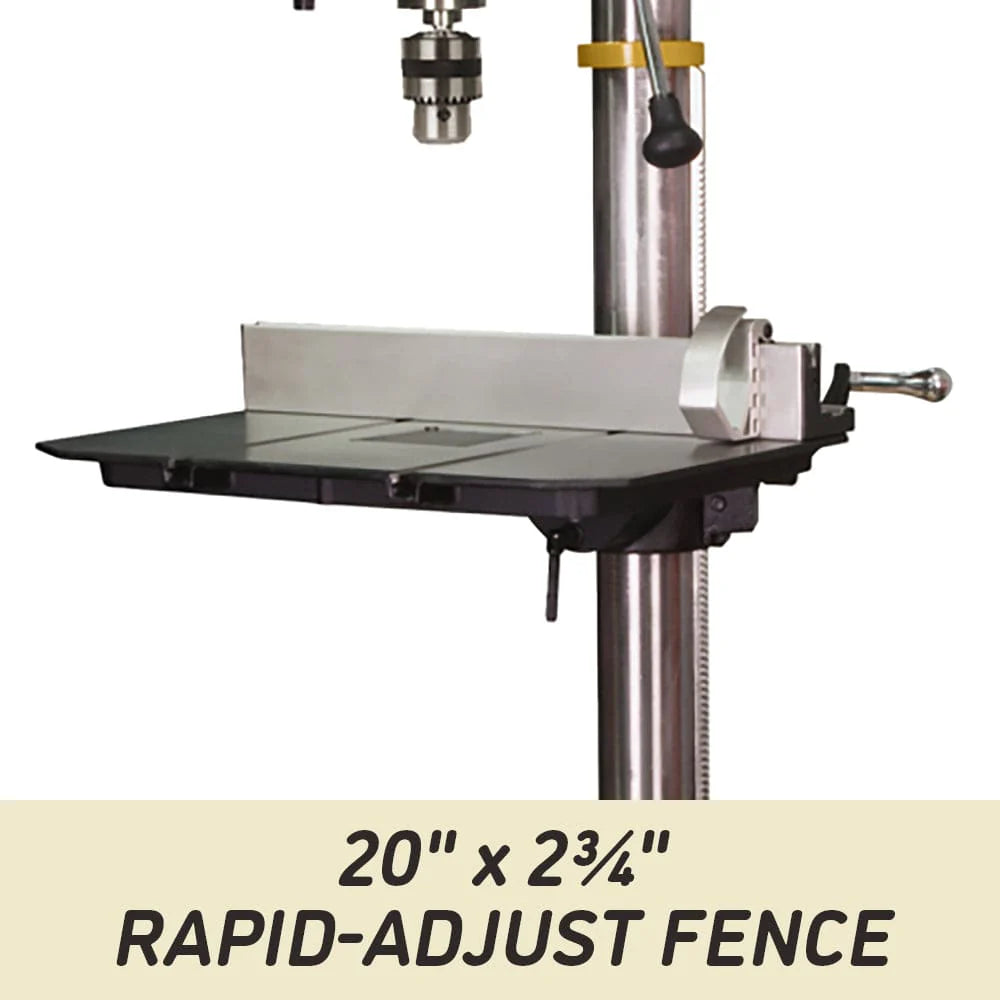

• Fence system adjustable for a perfect 90 degree relationship to the table, for rapid alignment of stock
• Adjustable material stop makes repetitive actions accurate and quick
• A digital RPM readout allows user to optimize the spindle speed to the application
• Laser guides provide an accurate indication for tool point
• 5/8" Keyed Chuck
• Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
• Two independent LED worklights eliminates shadows
• Work table can be rotated to a full 90 degree position
• Replaceable square table insert with leveling screws make it flush with the top of the table

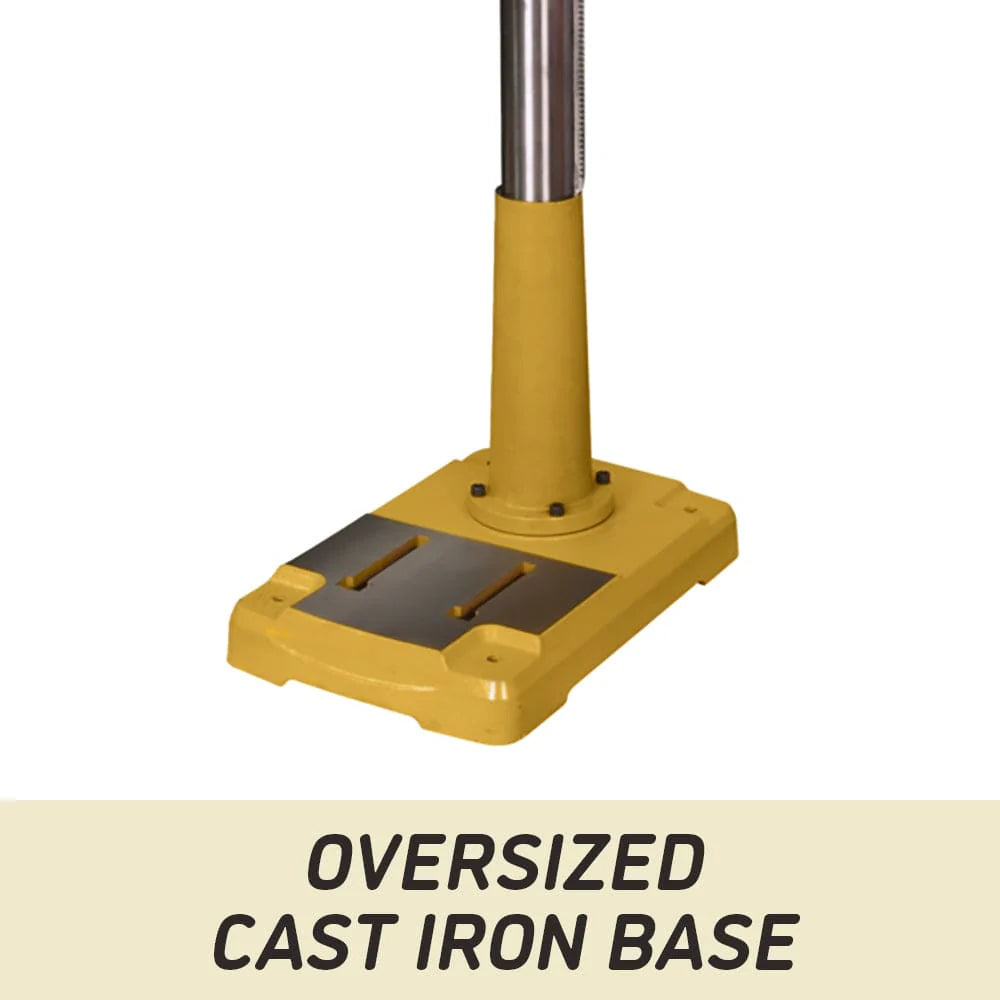

• Oversize cast iron base for added stability
• Safety key prevents accidental starting

Specifications

• Motor: 1HP, 1Ph, 115/230V, Prewired 115V, 15/7.5 Amps
• Base Size: 13-3/8” x 20”
• Chuck Distance to Base: 43-13/32”
• Chuck Distance to Table: 24-1/2”
• Chuck Size: 5/8”
• Column Diameter: 3-1/8”
• Drilling Capacity: 5/8”
• Fence Size: 19-13/16” L x 2-11/16” H
• Number of Spindle Speeds : Variable
• Spindle Distance to Base: 46-1/4”
• Spindle Distance to Table (Max.): 27-3/8”
• Spindle Speed Range (RPM) : 250-3000
• Spindle Taper : MT-2/JT-3
• Spindle Travel: 6”
• Swing: 18”
• Table Size (L x W): 20” x 14”
• Table Tilt (Deg.) : 0 to 90
• Net Weight: 266 lbs

FAQs

How smooth is the true variable-speed adjustment?

The variable-speed system is smooth and easy to adjust, allowing quick changes without moving belts. It provides precise control for different drilling tasks.

How accurate is the laser alignment system?

The laser system offers a helpful visual guide for positioning, though it may require occasional calibration for best accuracy. It’s a convenient aid rather than a precision measuring tool.

Does the digital speed readout stay accurate under load?

Yes, the digital readout is designed to reflect actual spindle speed and remains reliable under normal load conditions. It helps maintain consistent performance across applications.
