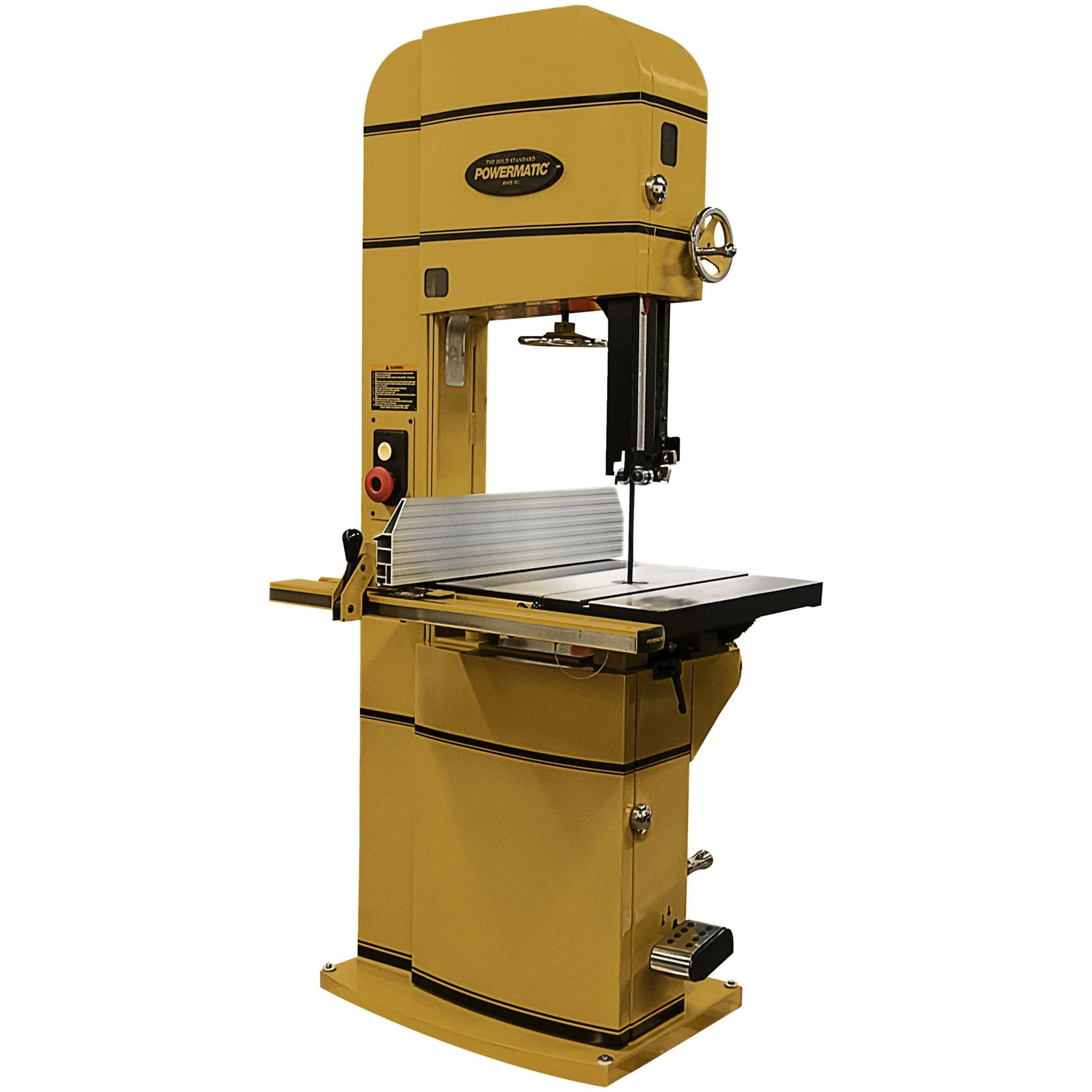

18" Woodworking Bandsaw - 5 HP 3 PH - 230/460V - PM1800B-3

The Powermatic® PM1800B-3 Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It features a sturdy cast iron table, trunnion assembly for maximum rigidity, and an exclusive Accu-Fence system that provides complete adjustability for precise cuts. This bandsaw includes a solid steel resaw post, a blade tension release with an electrical interlock and high-end blade guides for stability and accuracy. It also boasts a four-sided blade guard, an integrated foot brake, and a magnetic switch for enhanced safety. Your larger projects and workpieces call for more power, resaw capacity, and cast iron. The PM1800B-3 features legendary quality, precision, and attention to detail, helping woodworkers expand their ambition for over 100 years.

Bandsaw Specs: What They Mean & Why They Matter:

• Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.
• Resaw Height – The maximum board thickness the saw can slice vertically.
• Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.
• Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.
• Table Size – Affects how well the saw supports and stabilizes your workpiece.
• Construction Material – Heavier material better absorbs vibration and adds stability.


Features:

• Heavy-duty 5 HP motor provides power needed for all projects.
• Fully adjustable, exclusive T-Square style Accu-Fence maximizes alignment to the blade and squaring to the table.
• Robust cast iron table and trunnion assembly provides maximum rigidity, offering stability and support for large workpieces.
• Positive locking cam with pressure adjustment allows for secure and stable fence positioning, preventing unwanted movement during operation.

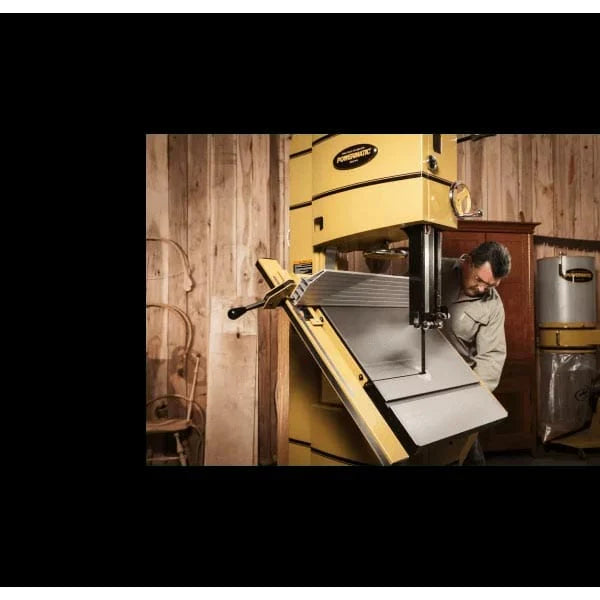

• Oversized side plate provides versatility by allowing operation in both horizontal and vertical positions.
• Solid steel resaw post enhances rigidity, ensuring stability and accuracy during resawing operations.
• Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is de-tensioned.
• Heavy-duty upper wheel support and tracking mechanism contribute to smooth operation and precise blade tracking.

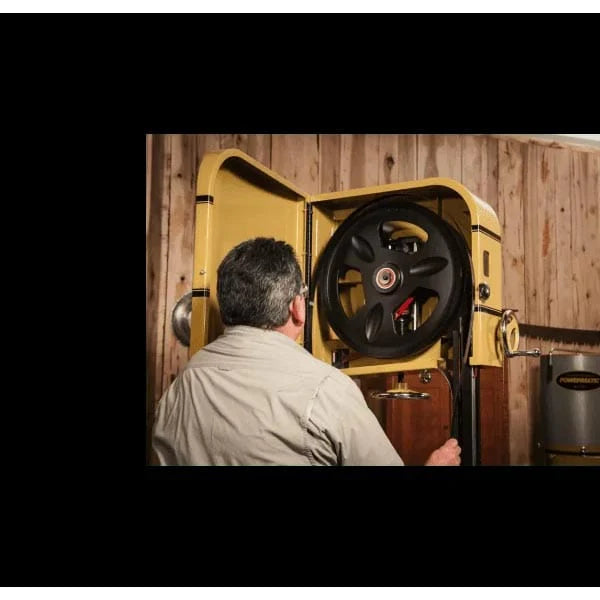

• Solid cast iron wheels reduce vibration and noise while providing the necessary momentum required for heavy resawing, ensuring efficient cutting performance.
• High-end blade guides with toolless adjustment offer stability, minimizing blade deflection and increasing cut accuracy.
• Four-sided blade guard provides optimum protection, ensuring safety during operation by preventing accidental contact with the blade.
• Integrated foot brake allows for quick stopping of the blade, enhancing operator safety and control.
• Magnetic switch protects the motor from potential harm caused by electrical supply issues, ensuring safe and reliable operation.

Specifications:

• Motor HP: 5 HP
• Voltage: 230V / 460V
• Phase: 3 PH
• Amps (if applicable): 15/7.5A
• Max Resaw Height: 18"
• Max Cutting Width: 18"
• Wheel Size: 18"
• Wheel Material: Cast Iron
• Quick Blade Release: Yes
• Blade Length: 160"
• Blade Width Range: 1/8"- 1-1/2"
• Blade Speed: 2300/4400 SFPM
• Blade Guide Type: Micro-adjustable bearing blade guides
• Table Size: 24" X 27"
• Table Tilt (L/R Degree): 10°/45°
• Table Material: Cast Iron
• Dust Port Size: 4"
• Height: 81-1/2"
• Footprint: 38" L x 42" W x 81-1/2" H
• Warranty Information: 5 Year Manufacturer Warranty


What's Included:

• (1) Powermatic - PM1800B-3 18" Woodworking Bandsaw
• (1) Hook Type Bandsaw Blade - 160" x 3/4" x 4 TPI x 0.03"
