This heavy duty planer offers performance and value, loaded with standard features not found on other machines...
Availability: Many In Stock
$1,880.70
$6,269.00
$1,880.70
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $1,880.70
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description

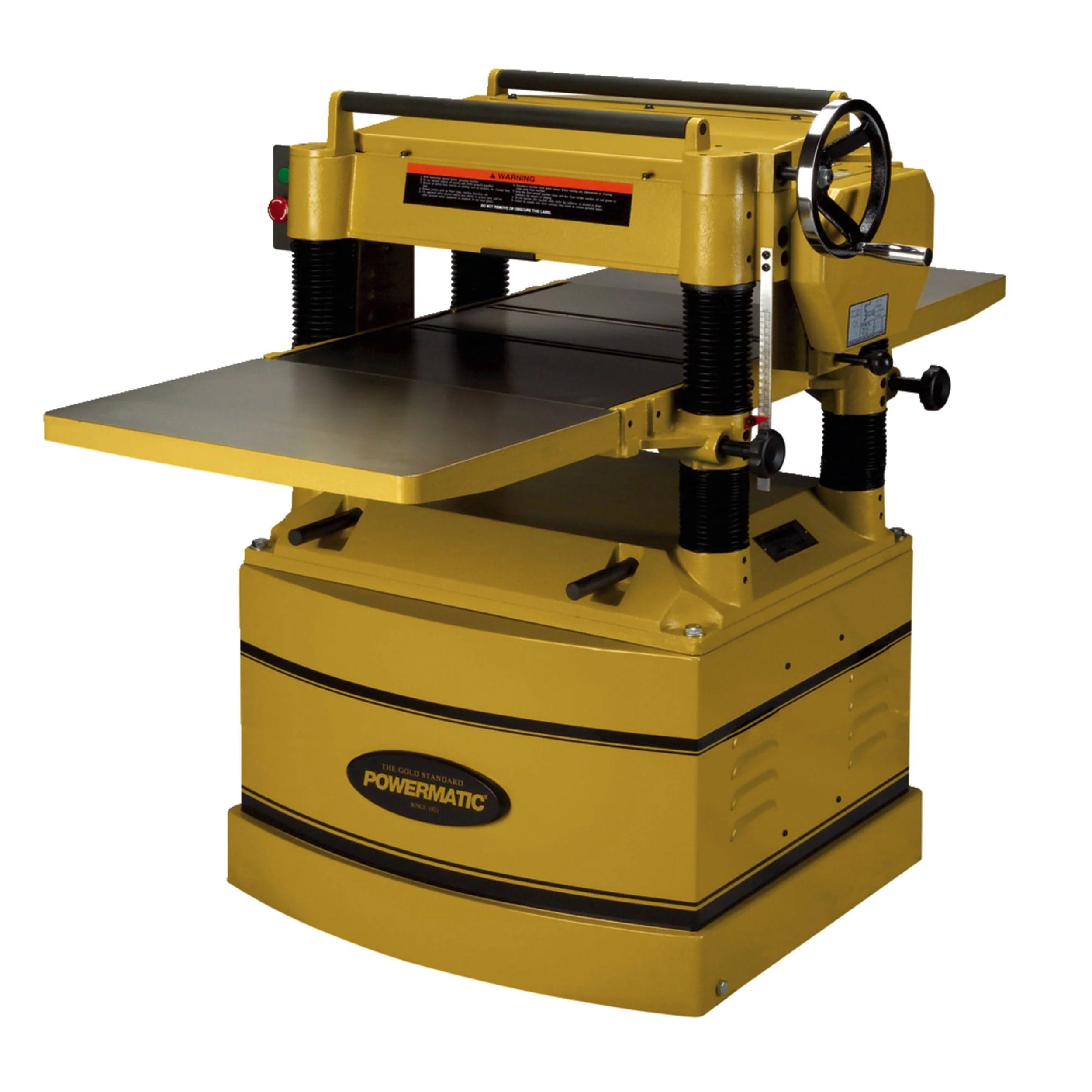

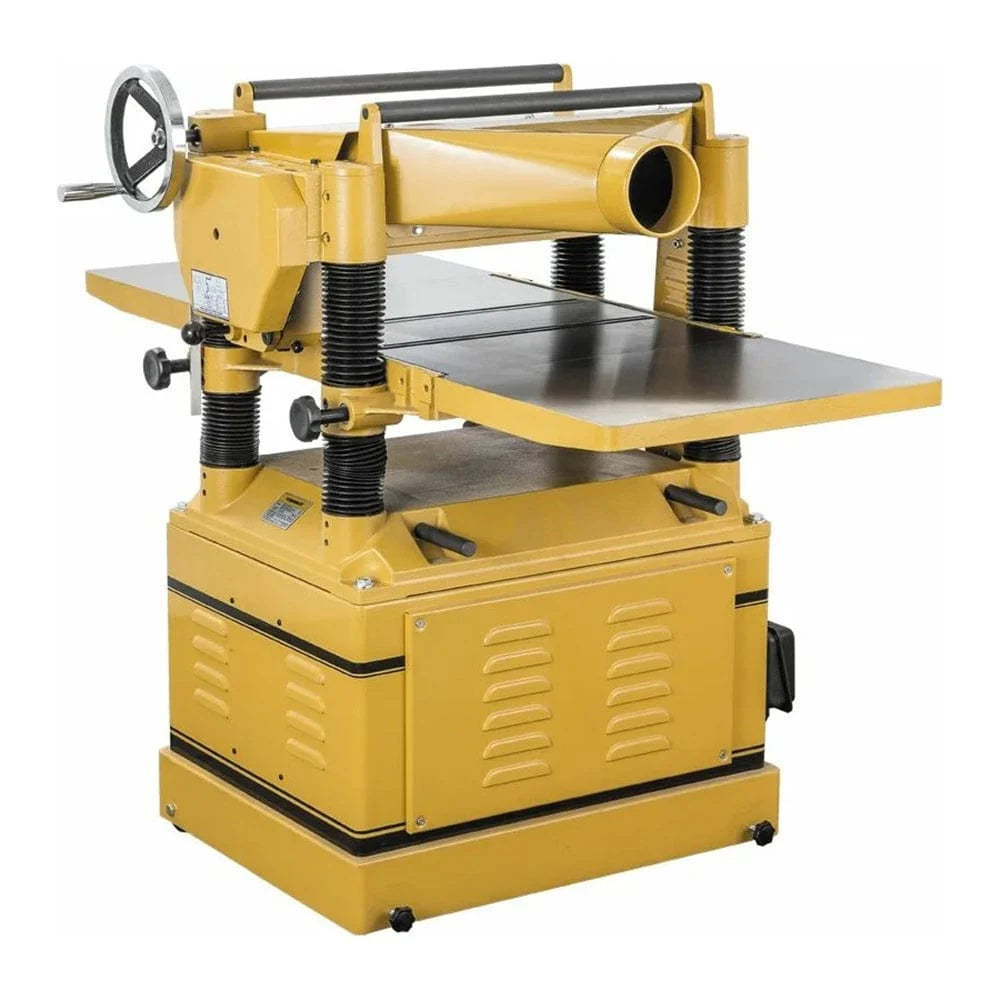

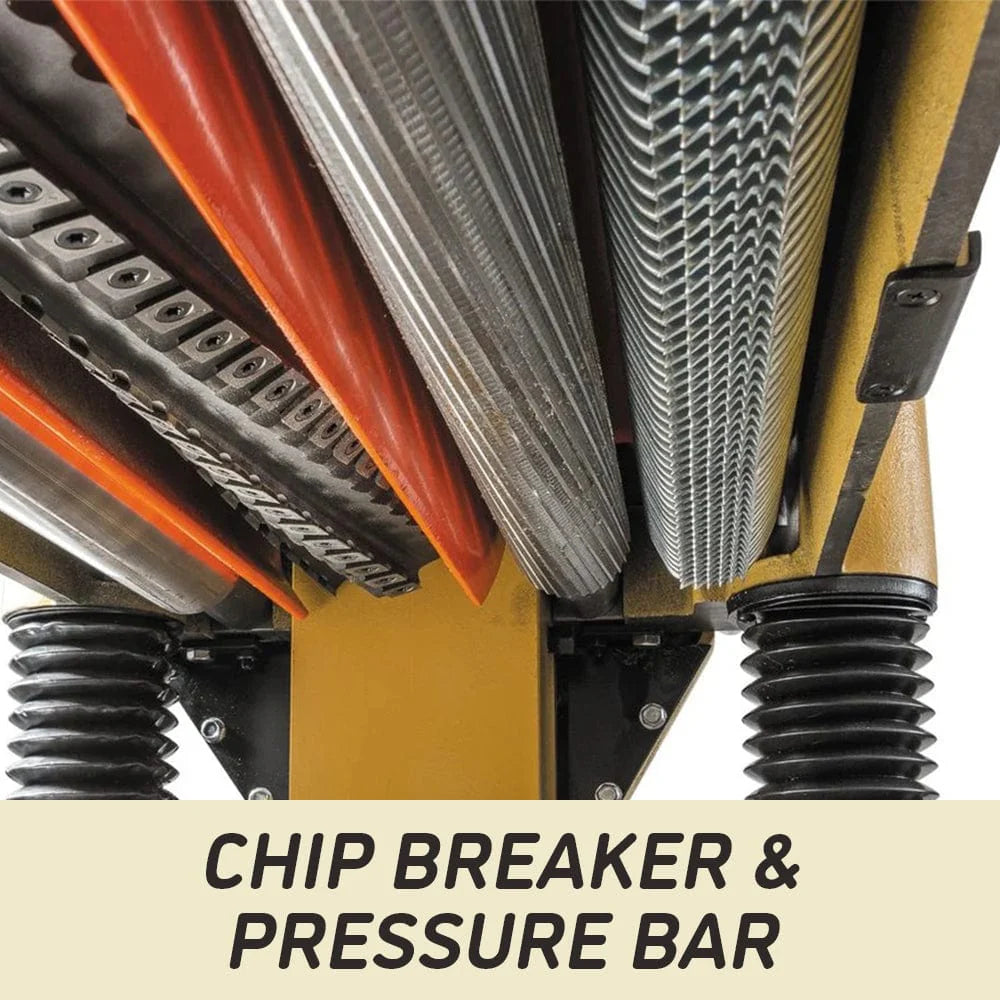

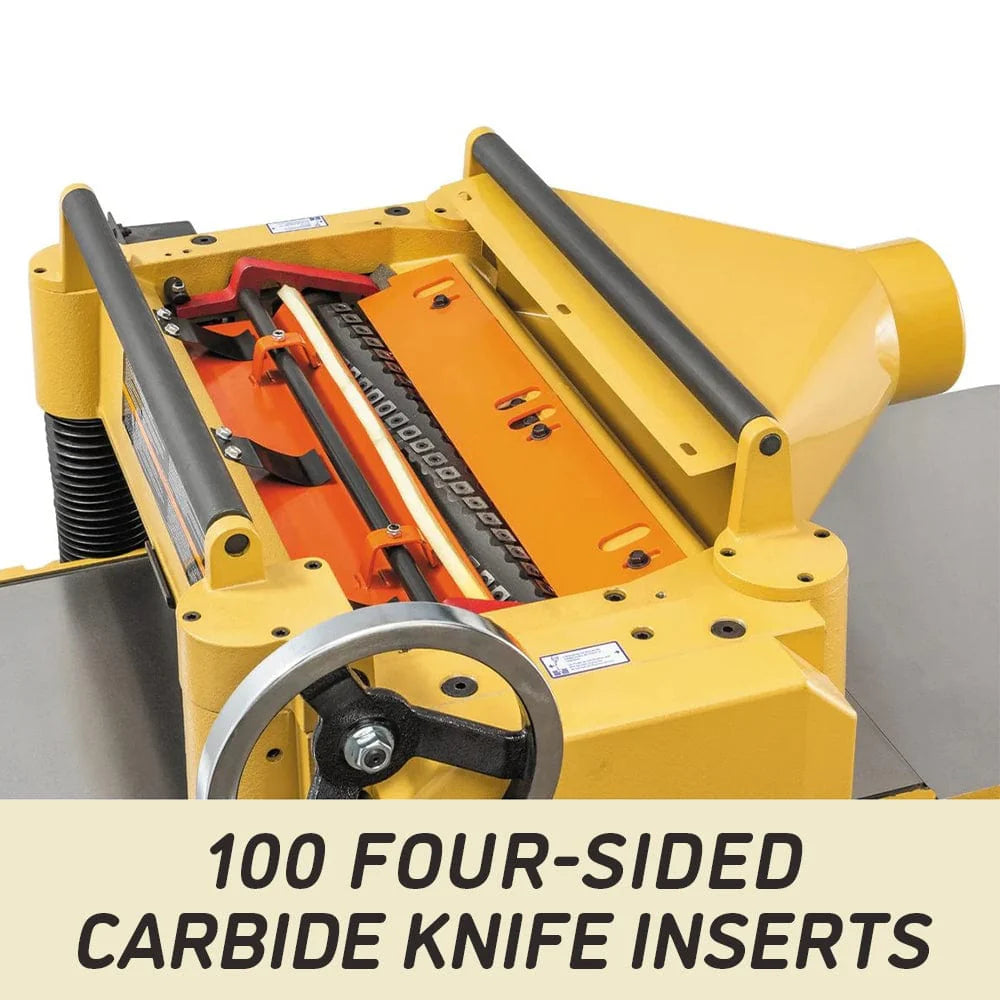

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.


Features:
  • 5HP motor and 20" planing capacity for heavy duty work

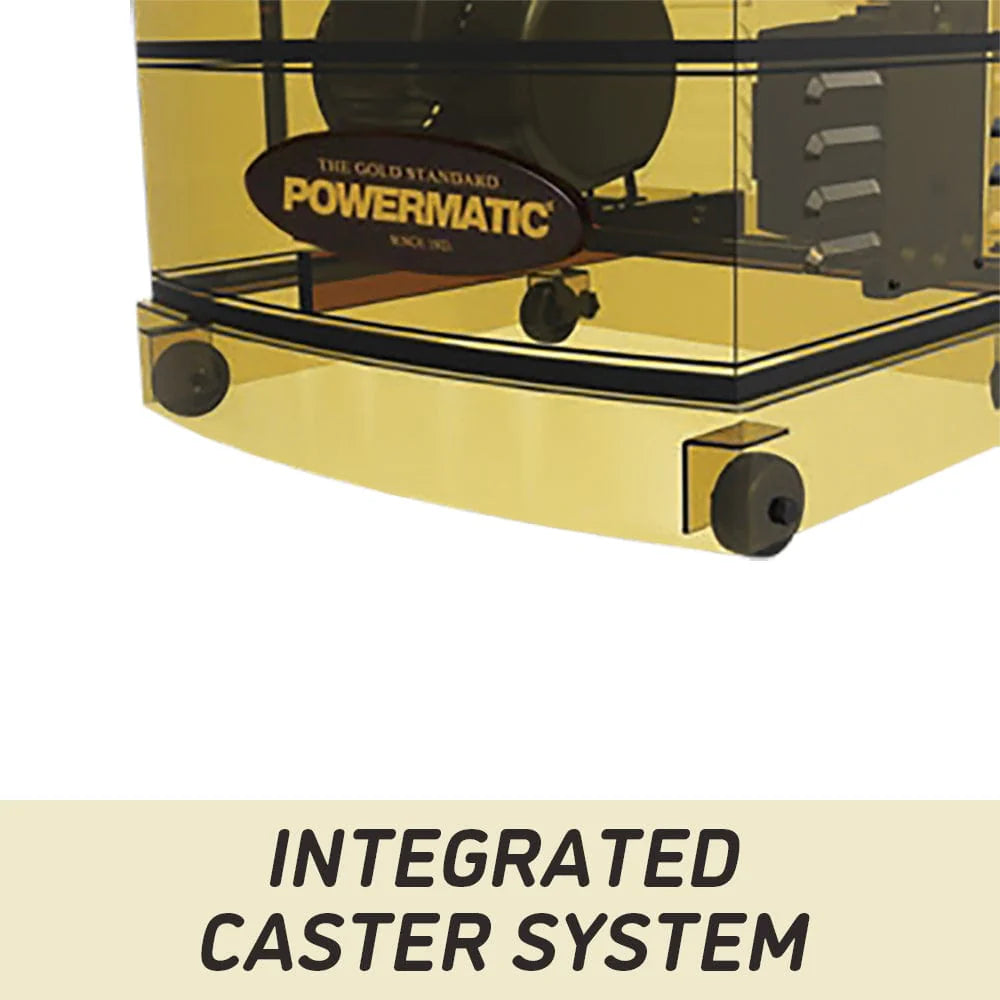

  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area

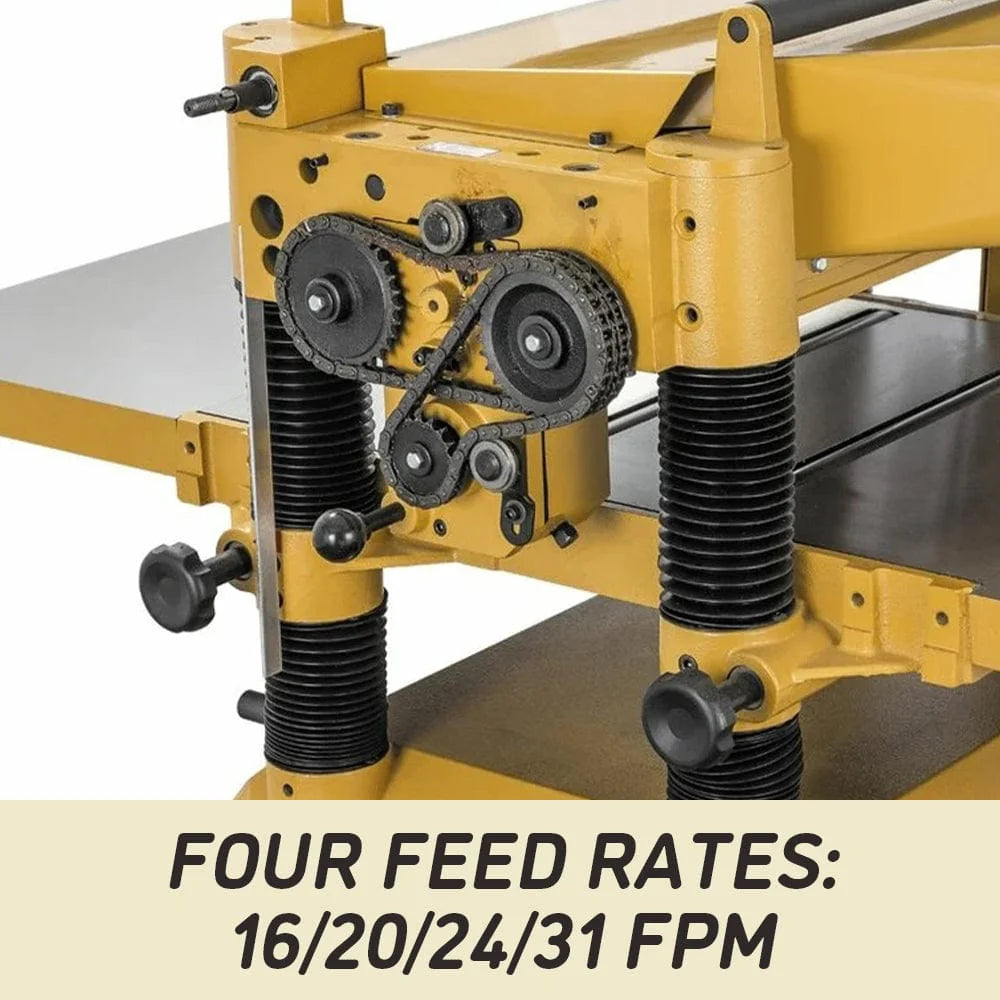

  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 5" diameter dust port
  • Cast iron extension tables

Specifications
  • Amps : 21
  • Dust Collection Minimum CFM Required : 900
  • Dust Port Diameter (OD/in) : 5
  • Feed Rate (FPM) : 24 and 31 (16 and 20 with gear change)
  • Height (in) : 41.375
  • Length (in) : 26
  • Maximum Depth of Cut (in) : 3/32

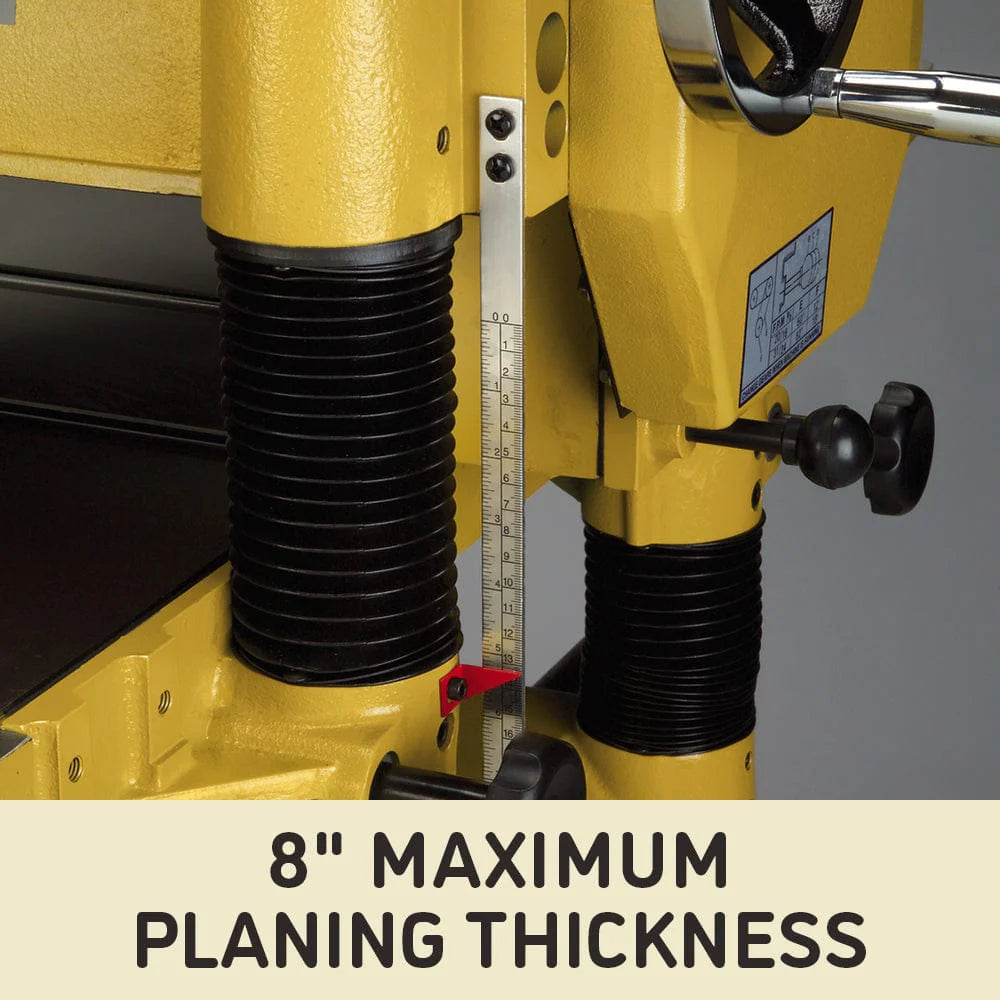

  • Maximum Planing Thickness (in) : 8
  • Maximum Planing Width (in) : 20
  • Minimum Planing Length (in) : 6-3/4
  • Net Weight : 800 lb
  • Number of Speeds : 4
  • Overall Dimensions : 26 x 36-5/8 x 41-3/8
  • Readout Scale : in/mm
  • Rotation (Forward/Reverse) : Fwd
  • Table Size (in) : 20 x 55-1/2
  • Table Support : 4 column
  • Width (in) : 36.625
  • Shipping weight 890 lb.
