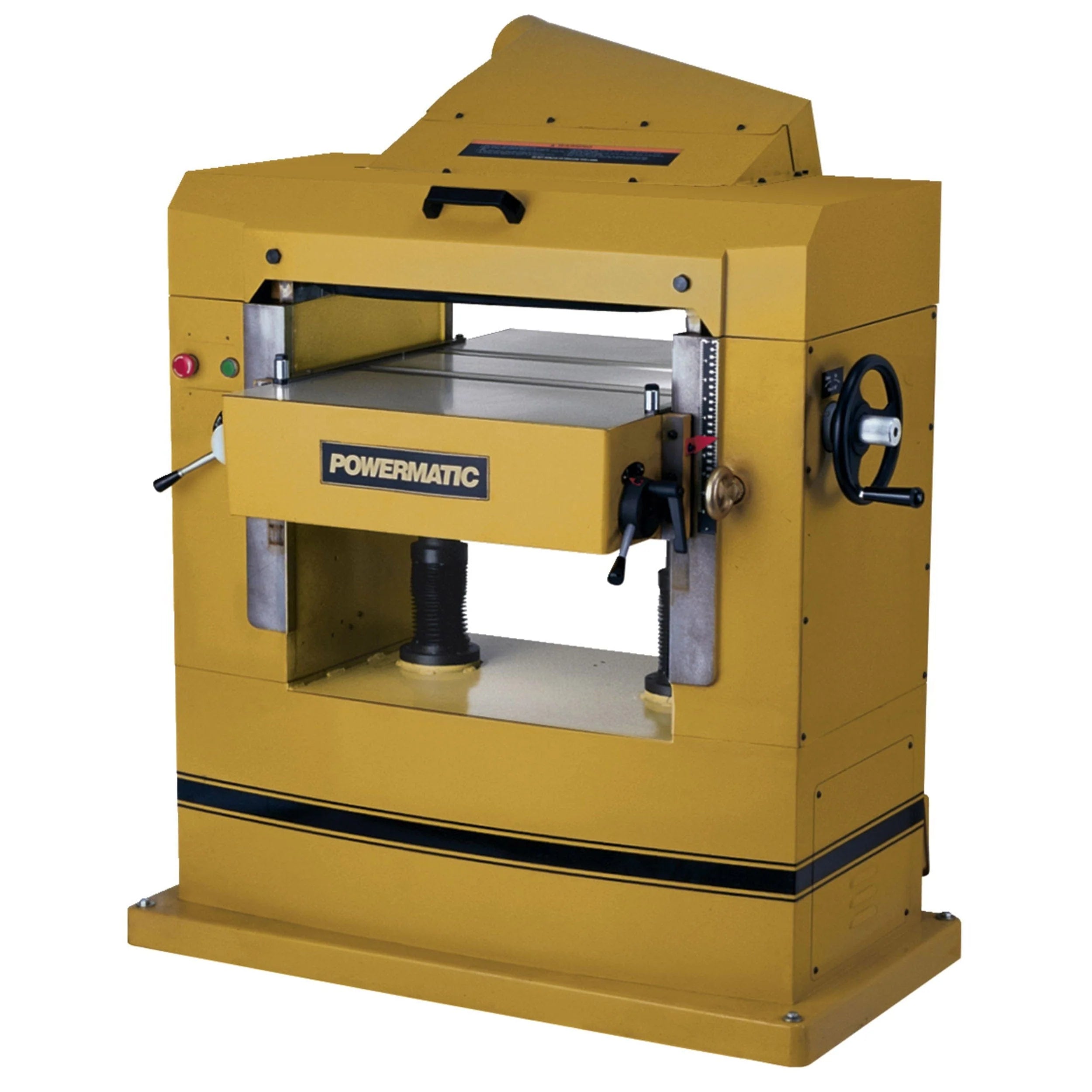

22" Planer 7-1/2 HP 1 Ph 230V - Helical Cutterhead - 201HH

22" Planer 7-1/2 HP 1 Ph 230V - Helical Cutterhead - 201HH

This 1,300-pound heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to...
Availability: Many In Stock
$3,761.70
$12,539.00
$3,761.70
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $3,761.70
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description
This 1,300-pound heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives, and has a 5” dust port for easy attachment to any dust collection system. The cutterhead is a helical design with 150 four sided knife inserts – these produce a superior finish and much quieter operation compared to conventional cutterheads, and the inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7-1/2 horsepower motor, the 201HH Planer is perfect for the small to medium shop with continuous planing requirements.

Features:
Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Cast iron 1,300 lb. construction for solid performance without vibration
2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
Segmented infeed roller with sectional chipbreaker allows multiple board planing
Roller bearing-mounted feed rollers for long life
Adjustable bed rollers allow smooth feeding of rough or finished workpieces
Oversized cast iron table travels on 2 large lead screws for heavy duty support
Specifications:
Dust chute with 5" port for dust collection
Dust collection port
Adjustable foot pads
Tool kit
Bed Rollers Adjustable from Front : 2
Blade Size : 0.59 L x 0.59 W x 0.10 Th
Column Diameter (in.) : 2-1/2
Cutterhead Diameter (in) : 3-1/4
Cutterhead Speed (RPM) : 4800
Dust Collection Minimum CFM Required : 900
Dust Port Diameter (OD/in) : 5
Feed Rate (FPM) : 20 and 30
Height (in): 59
Infeed Roller Diameter (in) : 3
Length (in): 42
Maximum Depth of Cut (in) : 3/16
Maximum Height of Rollers Parallel to Tabletop (in) : table rollers - 0.05
Maximum Planing Thickness (in) : 9-1/4
Maximum Planing Width (in) : 22
Minimum Planing Length (in) : 10
Motor HP : 7.5HP
Motor Phase : 1PH
Motor Voltage : 230V
Net Weight : 1,350 pound
Number of Knives : 150 four-sided inserts
Number of Speeds : 2
Outfeed Roller Diameter (in) : 3
Overall Dimensions : 42 x 49 x 59
Part Number : 1791267
Readout Scale : mm/in
Segmented Infeed Roller Diameter (in) : 3
Table Height Adjust Manual : 1 Turn = 1/16
Table Size (in) : 32-1/4 x 24
Table Support : 2-column
Tool Supplied : Yes
Width (in): 49
Shipping weight 1,430 lb.

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 4 -7 approximately business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
