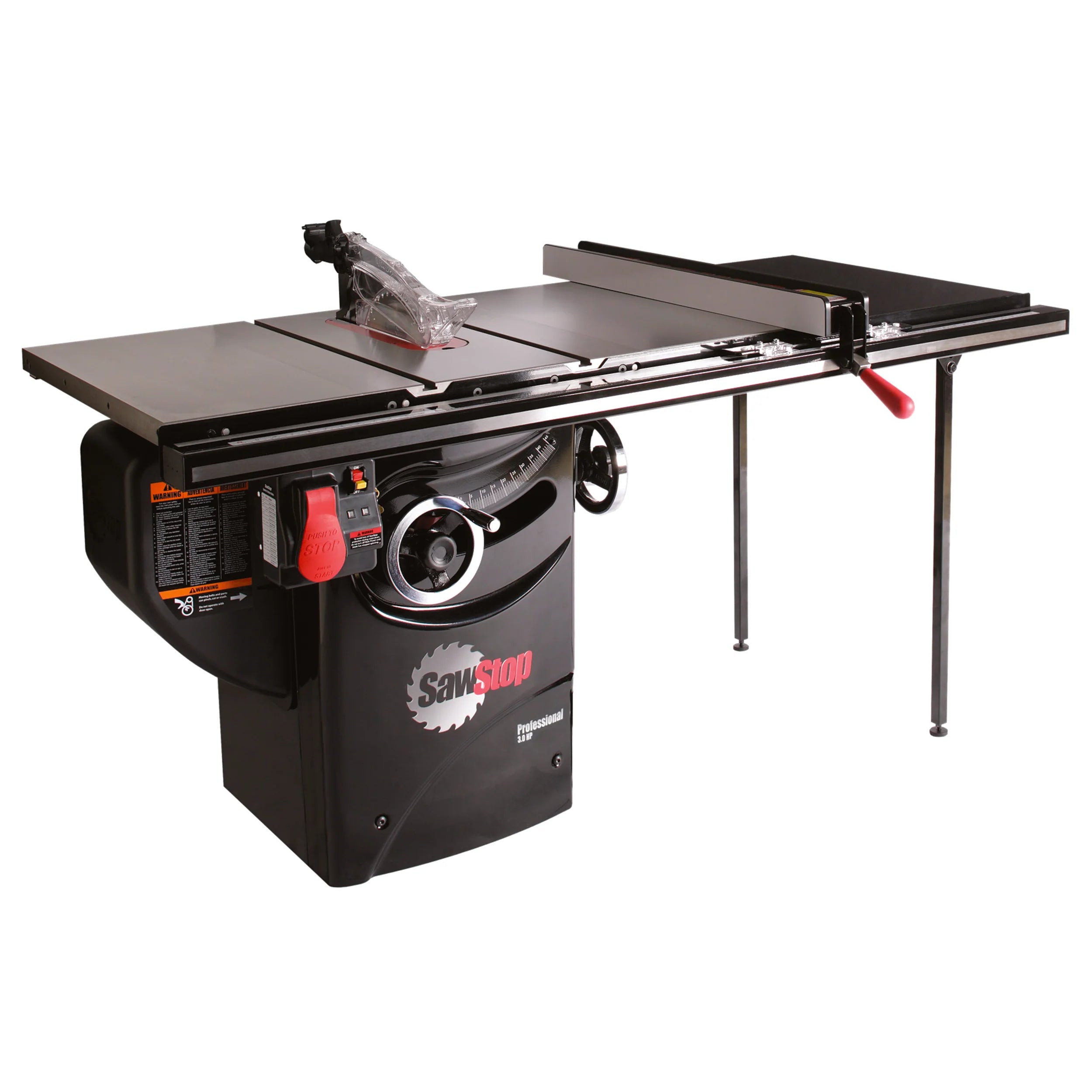

3 HP Professional Cabinet Saw - 230V 1-Phase - 36" Professional T-Glide Fence System

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Dust-Collection Blade Guard
• 36" Professional T-Glide Fence System provides smooth operation and precise measurement

• Product Type: Cast Iron Table Saw
• Overall Saw Dimensions (W x D x H): 69-1/8" x 33" x 34"
• Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
• Cast-Iron Table (W x D): 20" w x 27" d
• Cast-Iron Table Size with Extension Wings (W x D): 44" w x 27" d
• Motor: 3 HP, 1-Phase, 230V, 13A
• Weight: 426 lbs.
• Blade: 40-tooth, professional grade, 5/8" arbor
• Blade Diameter: 10"
• Blade Tilt: left
• Blade Kerf: 0.118" (3 mm)
• Blade Plate Thickness: 0.078"
• Maximum Depth of Cut - Blade at 0º: 3-1/8"
• Maximum Depth of Cut - Blade at 45º: 2-1/4"
• Maximum Rip - Left of the Blade: 12"
• Dado Diameter: 8" (requires a separate brake cartridge and table insert)
• Maximum Dado Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Table in Front of Blade - Maximum Elevation: 10-1/4"
• Table Behind the Blade - Maximum Elevation: 7-1/2"
• Table Flatness Measured Diagonally: 0.010" maximum gap
• Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-Collection Port Diameter: 4"
• Riving Knife/Splitter Thickness: 0.078" (2 mm)
• Blade guard: polycarbonate, extends only 5/8" to right of blade
• Insert: zero clearance, steel core, ABS surfaces
• Belts: 2 V-ribbed belts – arbor belt is static dissipative

• (1) SawStop PCS™ 3HP Table Saw Body
• (1) Professional Series 36" Extension Table
• (1) T-Glide Pro Fence
• (1) T-Glide Pro 36" Rails

FAQs

What dust collection setup is recommended with this saw?

This saw is designed to connect to a 4" dust collection port below the table for use with a dedicated dust collector. For best performance, SawStop recommends adding the over‑arm dust collection system, which captures dust above the blade and works with the included shrouding around the blade to significantly improve overall dust removal.

What are the electrical and phase requirements for this 3 HP cabinet saw?

This model requires 230V power, single‑phase electricity, and draws approximately 13 amps. It uses a 3 HP motor and is designed to be connected to a dedicated 230V circuit, typically with a NEMA 6‑15P plug, making it suitable for home and small professional shops with 230V service available.
