4-Way Pressure Clamping System

The WoodRiver® 4-Way Clamping System applies equal pressure from all four directions (top, bottom, and both sides)....
Availability: Many In Stock
$15.00
$49.99
$15.00
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $15.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.

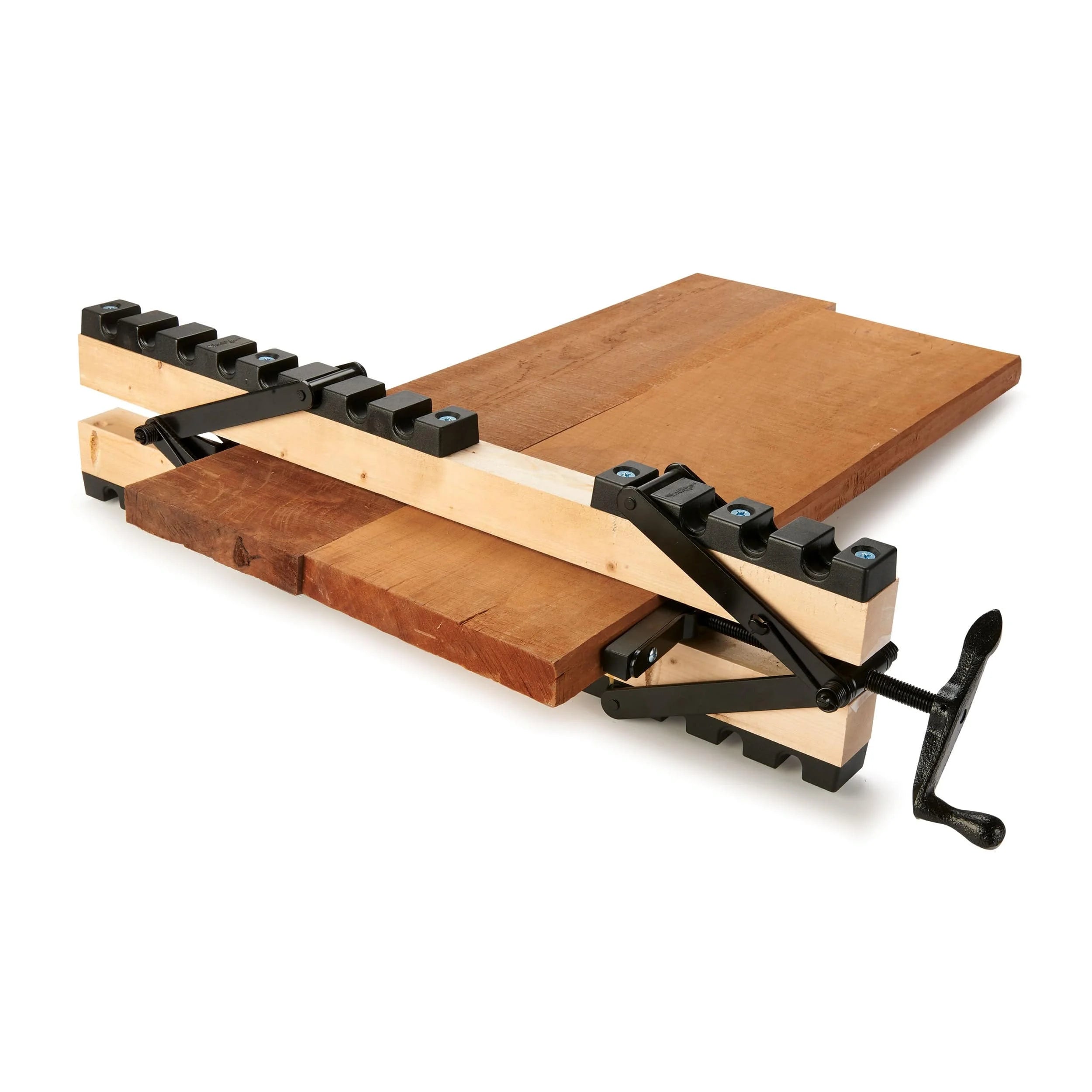

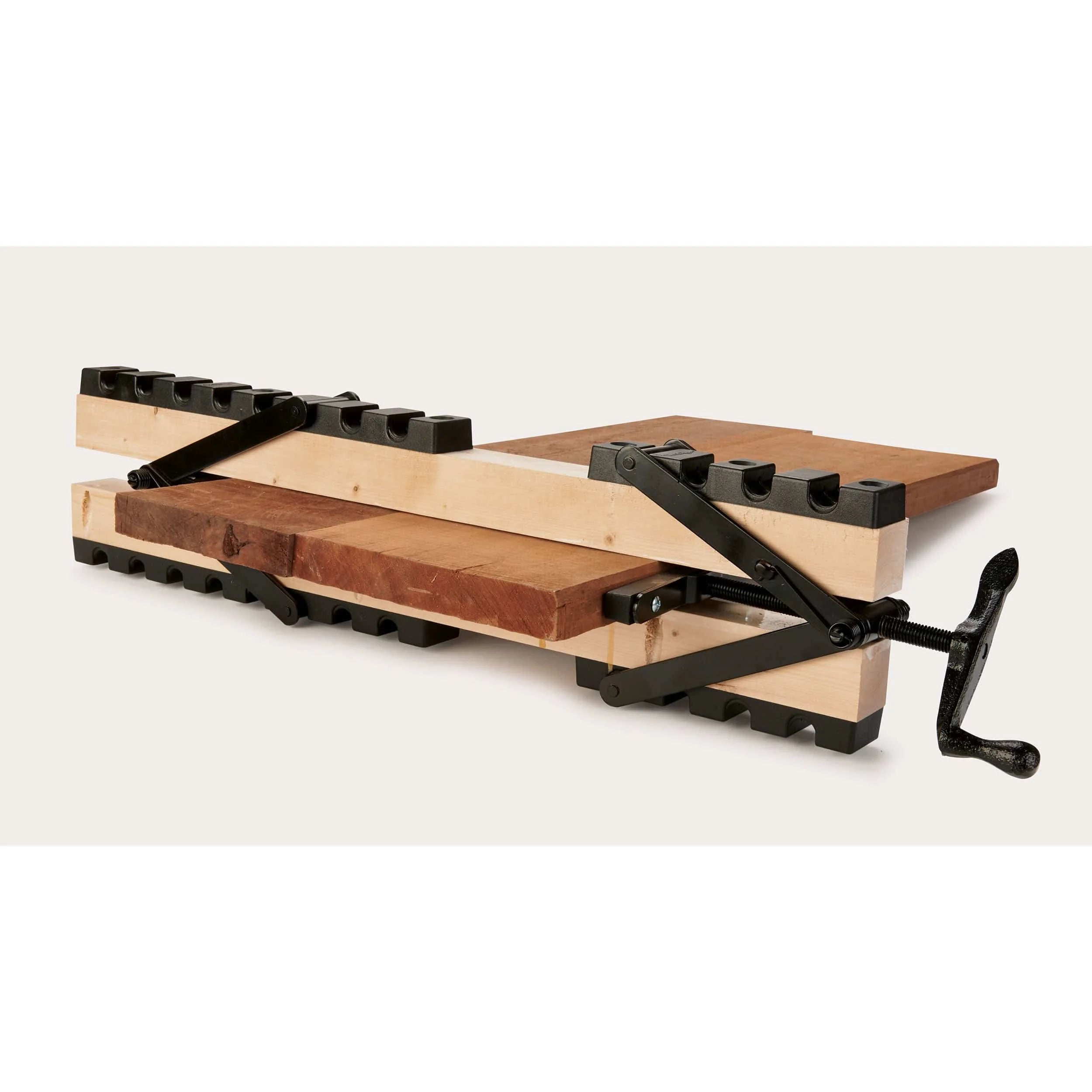

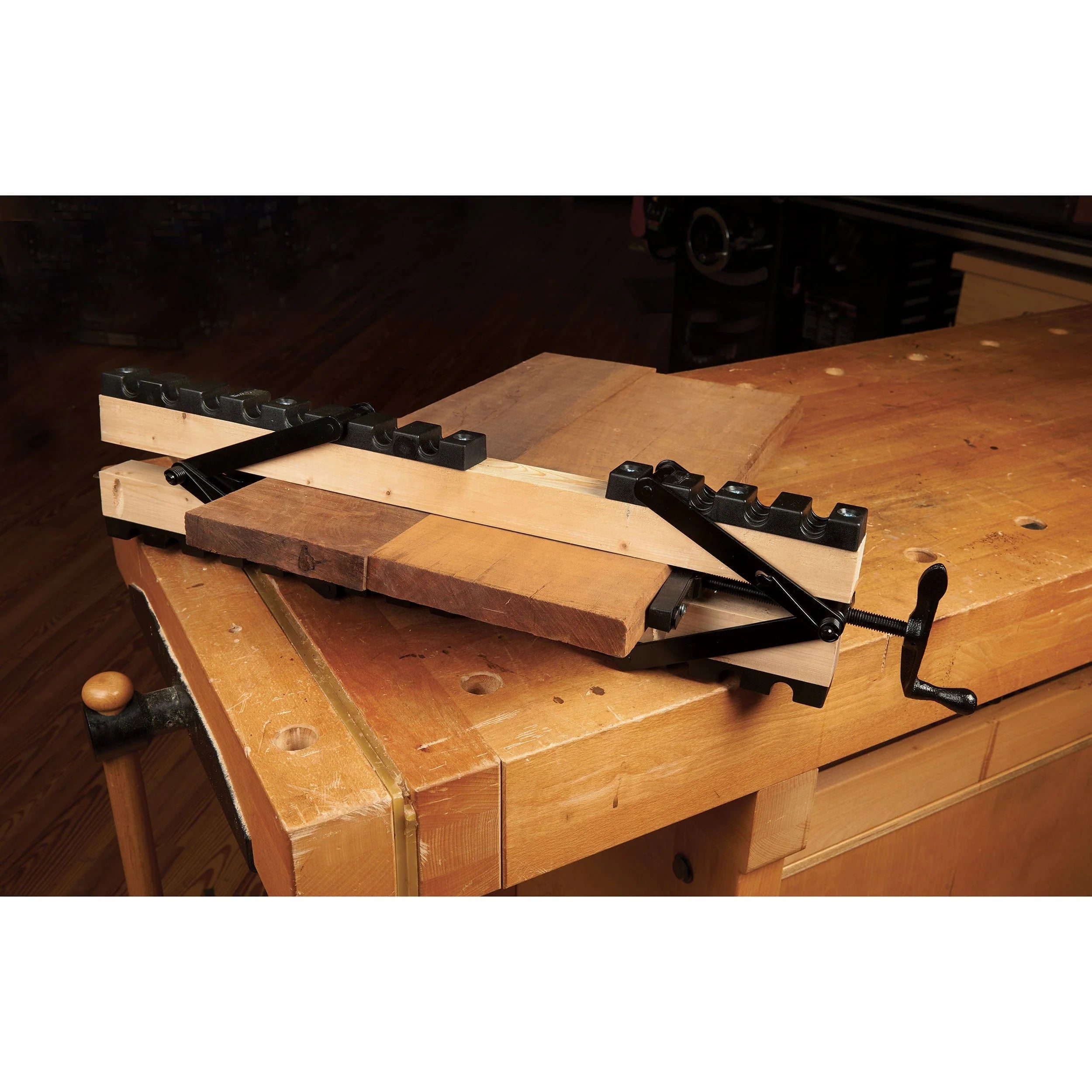

The WoodRiver® 4-Way Clamping System applies equal pressure from all four directions (top, bottom, and both sides). The ideal clamping system for gluing table tops, shelving, veneer, and laminates. This clamping system uses plastic pressure pads and two 19-1/2" tough plastic tail bars with 12 notches to handle a variety of stock widths. It can be used on boards up to 6" thick. Attach the clamps to any length 2 x 2's with the screws provided, set the jig and turn the handle to tighten (on large pieces, position every 12"- 18" for maximum clamping efficiency).

Features:

  • Four-way pressure clamping system
  • Applies equal pressure on all four directions
  • Variety of uses: table tops, shelving, veneers, laminates, and more.

Specifications:

  • Clamps under 36" long: use one 2x4 ripped in half
  • Clamps over 36" long: it is recommended that you attach the clamps to a full 2x4 on both sides
  • Clamp capacity: 6" thick

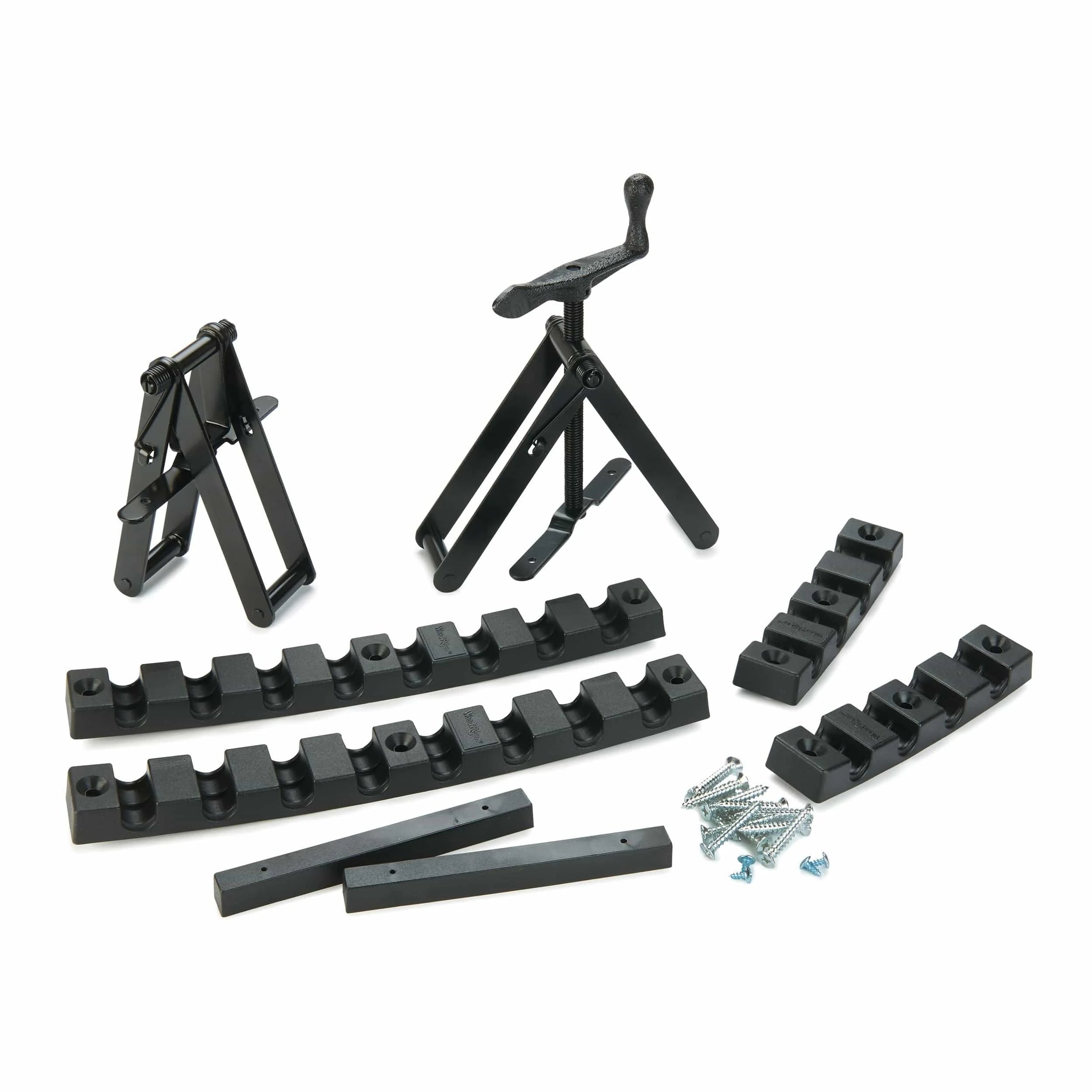

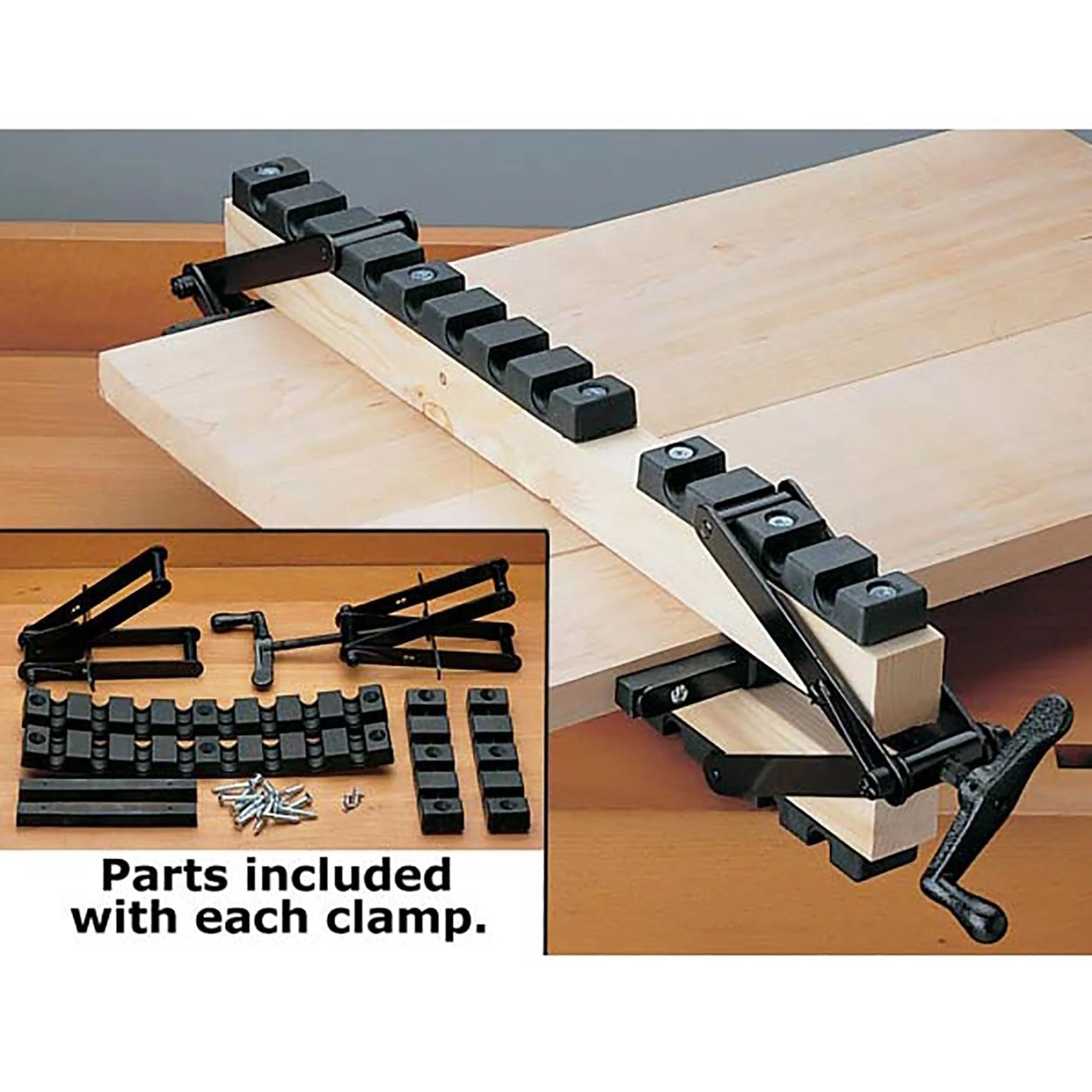

What's Included:

  • (2) Clamp ends
  • (2) Short notched bars
  • (2) Long notched bars
  • (1) Set of screws
  • (1) Complete instructions

Notes:

  • Kit includes hardware to make one 4-way clamp assembly
  • 2 x 4's (2 x 2's) not included.
  • Replacement "long" and "short" notched plastic clamping bars are available separately and may be used to make clamps in multiple sizes.
