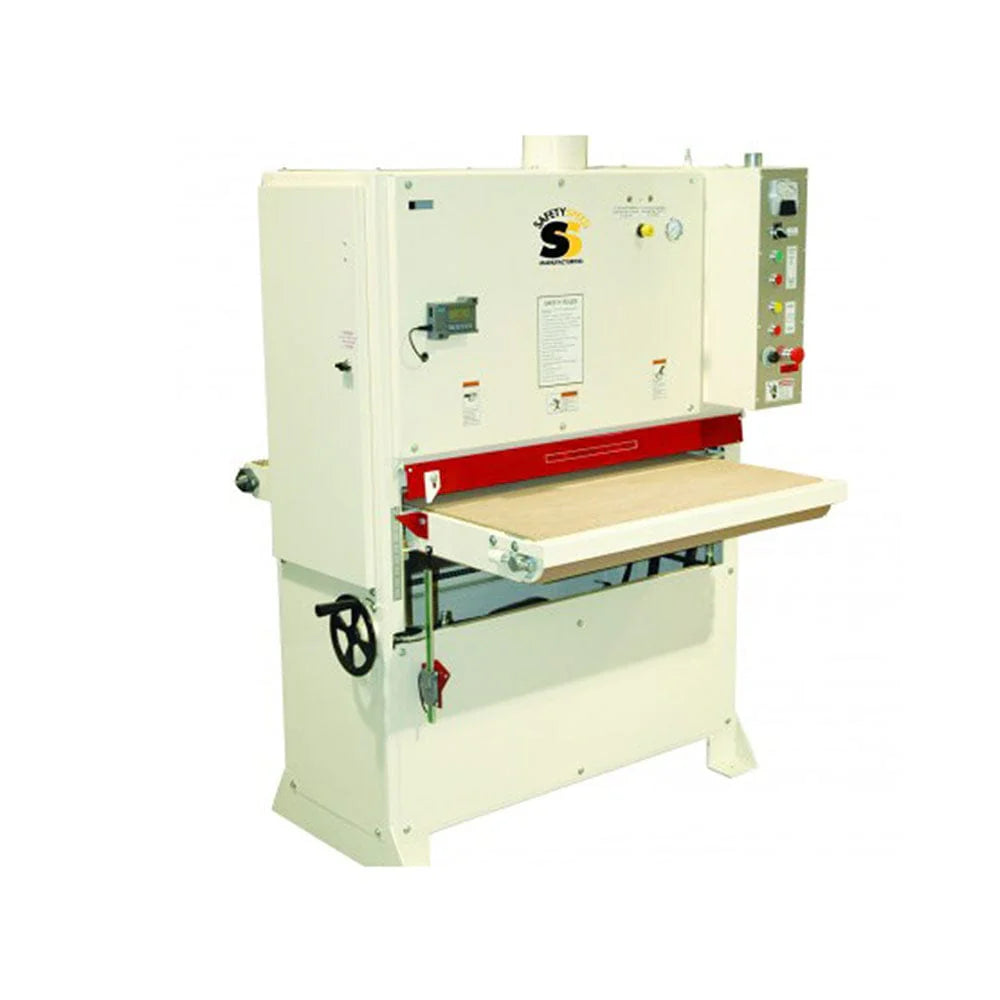

43" x 75" Wide Belt Sander - 20 HP - 3 PH

Take on the toughest sanding jobs with the Safety Speed 43" x 75" Wide Belt Sander, designed for industrial power, accuracy, and reliability. Powered by a 20 HP motor with 3-phase operation, this sander delivers smooth, precise finishes on hardwoods, softwoods, veneers, and large panels. With a wide 43" sanding capacity and 75" belt length, it’s built for cabinet shops, furniture makers, and professional woodworking facilities that demand consistent, high-quality results.

This wide belt sander comes equipped with advanced features to improve performance and operator safety. Photo-electric belt tracking maintains accurate alignment throughout operation, while pneumatic belt tensioning ensures dependable performance and smooth sanding. A 2-1/2" removable platen and dual height adjustment indicators make setup and adjustments fast and precise. For safety, five emergency stops are strategically positioned.

The material handling system is engineered for consistency and durability, featuring two rubber-covered pinch rollers (1-1/2" OD), a heavy-duty rubber-covered contact roller (4-1/4" OD) with a 1-3/8" drive bearing, and two machined idler rollers (2-3/16" OD) with 3/4" bearings. The conveyor table is supported by four 3/4" acme-threaded jackscrews for stability, powered by a 1 HP conveyor motor that ensures steady feed rates. A 6" internal dust chute helps maintain a cleaner, safer shop environment.

Built to last and backed by Safety Speed’s reputation for quality, the 43" x 75" Wide Belt Sander is the ultimate solution for shops that need efficiency, precision, and industrial-grade durability.

Features:

• Photo-electric belt tracking for accurate alignment
• Removable platen for versatile sanding applications
• Two height adjustment indicators for precise control
• Five emergency stops for enhanced operator safety
• Two rubber-covered pinch rollers
• Rubber-covered contact roller with drive bearing
• Two machined idler rollers with bearings
• Conveyor table supported by four 3/4" acme-threaded jackscrews
• Pneumatic belt tensioning for reliable performance
• 6" internal dust chute for effective dust collection

Specifications:

• Minimum working length: 12”/305mm
• Main Motor: 20HP – 3PH Electrical (industrial)
• Maximum working thickness: 7-1/4”/184mm
• Minimum working thickness: 1/8”/3mm
• Vacuum requirement: 1000 CFM
• Conveyor speed: 0-18FPM
• Durometer of contact roller: 60
• Sanding belt size: 43” x 75”
• Weight: 1789 lbs.
• Dimensions 60” x 60” x 71”
• 20 HP – 3PH (industrial) Electric
• MADE IN THE USA

What's Included:

• (1) Safety Speed 43" x 75" Wide Belt Sander - 20 HP - 3 PH
