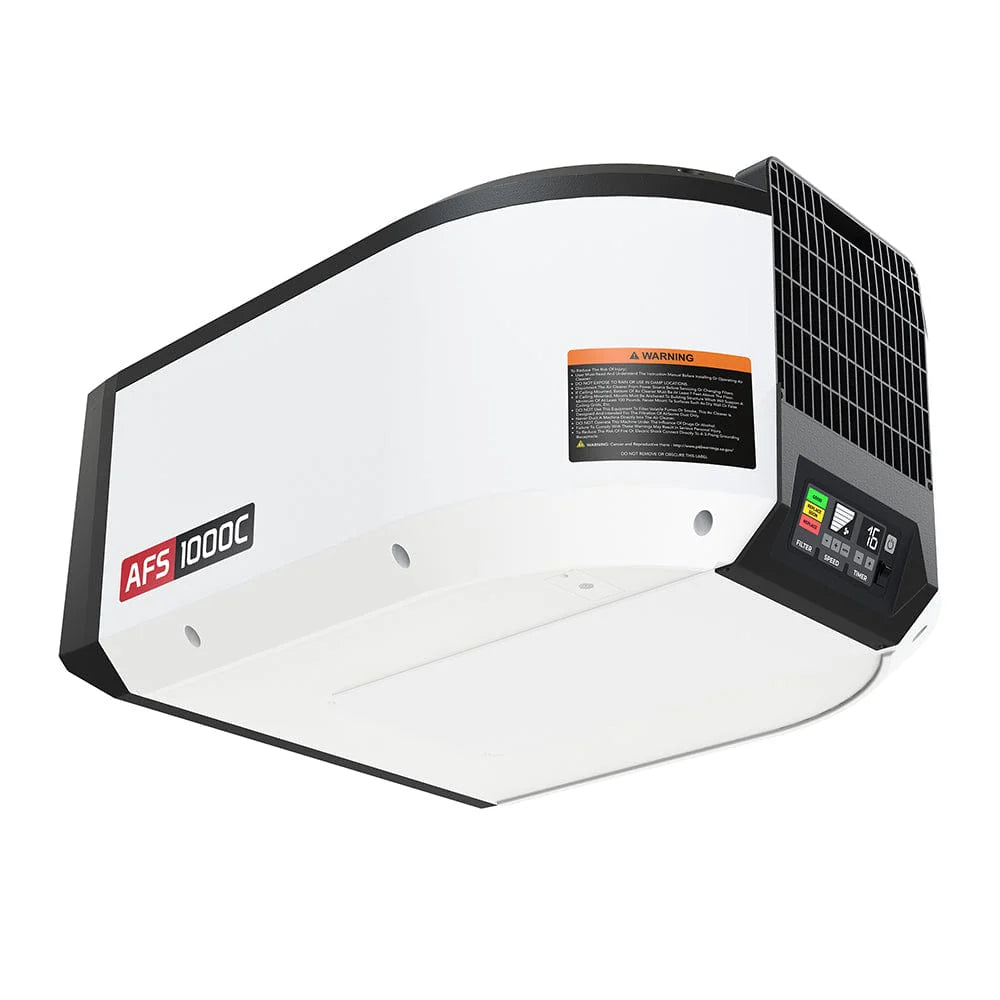

Air Filtration System - 1000 CFM 1 Ph 120V - AFS-1000C

• Detects dust levels to adjust fan speed
• Filter life is monitored and displayed on tilted LED display panel

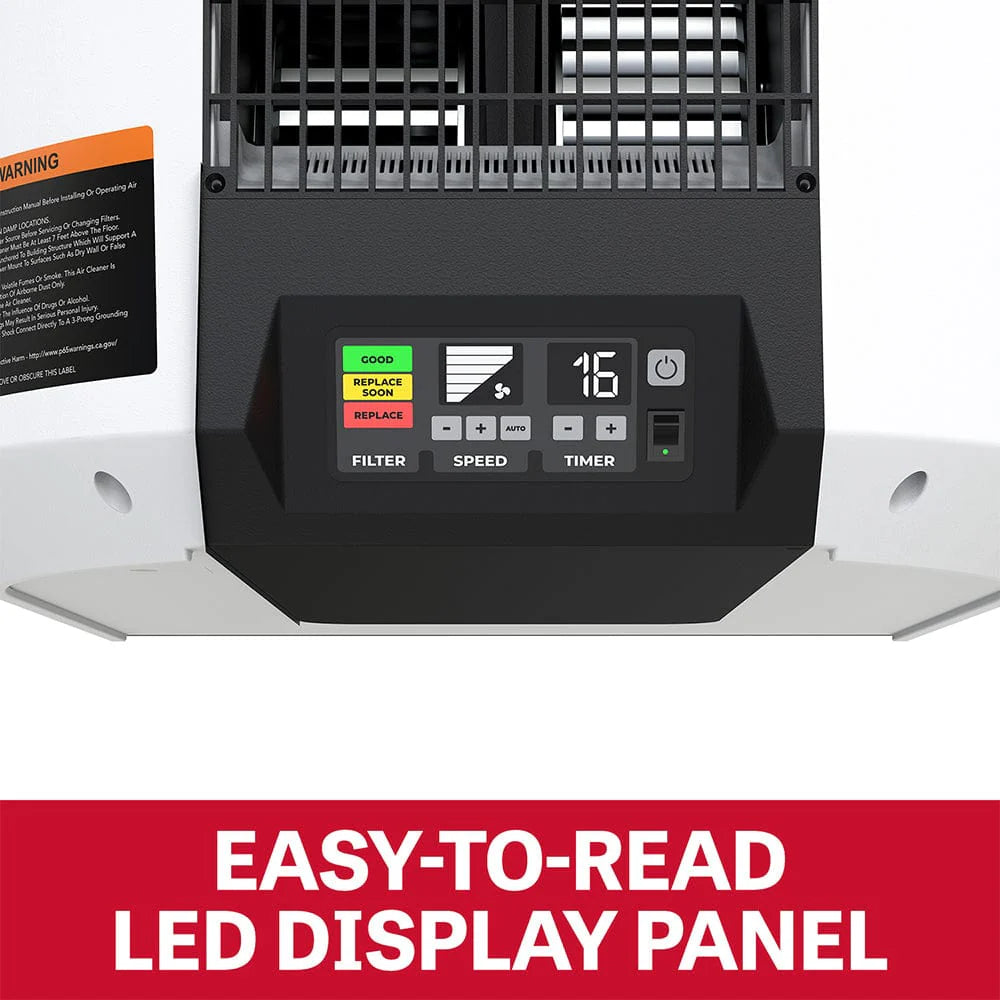

• Bright LED display shows filter life, speed, and timer settings.
• LED Display is angled for easier viewing when ceiling mounted
• Timer can be set up to 16 hours.
• Automatic air quality sensor adjusts the six speeds based on air quality

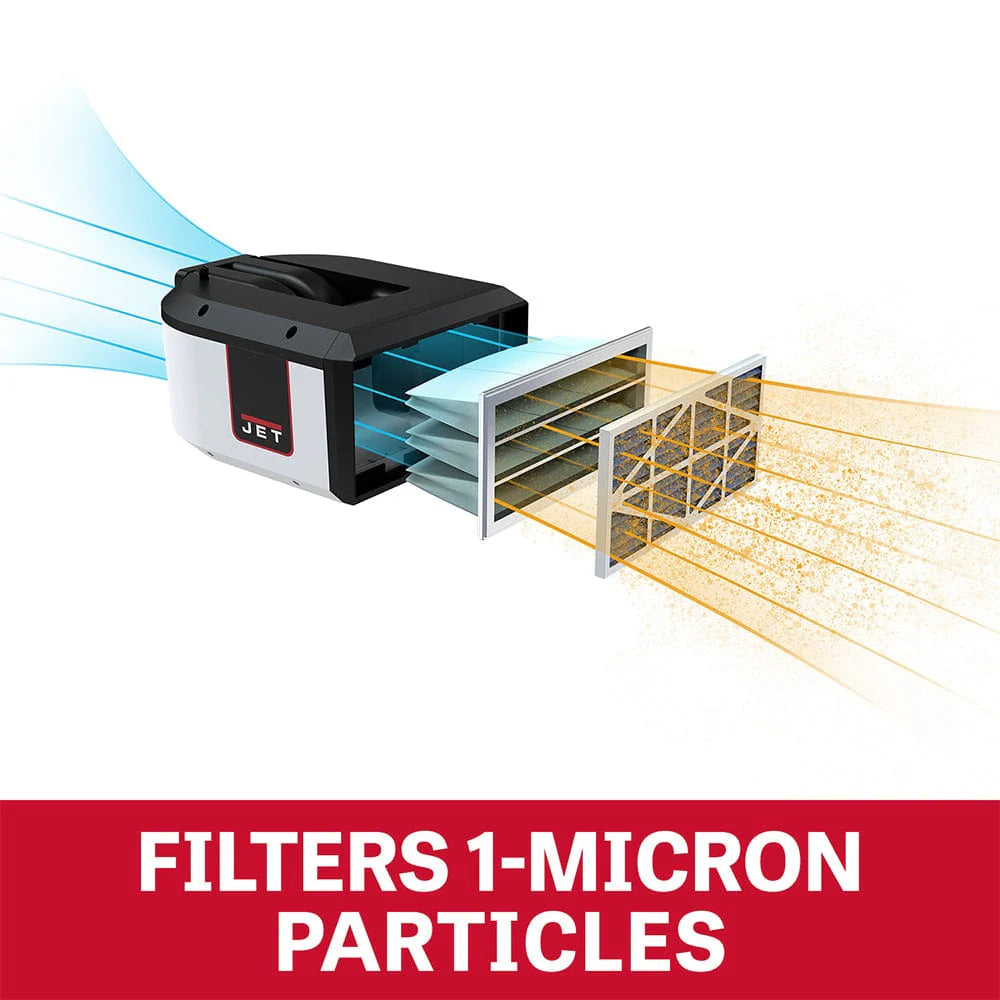

• Two-Filter system with air diffuser that disperses air into a broader pattern
• Captures particles down to 1 micron.
• LED notification of filter life updated by sensor

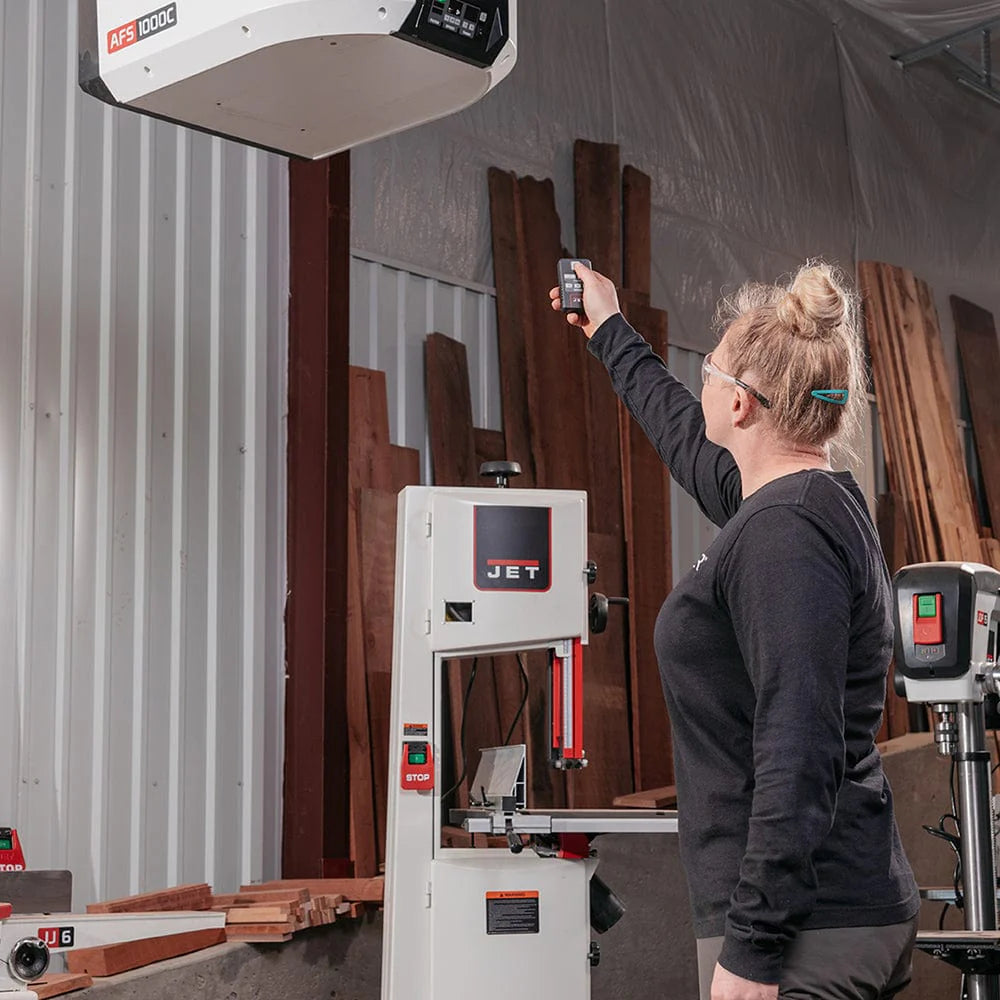

• Radio frequency remote makes adjusting speeds and setting the timer easy

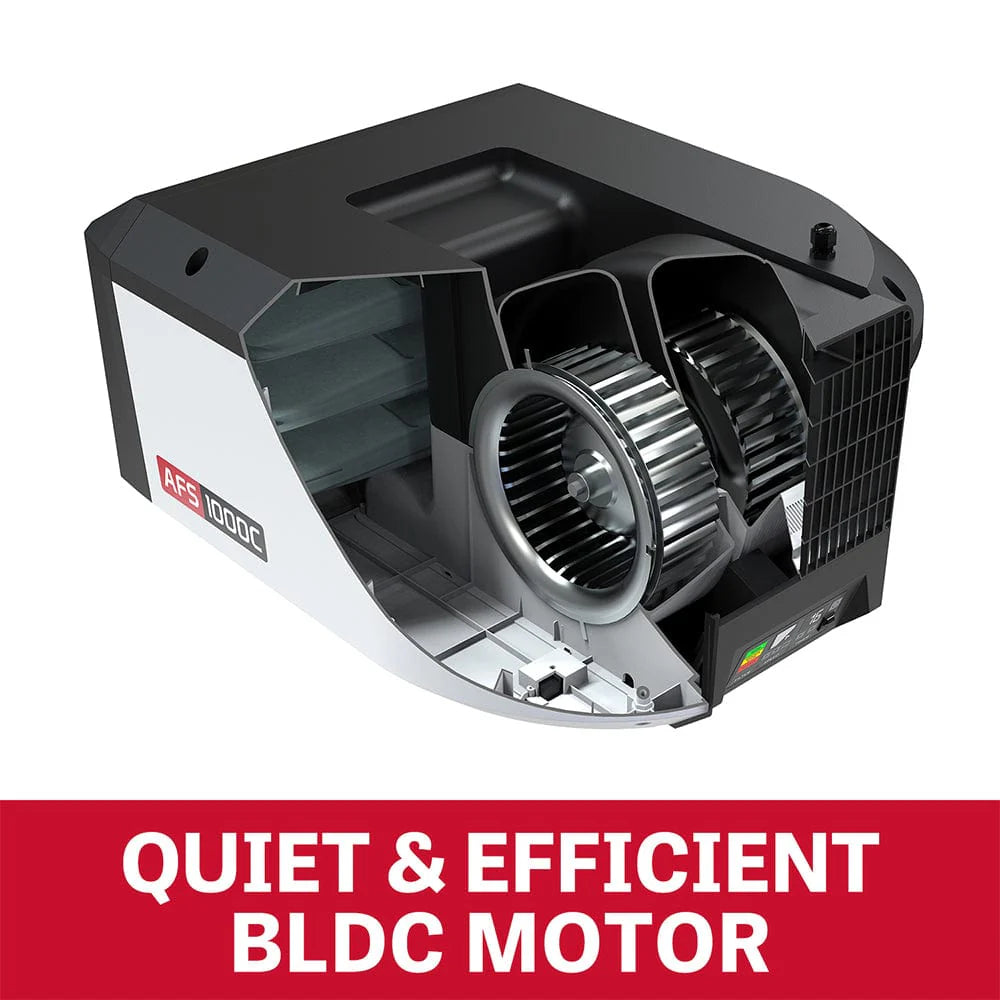

• Quiet and efficient 3PH BLDC motor with a 110V 1PH power requirement
• Strong injection molded plastic dampens vibration and noise

• Product Type: Air Filtration System
• Overall Dimensions: 30-1/8" x 24-1/4" x 15-3/8"

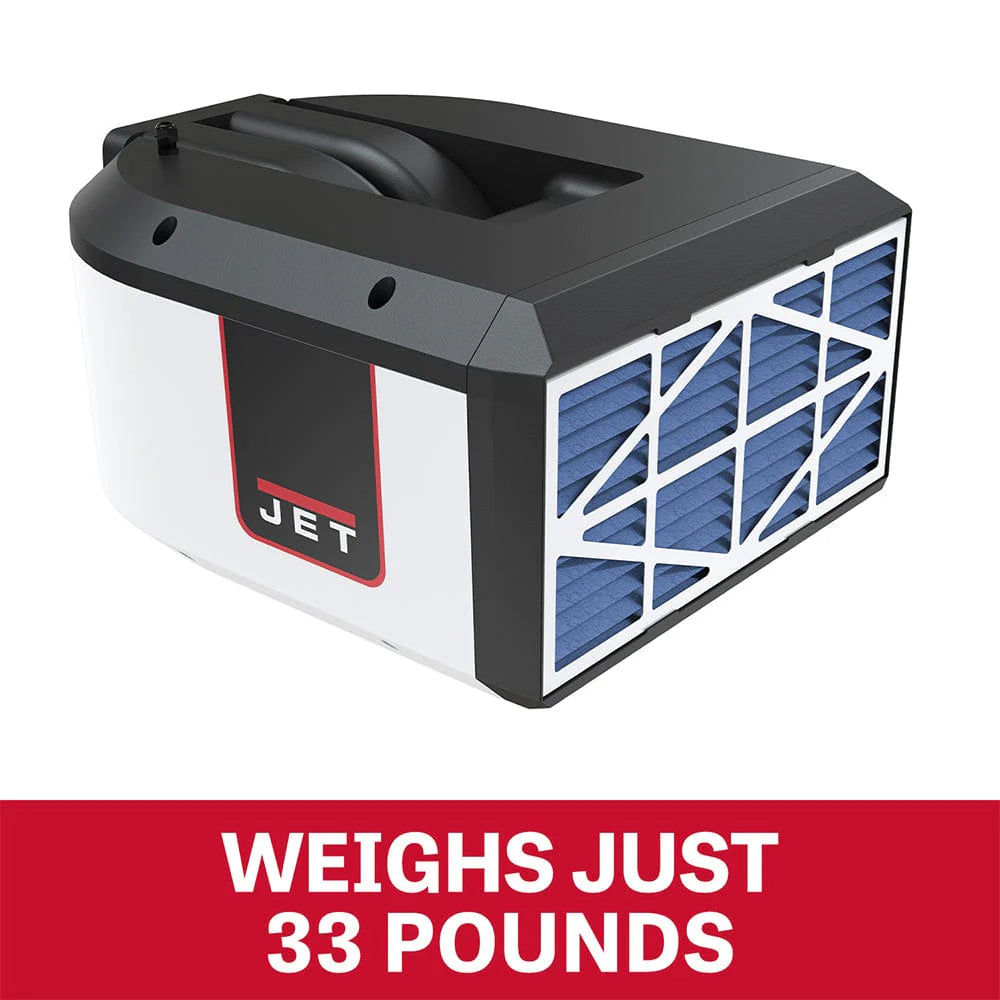

• Net Weight: 33 lbs.
• Motor Type: Brushless Direct Current Motor
• Motor Phase - Output: 3-Phase
• Motor Speed Range: 600-1,100 RPM
• Prewired Voltage: 120V
• Motor Phase - Input: 1-Phase
• Recommended Circuit Size: 15A
• Power Cord: SJT 18 AWG X 3C, 6'
• Power Plug: American Type NEMA (10A/125V)
• Speed Control: Six selectable speeds
• Speed Range: 450 - 1000 CFM
• Inner Filter Efficiency: 1 micron
• Outer Filter Efficiency: 5 micron
• Filter Size (W x H): 24" x 20"
• Sound Rating - Decibels: 51 - 67db @ 1 meter
• Timer Settings - Hours: 1 - 16, adjustable in 1 hour increments
• Digital Remote Control - Transmitter: Radio Frequency
• Remote Battery: CR2032.3V Button Cell

• (1) JET® Air Filtration System
• (1) Remote Control
• (1) 3-Pocket Inner Filter
• (1) Electrostatic Outer Filter
• (4) Eyebolts for Hanging Unit

FAQs

How often do the filters need to be replaced?

Filter life depends on use, but the outer filter is typically cleaned regularly and replaced periodically, while the inner filter lasts longer. Check and maintain them to keep airflow efficient.

Can it be mounted on the ceiling, or does it sit on a bench?

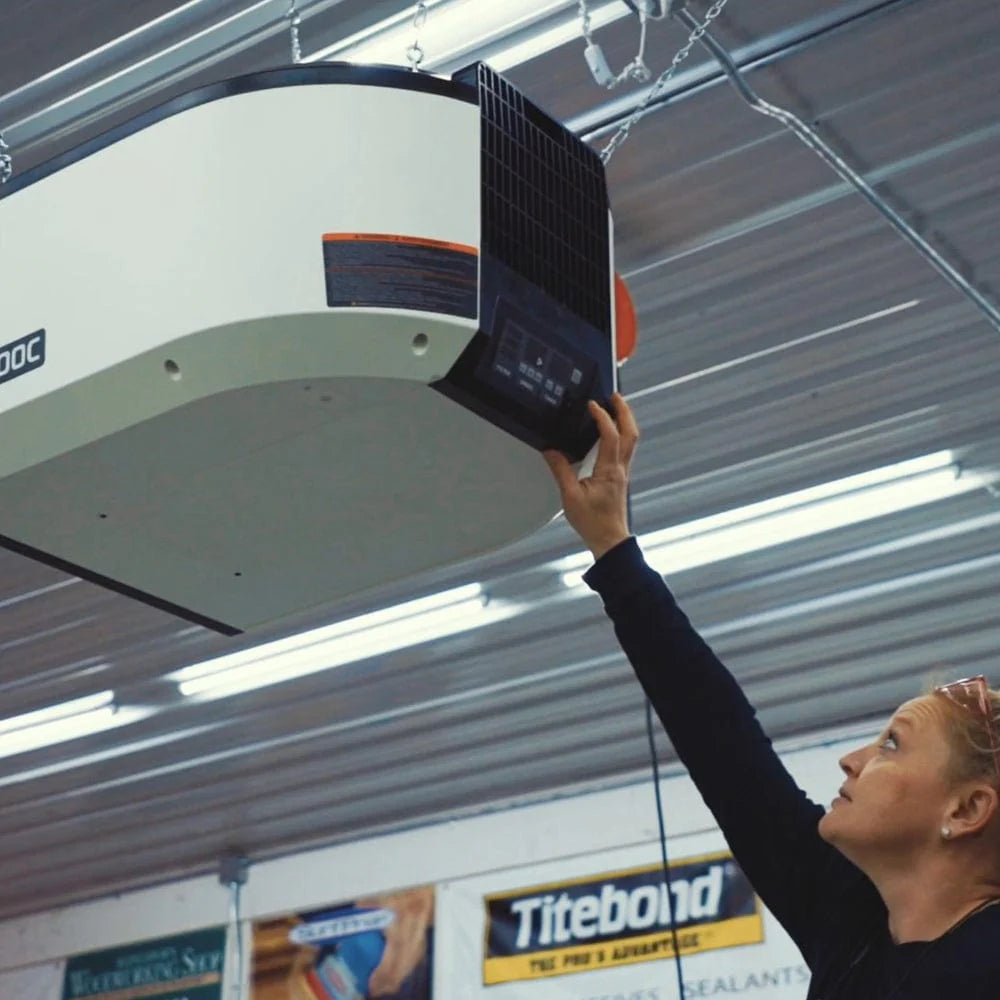

This unit is designed for ceiling mounting, allowing it to circulate air effectively throughout the shop. It helps keep your workspace clear without taking up bench space.

Does it have an automatic shutoff timer?

Yes, it includes a built-in timer that allows you to set it to run for a period and shut off automatically. This is useful for continuing air filtration after you leave the shop.
