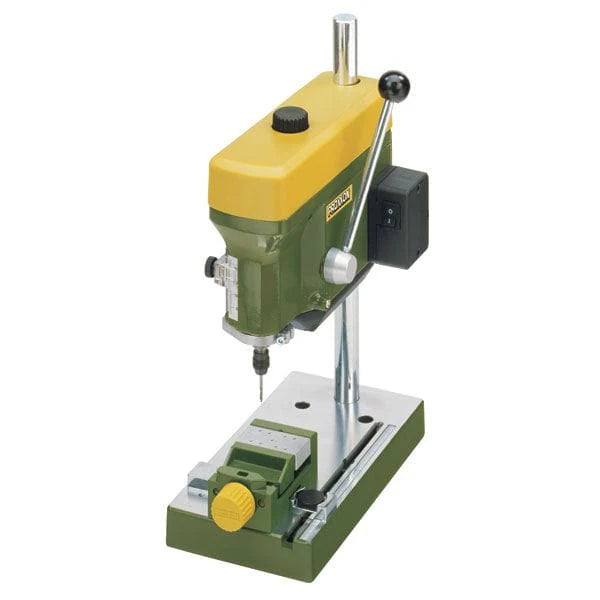

Bench Drill Machine TBM 115 - Model 38128

Drill accurate micro holes down to 1/64" with the Proxxon® Bench Top Drill Press. Three speeds and a machined work table with adjustable parallel fence make this an ideal machine for model-making or other such small work pieces. Features a quiet, powerful, built-in motor with long life expectancy. Power Transmission provides three spindle speeds and triple torque at lower speeds. Chrome feed lever has adjustable drilling depth gauge. Spindle is free of play and recessed for the insertion of collets or 3/8" thread drill chucks. Make quick, coarse height adjustments of the headstock with the clamp lever. Clamp work pieces to the drill press with the machine vise (item #822560) or Micro Compound Table (item #822536), each sold separately.

Features:

• Competent drilling of micro holes down to1/64" (0.5 mm) with extremely high rotational accuracy
• Optimal power transmission via belt drive for three different speeds
• Quiet, powerful, built-in motor with long life expectancy
• Comes with an adjustable drilling depth stop gauge
• Quick and easy headstock height adjustment
• Stable spindle design housed within 3 high quality ball bearing assemblies

Specifications:

• Model Number: Proxxon 38 128
• 110 - 120V, 60 HZ, 85W (0.115 HP)
• 3 Spindle Speeds: 1800, 4700, and 8500 RPM
• Spindle Feed: 1-3/16"
• Quill Diameter (with return spring): 1-1/4"
• Throat Depth (column to drill spindle): 5-1/2"
• Max. Height (worktable surface to spindle end): 5-1/2"
• Work Table Size: 8-1/2" x 4-3/4"
• Hard-Chromed Steel Column size: 11" H x 4/5" diameter
• Collet Sizes: 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm)

What's Included:

• (1) Proxxon® Bench Top Drill Press
• (6) Triple slit MICROMOT precision steel collets
