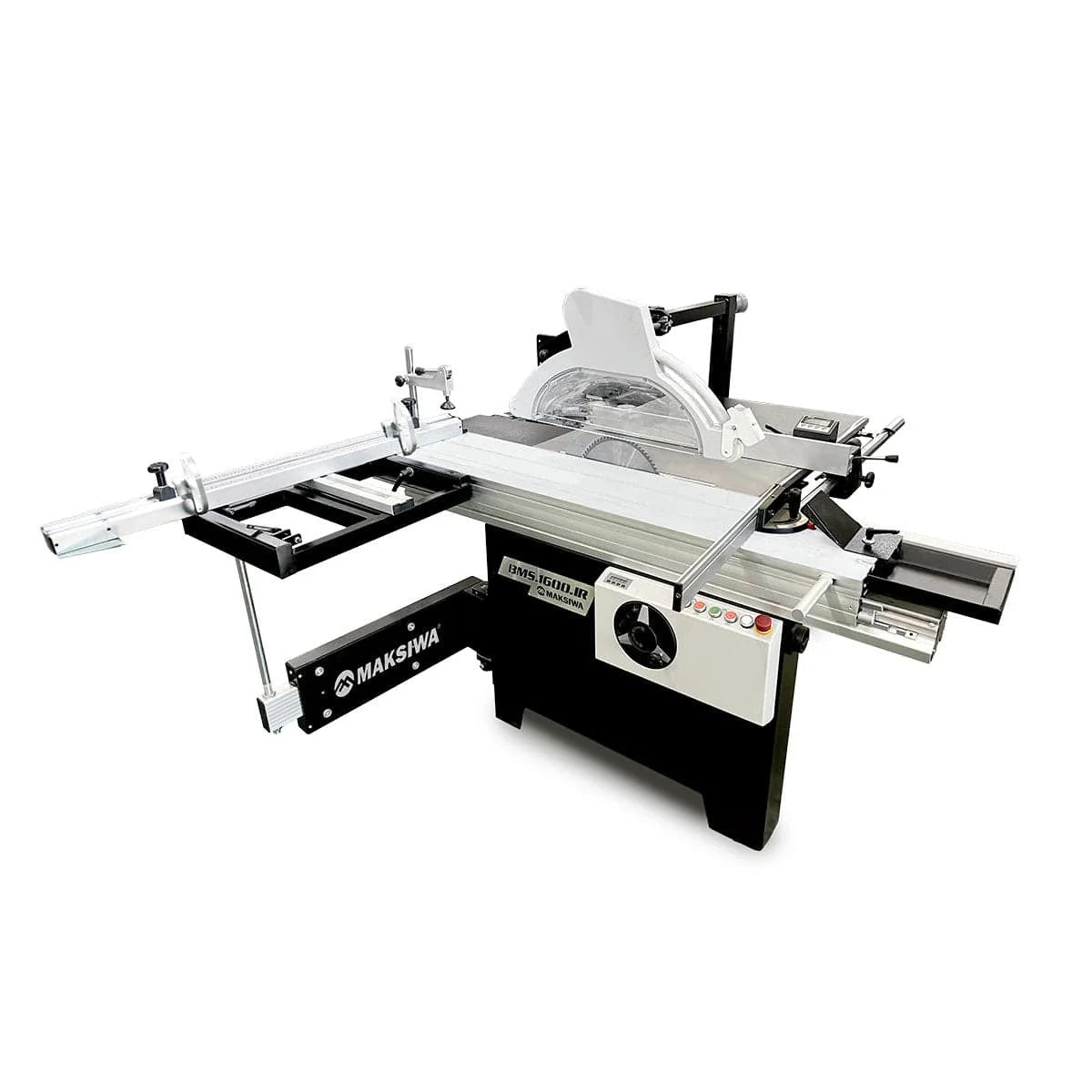

BMS.1600.IR Sliding Table Saw - Dado Edition - 5 HP - 1 PH

• Sliding Table Dimensions: 63" x 14"
• Main Table with Supporting Table: 31.5" x 40"
• Crosscut Fence Collapsed: 50"
• Crosscut Fence Max Extended: 85"
• Rip Fence Bar Solid Steel Micro Polished: 1"

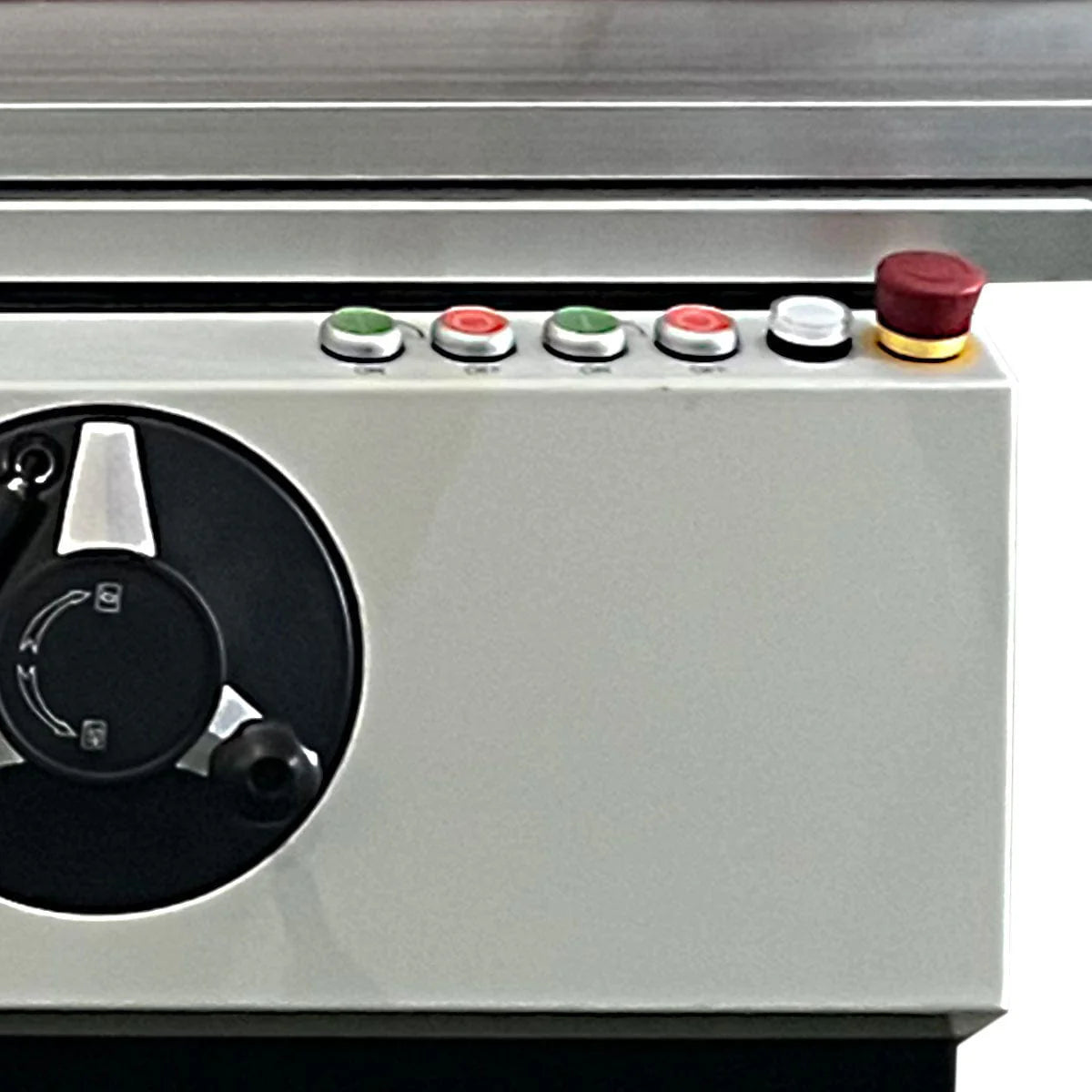

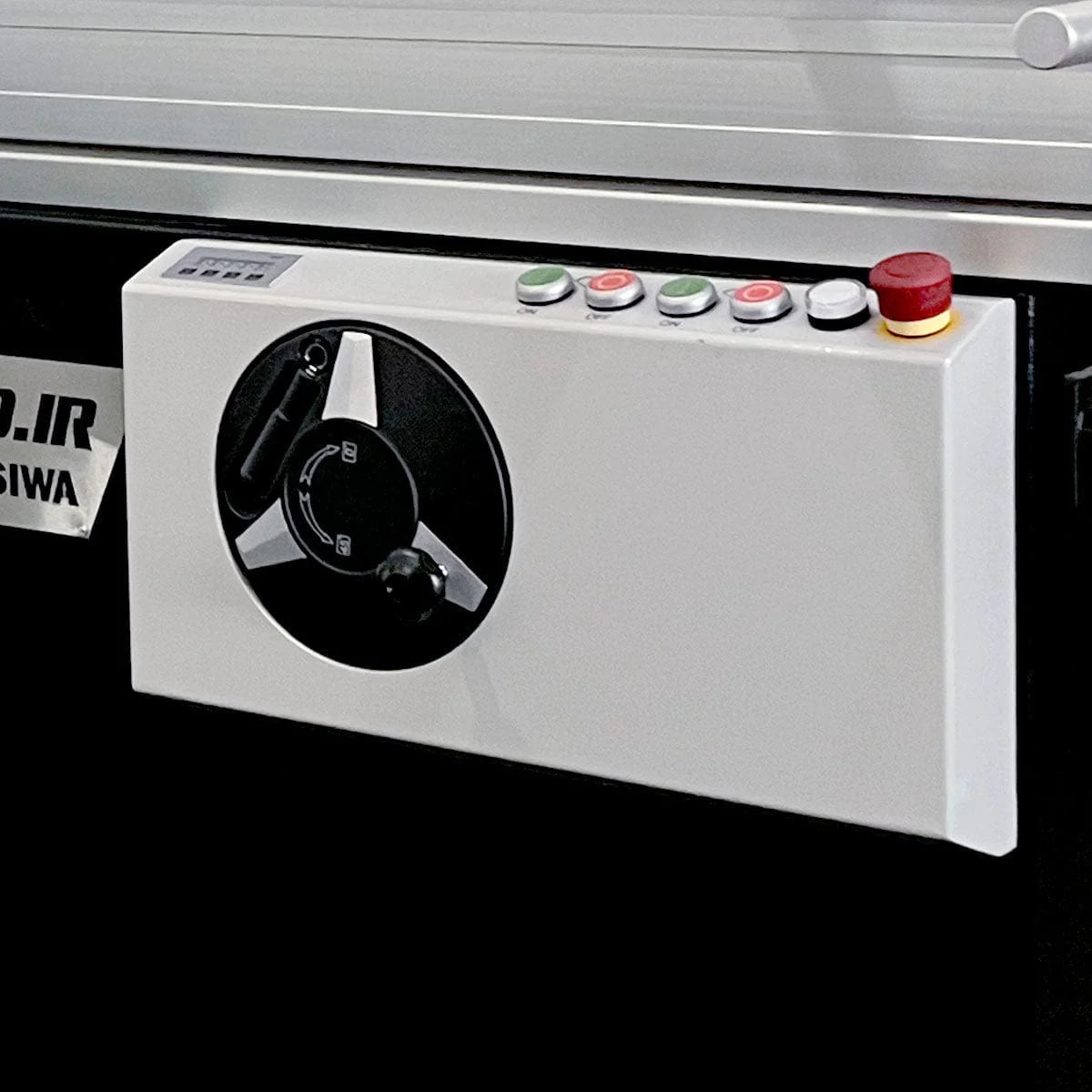

• Emergency Button
• Crosscut Fence Flip Stopper
• Max Tilt: 45 Degrees
• Max Depth Cut: 3"
• Max Cutting Length: 62"
• Max Cutting Height with Blade at 90 Degrees: 3.5"/90mm
• Max Cutting with Blade at 45 Degrees: 2.4"/62mm

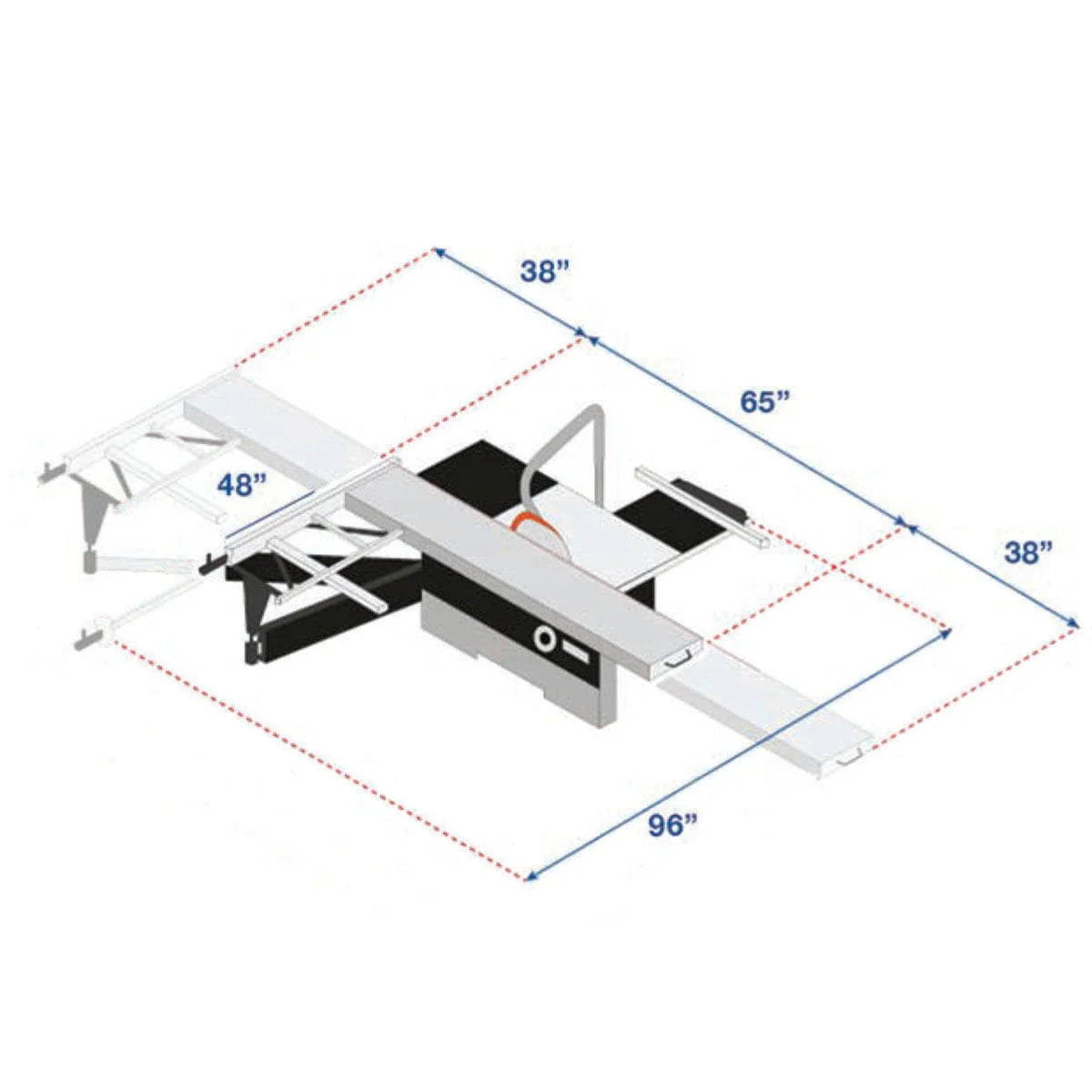

• Machine Dimension (collapsed): 66"L x 98"W x 42"H

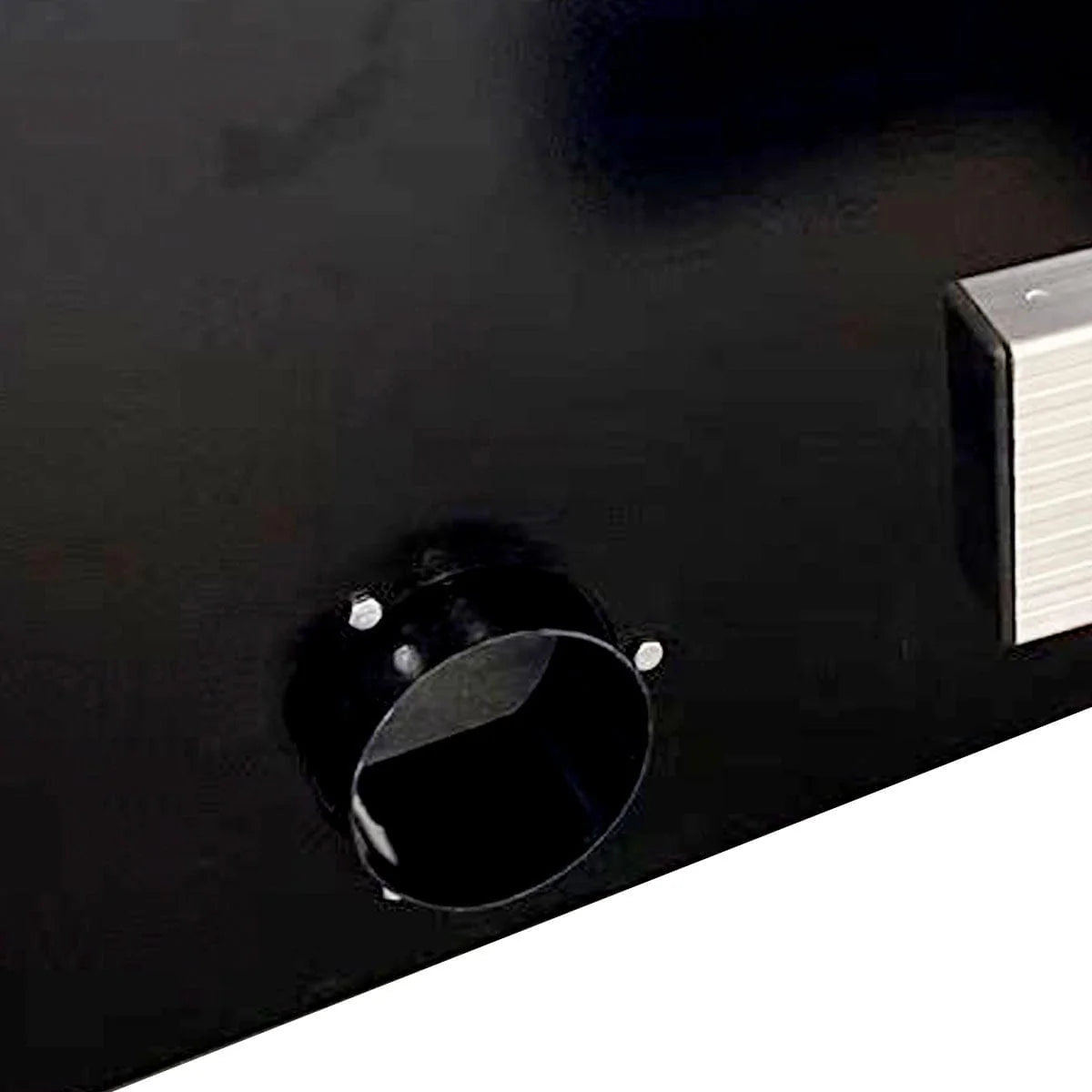

• Main Side Dust Port: 4"
• Motor: 5HP Motor, 1PH 220V
• Main Motor Blade Speed: 4000 RPM
• Scoring Motor: 1HP, 6 Amp, 0.55KW
• Scoring Motor Blade Speed: 8000RPM
• Main Blade Diameter:305mm
• Main Blade Arbor Size: 30mm
• Scoring Blade Arbor Size: 20mm
• New Design, more Ergonomic, Improved Construction and Materials

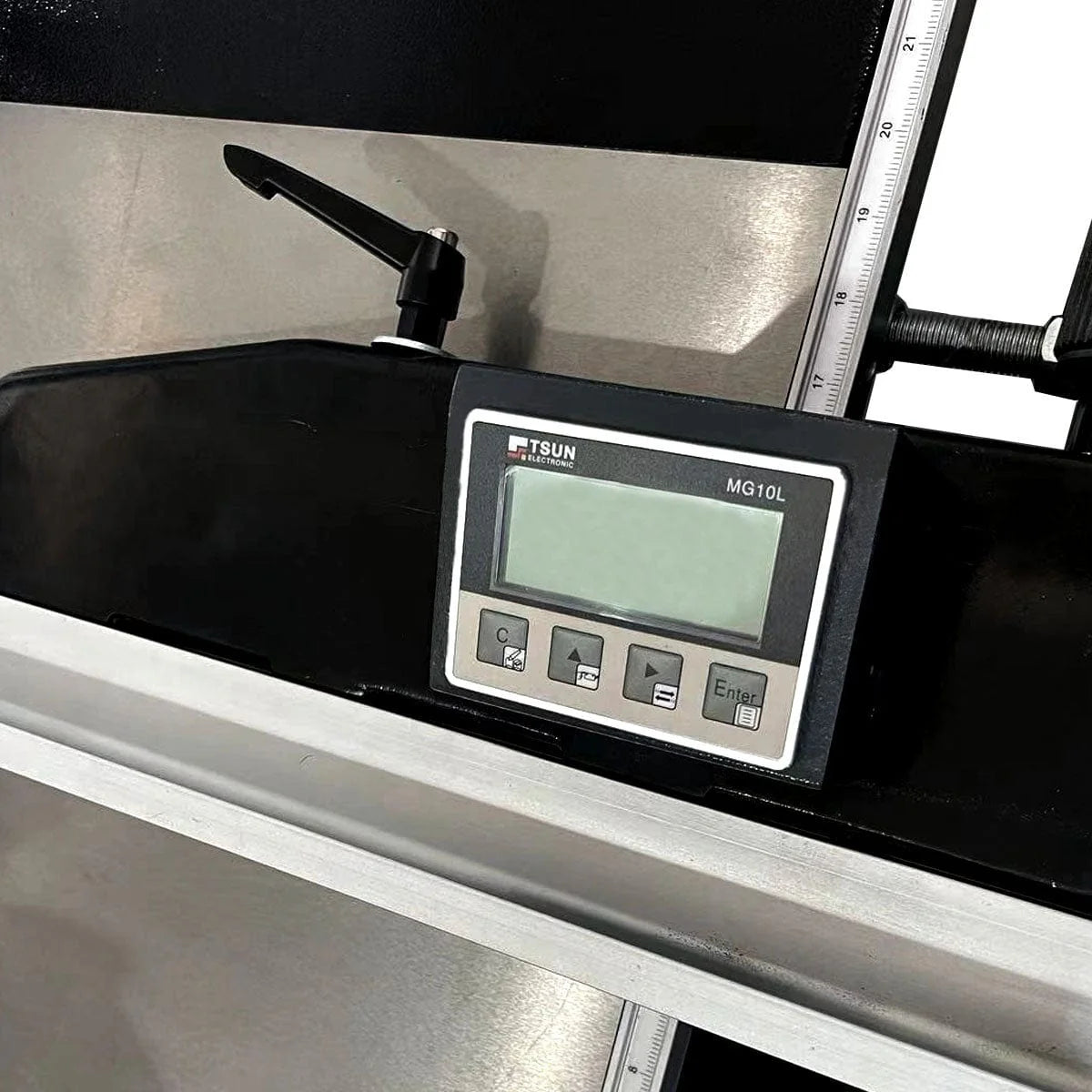

• Digital Rip Fence Read Out
• Dual Blade Covers (straight and bevel cuts
• New Sheet Clamps, Wood Stopper and Slider Handle
• Integrated Dust Collection Exhaust on Swing Away Arm
• 2 Flip Stops
• Adjustable Leveling Feet
• Digital Angle Display 90 degrees to 45 degrees
• Rip Fence with Micro Adjustment
• Set of Blades included (Main 12" & 4-3/4" Scoring

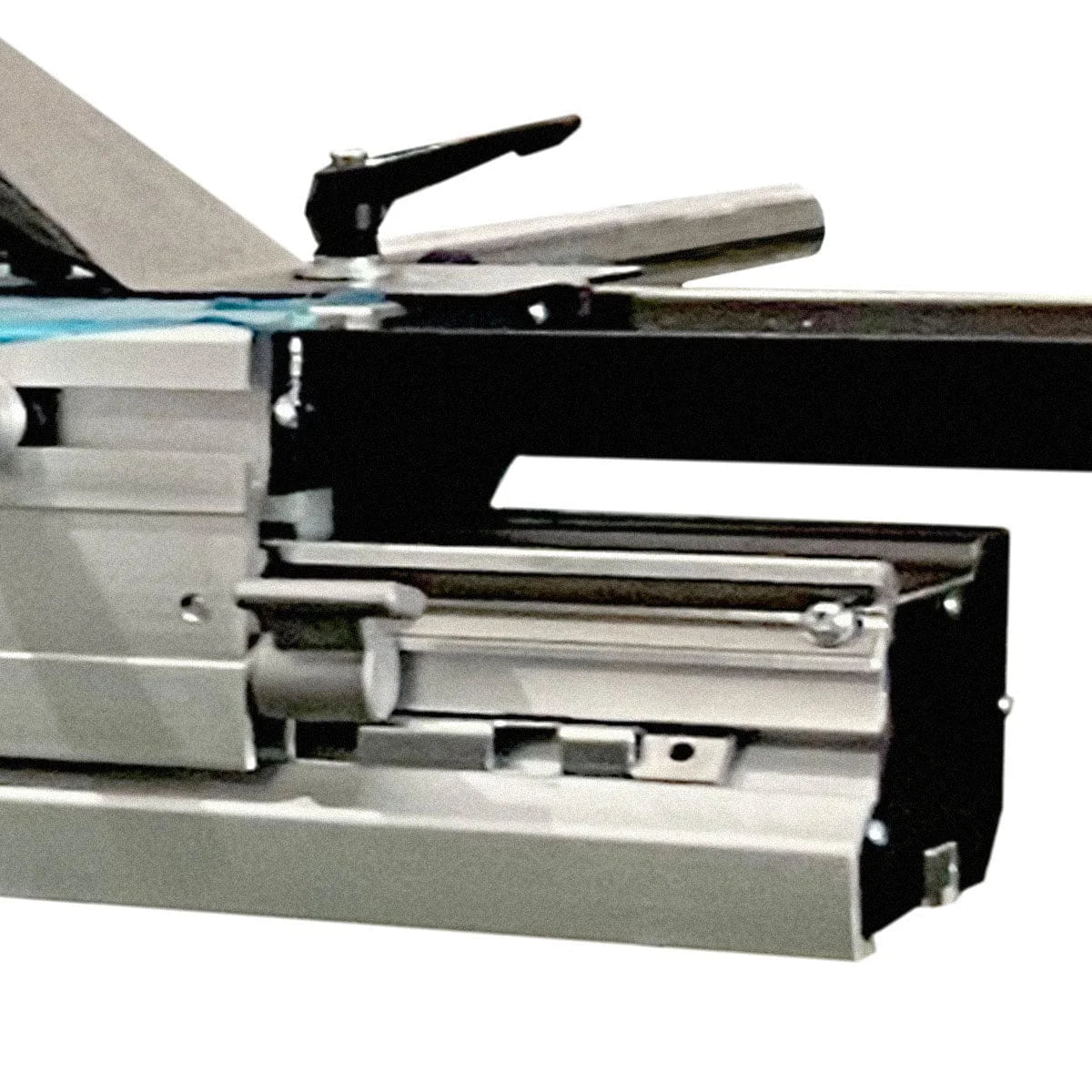

• Sliding Table Mechanism:
• Accepts a Dado Blade

FAQs

What is the maximum sheet capacity and sliding table length?

Sheet capacity and sliding table length vary by configuration, but this saw is designed to handle full-size panels with a long, stable sliding table. It’s built for accurate breakdown of large sheet goods.

What accessories, fences, scoring units or drives are included?

The saw typically includes a sliding table, rip fence, crosscut fence, and basic hold-downs, with some models offering a scoring unit. Always check the specific package details to confirm included components.
