Concealed Hinge Drilling Jig

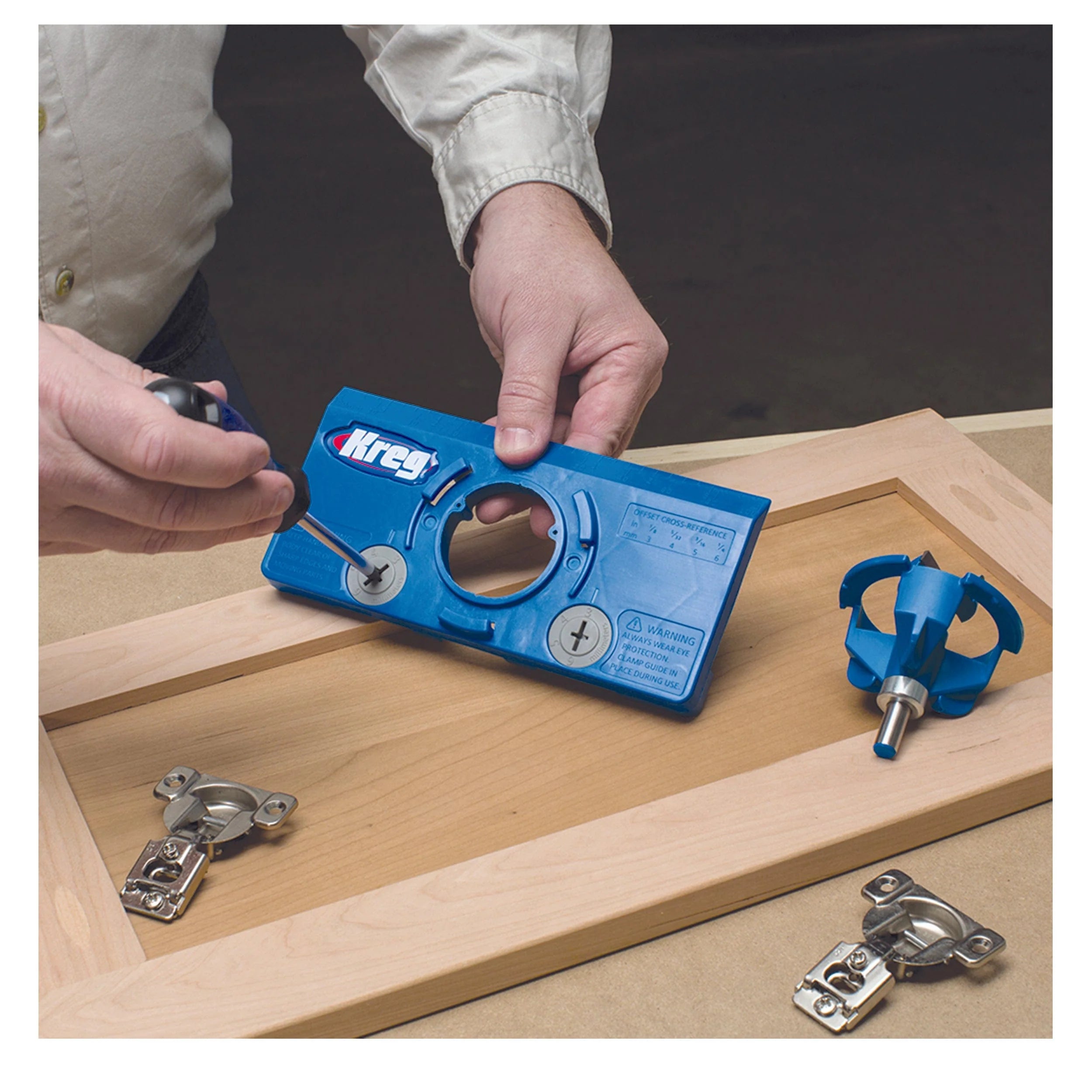

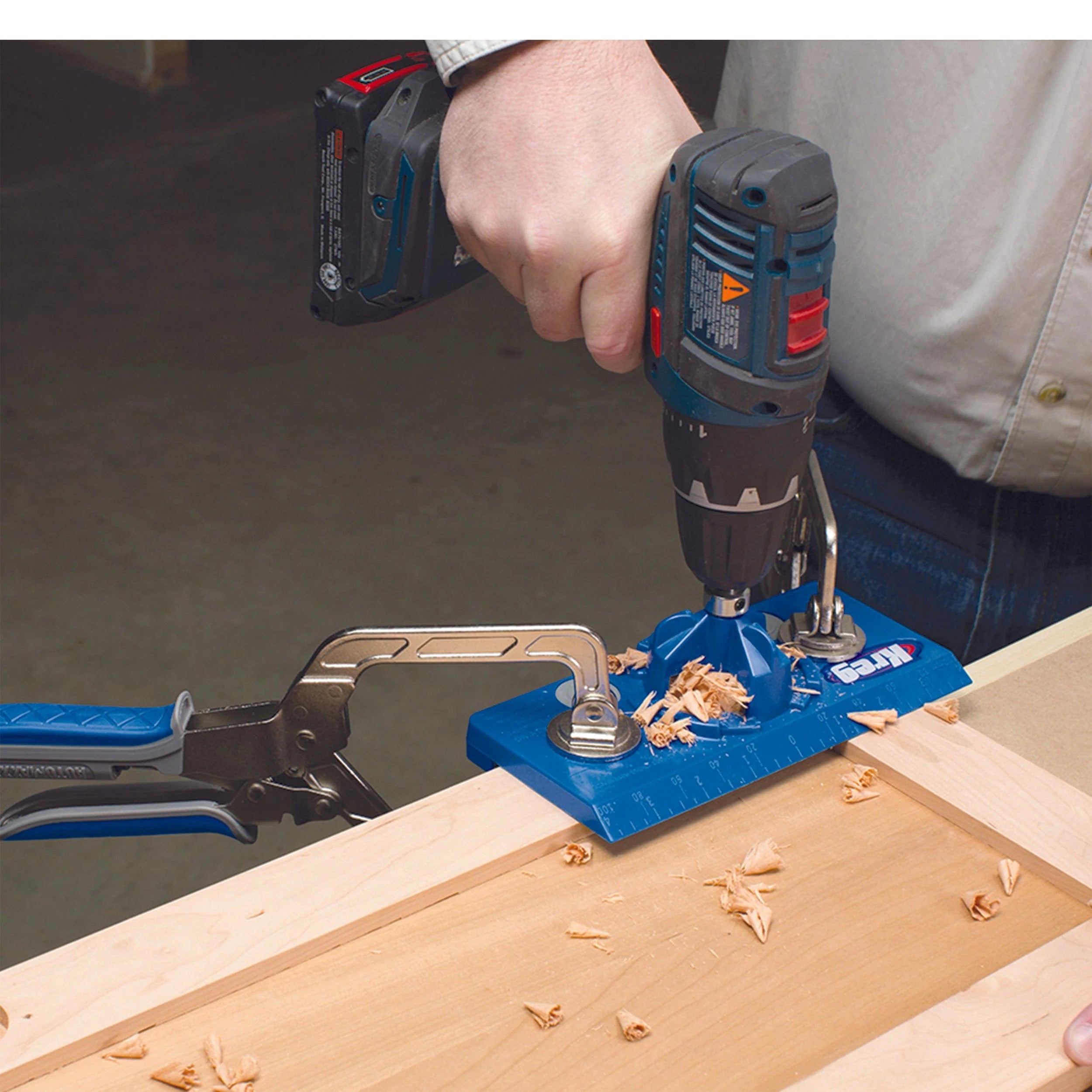

Concealed hinges, often called Euro or European hinges are great for mounting cabinet doors because they stay out of sight, they’re adjustable, and they work smoothly. Mounting these hinges, though, requires drilling a large hole at a very specific position and depth. The Kreg® Concealed Hinge Jig takes the guesswork out of drilling those holes, and allows you to do it using your drill motor and the carbide-tipped bit that comes with the jig. This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Indexing cams ensure that the jig positions the bit to drill a hole at the required offset–which is dictated by each hinge, and a built-in stop collar ensures that the cup depth is correct every time. A 1/16" bit is required to drill for hinge-mounting screws, but it is not included.

Features:

• Jig works with your ordinary drill motor and included carbide tipped bit
• Features high-quality, carbide tipped 35mm forstner style bit for clean holes
• Indexing cams reference required jig offset for most styles of European hinges
• Small marking holes can guide a bit for drilling hinge mounting screw holes

What's Included:

• (1) Kreg® Concealed Hinge Drilling Jig

Note:

• A 1/16" bit is required to drill for hinge mounting screws, but it is not included.
