Dovetailer with Manual Clamping - 1 HP 1 Ph 230V - DT45

Dovetailer with Manual Clamping - 1 HP 1 Ph 230V - DT45

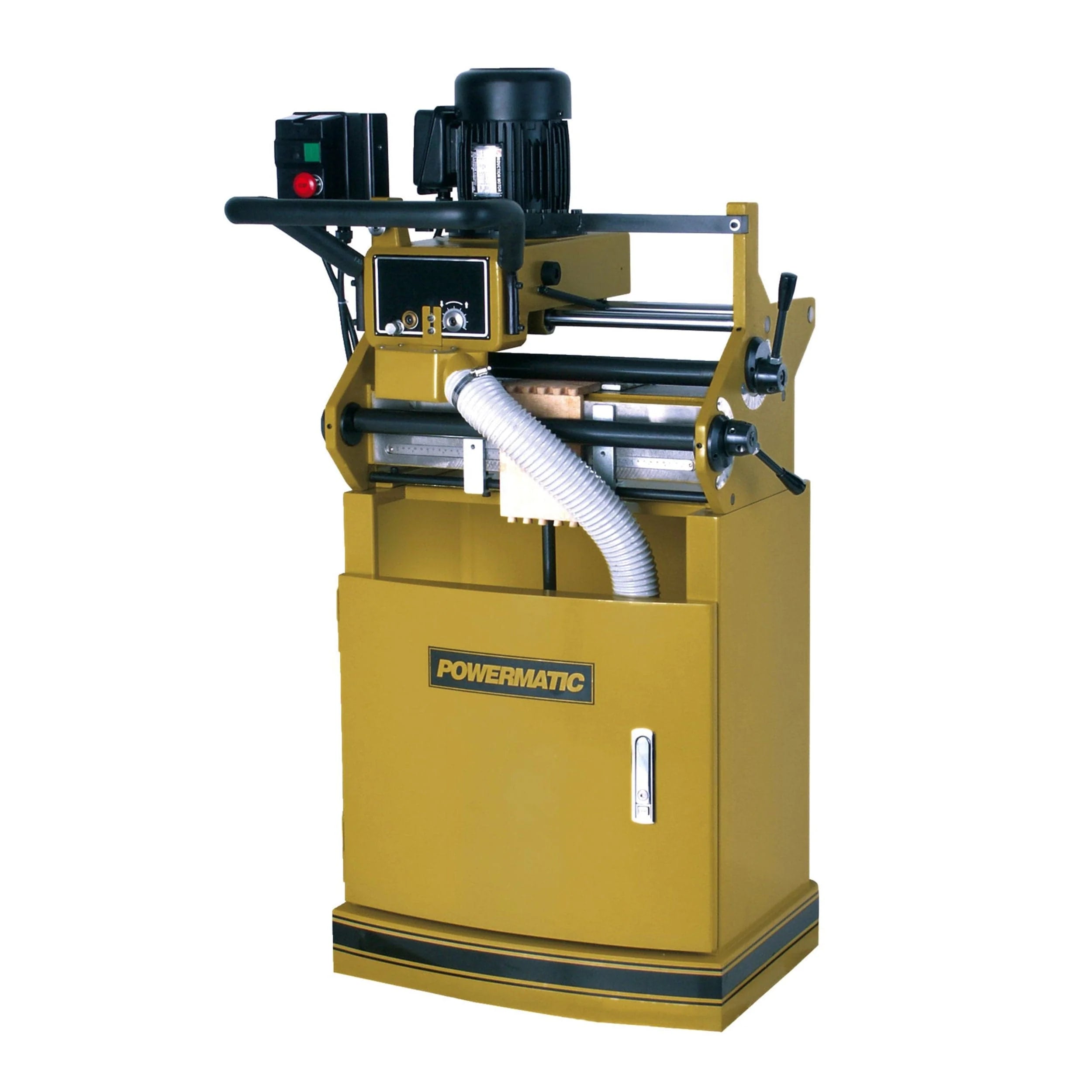

The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components....
Availability: Many In Stock
$2,012.70
$6,709.00
$2,012.70
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $2,012.70
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description
The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.

Features:
• Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
• Manual eccentric clamping will keep boards firm
• Eccentric spindle collet for resharpened cutters
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
• Extra large soft grip handle provides positive control and comfort
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• 1HP motor transfers plenty of power via the drive belt to the spindle
Specifications:
Four-sided template
Workstops
Tool kit
Dovetail bit
Dust chute with hose
Center to Center Dovetail Spacing (in) : 1, 1-1/2, 2 and 2-1/2
Dust Collection Minimum CFM Required : 500
Dust Port Diameter (OD/in) : front 2-1/2, rear 4
Height (in): 61
Length (in): 33
Maximum Dovetail Height (in) : 3/4
Maximum Front Thickness (in) : 1-3/4
Maximum Side Thickness (in) : 1-3/16
Maximum Work Piece Size (L x W/in) : 31 x 11
Minimum Dovetail Height (in) : 3/16
Minimum Front Thickness (in) : 9/32
Minimum Side Thickness (in) : 9/32
Minimum Work Piece Size (L x W/in) : 7-7/8 x 2-3/8
Motor HP : 1HP
Motor Phase : 1Ph
Motor Voltage : 115/230V
Net Weight : 424 pound
Number of Spindles : 1
Overall Dimensions : 33 x 33 x 61
Part Number : 1791304
Prewired : 115V
Spindle Speed (RPM) : 18500
Table Height From Floor (in) : 35
Width (in): 33
Shipping weight 447 lb
