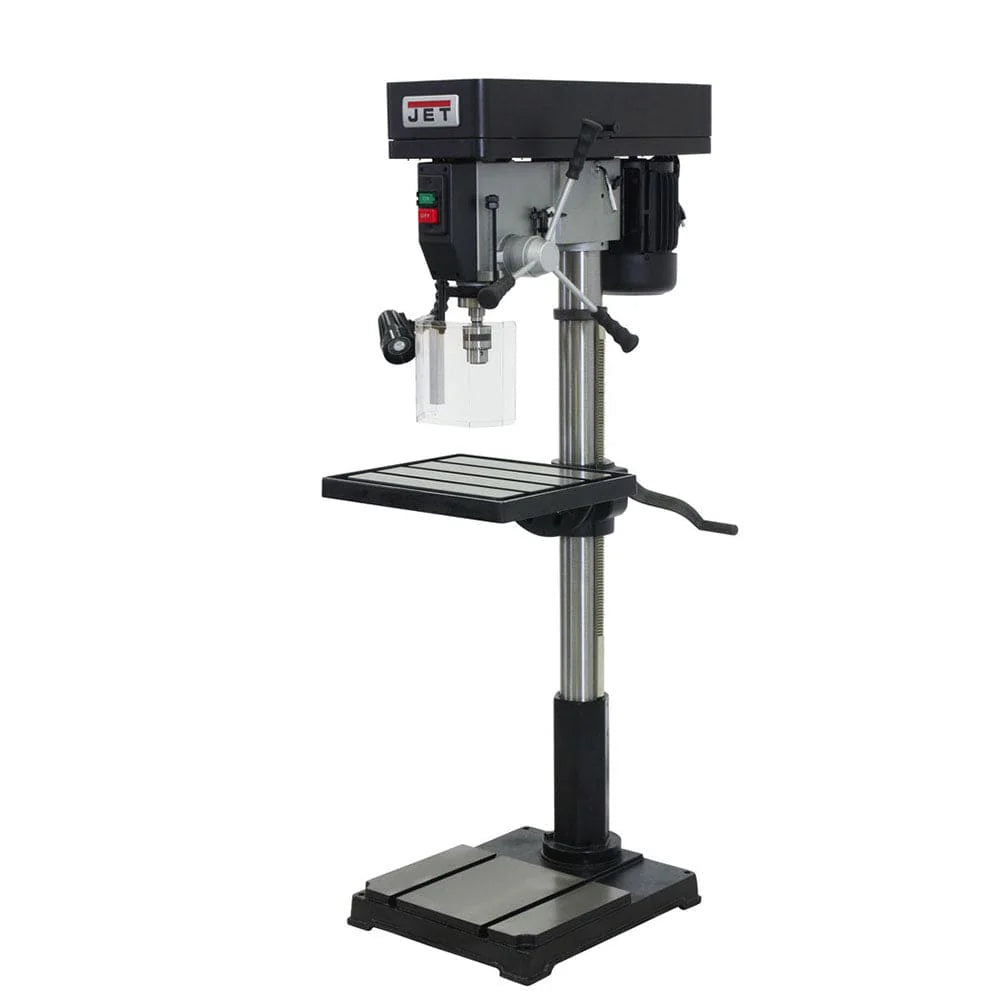

IDP-22 22" Industrial Floor Model Drill Press

IDP-22 22" Industrial Floor Model Drill Press

The JET 17" and 22" Industrial Drill Presses set the standard with unmatched accuracy, rock-solid stability, and...
Availability: Many In Stock
$897.30
$2,991.00
$897.30
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $897.30
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description
The JET 17" and 22" Industrial Drill Presses set the standard with unmatched accuracy, rock-solid stability, and all-around versatility. Engineered for heavy-duty performance, each model features an oversized cast iron table and base for maximum support. CSA/CUS Certified and backed by JET’s industry-leading Two Year Warranty, these drill presses deliver the power and reliability professionals demand.

Features:

  • 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • Hinged metal belt and pulley cover
  • Large Hand Grips designed with the users comfort in mind
  • On/off switch located on front of the drill press head
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • Spindle is supported by high quality ball bearings
  • Table ground for accuracy

Specifications:

  • Stock Number: JT9-354301
  • Model Number: IDP-22
  • Base Dimensions: 22-5/8” x 19-7/16” x 3-3/8”
  • Base Work Table: 21-1/2” x 18-5/16”
  • Chuck Size: 5/8”
  • Column Diameter: 3-5/8”
  • Distance Column to Spindle:10-7/8”
  • Drilling Capacity Cast Iron: 1-1/4”
  • Drilling Capacity Mild Steel: 1“
  • Drills to Center of Circle: 22”
  • Motor: 1-1/2 HP - 115/230V – 1 Ph
  • Number of Spindle Speeds: 12
  • Overall Dimensions:35” x 19” x 67”
  • Range of Spindle Speeds: 175 - 3,050 RPM
  • Spindle Distance to Base: 48-1/2”
  • Spindle Distance to Table (Max.): 28”
  • Spindle Taper: MT-3”
  • Spindle Travel: 4-13/16”
  • Style: Belt Drive
  • T-Slot Centers: 3/4"
  • T-Slots Number and Size: 2 and 5/8”
  • Table Size: 18-5/8” x 16-1/8”
  • Weight: 364 lb
  • Work Table Weight Capacity: 176 lb
  • Warranty: 2 Year

What's Included:

  • 2 Year Warranty

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
