The JMD Milling Drilling Machine offers the perfect balance of flexibility and efficiency, making it a lighter,...
Availability: Many In Stock
$1,161.30
$3,871.00
$1,161.30
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $1,161.30
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description

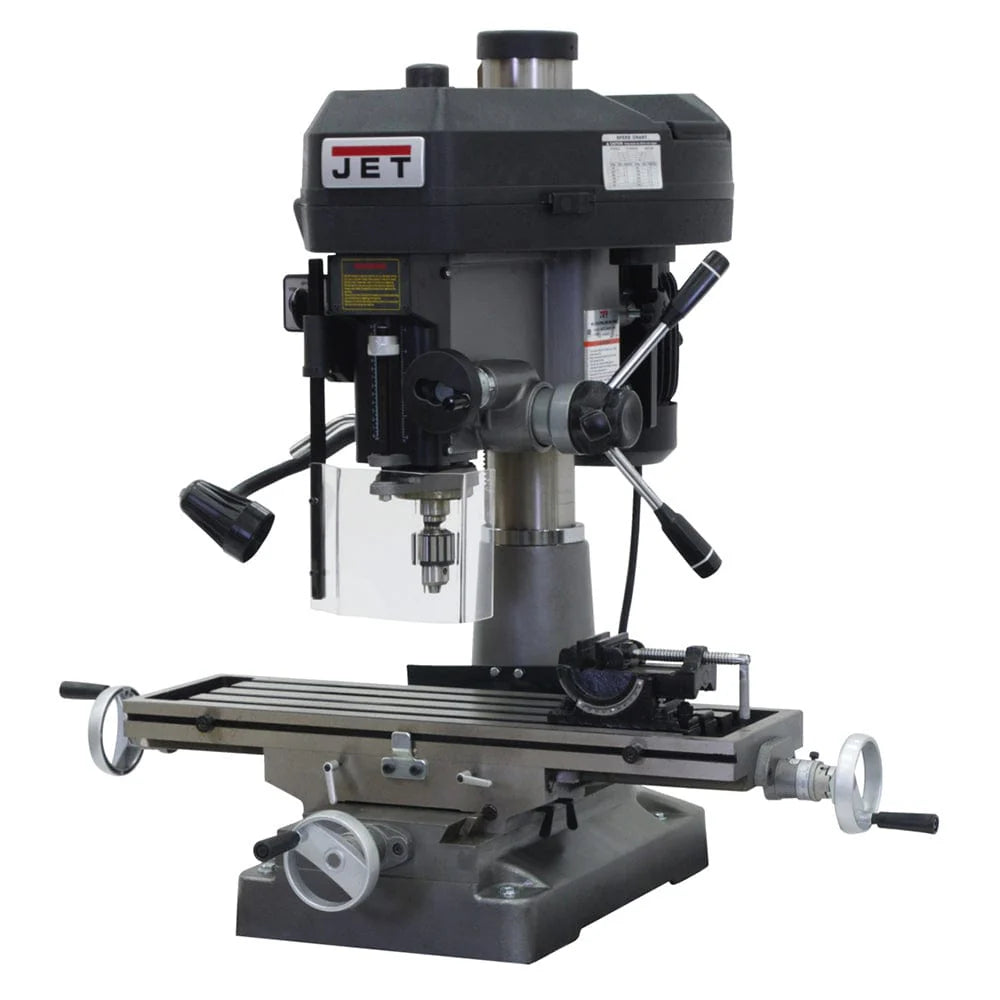

The JMD Milling Drilling Machine offers the perfect balance of flexibility and efficiency, making it a lighter, more versatile alternative to traditional milling machines. Combining the functionality of a belt-driven drill press with the dual coordinate capabilities of a milling machine’s table, it provides precise control for a variety of tasks. A locking collet ensures the cutting tool stays securely in place, even when faced with lateral forces against the bit. Designed with space-saving in mind, the JMD Milling Drilling Machine is affordable, compact, and delivers excellent light machining capabilities for a wide range of applications.

Features:
  • 1/2” Drill chuck, chuck arbor
  • 360° head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read internal depth gauge
  • Forward and Reverse Switch
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • One-piece cast iron column for added support
  • Positive quick-stop knob and easy to read internal depth gauge
  • UL Listed
Specifications:
  • Base Dimensions:15-3/4” x 23”-3/4”
  • Column Diameter: 4-1/2”
  • Face Mill Capacity: 3”
  • Max Distance Spindle to Table: 17-1/2”
  • Motor: 2 HP - 115/230V - 1 Ph
  • Number of Spindle Speeds: 12
  • Overall Dimensions: 47” x 40” x 51”
  • Quill Diameter: 3”

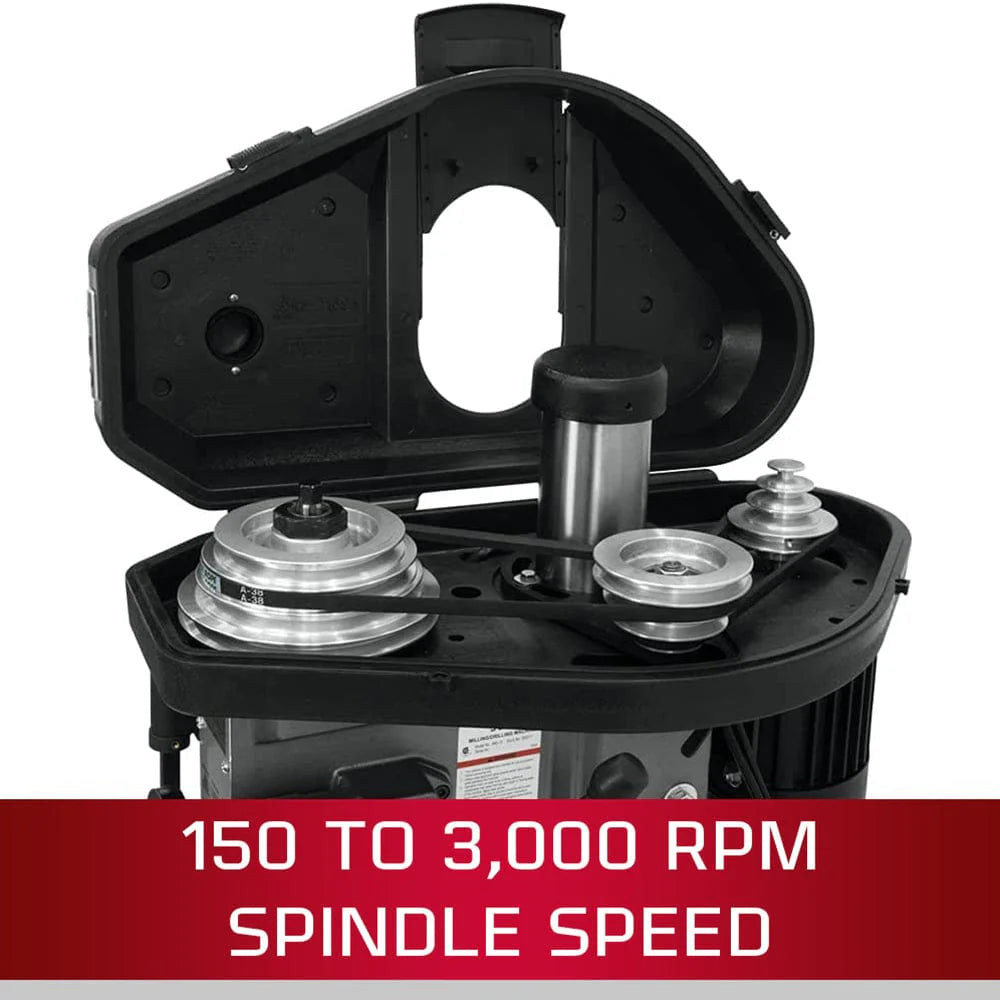

  • Range of Spindle Speeds: 3,000 RPM
  • Spindle Taper: R-8”
  • Spindle Travel: 5”
  • Swing: 15-7/8”
  • T-Slot Centers: 1-13/16”
  • T-Slots Number and Size: 4 and 5/8”
  • Table Longitudinal Travel: 20-1/2”

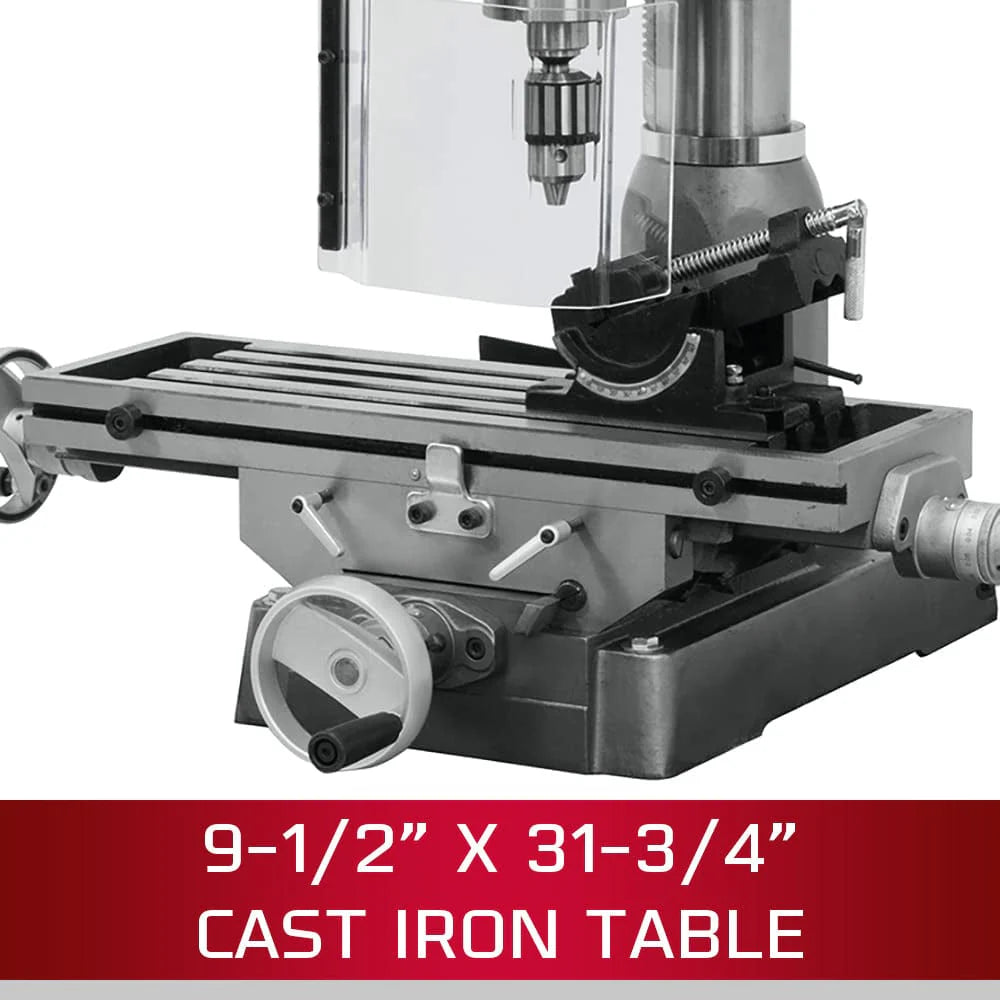

  • Table Size: 9-1/2” x 32-1/4”
  • Warranty: 2 Year

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
