Jobsite Saw PRO with Mobile Cart Assembly - 1-1/2 HP - 1PH - 120V Model JSS-120A60

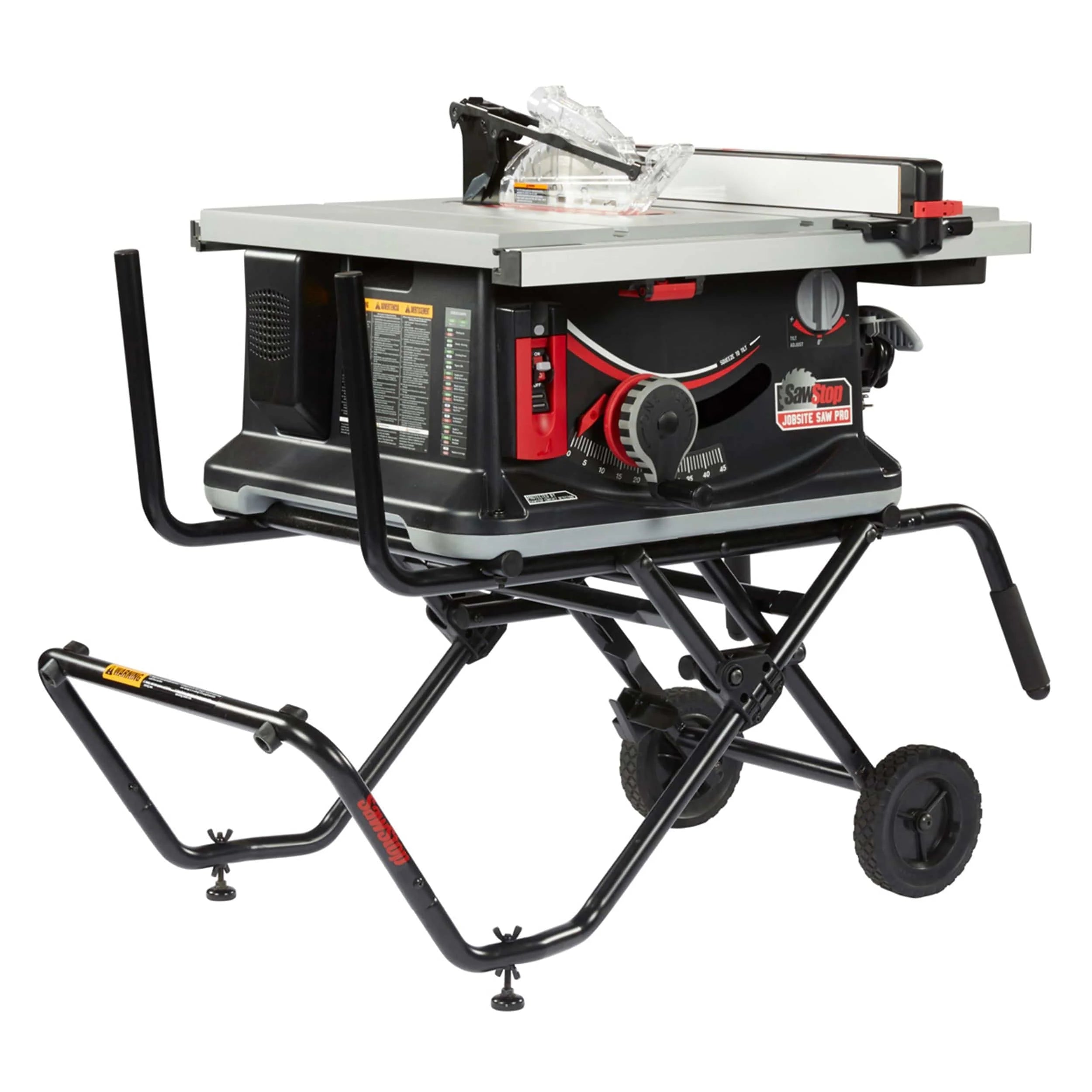

Take the world’s safest saw wherever your project takes you. The SawStop Jobsite Saw Pro delivers durability, innovation and precision, with a design built for the demands of a worksite. Easily collapse the saw and wheel it to the exact location where you will be working. Store it folded and then move it into position for a quick setup. Ideal for jobsites, garages and outdoor cutting applications. A Hi-Lo T-style fence locks into place. The dual heights make cutting thin or thicker stock a breeze. The blade can be raised or lowered with a turn of the hand wheel. The active dust collection blade guard captures above table dust to keep your workspace cleaner.

Features:

• Built for the demands of the worksite

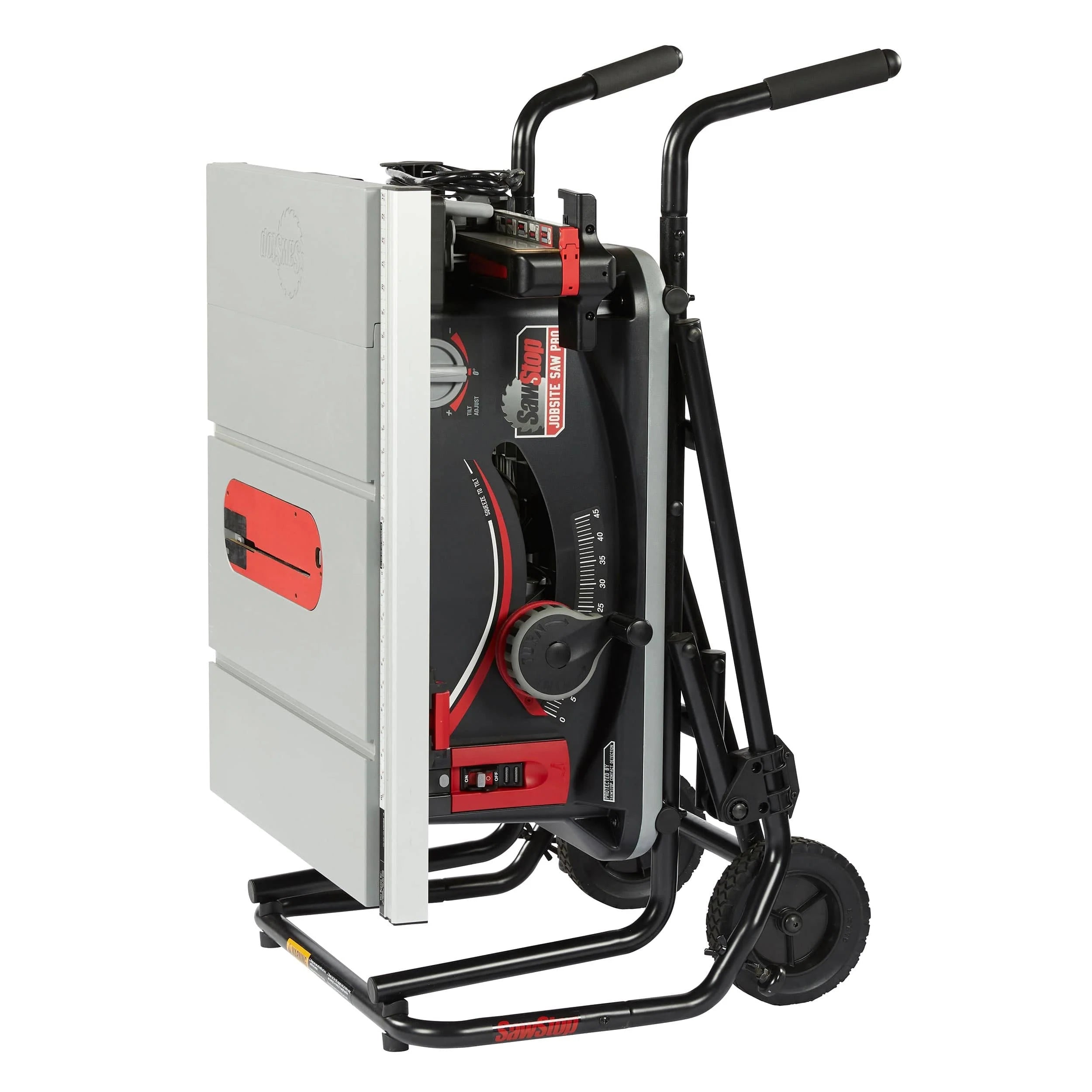

• Mobile cart for transport; folds down for storage

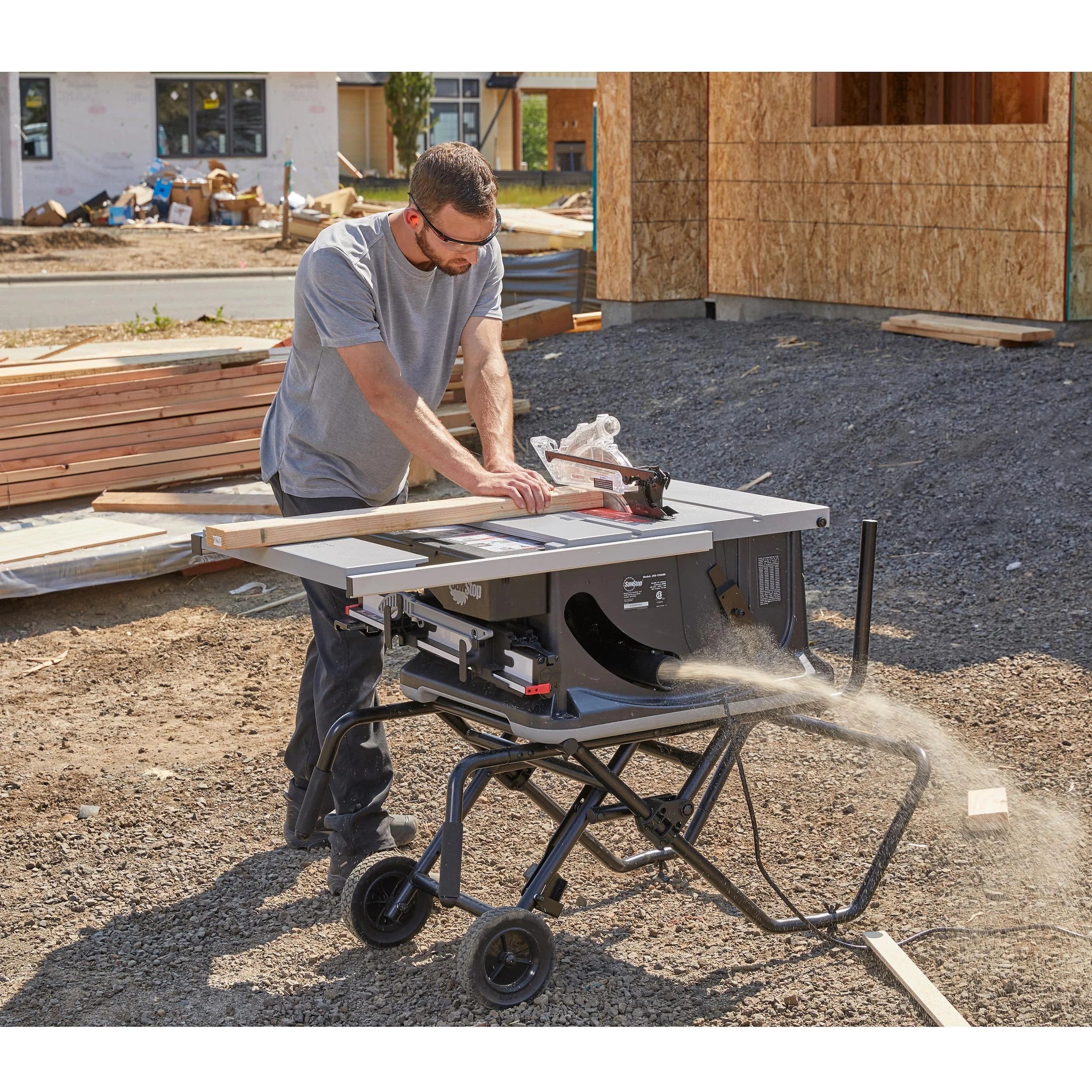

• Ideal for jobsites, garages and outdoor cutting applications
• Class-leading table depth for accurate, easy and safe cutting

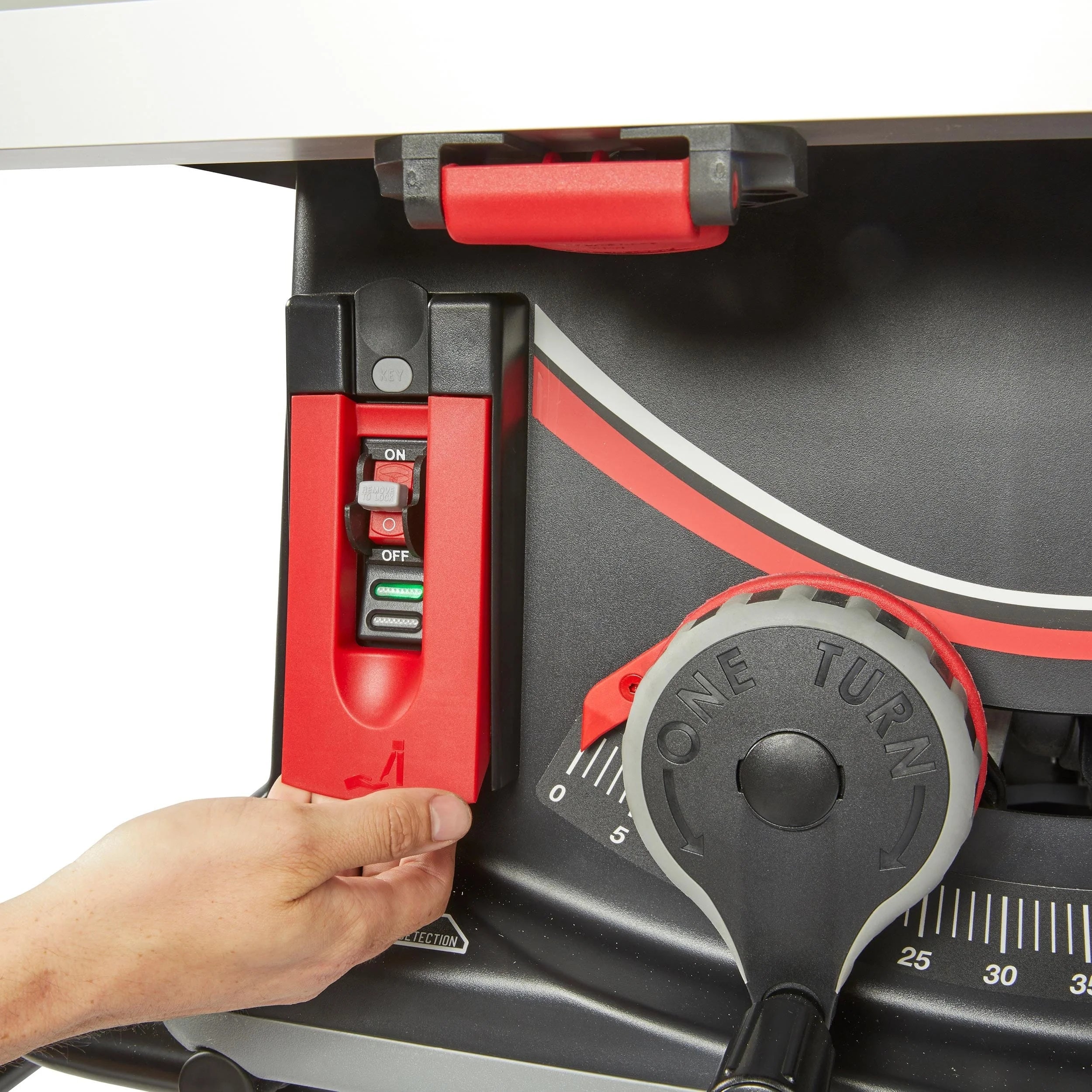

• Raise or lower the blade with one turn of the hand wheel

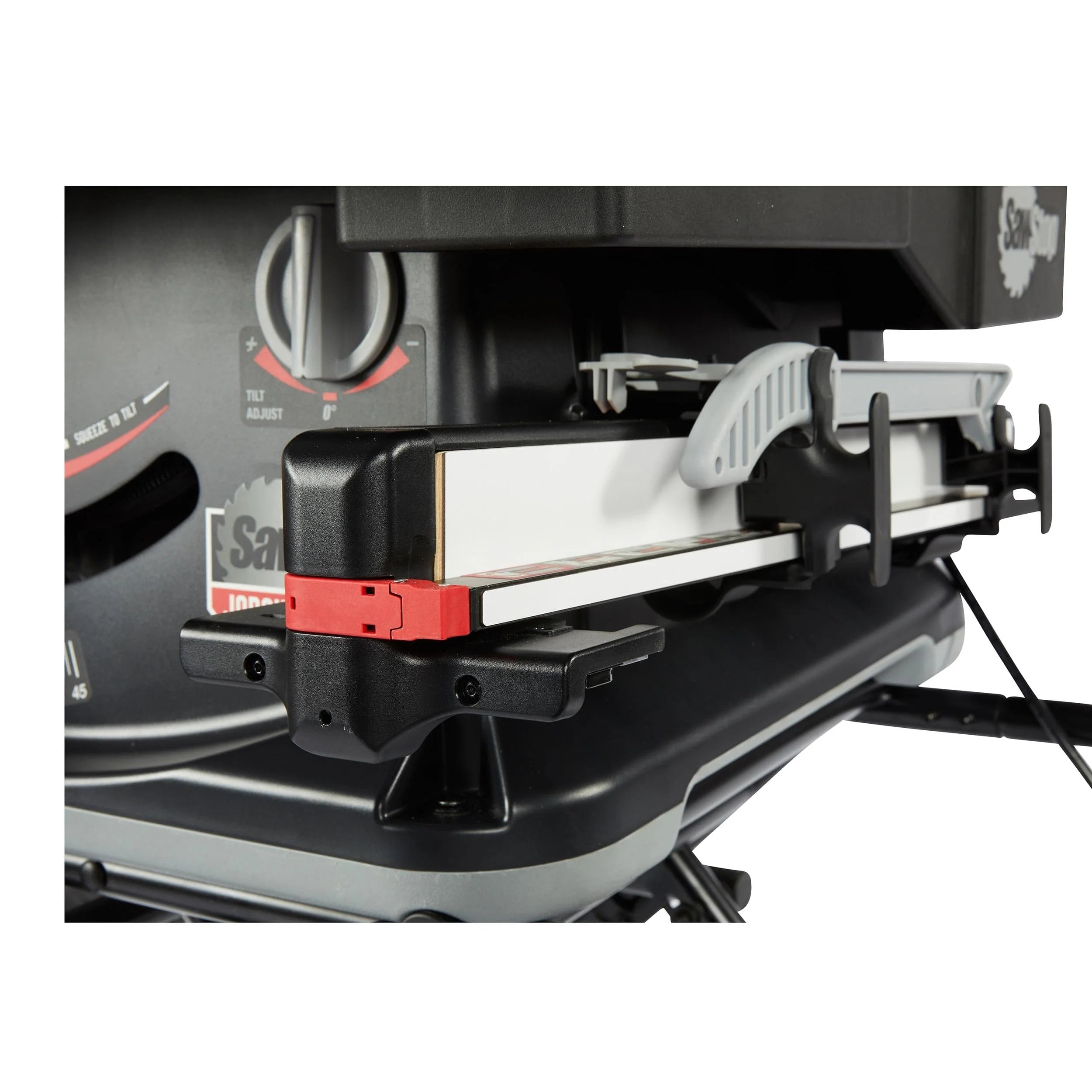

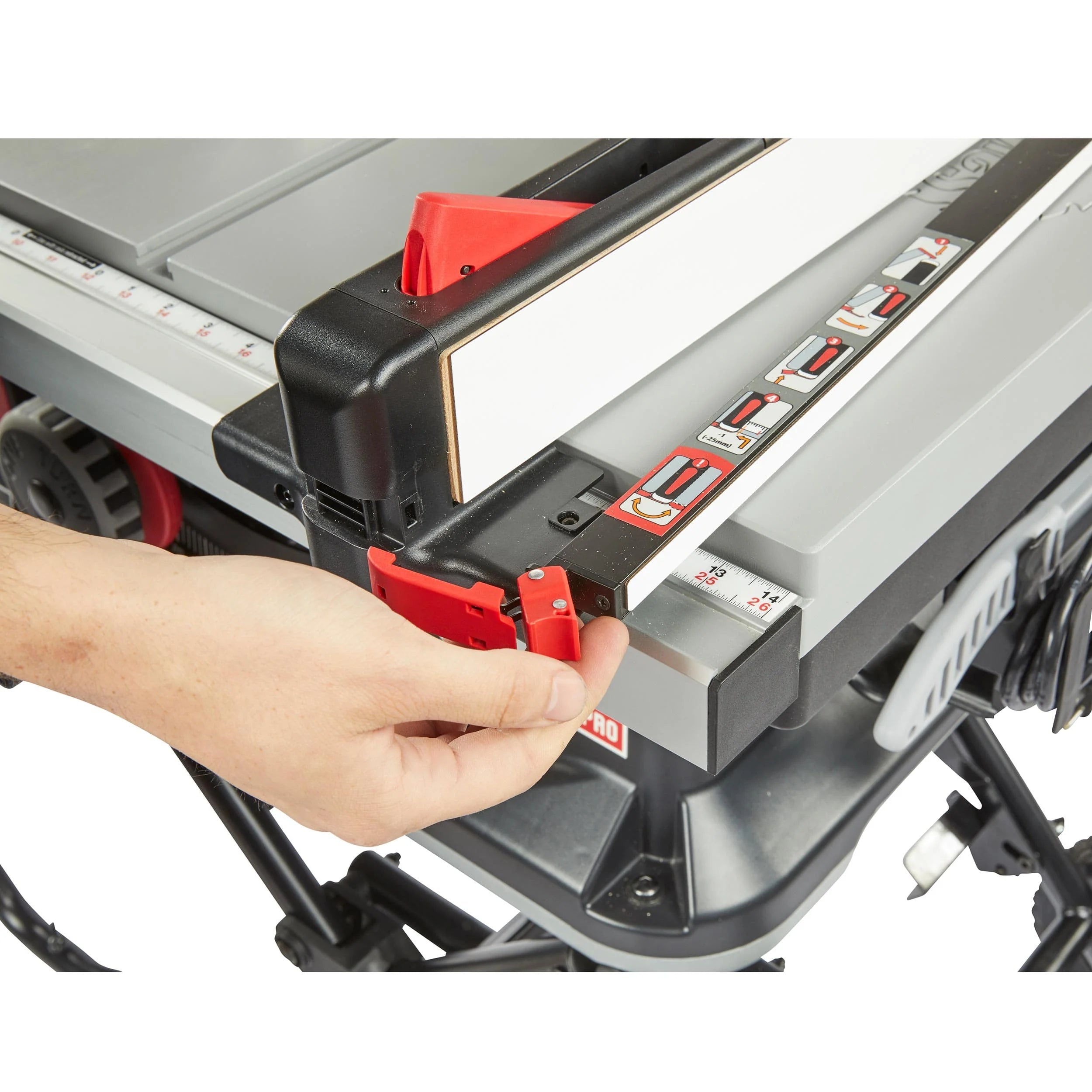

• Solid Hi-Lo fence with Ergolock locking mechanism

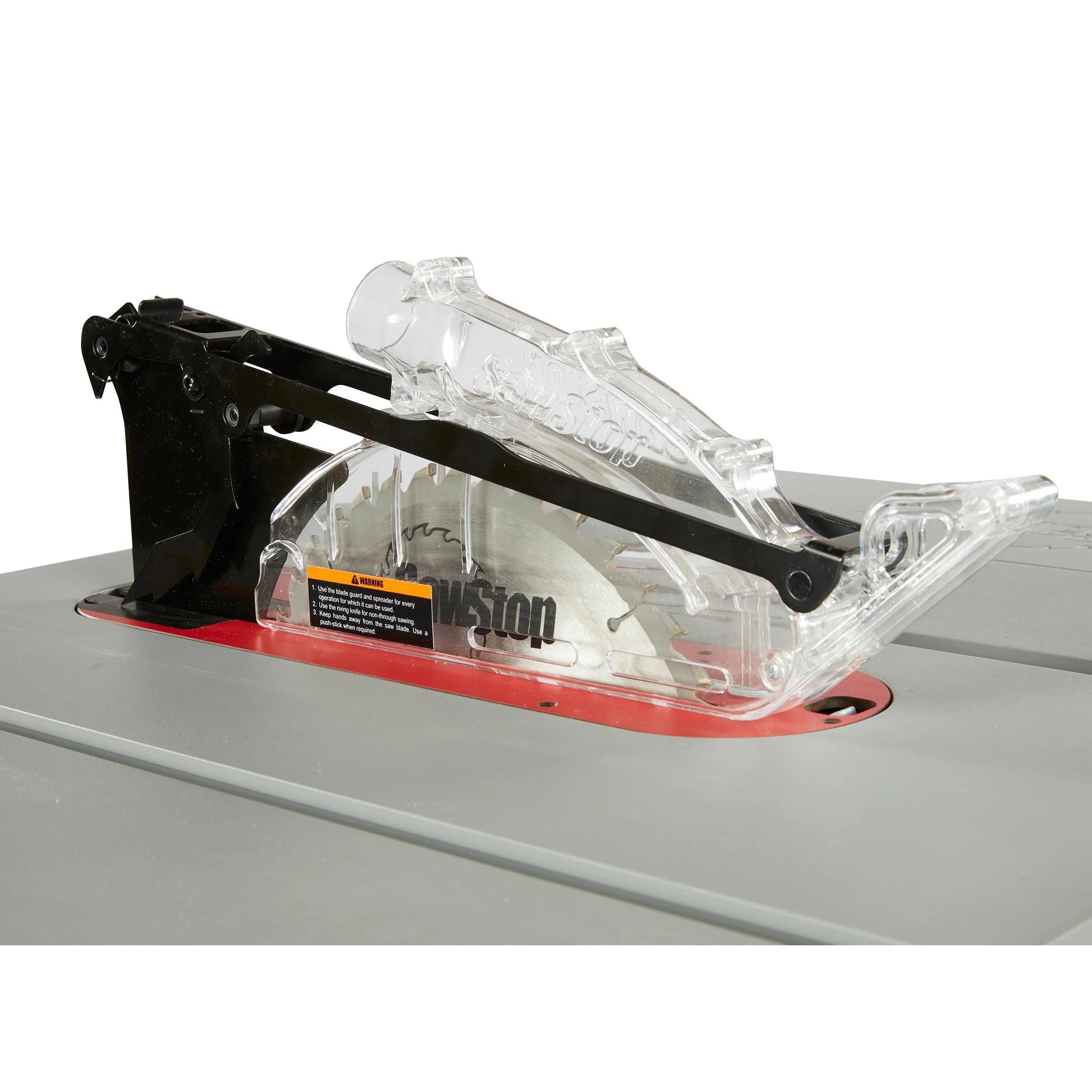

• Dust collection blade guard
• Simple, intuitive action extends or collapses cart for use and transport

Specifications:

• Motor: 120V AC, 60 HZ, Universal, 15 Amp
• Motor Peak HP: 4
• Motor Continuous HP: 1-1/2
• No Load RPM: 4,000
• Table Dimensions (retracted): 31-1/4" x 24-5/8"
• Rip Capacity: 25-1/2"
• Blade Diameter: 10"
• Dado Diameter: 8"
• Max. Depth of Cut at 0°: 3-1/8"
• Max. Depth of Cut at 45°: 2-1/8"
• Size (setup): 48" L x 29" W x 36" H
• Size (collapsed): 26-1/2" L x 29" W x 45" H
• Weight (with cart): 113 lb
• Weight (without cart): 84 lb
• Shipping Weight: 137.08 lb

FAQs

What electrical requirements are needed for the SawStop Jobsite Saw Pro?

It runs on a standard 120V, 15‑amp household circuit and plugs into a typical grounded outlet.

What kind of dust collection setup is recommended for this saw?
Use a shop vacuum or dust extractor connected to the rear dust port, and the included active dust‑collection blade guard for above‑table dust capture.
