Low Profile Clamp Kit

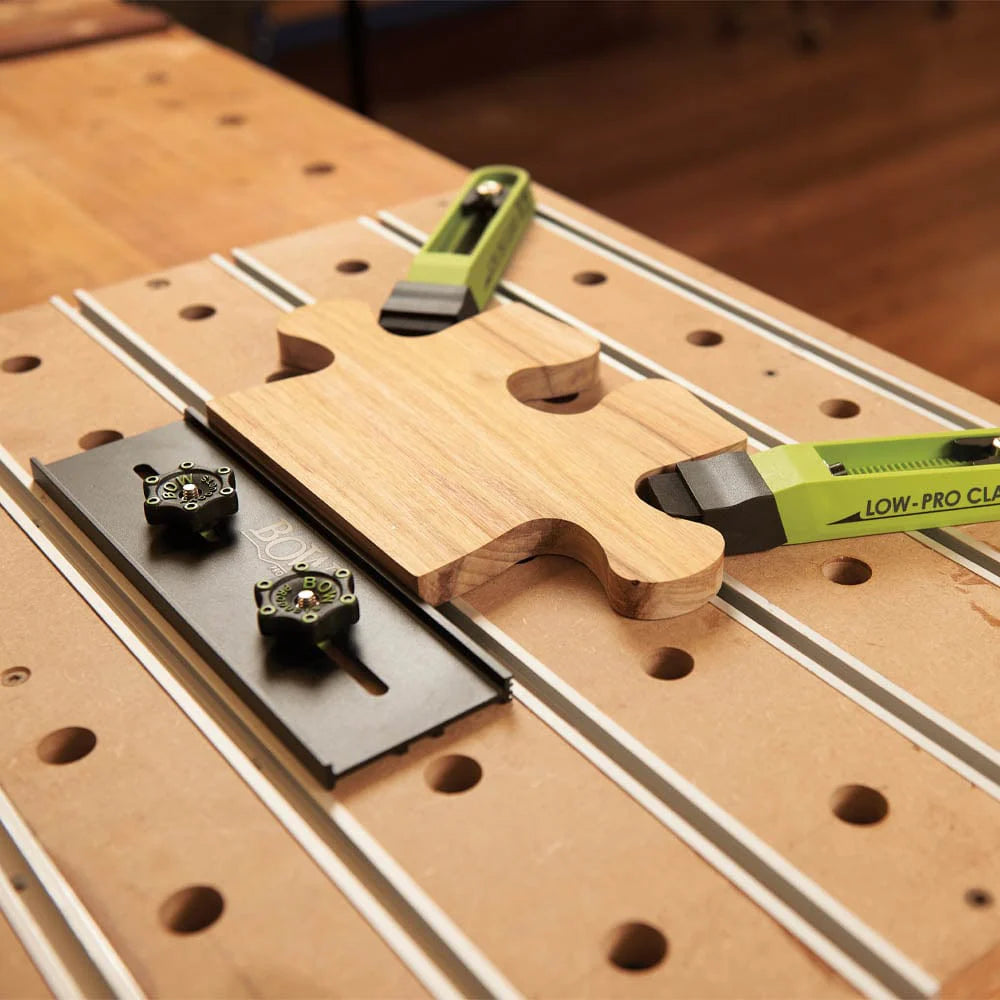

The Bow™ Low Profile Clamp Kit is a versatile edge workholding solution that delivers strong clamping force while allowing unobstructed access to your work. Designed for use with CNC machines, T-track systems and portable or stationary workbenches with 19 mm, 20 mm and 3/4" dog holes. It includes two clamps, two fences and all necessary hardware for securement.

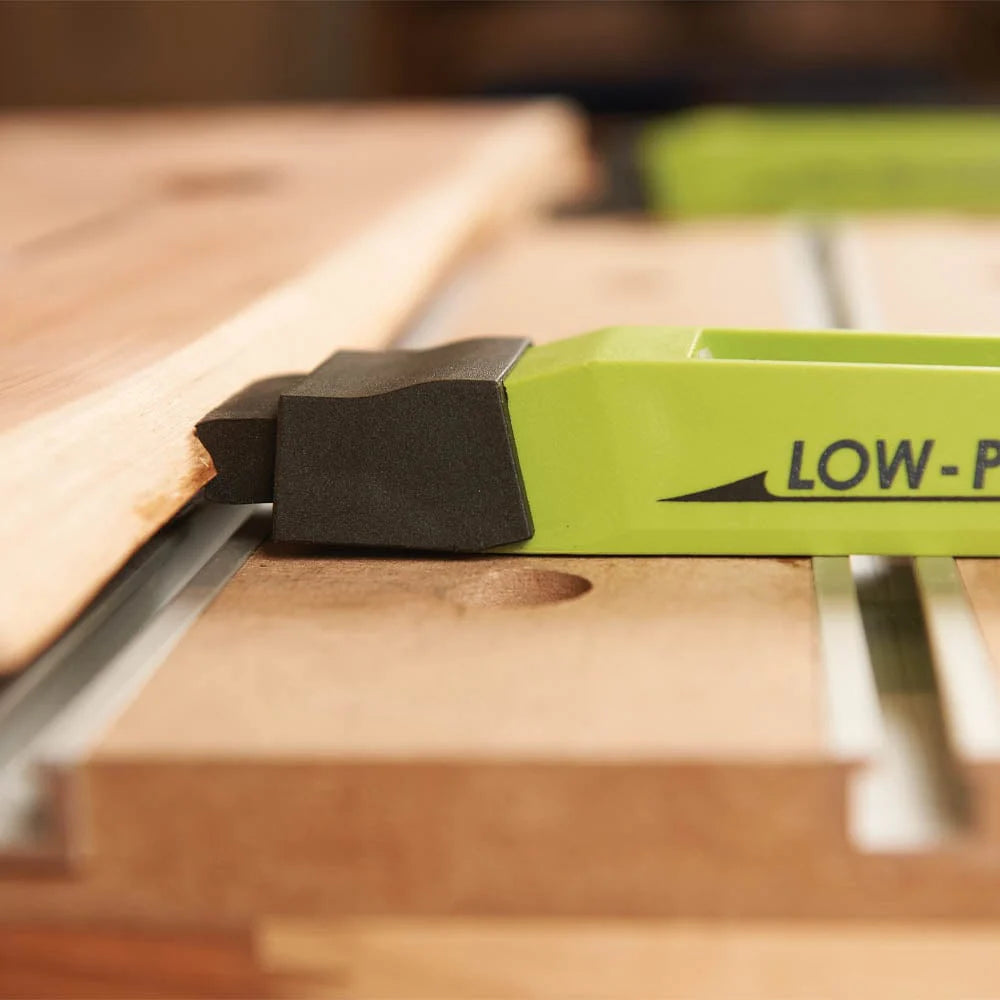

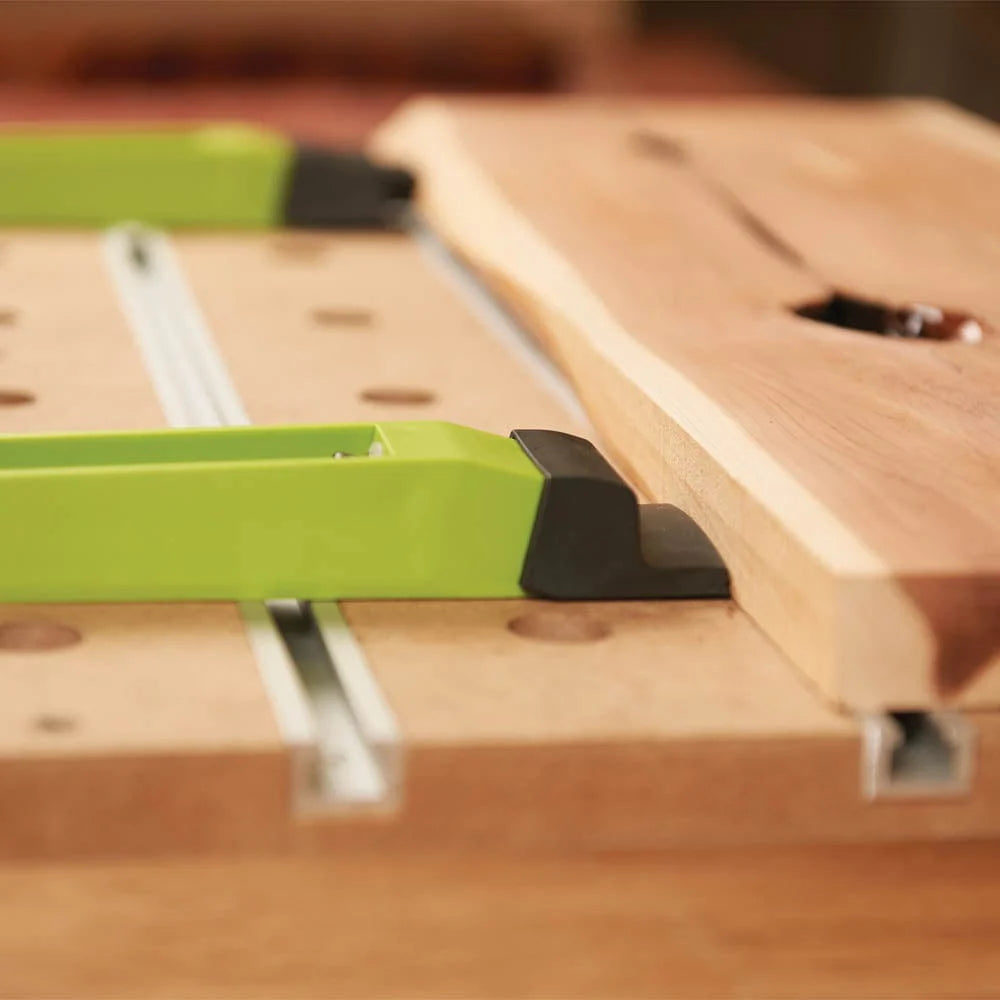

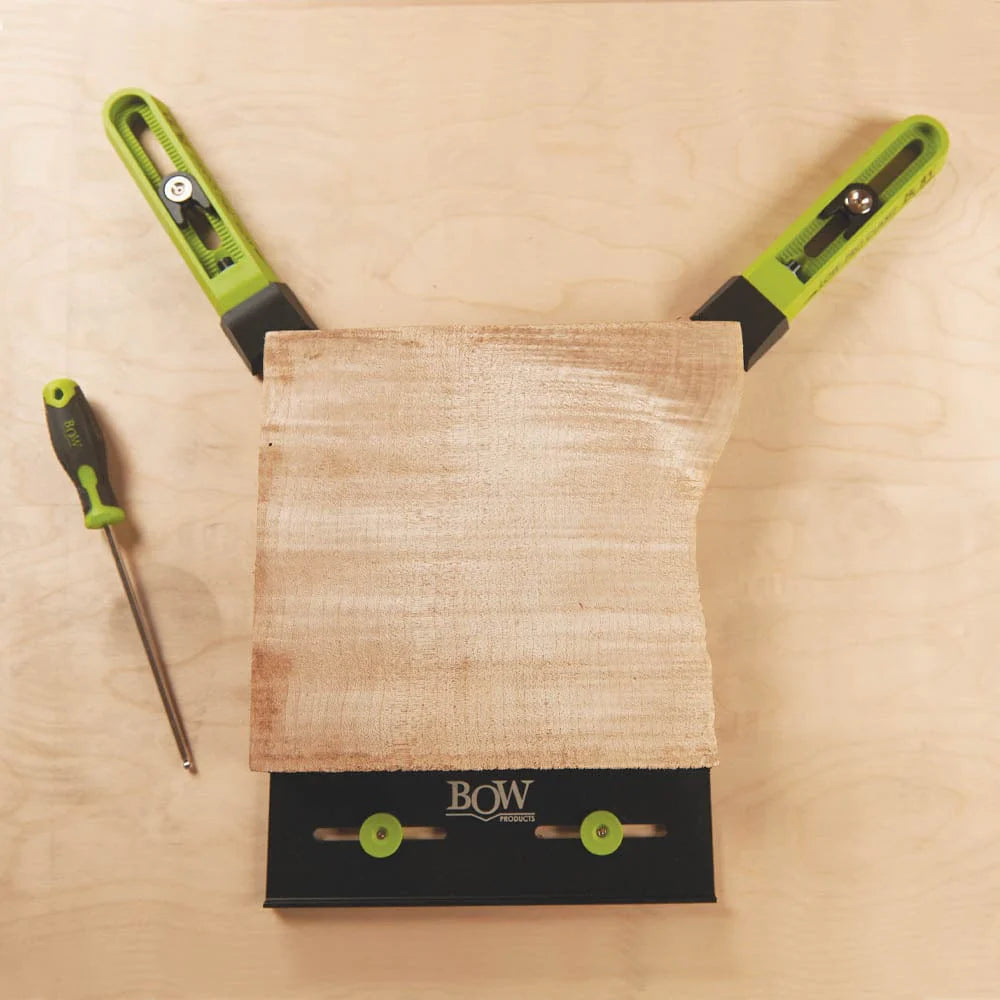

The two low-profile clamp bodies feature 360° rotation, a 4" linear positioning range and four interchangeable tips that offer various clamping options for different applications. The clamps hold the workpiece firmly to the work surface, preventing the lifting often associated with similarly styled clamping options.

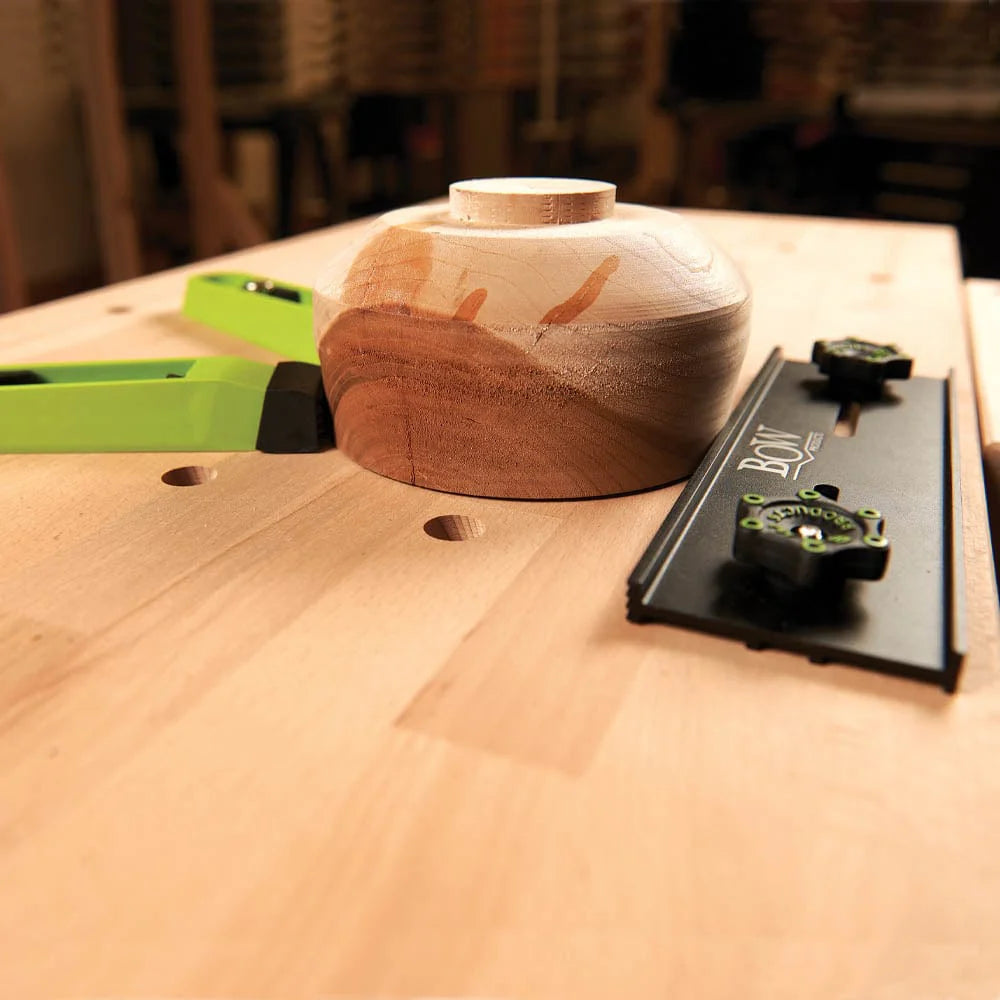

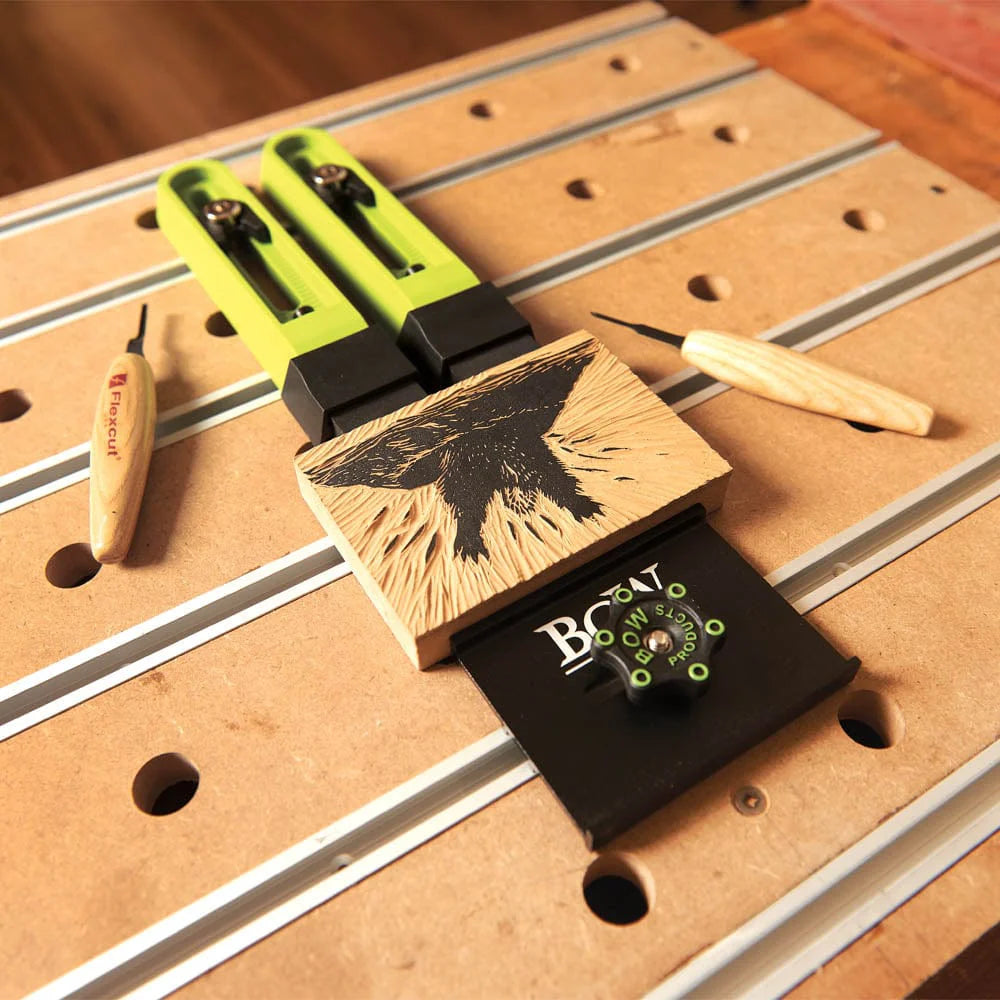

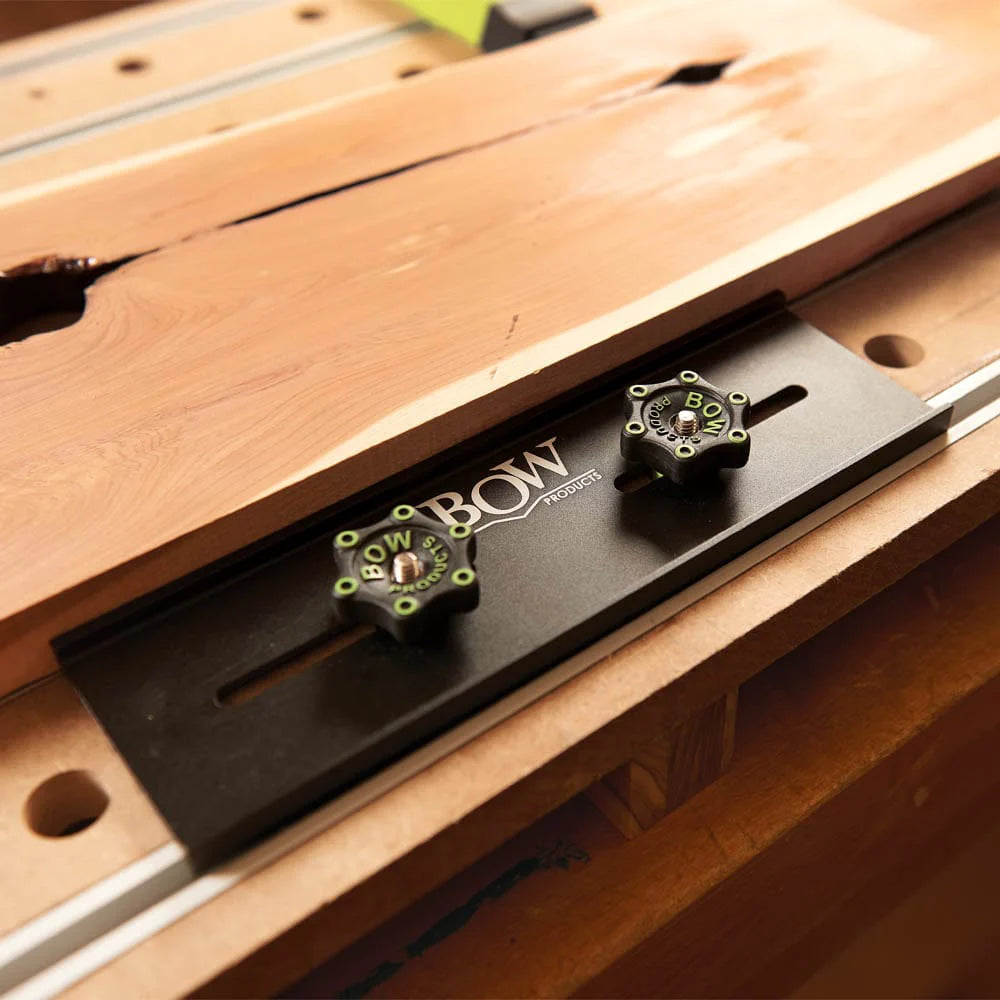

The two fences are low profile; one side features ridges for improved material holding and the other side is flat and smooth to prevent marring work surfaces. The clamps and fences can be attached using the adjustable dogs, T-track or direct mount hardware.

With the Bow™ Low Profile Clamp Kit, you can work efficiently and accurately on various projects, enjoying the freedom to focus on your craft without the hassle of traditional clamping systems.

Features:

• Provides a downward clamping force while enabling unobstructed access to your work
• Versatile edge workholding solution
• Compatible with T-track, 19 mm, 20 mm, and 3/4" dog holes and flat wood surfaces

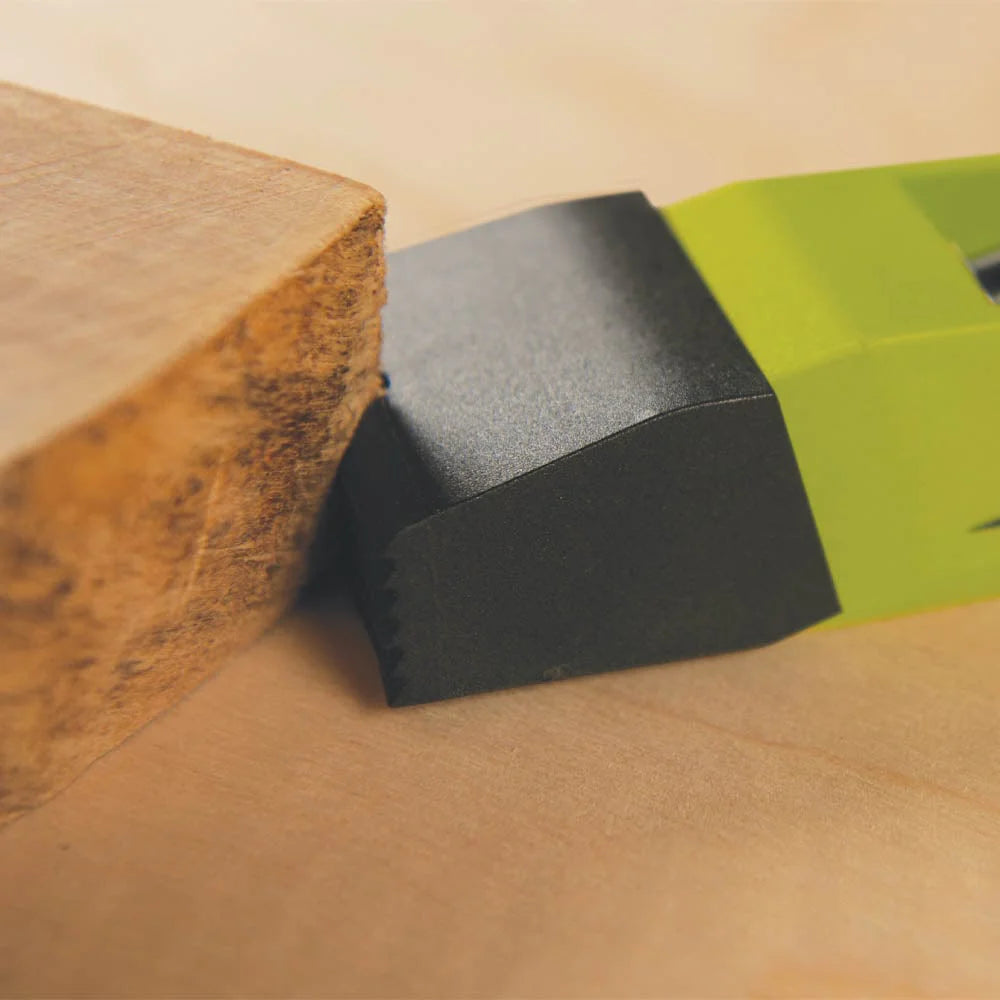

• Four interchangeable clamp tips provide a range of clamping options

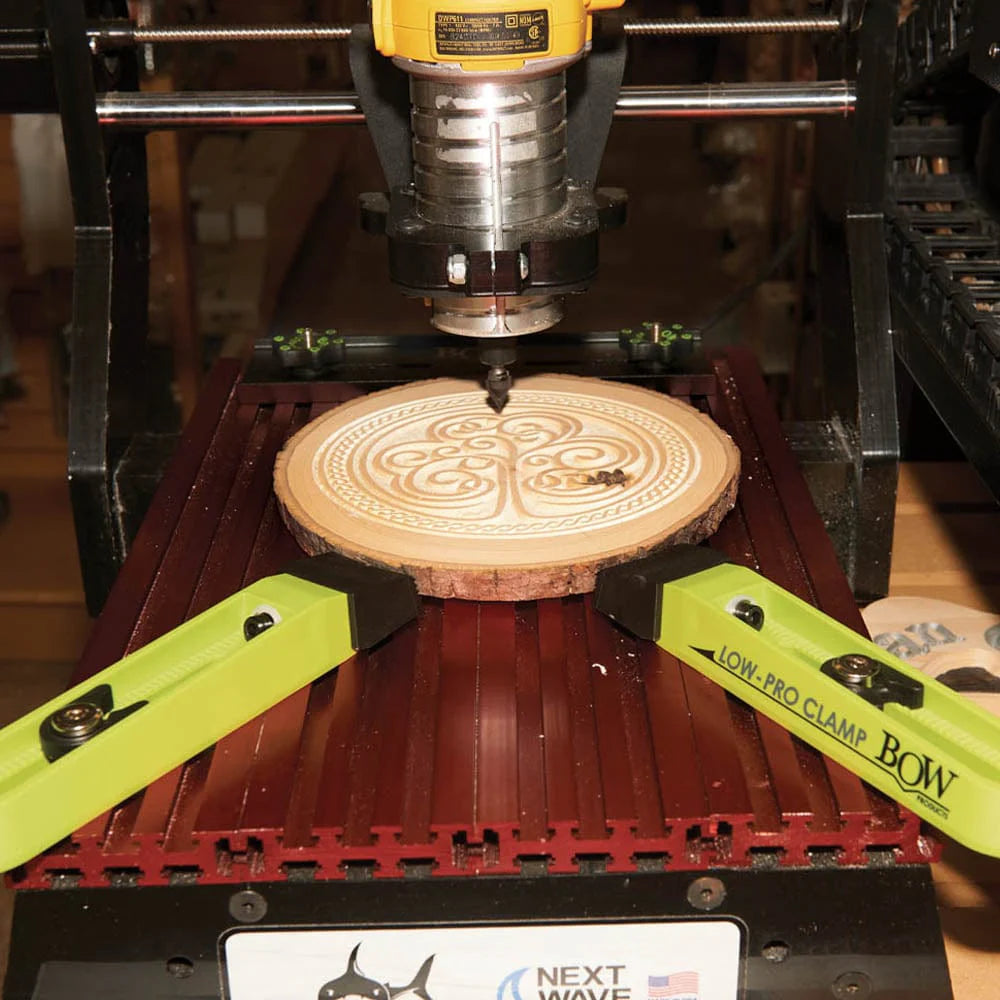

• Excellent accessory for most workbenches, multifunction tables and CNC machines
• Expandable dogs accommodate standard T-bolts and hex bolts
• Clamp tips travel down a 15° slope over 0.45" horizontally and 0.12" vertically
• Special washers accommodate the use of #10 countersink wood screws
• Two clamps, two fences, and all the hardware you need for securement

Specifications:

• Systainer Compatibility: Insert cut to fit Systainer³ M with a minimum internal height of 3-1/2"
• Materials (Clamps, Clamp Tips, Dog Assemblies and Knobs): Glass-filled nylon
• T-Bolt Head Dimensions (W x L): 0.446" x 0.625"

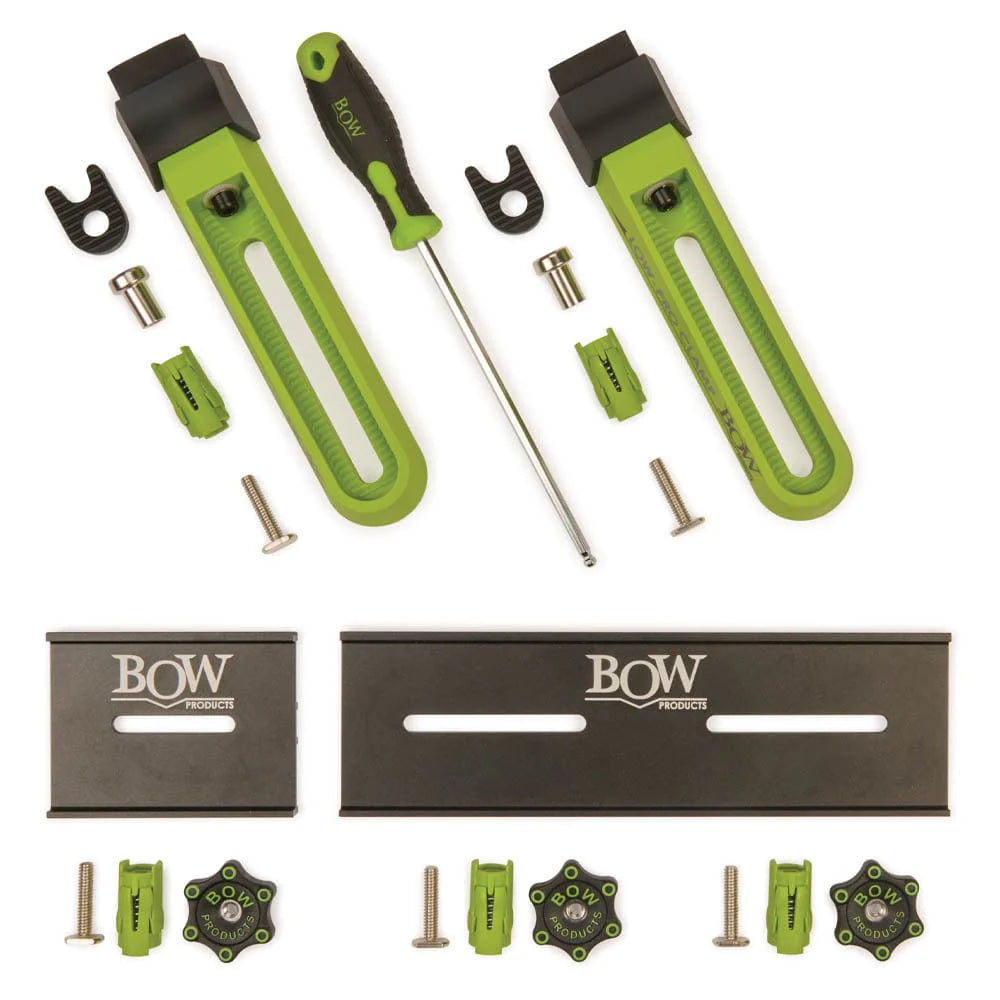

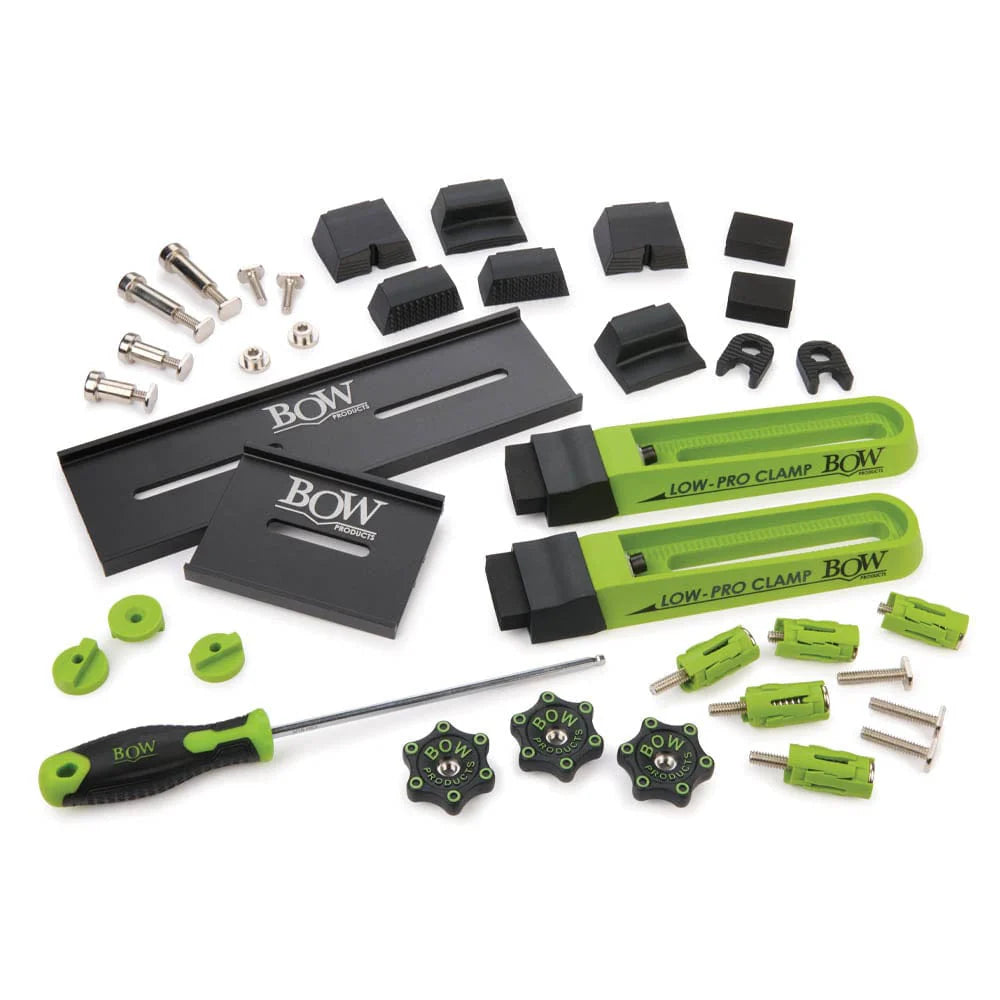

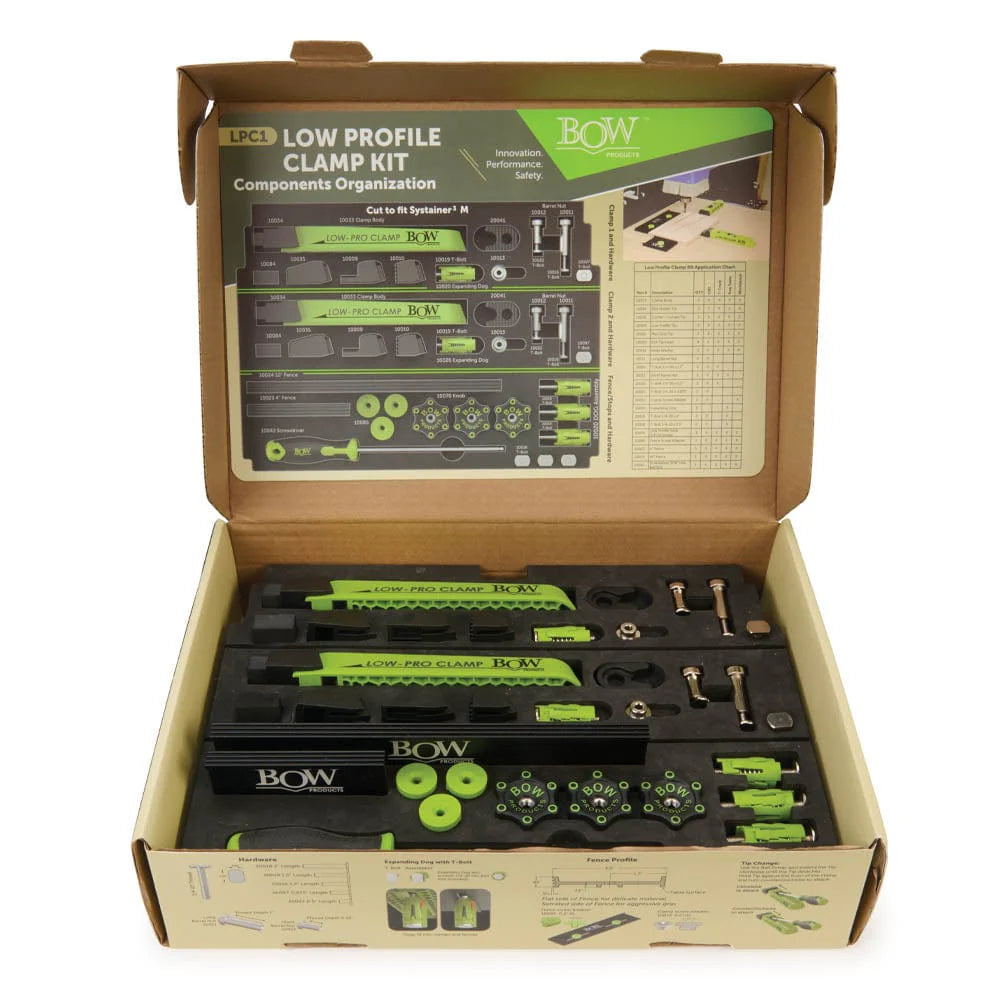

What's Included:

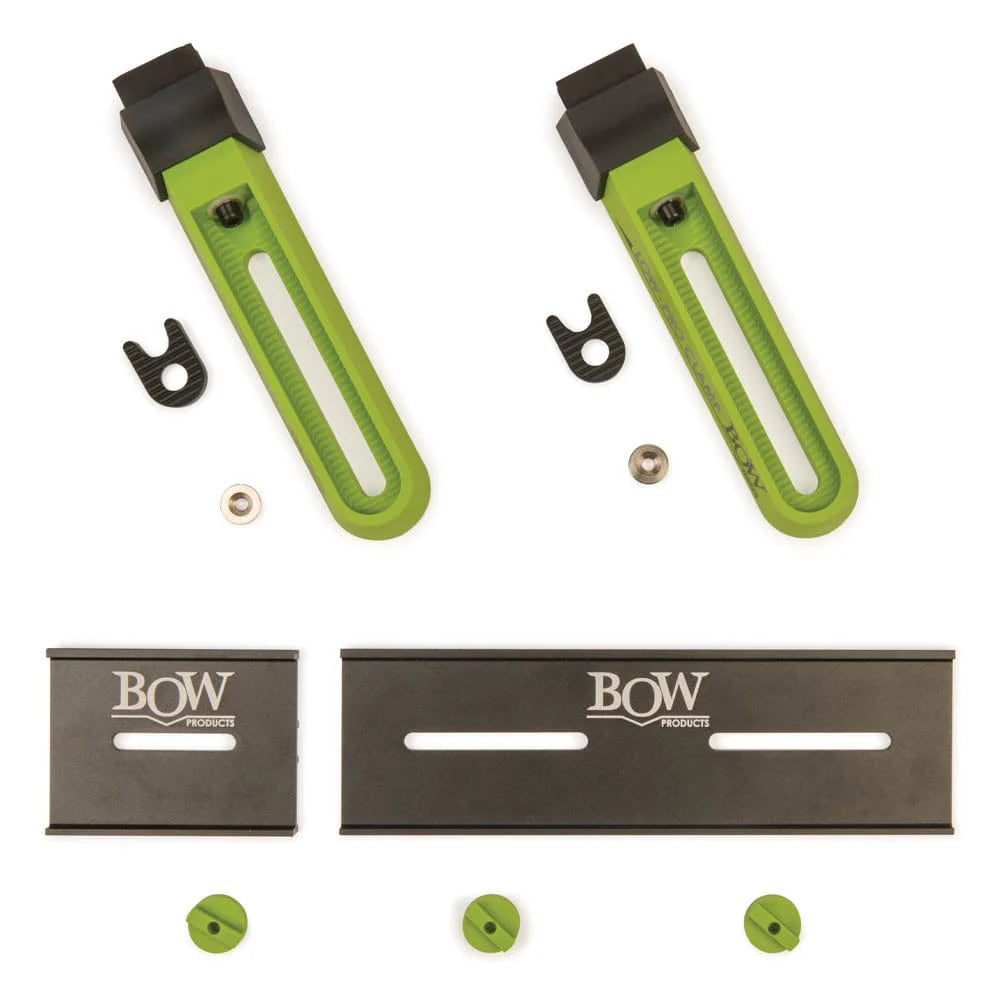

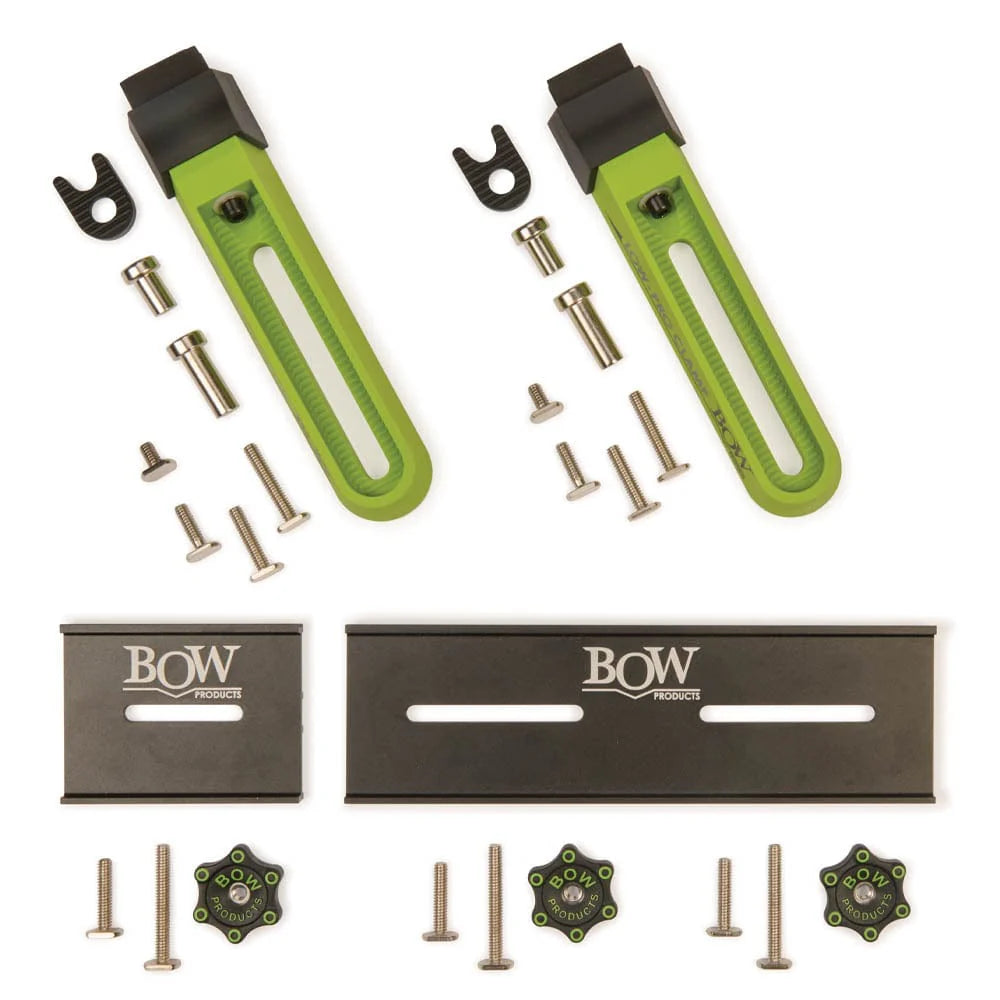

• (2) Low-profile clamp bodies
• (2) EVA holder tips
• (2) Corner or curved tips
• (2) Low profile tips
• (2) Max grip tips
• (4) EVA tip inserts
• (2) Index washers
• (2) Long barrel nuts
• (2) Short barrel nuts
• (5) 1/4"-20 TPI x 1.2" T-bolts
• (2) 1/4"-20 TPI x 0.5" T-bolts
• (2) 1/4"-20 TPI x 0.875" T-bolts
• (3) 1/4"-20 TPI x 2" T-bolts
• (2) 1/4"-20 TPI x 1.5" T-bolts
• (2) Clamp screw adapters
• (5) Expandable dog assemblies
• (3) 1/4"-20 TPI low-profile knobs
• (3) Fence screw adapters
• (1) 4" Fence
• (1) 10" Fence
• (1) 3/16" Hex ball end screwdriver
• (1) Low profile clamp application chart
