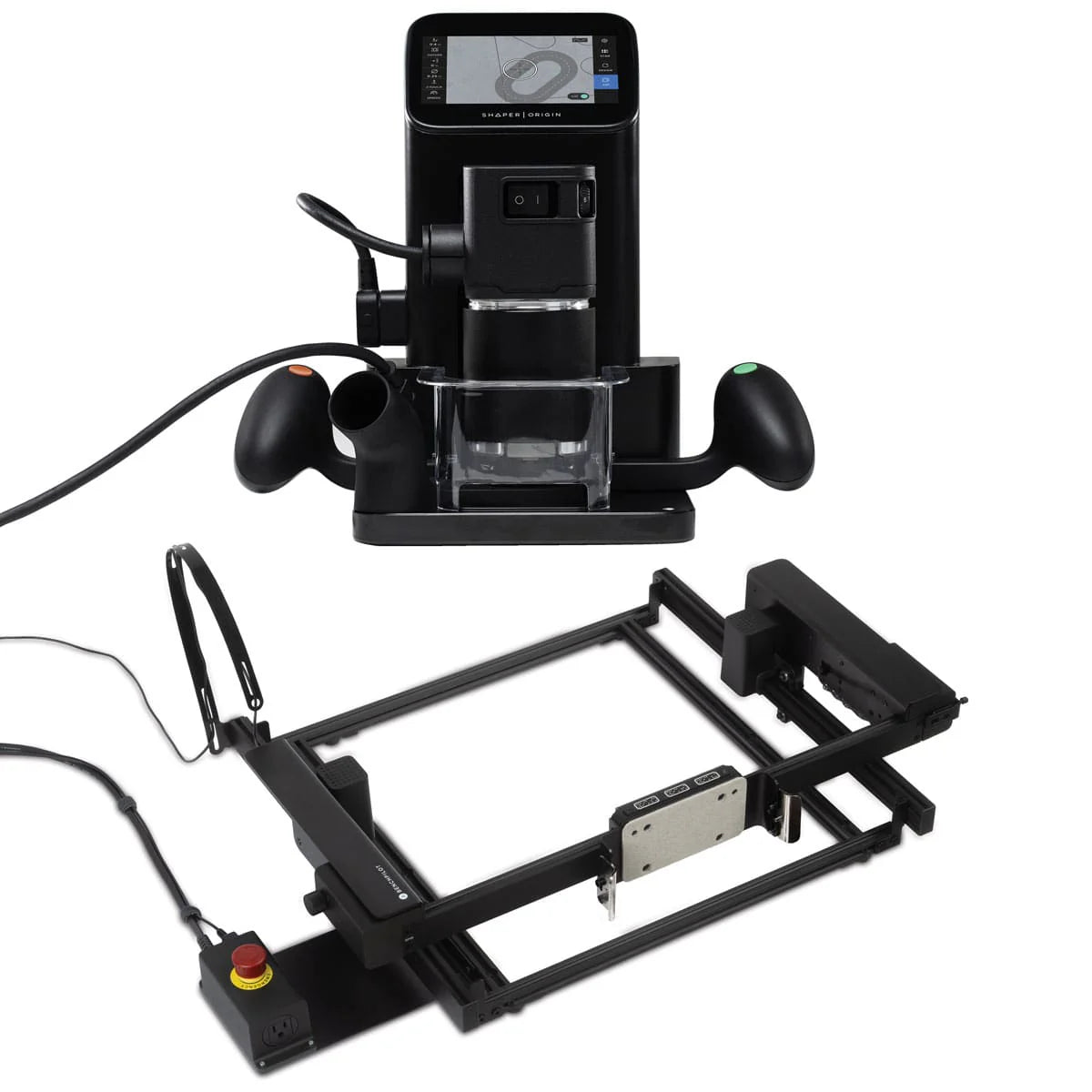

Origin Handheld CNC Router and BenchPilot Package

Origin brings digital precision to woodworking in a truly revolutionary form: the world’s first handheld CNC router. With onboard automatic cut correction, Origin delivers unmatched accuracy, flexibility, and efficiency. Say goodbye to the size constraints of traditional CNCs—tackle projects large and small with a compact, portable tool. Create designs right on Origin, in Shaper Studio, or upload your own files. With optional extensions and regular software updates, this is the only power tool that gets better over time.

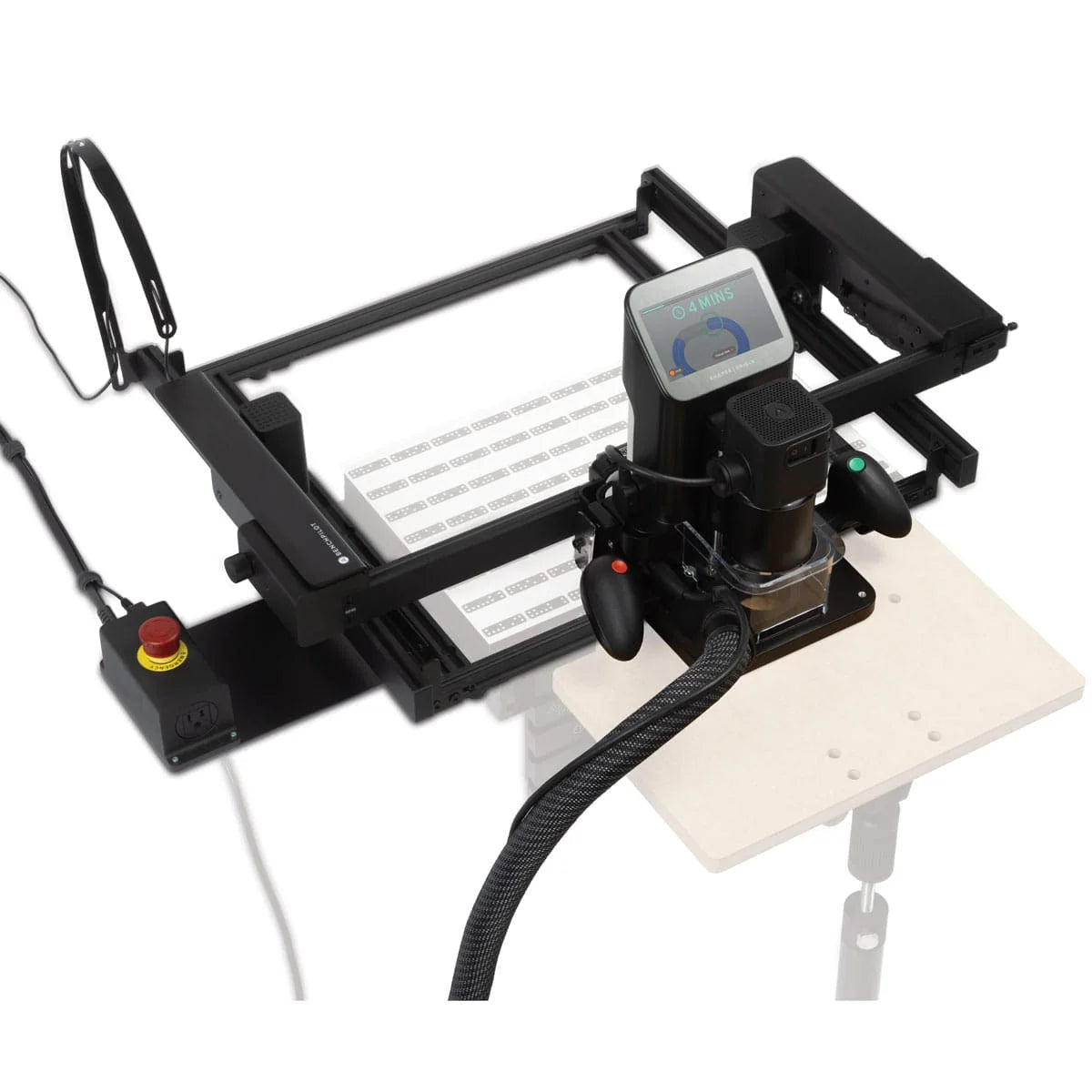

Clip the Shaper Origin into BenchPilot to turn it into a hands-free milling machine, capable of vertical or horizontal cutting. Like autopilot for Origin, let BenchPilot drive so you can focus on other tasks. When you’re done, simply unclip Origin to take it where it’s needed next.

Dimensioned and sized to fit perfectly with Shaper Workstation, BenchPilot creates a gantry-like system with horizontal and vertical milling capabilities, making it flexible enough for cutting joinery, inlays, intricate engravings or profiles. It can also be mounted directly to your workbench without Workstation. Perfect for batch work and time-consuming jobs, all without the need for complex software, g-code, or CNC programming.

Shaper Features:

• Automatic cut correction
• No programming required
• Intuitive touch screen interface
• On-tool design
• Suitable with a range of router bits
• Precise depth control
• Easy adjustments for tight fitting joints
• Cut perfect box joints and mortise and tenons
• Work at any scale

BenchPilot Features:

• Drives Origin automatically
• Instantly converts Origin to a benchtop gantry system
• Simply unclip Origin to use it manually again and take it on the go
• No complex software, g-code or CNC programming required
• Great for joinery, inlays, intricate engravings and profiles
• Can cut vertically or horizontally
• Compatible with Origin Gen1 and Gen 2

Shaper Specifications:

• Input Power: 120VAC, 60Hz. 7A
• Spindle Motor: 720W brushed AC motor, 10,000 - 26,000 RPM with load-compensating speed control, Soft-start, over-temperature and over-load safety cut-offs
• Collet: Includes a ¼” collet that accepts any commonly available ¼” shank router bits, ⅛” collet sold separately (#190957)
• Depth Control: 43 mm (1.7”) of total Z-axis travel, digitally adjustable depth-of-cut, automated touch-off sensor
• Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction, 34 mm inner diameter by 39 mm outer diameter port dimensions, fits most standard 27mm (35 mm OD) and 36mm suction hoses (e.g. Festool, Fein), includes a 6.5’ adaptor hose with a 2 ¼” OD nozzle for use with US-standard wet/dry vacs
• Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates, USB port allows easy offline transfer of design files
• Touch Screen: Capacitive multi-touch full-color LCD
• Dimensions: Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”, Systainer: 15 ½” x 11 ½” x 17” (SYS 5 T-LOC Systainer)
• Weight: Origin: 14.9 lb, packaged (with accessories) in Systainer: 23.5 lb

What's Included:

• (1) Shaper Origin
• (1) Shaper Branded Systainer³ M437 Carrying Case
• (2) ShaperTape (150-ft each)
• (1) Tool change accessories
• (1) Reusable transport locks
• (1) USB A/C dual flash drive
• (1) 1/4-inch up-spiral flat router bit
• (1) 1/8-inch up-spiral flat router bit
• (1) 60 degree engraving router bit
• (1) Mini systainer®
• (1) Shaper BenchPilot
