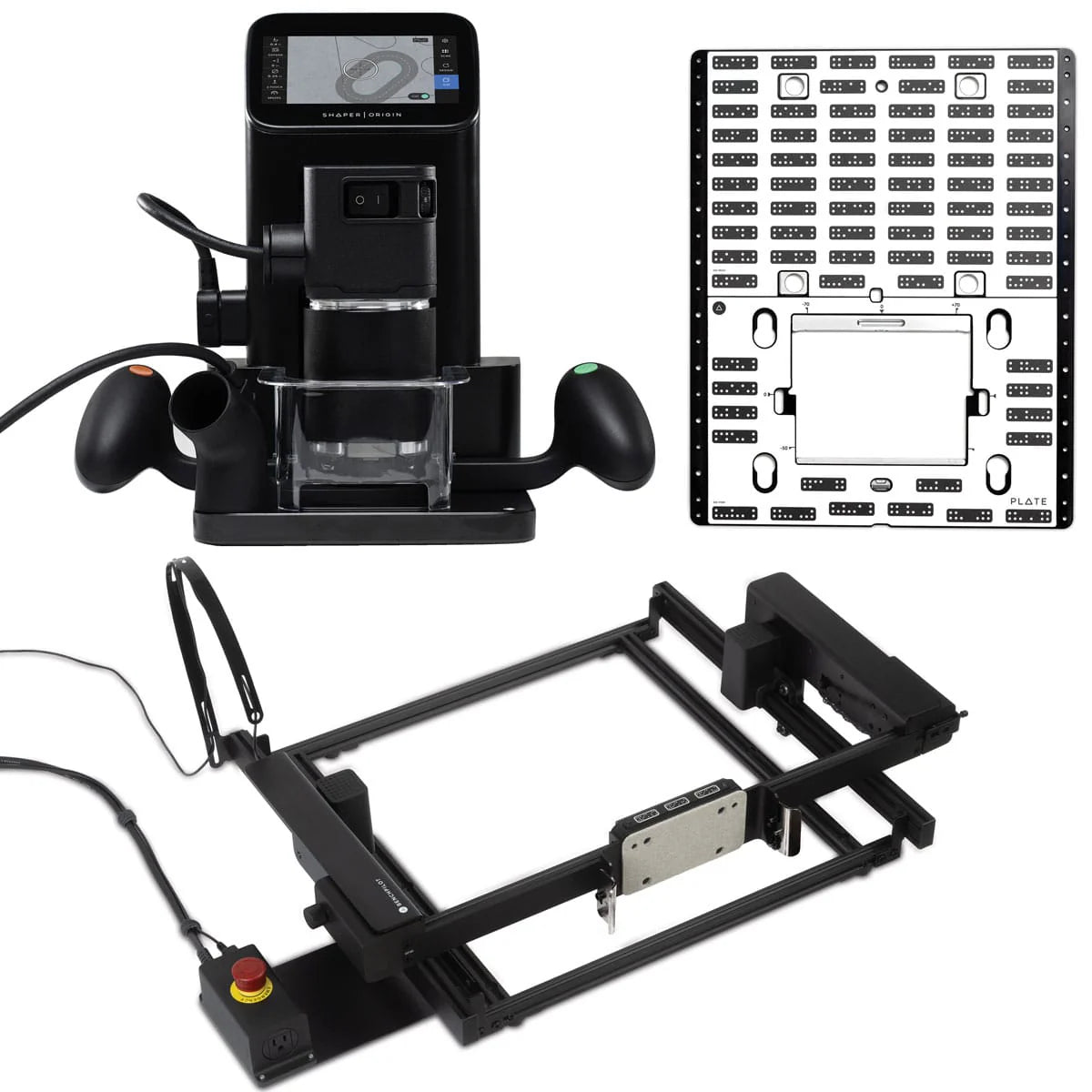

Origin Handheld CNC Router with Shaper Plate and BenchPilot Package

Origin redefines the woodworking experience as the first handheld CNC router to combine craftsmanship with digital precision. Featuring real-time automatic cut correction, Origin empowers you to make exact cuts without the limitations of stationary machines. Its compact design unlocks a wide range of project scales, and with continuous software updates and add-on accessories, Origin evolves with you. Create directly on the tool, in Shaper Studio, or bring in your own designs—flexibility meets finesse.

Shaper Plate is the universal template for Origin. Shaper Plate brings efficiency and precision to your projects when installing hardware, inlaying in slabs, corner rounding, routing System 32 holes in cabinetry, and much, much more. Multiple flags and a fence allow for adaptable fixturing on virtually any workpiece. The Plate’s pull-down reticle makes it simple to align with marks on your workpiece. The anti-slip backing means that you can use Plate on most surfaces without clamping.

Clip the Shaper Origin into BenchPilot to turn it into a hands-free milling machine, capable of vertical or horizontal cutting. Like autopilot for Origin, let BenchPilot drive so you can focus on other tasks. When you’re done, simply unclip Origin to take it where it’s needed next.

Dimensioned and sized to fit perfectly with Shaper Workstation, BenchPilot creates a gantry-like system with horizontal and vertical milling capabilities, making it flexible enough for cutting joinery, inlays, intricate engravings or profiles. It can also be mounted directly to your workbench without Workstation. Perfect for batch work and time-consuming jobs, all without the need for complex software, g-code, or CNC programming.

Shaper Features:

• Automatic cut correction
• No programming required
• Intuitive touch screen interface
• On-tool design
• Suitable with a range of router bits
• Precise depth control
• Easy adjustments for tight fitting joints
• Cut perfect box joints and mortise and tenons
• Work at any scale

Shaper Plate Features:

• Integrates with the ShaperHub Hardware Catalog
• Ships with a Mini systainer® and two low-profile clamps
• Fitted with an anti-slip backing for fast setup

BenchPilot Features:

• Drives Origin automatically
• Instantly converts Origin to a benchtop gantry system
• Simply unclip Origin to use it manually again and take it on the go
• No complex software, g-code or CNC programming required
• Great for joinery, inlays, intricate engravings and profiles
• Can cut vertically or horizontally
• Compatible with Origin Gen1 and Gen 2

Shaper Specifications:

• Input Power: 120VAC, 60Hz. 7A
• Spindle Motor: 720W brushed AC motor, 10,000 - 26,000 RPM with load-compensating speed control, Soft-start, over-temperature and over-load safety cut-offs
• Collet: Includes a ¼” collet that accepts any commonly available ¼” shank router bits, ⅛” collet sold separately (#190957)
• Depth Control: 43 mm (1.7”) of total Z-axis travel, digitally adjustable depth-of-cut, automated touch-off sensor
• Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction, 34 mm inner diameter by 39 mm outer diameter port dimensions, fits most standard 27mm (35 mm OD) and 36mm suction hoses (e.g. Festool, Fein), includes a 6.5’ adaptor hose with a 2 ¼” OD nozzle for use with US-standard wet/dry vacs
• Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates, USB port allows easy offline transfer of design files
• Touch Screen: Capacitive multi-touch full-color LCD
• Dimensions: Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”, Systainer: 15 ½” x 11 ½” x 17” (SYS 5 T-LOC Systainer)
• Weight: Origin: 14.9 lb, packaged (with accessories) in Systainer: 23.5 lb

Shaper Plate Specifications:

• Width: 362 mm, 14.25"
• Height: 450 mm, 17.7"
• Thickness: 6.45 mm, .25"
• Cut Window Width: 160 mm, 6.29"
• Cut Window Height: 120 mm, 4.72"

What's Included:

• (1) Shaper Origin
• (1) Shaper Branded Systainer³ M437 Carrying Case
• (2) ShaperTape (150-ft each)
• (1) Tool change accessories
• (1) Reusable transport locks
• (1) USB A/C dual flash drive
• (1) 1/4-inch up-spiral flat router bit
• (1) 1/8-inch up-spiral flat router bit
• (1) 60 degree engraving router bit
• (1) Shaper Plate
• (1) Mini systainer®
• (2) Low-profile clamps
• (1) Shaper BenchPilot
