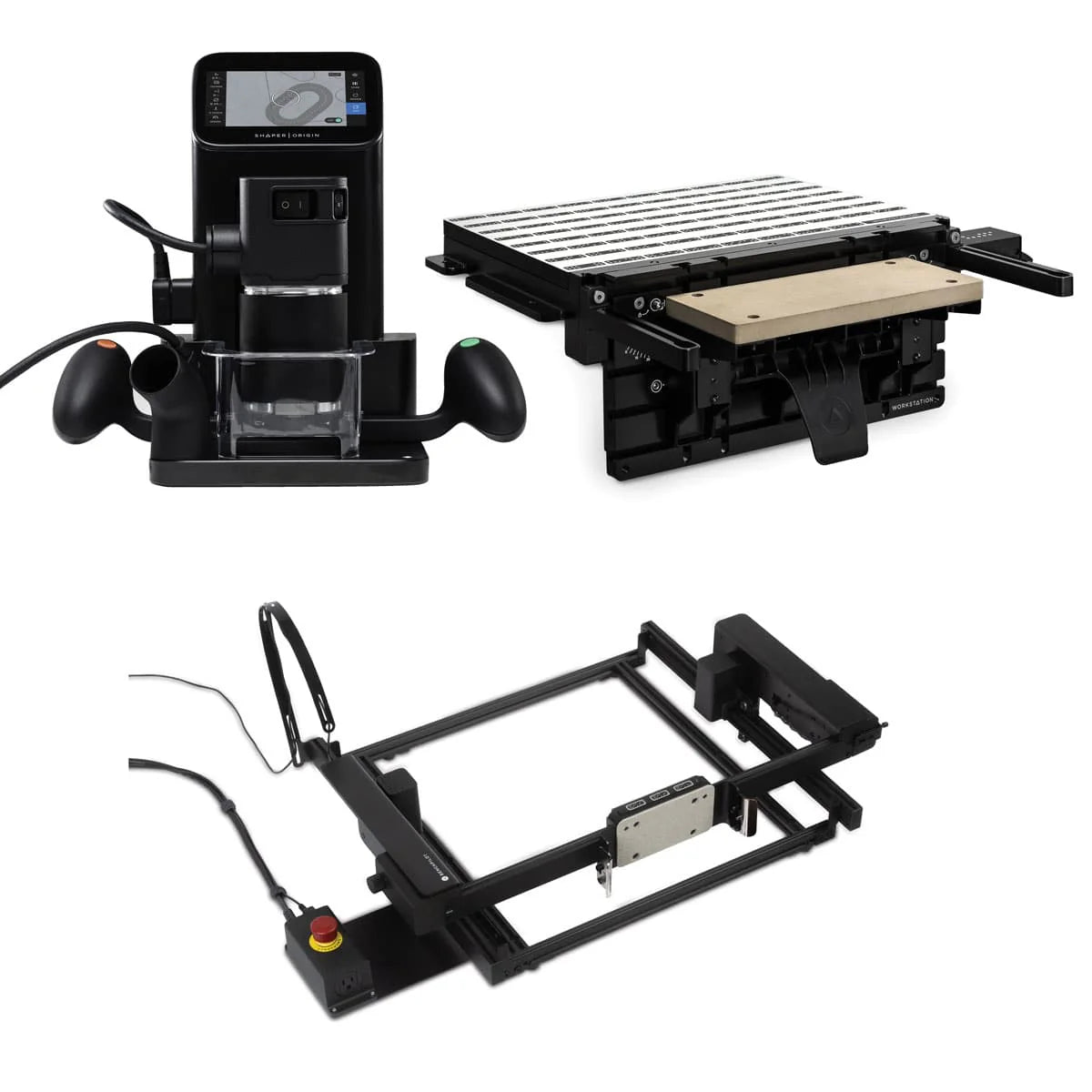

Origin Handheld CNC Router with Shaper Workstation and BenchPilot Package

Origin is the first handheld CNC router, designed to bring digital precision and control to woodworking. With onboard automatic cut correction, it delivers unmatched accuracy and efficiency in a compact form. Forget the limits of fixed CNC machines—Origin adapts to projects of any size. Create designs right on the tool, in Shaper Studio, or upload your own files. With optional extensions and regular software updates, Origin is the rare power tool that keeps getting better over time.

Shaper Workstation is the ultimate fixturing solution for all your benchtop cutting operations. It’s designed to streamline and expand upon Origin’s abilities, offering rapid, repeatable and precise fixturing of a wide range of stock configurations. Workstation features a reusable ShaperTape field, easily adjustable shelf for small or difficult-to-fixture workpieces, indexing pins for easy alignment and registration, and an angle fence for aligning stock at quick angles. These features greatly reduce setup time and make it easier than ever to get cutting quickly.

The BenchPilot is dimensioned and sized to fit perfectly with Shaper Workstation, BenchPilot creates a gantry-like system with horizontal and vertical milling capabilities, making it flexible enough for cutting joinery, inlays, intricate engravings or profiles. It can also be mounted directly to your workbench without Workstation. Perfect for batch work and time-consuming jobs, all without the need for complex software, g-code, or CNC programming.

Shaper Features:

• Automatic cut correction
• No programming required
• Intuitive touch screen interface
• On-tool design
• Suitable with a range of router bits
• Precise depth control
• Easy adjustments for tight fitting joints
• Cut perfect box joints and mortise and tenons
• Work at any scale

Workstation

Features:

• Vertical and horizontal workholding capabilities
• Secure small and difficult-to-fixture workpieces
• Make perfect mortise-and-tenon joinery, box joints, and more

BenchPilot Features:

• Drives Origin automatically
• Instantly converts Origin to a benchtop gantry system
• Simply unclip Origin to use it manually again and take it on the go
• No complex software, g-code or CNC programming required
• Great for joinery, inlays, intricate engravings and profiles
• Can cut vertically or horizontally
• Compatible with Origin Gen1 and Gen 2

Shaper Specifications:

• Input Power: 120VAC, 60Hz. 7A
• Spindle Motor: 720W brushed AC motor, 10,000 - 26,000 RPM with load-compensating speed control, Soft-start, over-temperature and over-load safety cut-offs
• Collet: Includes a ¼” collet that accepts any commonly available ¼” shank router bits, ⅛” collet sold separately (#190957)
• Depth Control: 43mm (1.7”) of total Z-axis travel, digitally adjustable depth-of-cut, automated touch-off sensor
• Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction, 34mm inner diameter by 39mm outer diameter port dimensions, fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein), includes a 6.5’ adaptor hose with a 2 ¼” OD nozzle for use with US-standard wet/dry vacs
• Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates, USB port allows easy offline transfer of design files
• Touch Screen: Capacitive multi-touch full-color LCD
• Dimensions: Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”, Systainer: 15 ½” x 11 ½” x 17” (SYS 5 T-LOC Systainer)
• Weight: Origin: 14.9 lbs, packaged (with accessories) in Systainer: 23.5 lbs

Shaper Workstation Specifications:

• Max. Height: 250 mm (9.8")
• Depth: 465 mm (18.3")
• Width: 515 mm (20.3")
• Weight: 9.75 kg (21.5 lb)

What’s Included:

• (1) Shaper Origin
• (1) Shaper Branded Systainer³ M437 Carrying Case
• (2) ShaperTape (150-ft each)
• (1) Tool change accessories
• (1) Reusable transport locks
• (1) USB A/C dual flash drive
• (1) 1/4-inch up-spiral flat router bit
• (1) 1/8-inch up-spiral flat router bit
• (1) 60 degree engraving router bit
• (1) Workstation body
• (1) Clamping face
• (1) Support bar
• (2) Support arms
• (1) Shelf
• (1) Angle fence
• (1) 4-mm wrench
• (2) Hold-down clamps
• (1) Spoilboard set
• (1) Shaper BenchPilot
