Oscillating Spindle Sander - 1 HP 1 Ph 115V - JOSS-S

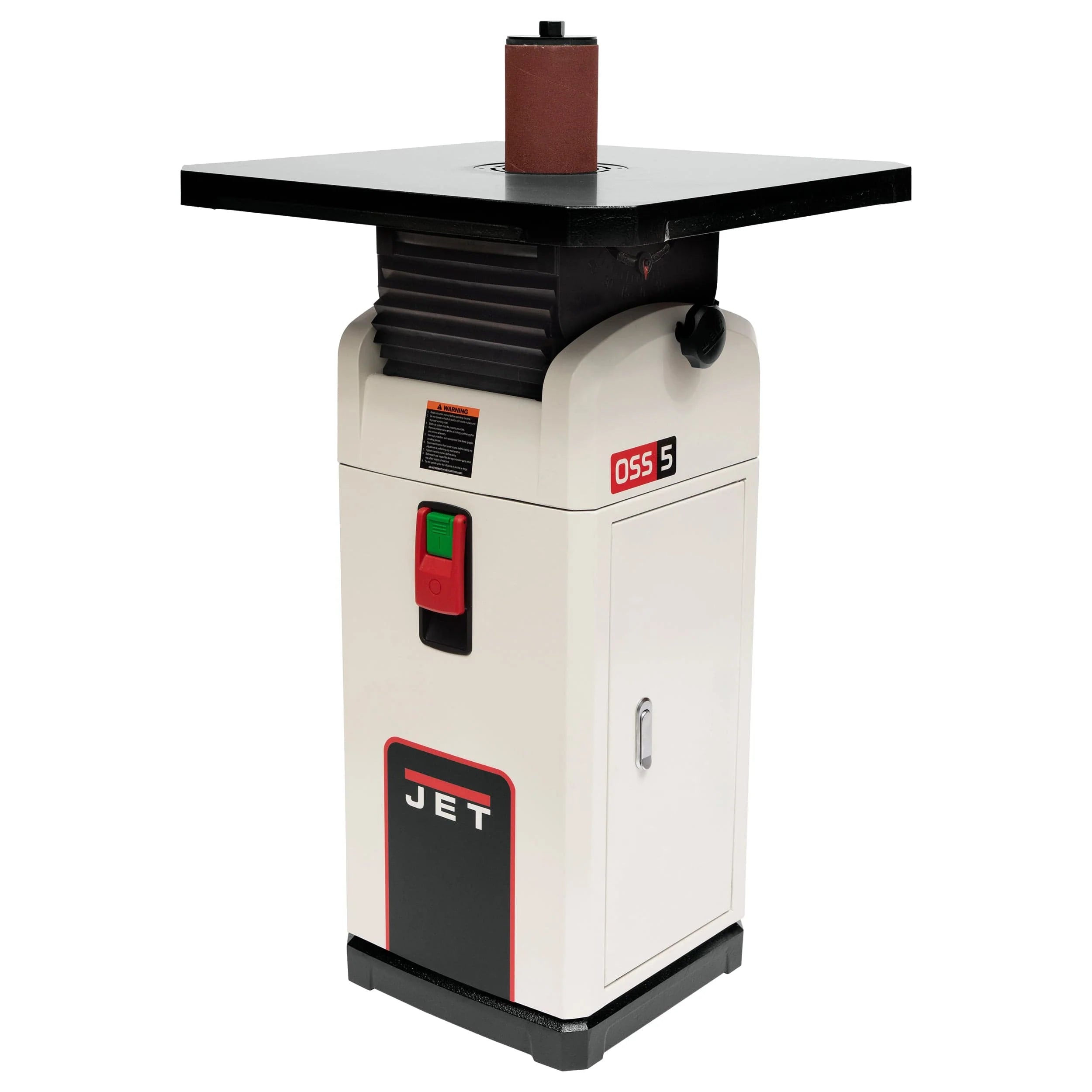

The Jet® Oscillating Spindle Sander Model JOSS-SS is the perfect tool for sanding curves, arcs, and other irregular shapes with precision and ease. Its powerful 1/2 HP motor drives a spindle that oscillates up and down, ensuring that the sanding sleeve covers more area and reduces heat build-up. With a table that tilts up to 45 degrees, the JOSS-SS accommodates any sanding angle you may need. The table also features a slotted design that allows for easy installation and secure clamping of auxiliary fences, ensuring accuracy and safety.

The JOSS-SS is equipped with a dust collection port that can be connected to an external vacuum system. This keeps your workspace clean and free from potentially harmful dust particles. The spindle sander also comes with a variety of sanding sleeves, ranging from 1/4" to 4" in diameter, to handle any sanding task you may encounter. These sleeves are easy to change thanks to the tool-free system, allowing you to switch between grits and diameters quickly and efficiently.
Overall, the Jet® Oscillating Spindle Sander Model JOSS-SS is a versatile and reliable tool that will help you achieve professional-level sanding results for years to come.

Features:

• 1-1/2" oscillating action reduces friction heat to protect wood and prolong sleeve life
• Baffles create a chamber under the table for improved dust collection
• Includes 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3" and 4" spindle assemblies
• Integrated paddle switch with safety key
• Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
• Powerful 1HP motor is independently mounted inside the base for easy access and service
• Sealed access door minimizes dust in the storage area
• Table tilts 45° front and 15° back and features a 90° quick index
• Worm and gear mechanism runs in an oil bath to prolong its life and durability

Specifications:

• Motor: 1HP, 1 Ph, 44A, 115/230V/60Hz
• Spindle Speed (RPM): 1720
• Spindle oscillations per minute: 75
• Spindle oscillations length: 1-1/2"
• Spindle lock: Yes
• Table size (L x W): 24-1/2" x 24-1/2"
• Table height from floor: 39-3/16"
• Table tilt: 45° front - 15° back
• Dust port: 4"
• Dust collection minimum (CFM): 300
• Overall dimensions with 4" sanding drum: 24-1/2" W x 24-1/2" L x 44-3/16" H
• Net weight: 216 lbs

What's Included:

• (1) Jet® Oscillating Spindle Sander - 1 HP 1 Ph 115V - JOSS-S
