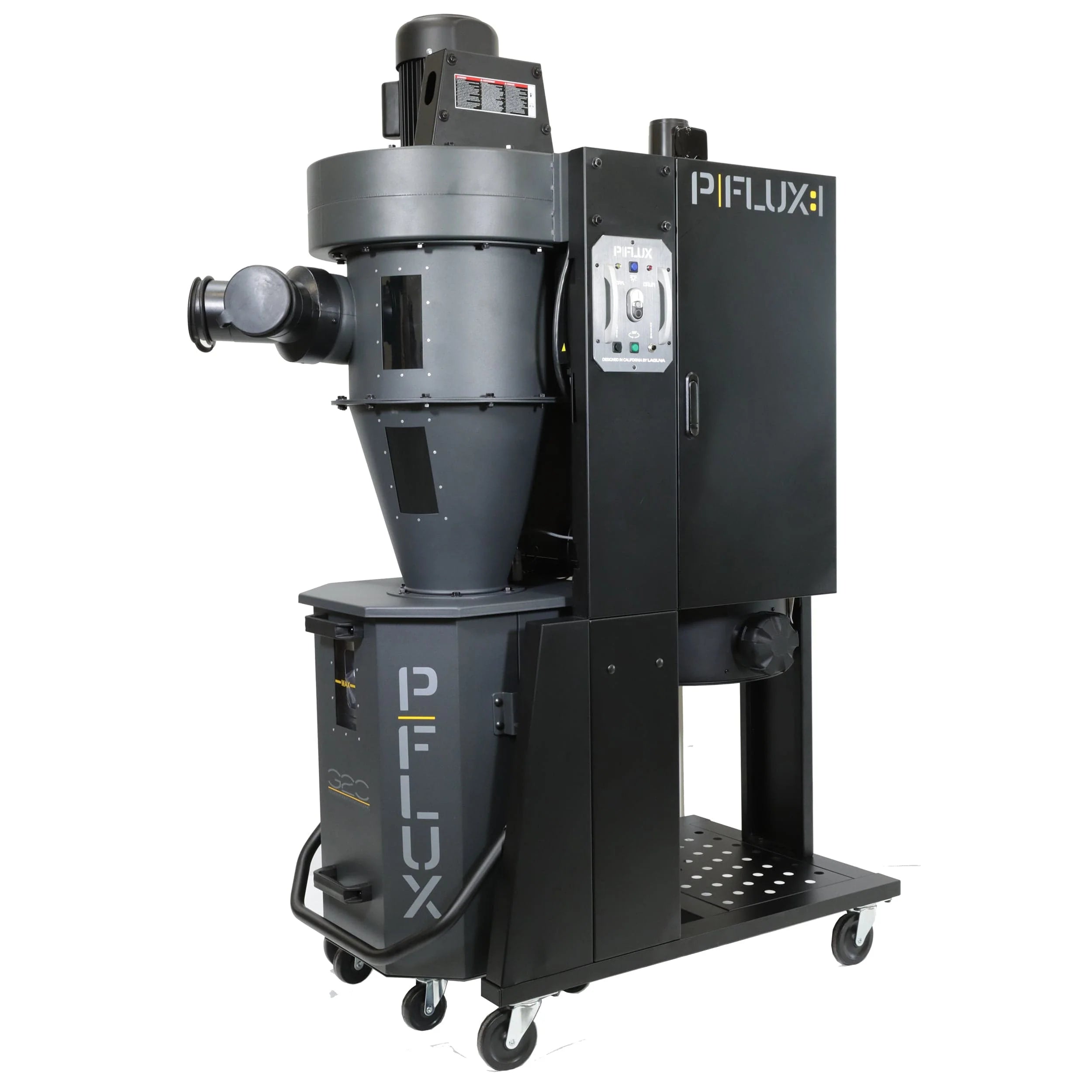

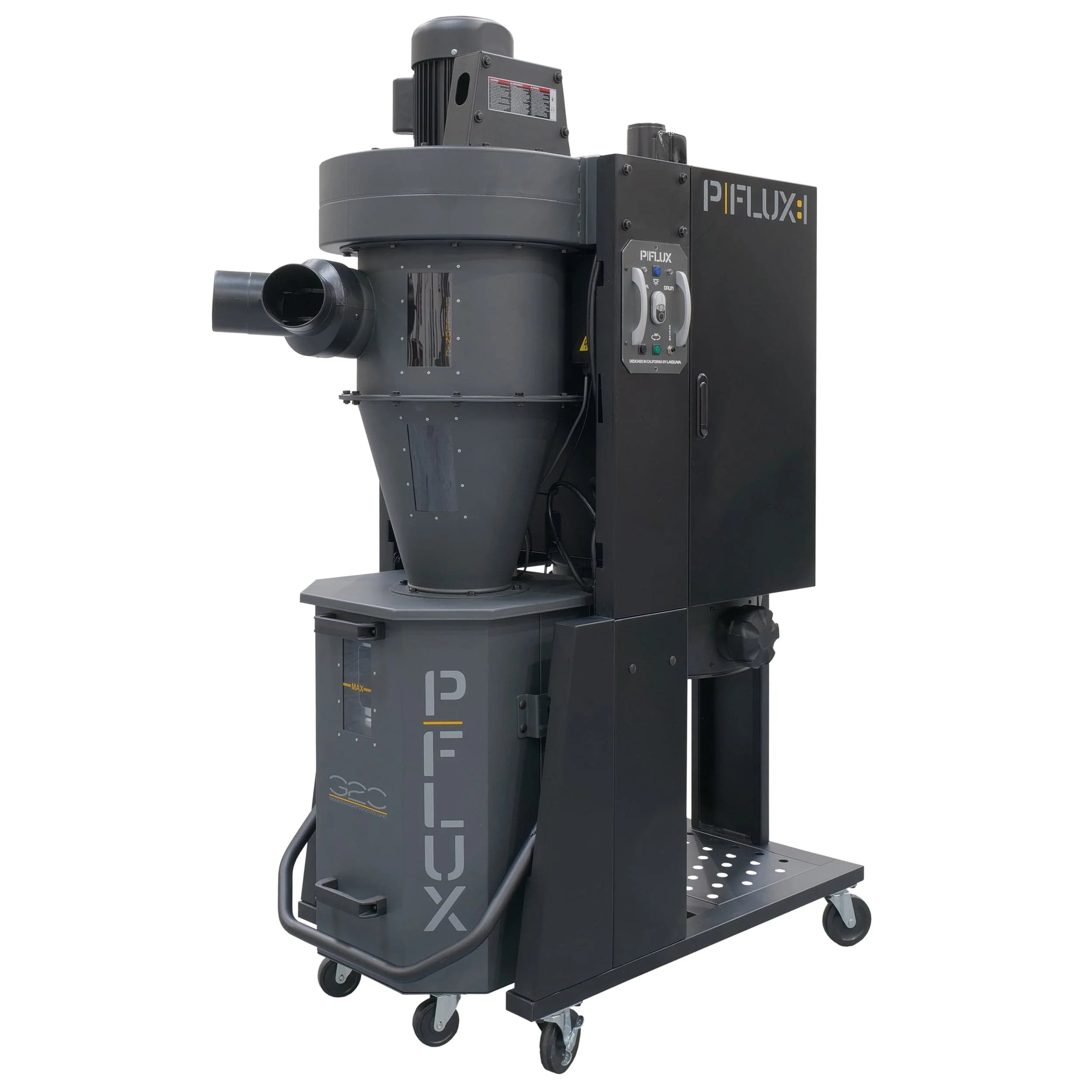

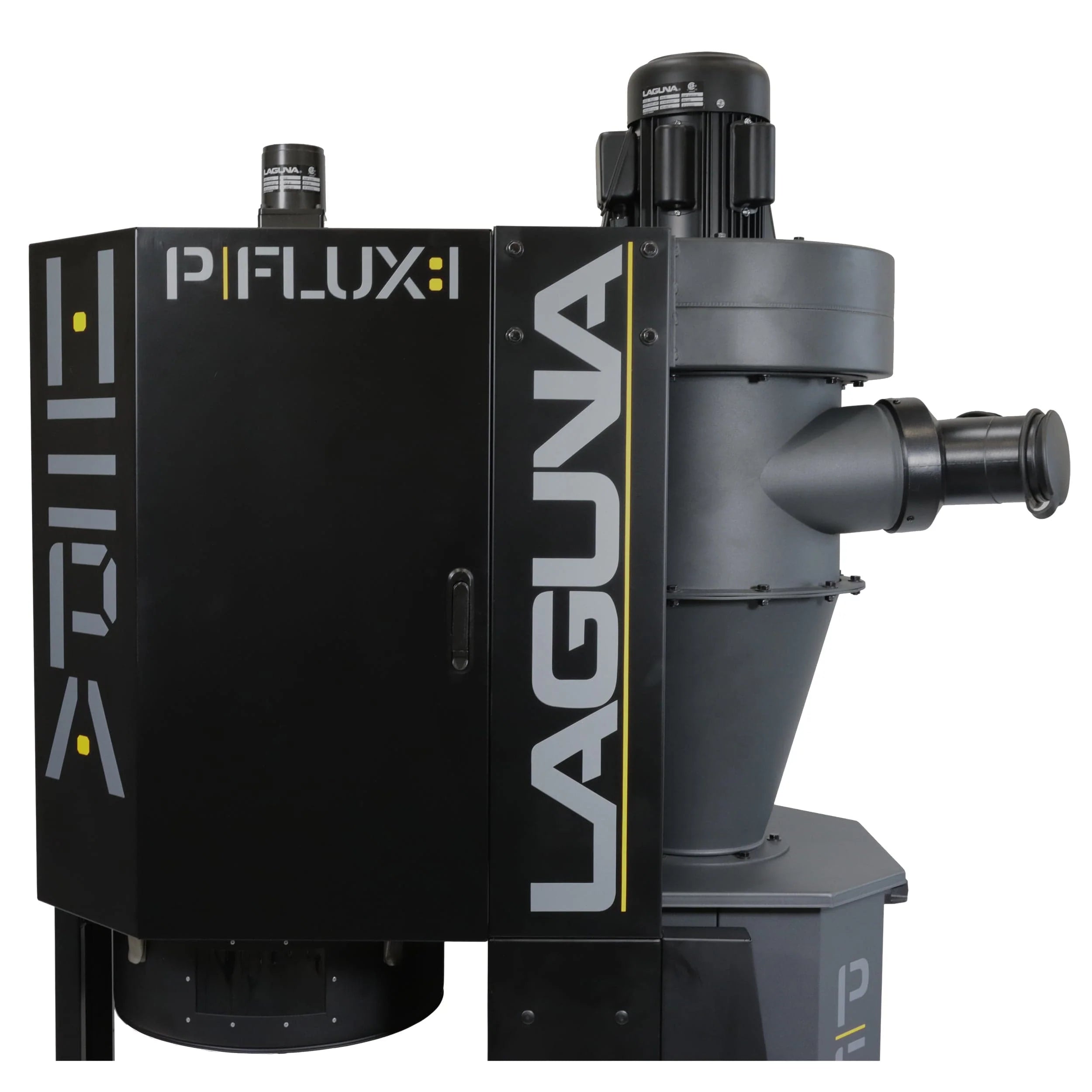

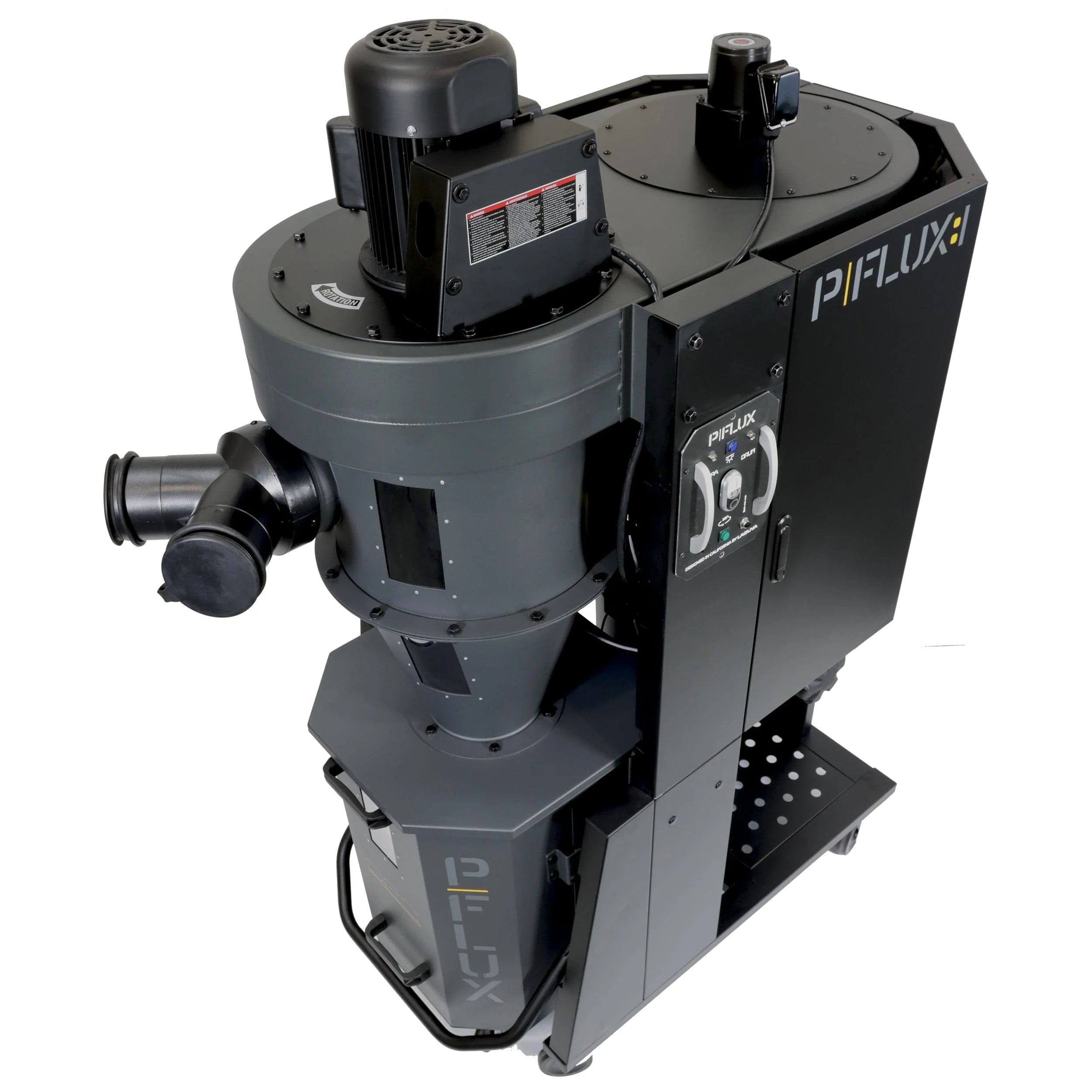

P|FLUX Cyclone HEPA Dust Collector - 1.5 HP

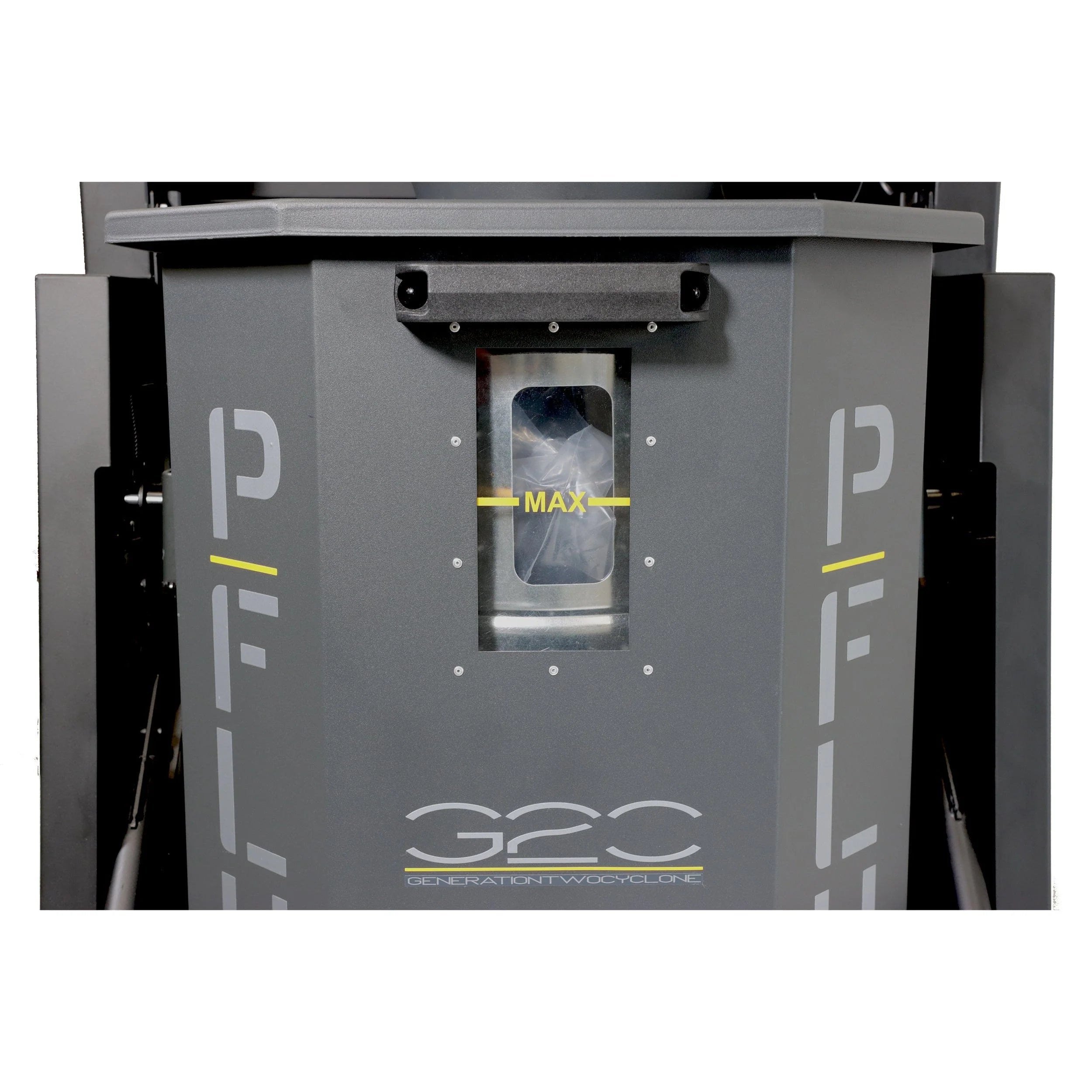

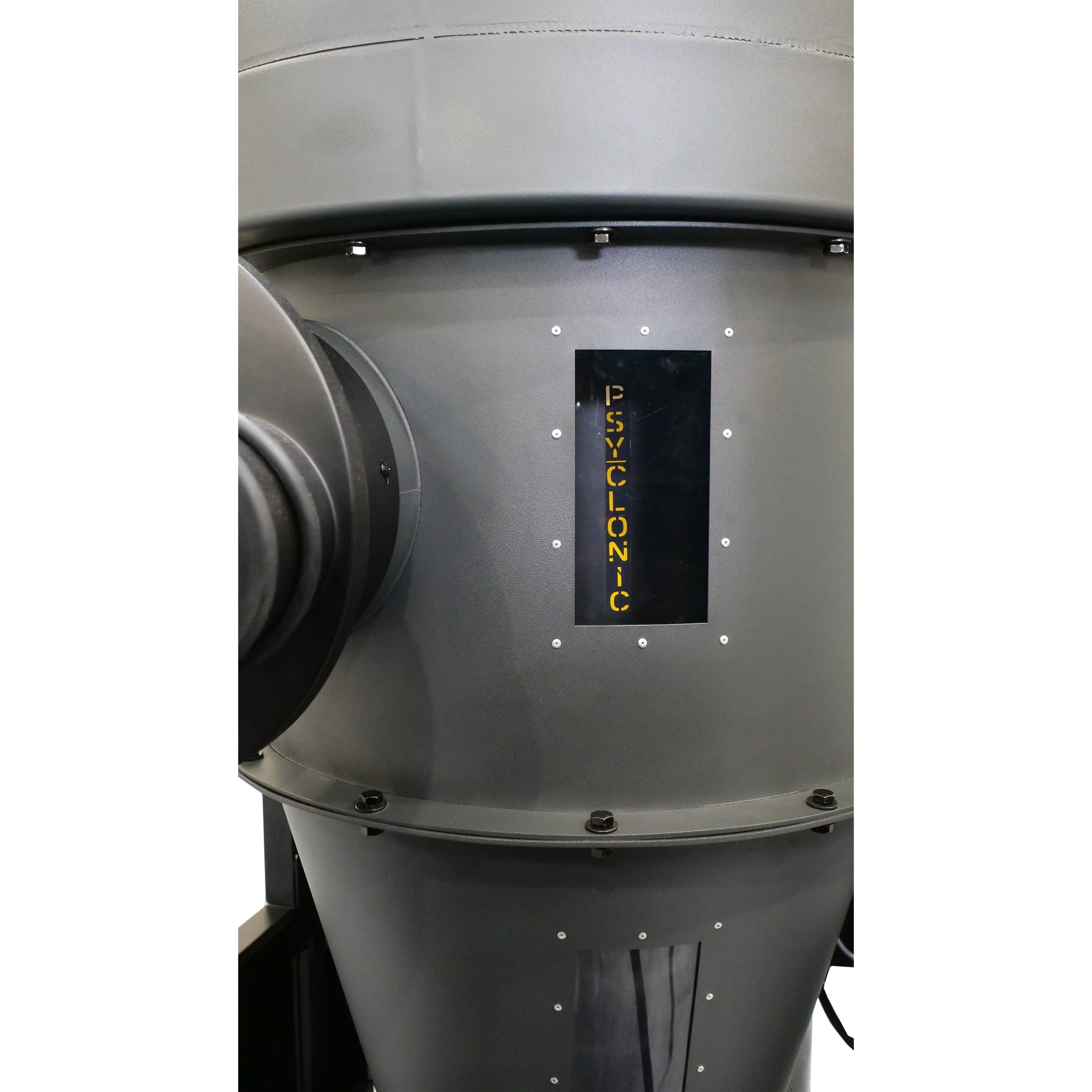

The Laguna P|Flux series has been upgraded. It includes an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the 25-gallon octagonal drum and a bright LED light that illuminates the dust-level viewing window on all P|Flux models. Plus, LED and audio warnings let you know when the drum is full – features that are now standard in this line. Two locking and two 360° swivel casters make shop mobility—and stability—a breeze.

Features:

• 1.5 HP motor

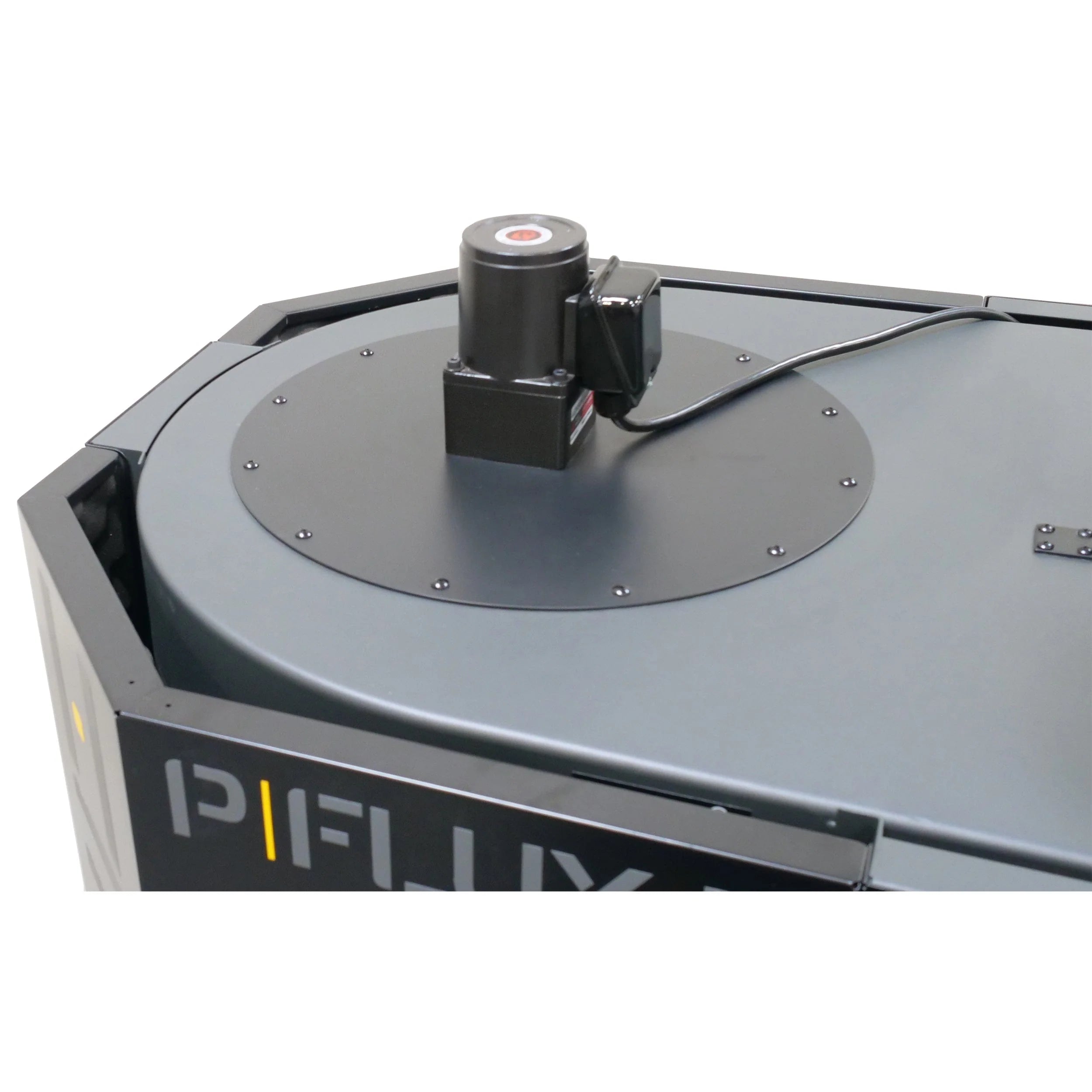

• Auto cleaning cycle
• High frequency remote control switch
• 25 gallon octagon drum
• HEPA cartridge filter

Specifications:

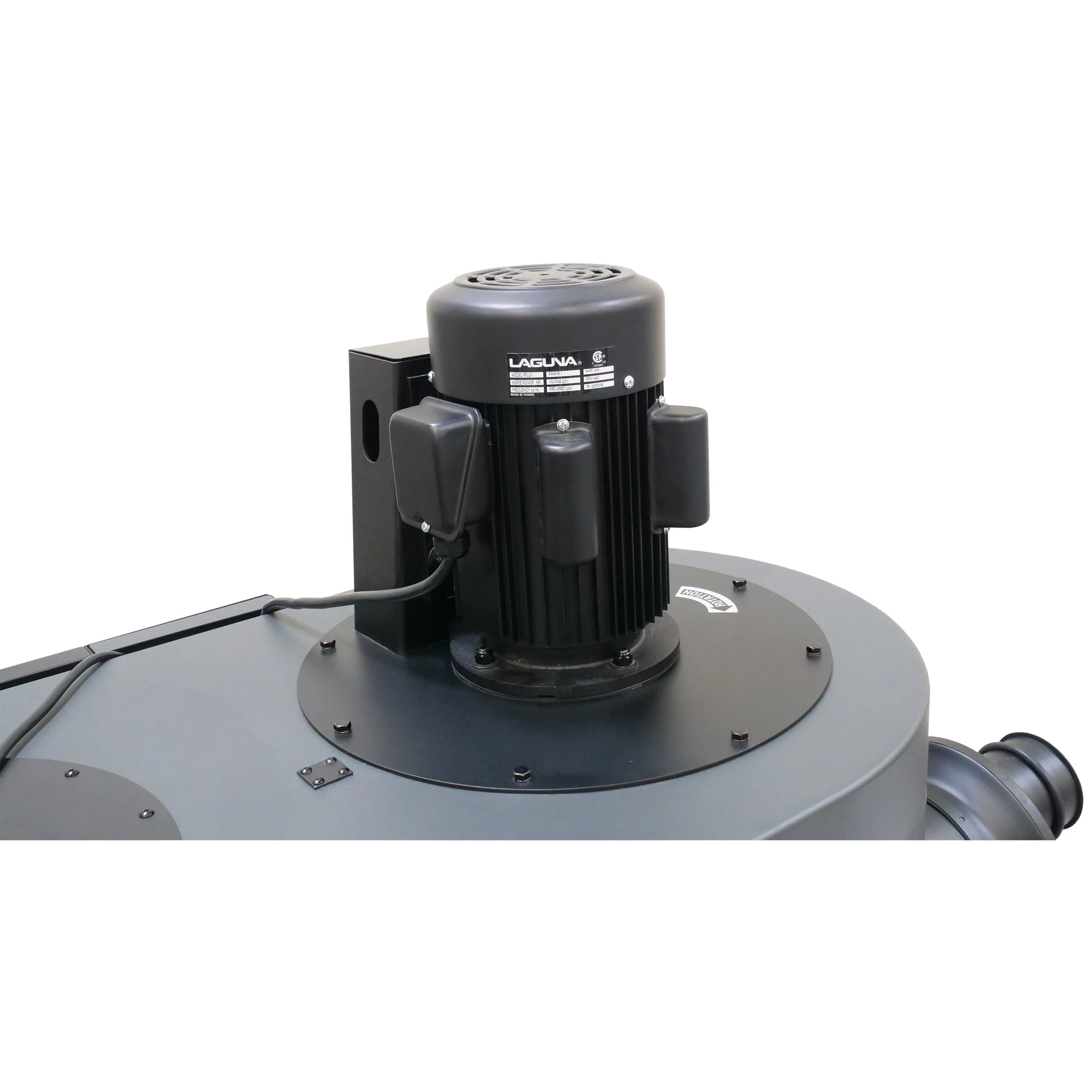

• Motor: 1.5 HP

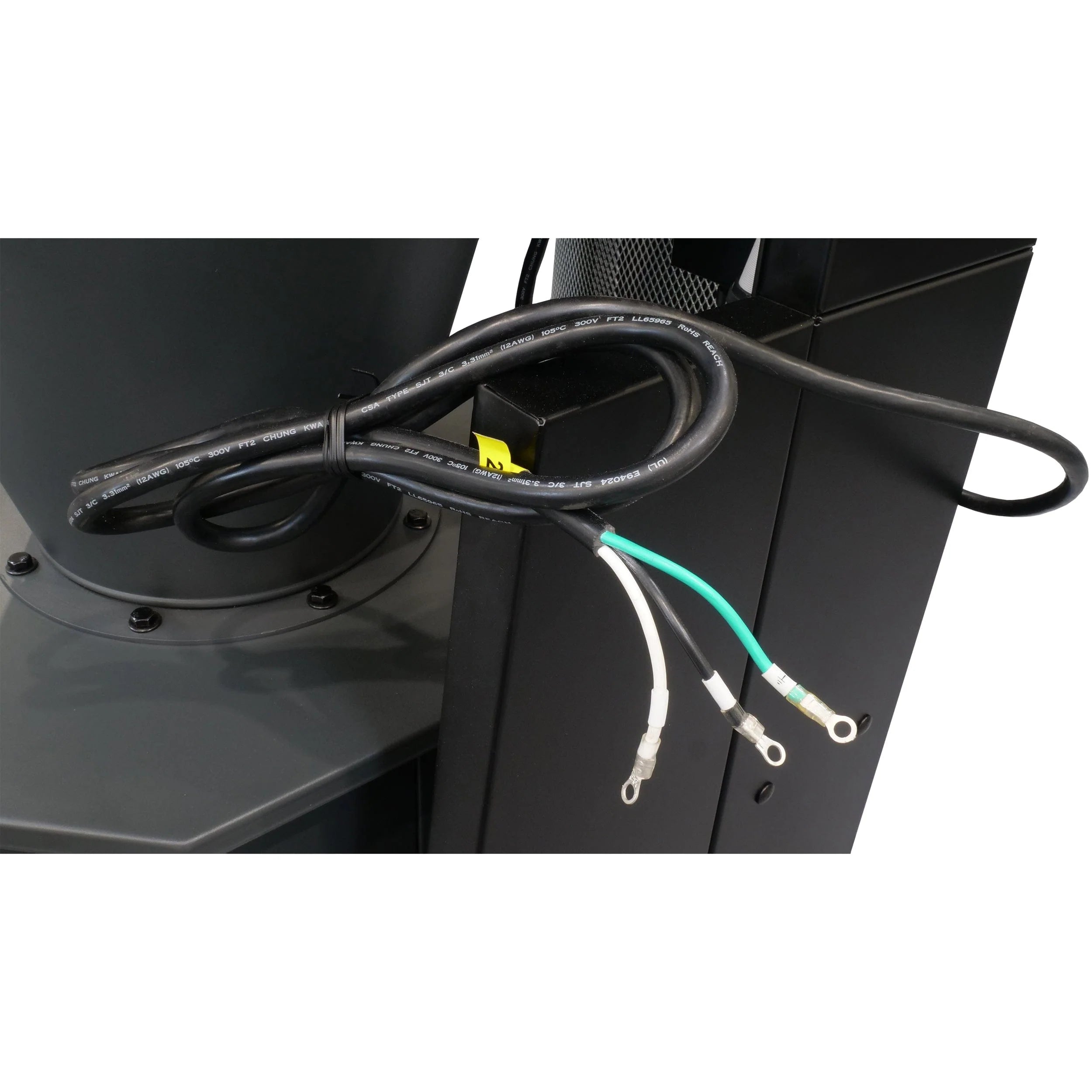

• Electrical: 110V/220V, 60 Hz, 1 PH, 3,450 RPM, 220V conversion kit sold separately
• Running Amp: (with 6" inlet) 18.8A at 110V; 9.4A at 220V
• Air Volume: 900 CFM (cubic feet per minute)
• Max. Static Pressure: 10.1" of water
• Fan Size: 13.5"

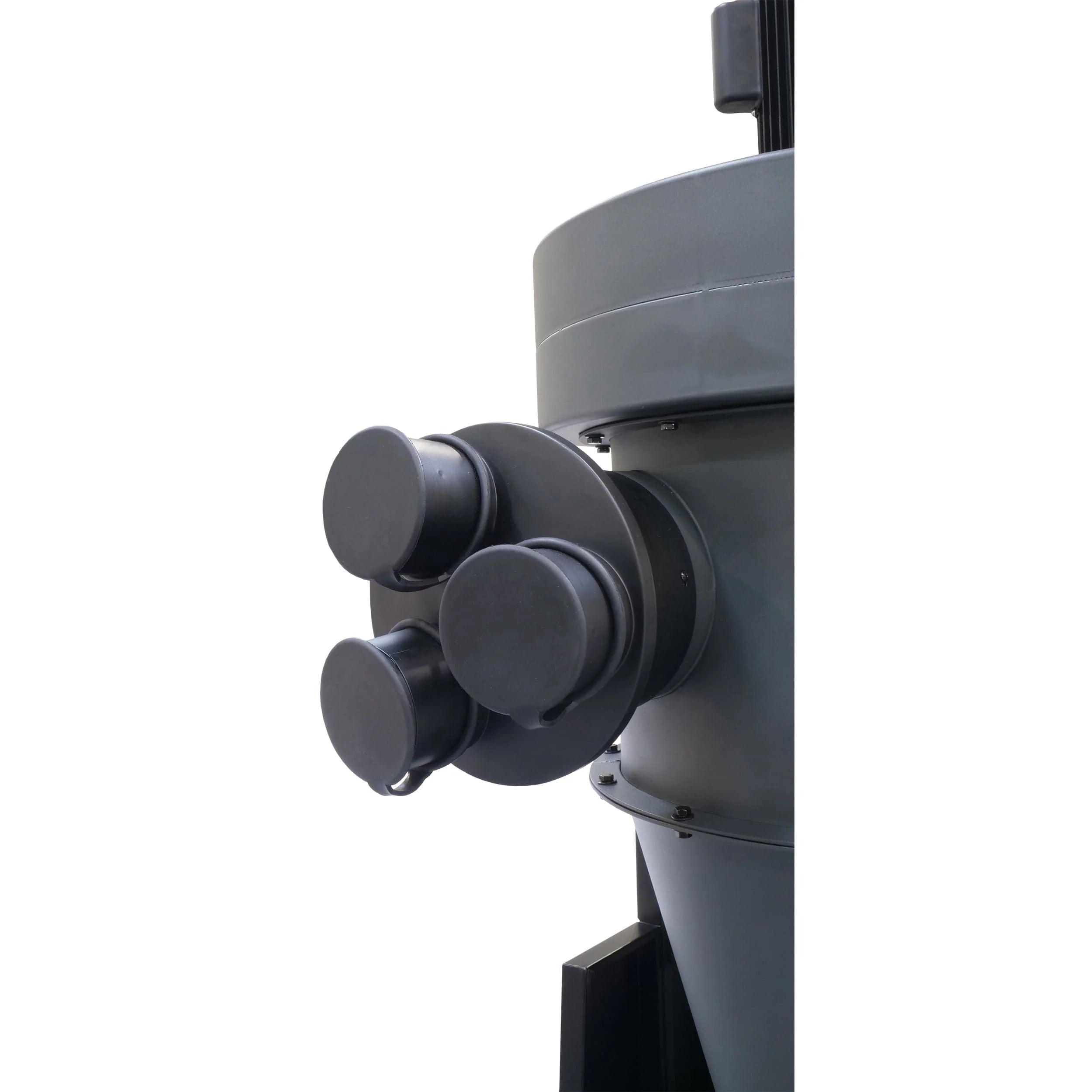

• Inlet: one 6" or two 4" ports

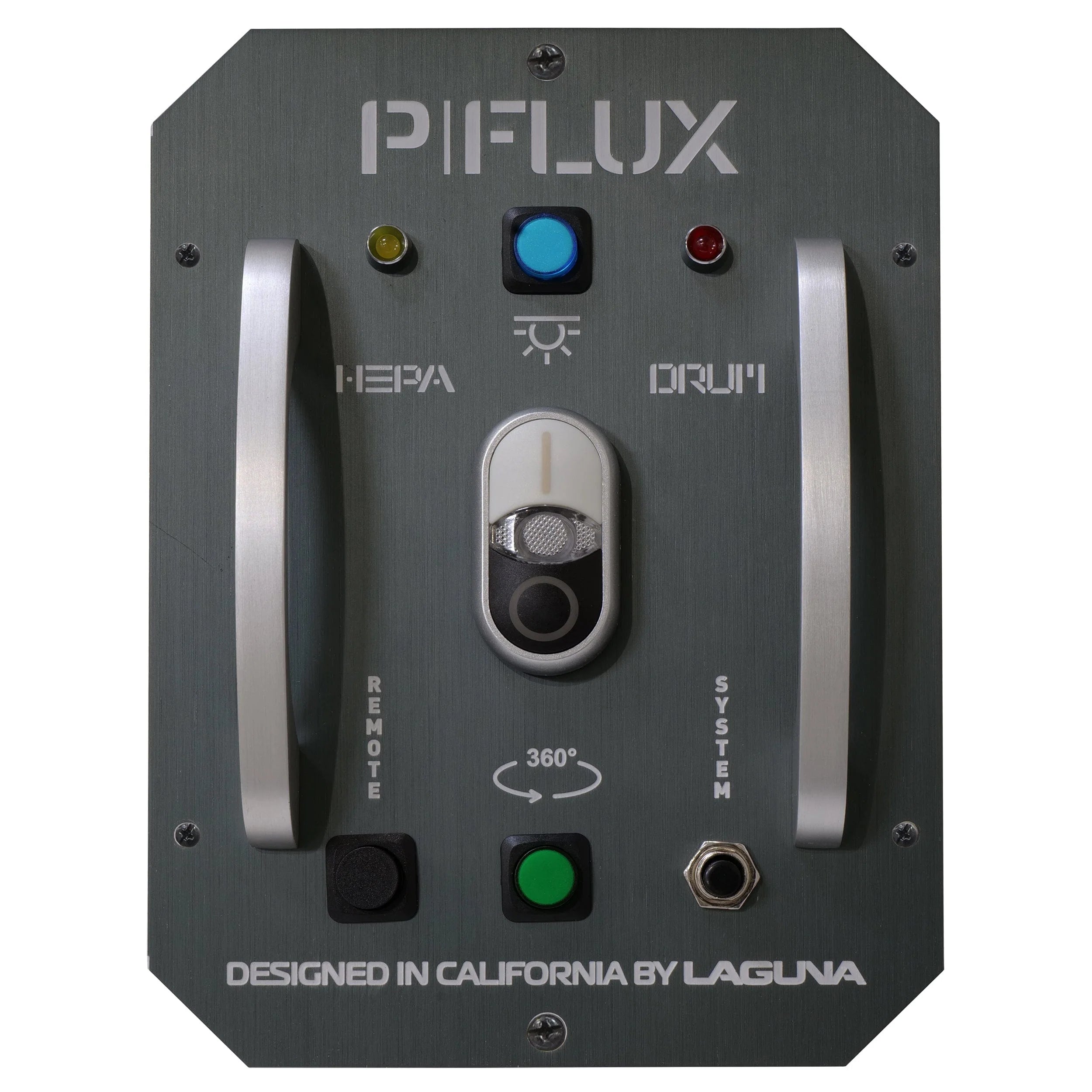

• Switch: high frequency remote control switch
• Collection Capacity: 25-gallon octagonal drum
• Packing Size: (L x W x H) 45" x 28.3" x 47" (114.5 cm x 72 cm x 119.5 cm)
• Machine Weight: 232 lbs. (105 kgs)
• Shipping Weight: 287 lbs. (130 kgs)
• Filter Media: filtering area 48.4 sq. ft. (4.5 m2)

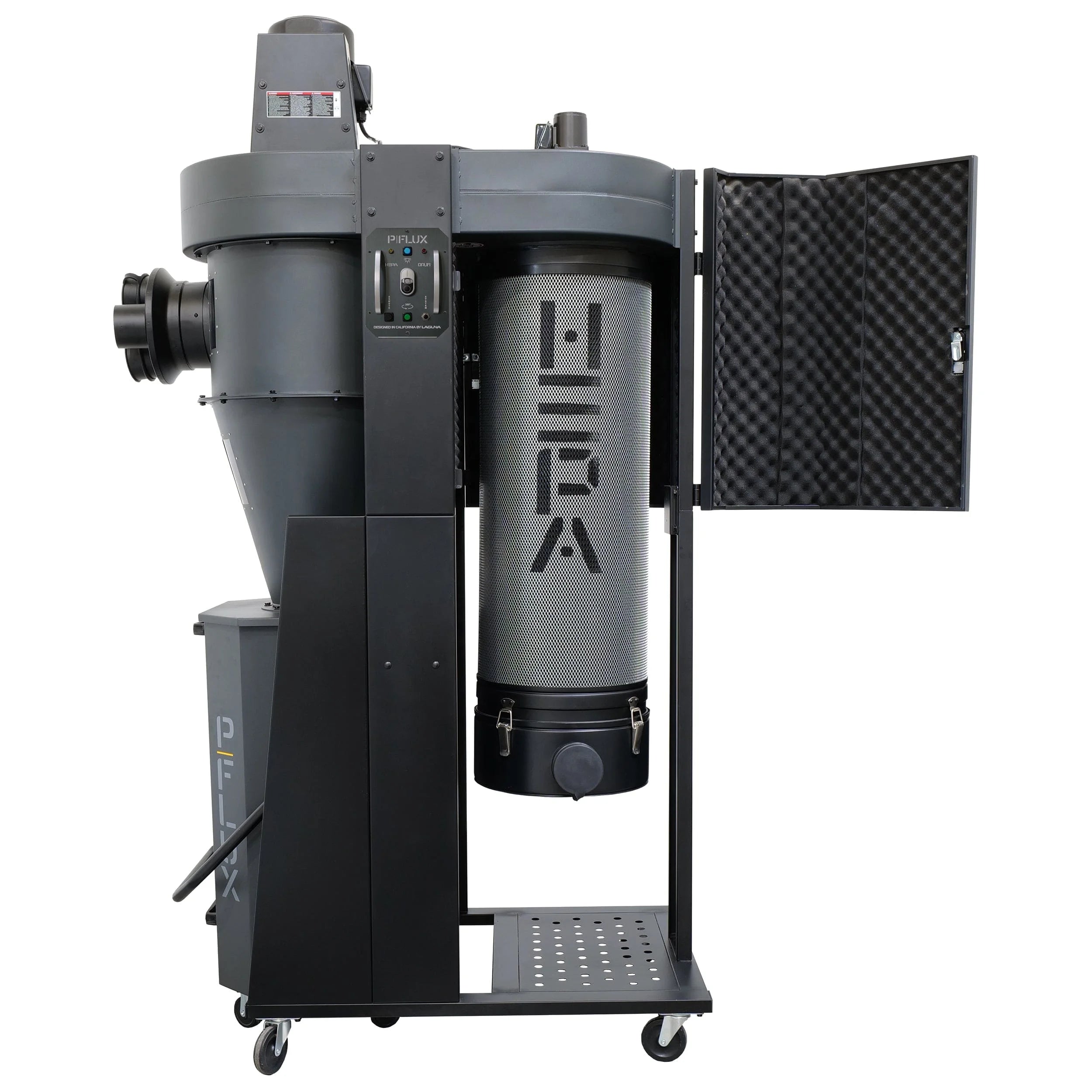

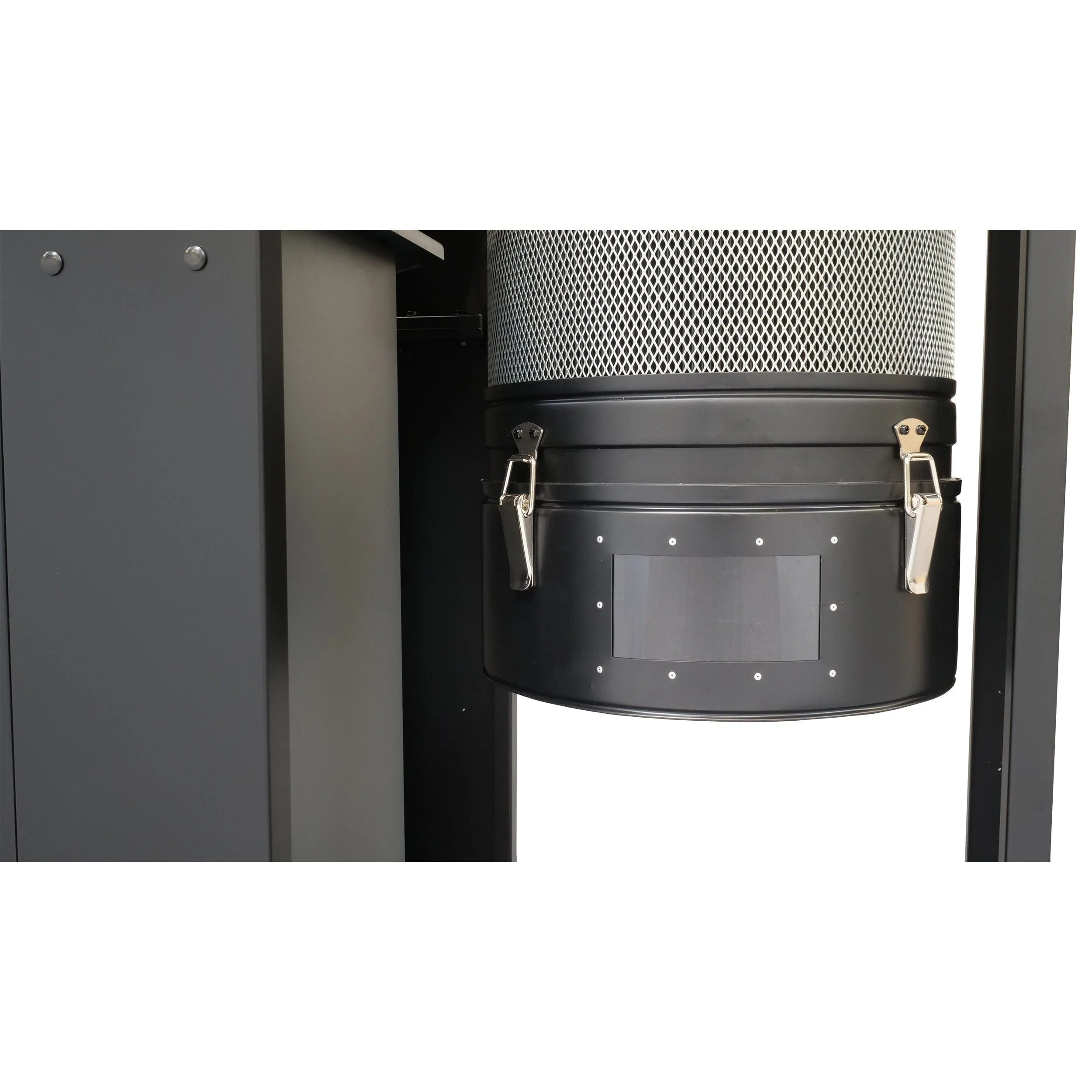

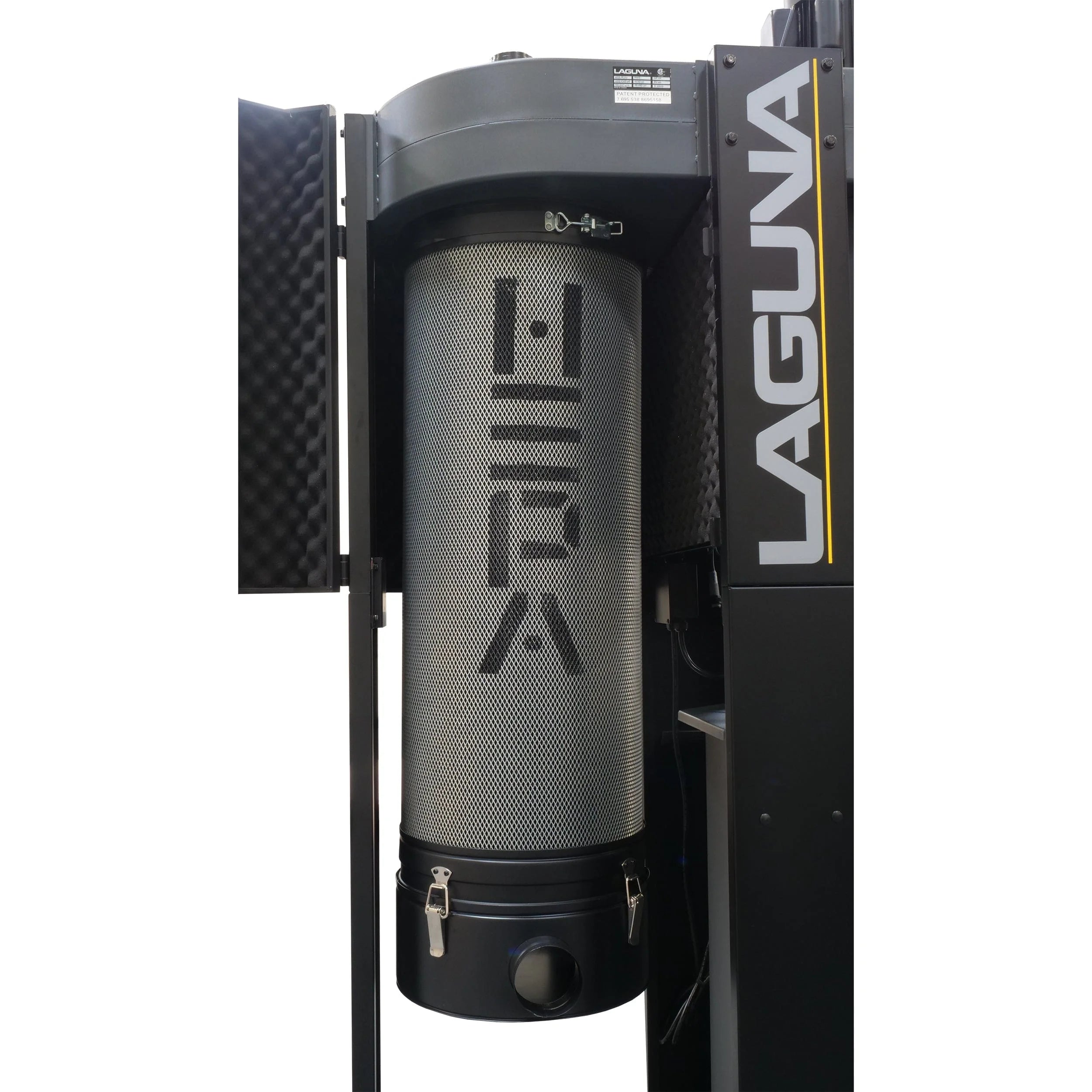

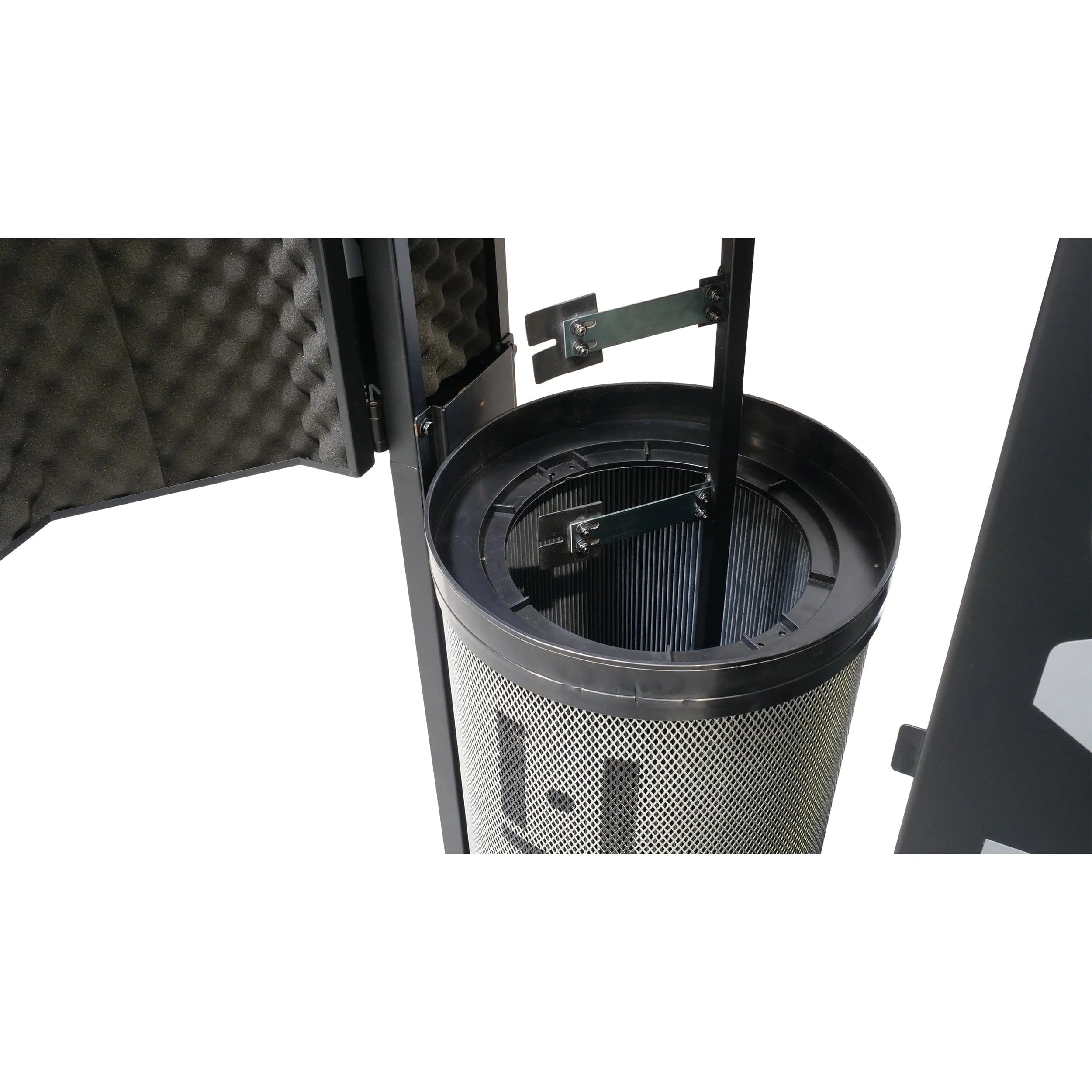

• Cartridge Filter: HEPA 15.74" x 19.68" (40 cm x 50 cm) x 1 piece

What's Included:

• (1) P|FLUX: 1.5HP Cyclone HEPA Dust Collector

FAQs

What is the noise level of the P-Flux 1-1/2 HP in a workshop environment?

The P-Flux 1-1/2 HP runs at a moderate noise level typical of cyclone dust collectors, noticeable but manageable in most shops. Many users find it quieter than older single-stage units.

How effective is the cyclone separation on this unit?

The cyclone system is highly effective at separating chips before they reach the filter, helping maintain strong airflow and reduce clogging. This also extends filter life and improves overall performance.

Shipping / Billing Information

This product ships direct from the manufacturer:

• Your order will ship in approximately 4 weeks.
• This product is considered special order. Your account will be charged when you place your order.
• Express or overnight shipping is not available for this product.
• Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
• Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
