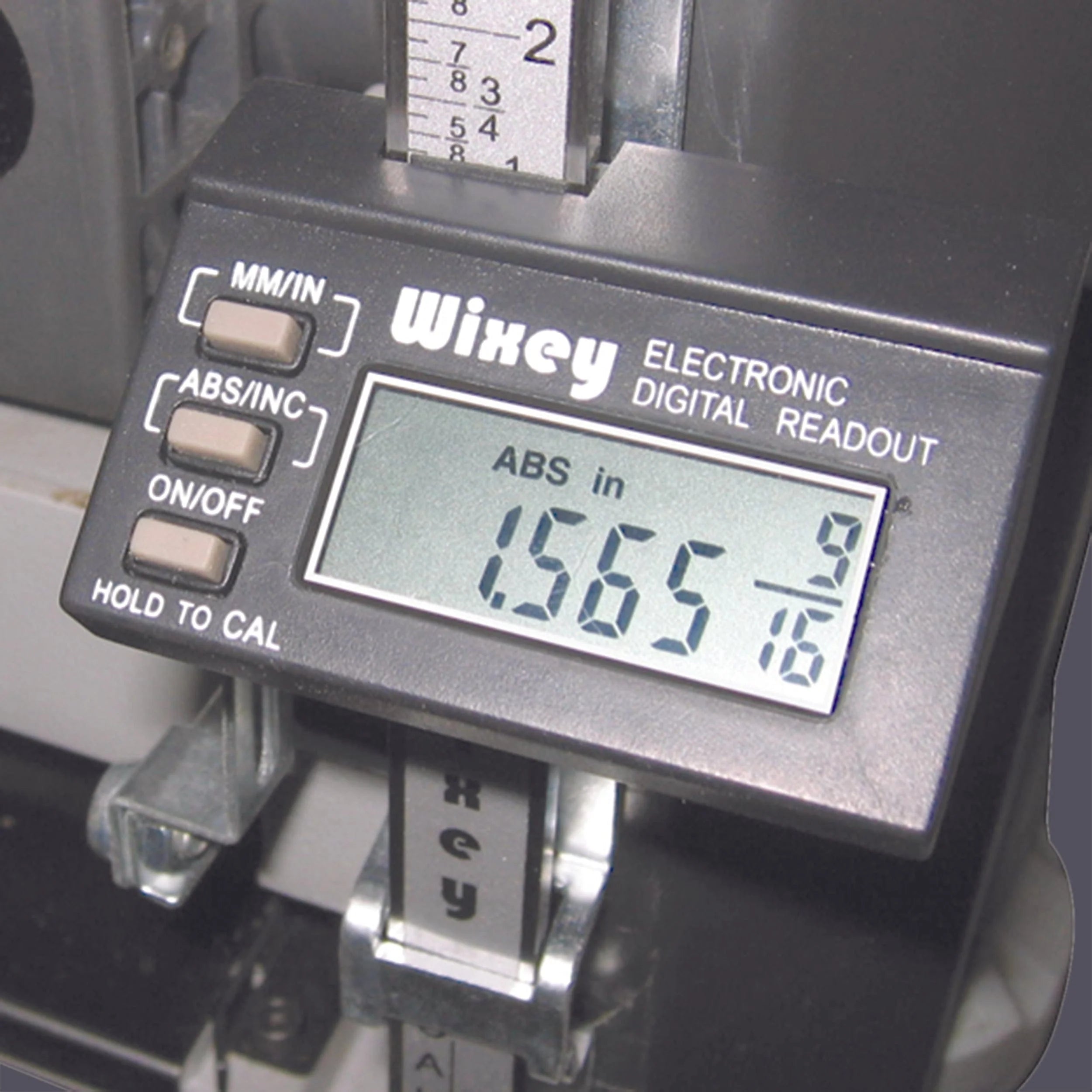

Planer Digital Readout - Height Gauge

Replace the inaccurate stock height gauge on your portable planer and stop constantly using calipers to check stock thickness! Most digital calipers only read out in decimal measurements, forcing you to do the mental math to convert to fractions. If your stock is measuring .575" and you need 9/16", how much do you need to remove with your next pass through the planer? With the Digital Planer Height Gauge simply lower your planer until the gauge reads .565 - 9/16. It can't get any easier! A unique gauge reads out both decimal and fractional measurements. Fits most portable "lunch box" style planers. Easy to follow installation instructions.

Features:

• Fits most portable "lunch box" style planers
• Precise measurements
• Replaces inaccurate stock height gauge
• Displays decimal and fractional inch measurements or millimeters
• Easy to follow instructions for installation and calibration
• Uses common AAA batteries

Specifications:

• Measuring Length: 6" (155 mm)
• Resolution (Decimal): .005"
• Resolution (Fraction): 1/32"
• Resolution (Metric): .1 mm
• Accuracy (Decimal): +/- .0025"
• Accuracy (Fraction): +/- 1/500"
• Accuracy (Metric): +/- .05 mm
• Battery: 2 AAA (not included)
• Functions: Constant memory retains calibration even when OFF; incremental measuring mode; absolute measuring mode; millimeter, inch and fraction readout; auto shut off

What's Included:

• (1) Wixey - WR510 - Planer Digital Readout - Height Gauge
