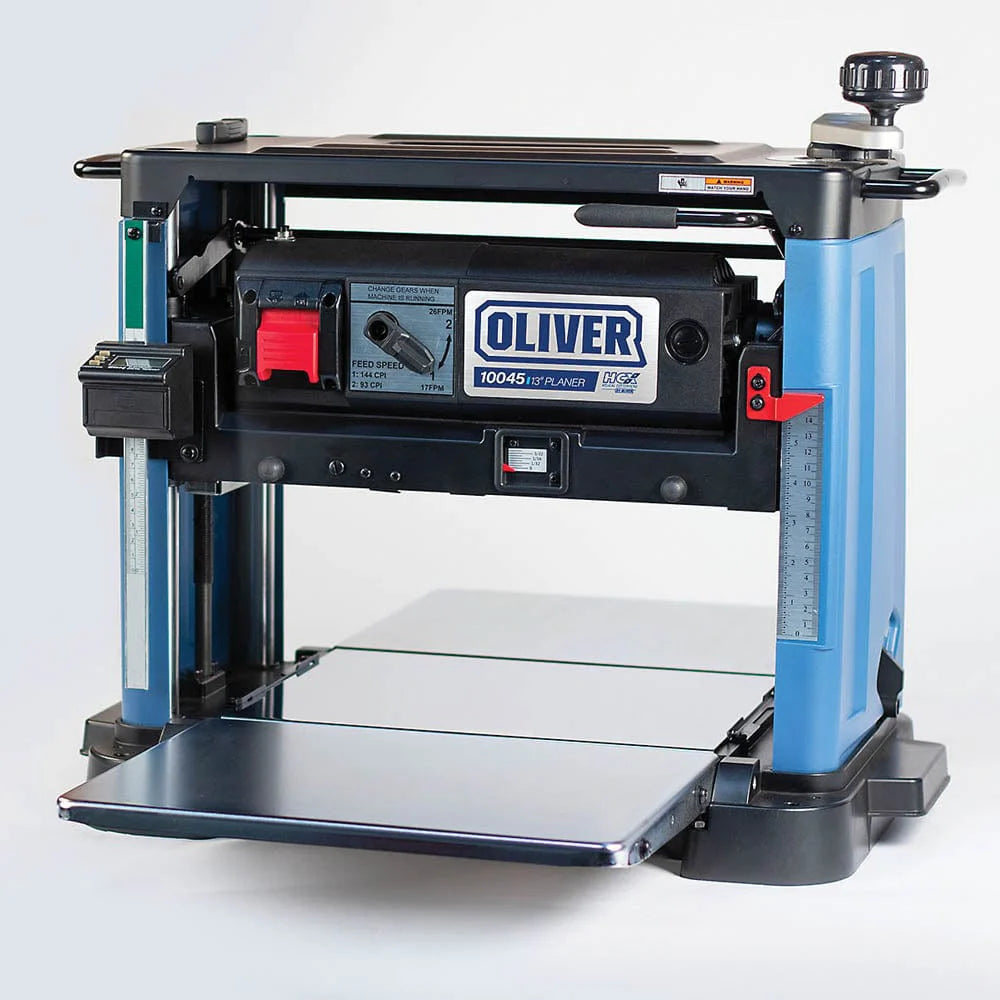

Planer with True Helical Head and Digital Readout - 13"

Oliver Machinery has made the industry’s best benchtop planer even better. The new 10045 Benchtop Planer combines precision, power, and innovation with standout features you won’t find on competing models: a true HCX helical shearing cutterhead for smoother cuts and quieter operation, an easy-to-read digital depth display for pinpoint accuracy, and a rugged 4-post design for rock-solid stability.

Building on customer feedback from the popular 10044 version, this planer offers a 13" cutting capacity, two-speed gearbox, heavy-duty power switch with lockout, and adjustable feed tables. These enhancements ensure the 10045 stays at the top of its category—delivering professional results cut after cut.

• 13" cutting capacity
• Two-speed gearbox for different feed rates

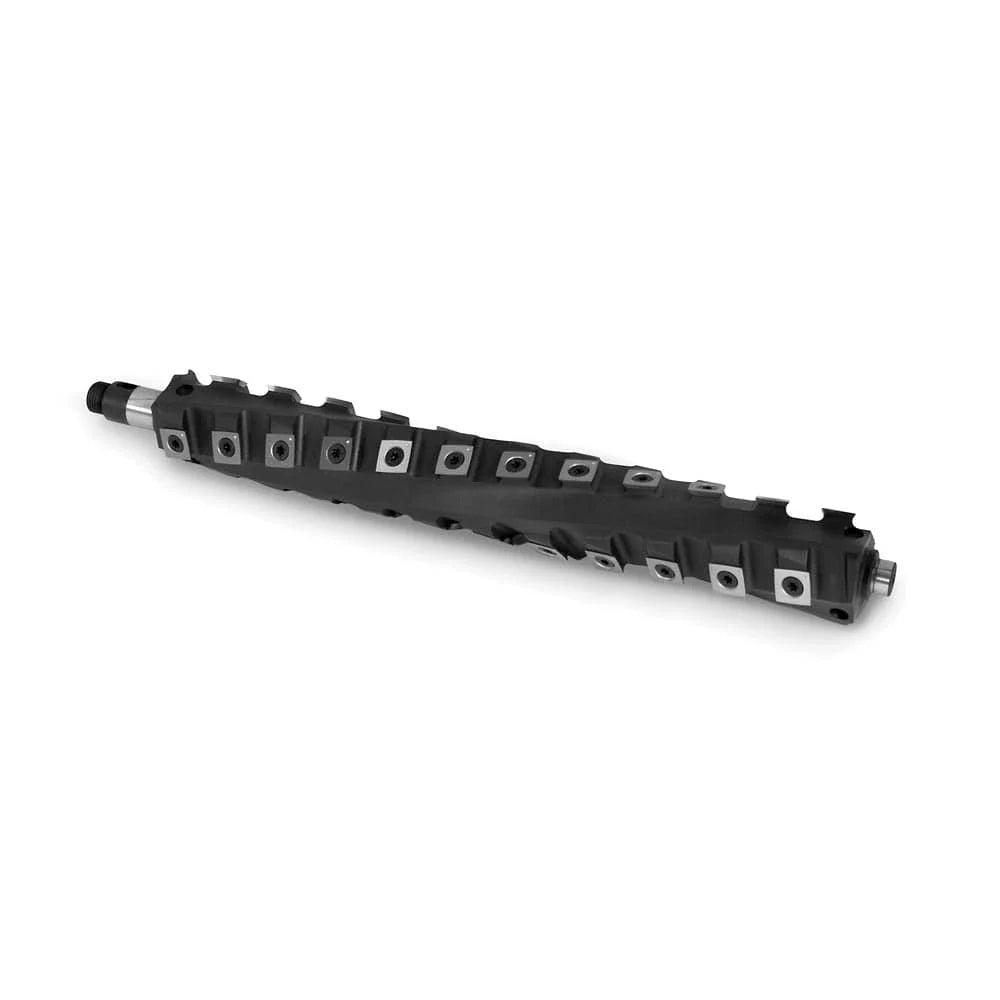

• Authentic Oliver HCX helical shearing cutterhead
• Steel top and carry handles
• Heavy-duty power switch with lockout
• Adjustable infeed/outfeed tables

• Powerful 2 HP 1 PH 15A 115V motor
• 4-post design ensures cutter head alignment to table
• Built-in carriage lock for stability during operation

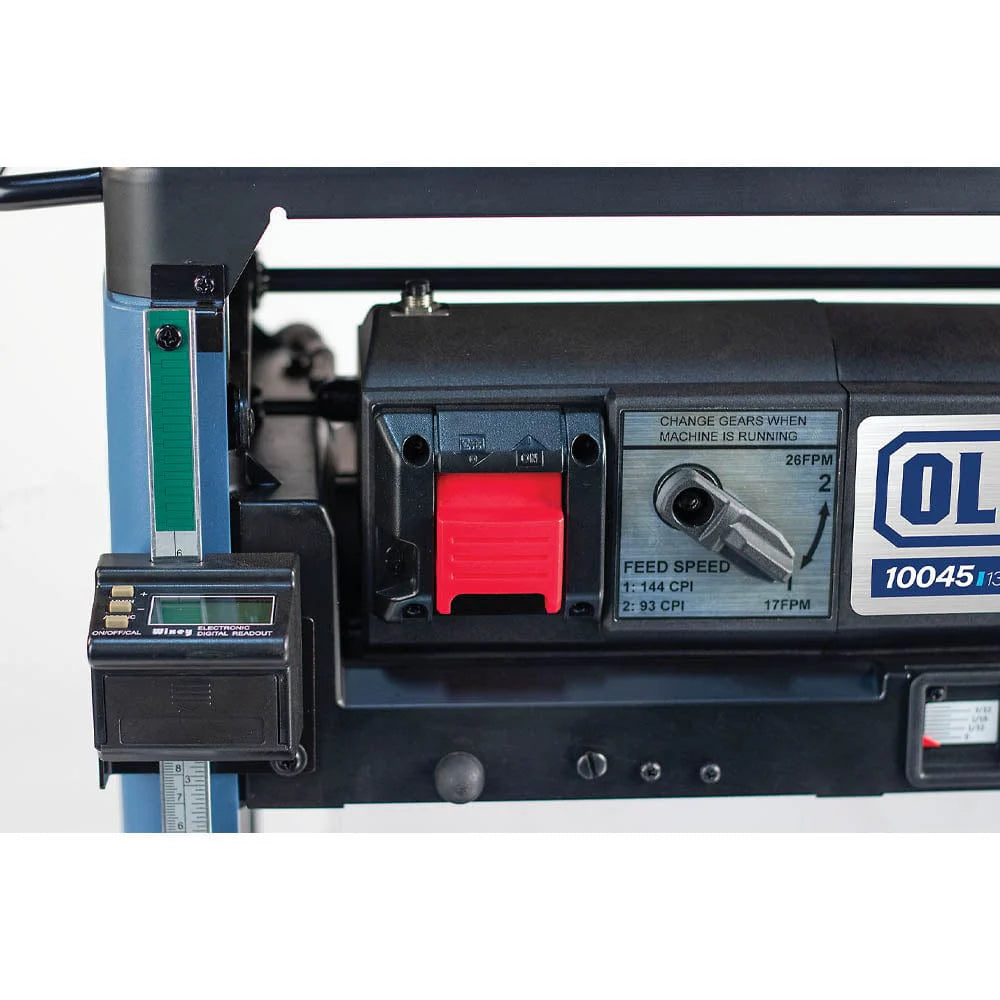

• Wixey Digital Readout (DRO)
• Elevation crank includes an easy-to-read scale
• On-board adjustment wrench storage
• 4-depth stops for easy set-up from ¾" to 5/32"
• Front material removal gauge allows for quicker setup
• Fold-up extension wings for easy storage
• Built-in carry handles for easy portability
• Blower assists in chip ejection during operation
• Dust port allows 2-1/2" or 4" hose hook up
• Safety switch features overload protection and lock-out
• CSA listed

• Stock Number: 10045.201
• Cutterhead: Oliver HCX Helical
• Phase: 1 PH
• Maximum Stock Width: 13"
• Maximum Depth of Cut: 3/32"
• Maximum Stock Thickness: 6"
• Minimum Stock Thickness: 5/32"
• Minimum Stock Length: 8"
• Dust Port Diameter: 4" and 2.5"
• Feed Speeds: 17 FPM or 26 FPM
• Table Size: 13" x 10.2"
• Cutterhead Speed: 10,000 RPM
• Number of Knives (Helical): 36
• Motor: 2 HP
• Net Weight: 72 lb
• Gross Weight: 82 lb

• (1) 13" Benchtop Planer
• (1) Torx Wrench
• (1) 5-Pack Carbide Inserts and Screws

FAQs

What do planers do?
Planers smooth and flatten rough or uneven wood to a consistent thickness. They’re used after jointing to create parallel surfaces, making it easy to build precise, professional-quality projects.

Do I need a planer and a jointer?
A jointer flattens one face and straightens an edge, while a planer makes the opposite face parallel and uniform. Together, they’re an ideal team for preparing rough lumber and achieving square, flat boards for woodworking.

What’s the best planer for beginners?
A benchtop planer like the Oliver 13" with a helical head is an excellent choice for beginners. It delivers clean, tear-out-free cuts and is easy to set up and operate, making it ideal for small shops and hobbyists.
