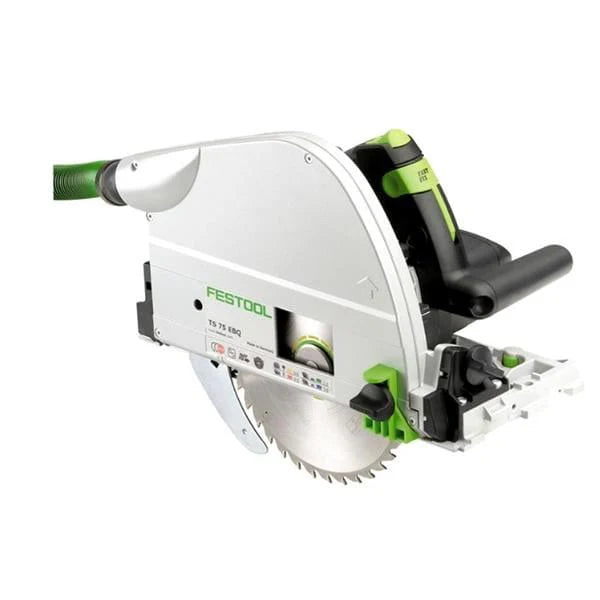

Plunge Cut Saw - No Rail Model TS 75 EQ-F-Plus

The Festool TS 75 EQ-F-Plus Plunge Cut Saw is not your standard circular saw. With its accuracy and versatility, it should be compared to the most advanced table saws, miter saws, or panel saws available. The saw’s incredible portability and unbelievable ease of use deliver precision cutting like nothing else. It is equally at home in high-end cabinet shops and the most challenging remodeling sites. Packed with time-saving features you’ve come to expect from Festool, the TS 75 EQ-F-Plus features a flat housing for flush-cutting against walls or adjacent surfaces, micro-adjustable depth controls, plus a host of other time-saving enhancements.

Features:

• Guide Rail Precision – With the FS Guide Rail System (sold separately), you’ll get laser-straight, splinter-free cuts in seconds. Simply lay the Guide Rail between two points, and you have your cutline. It’s really that easy.
• Splinter-free – Cutting Splinter-guards on both sides of the blade ensure that you’ll make zero tear-out cuts in virtually any material, improving your quality of work while significantly reducing material waste
• Take the tool to the work – Replace large stationary equipment with an incredibly precise, handheld unit. You’ll save your back, while getting more out of your expensive materials.
• Electronic variable-speed control automatically maintains a constant blade speed under load
• Soft start and automatic idle cut down on operator fatigue and noise.
• Blade lock makes blade changing easy
• Spring-loaded riving knife retracts automatically for added safety
• Rotating dust port keeps hose out of the way
• 3-bearing motor for smoother operation

Specifications:

• Power consumption: 1,600 watt, 13 amp
• Saw weight: 13.6 lbs.
• Cutting depth: 0" - 2-15/16"
• Cutting depth at 45°: 2-1/8"
• Saw blade diameter: 8-1/4"
• Dust extraction connection dia.: 1-1/16" ID, 1-7/16" OD
• Angular range: -1 to 47 °

What's Included:

• (1) TS 75 EQ Plunge Cut Saw
• (1) Systainer³ storage box
• (1) 36-tooth carbide tipped blade
• (1) Limit stop
• (1) Chip Deflector

FAQs

What is the maximum cutting depth?

The TS 75 has a maximum cutting depth of 2‑3/4" (70 mm) when used on a guide rail, and up to 2‑15/16" (75 mm) off the rail. This deep capacity makes it well suited for thick stock, solid doors, and stacked sheet goods.

What types of materials can it cut compared to the TS 55?

Compared to the TS 55, the TS 75 handles thicker and denser materials with greater ease, including hardwood up to and beyond 8/4 stock, solid‑core doors, laminated beams, and stacked panels. The TS 55 excels at sheet goods and general cabinetry, while the TS 75 is the better choice when cut depth and power are the priority.
