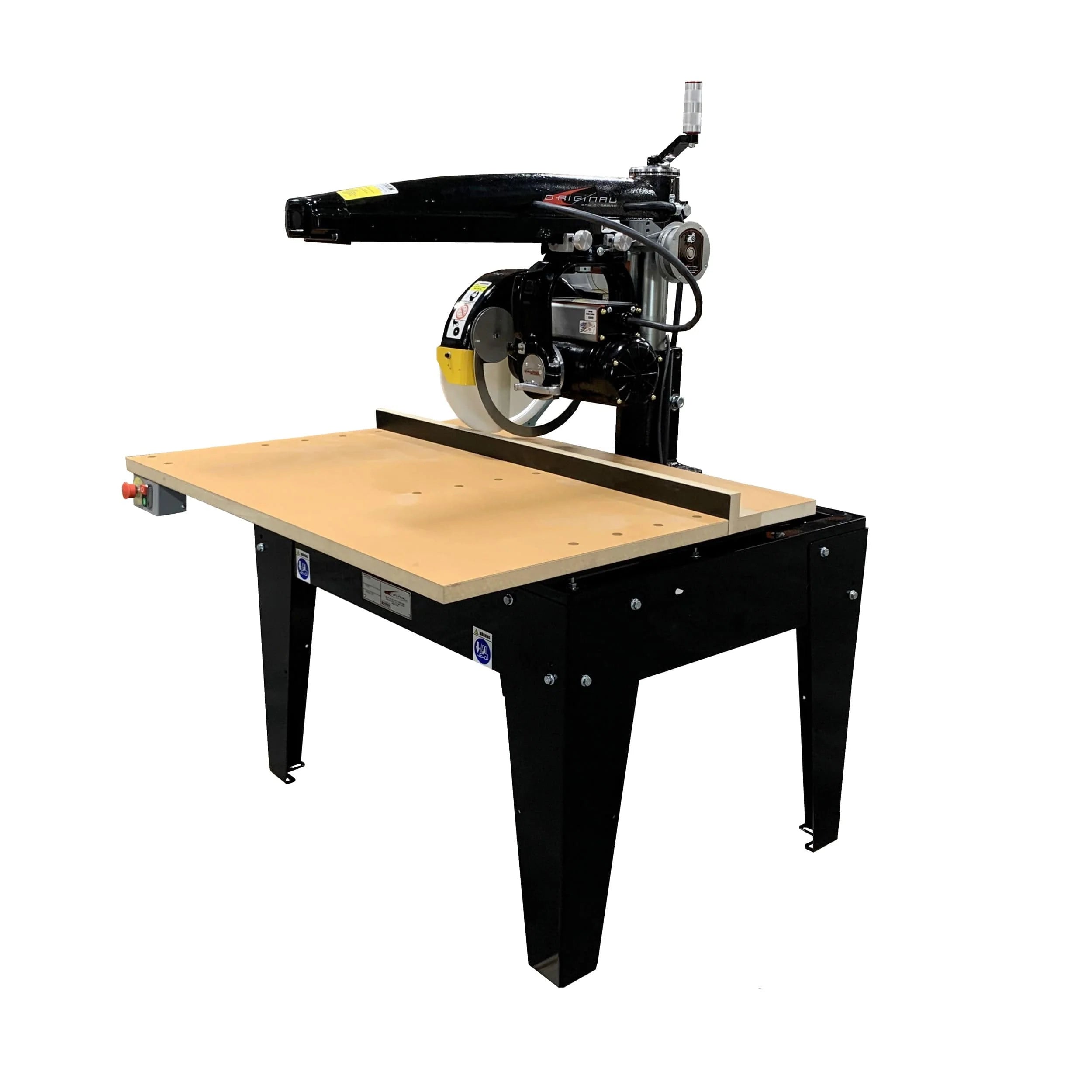

Radial Arm Saw - 3 HP - 1 Ph - 208/230V - 14" Blade - 16" Crosscut

The Original Saw Company Radial Arm Saw delivers powerful, precise crosscutting performance for serious woodworkers, contractors, and industrial users. Built to withstand continuous use in demanding environments, this 3 HP radial arm saw features a robust cast iron arm and carriage, delivering smooth, vibration-free operation and accurate results every time.

Equipped with a 14" blade and a generous 16" crosscut capacity, this saw easily handles wide boards, hardwoods, and sheet goods with ease. Its 1-phase motor runs on 208/230V power, making it suitable for both professional workshops and jobsite operations. Whether you're cutting stock to length, trimming panels, or performing repetitive cuts with consistency, the Original Saw sets the standard for radial arm reliability and performance.

Proudly made in the USA, this machine is engineered for durability, long service life, and exceptional accuracy in every cut.

Features:

• Automatic blade braking system
• Carriage return spring
• Adjustable crosscut stop
• Precision carriage riding on four tight-tolerance convex bearings mounted horizontally
• Base column Lock
• E-stop
• HDPE lower guard that provides full coverage
• Adjustable tension carriage return reel
• Accessible start/stop button on the left, front edge of table
• Proudly Manufactured in the USA
• Powder coated heavy gauge steel frame and legs

Specifications:

• 3HP, 1Ph, 208/230V motor
• 14” Blade
• 16” crosscut
• Standard worktable height: 33”
• Dimensions: 46” Depth and 41” Height

What's Included:

• (1) Original Saw Company Radial Arm Saw - 3 HP - 1 Ph - 208/230V - 14" Blade - 16" Crosscut
• Wrench kit (includes allen arbor wrench, flat arbor wrench, and misc. allen wrenches)
• Arbor nut and precision ground arbor collars
• Oversized MDF table top

Note:

• Plug not include, must be hard wired direct to electrical source

Connecting Electrical Current

The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag.

Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3PH; L1 and L2 for 1PH. (See manual, page 14, left photo). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.

Shipping / Billing Information

This product ships direct from the manufacturer:

• All Radial Arm Saws are custom built upon order and will ship in approximately 8 weeks and Stations, Stands, Accessories 2-4 weeks for all other Original Saw products.
• This product is considered special order. Your account will be charged when you place your order.
• Express or overnight shipping is not available for this product.
• Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
