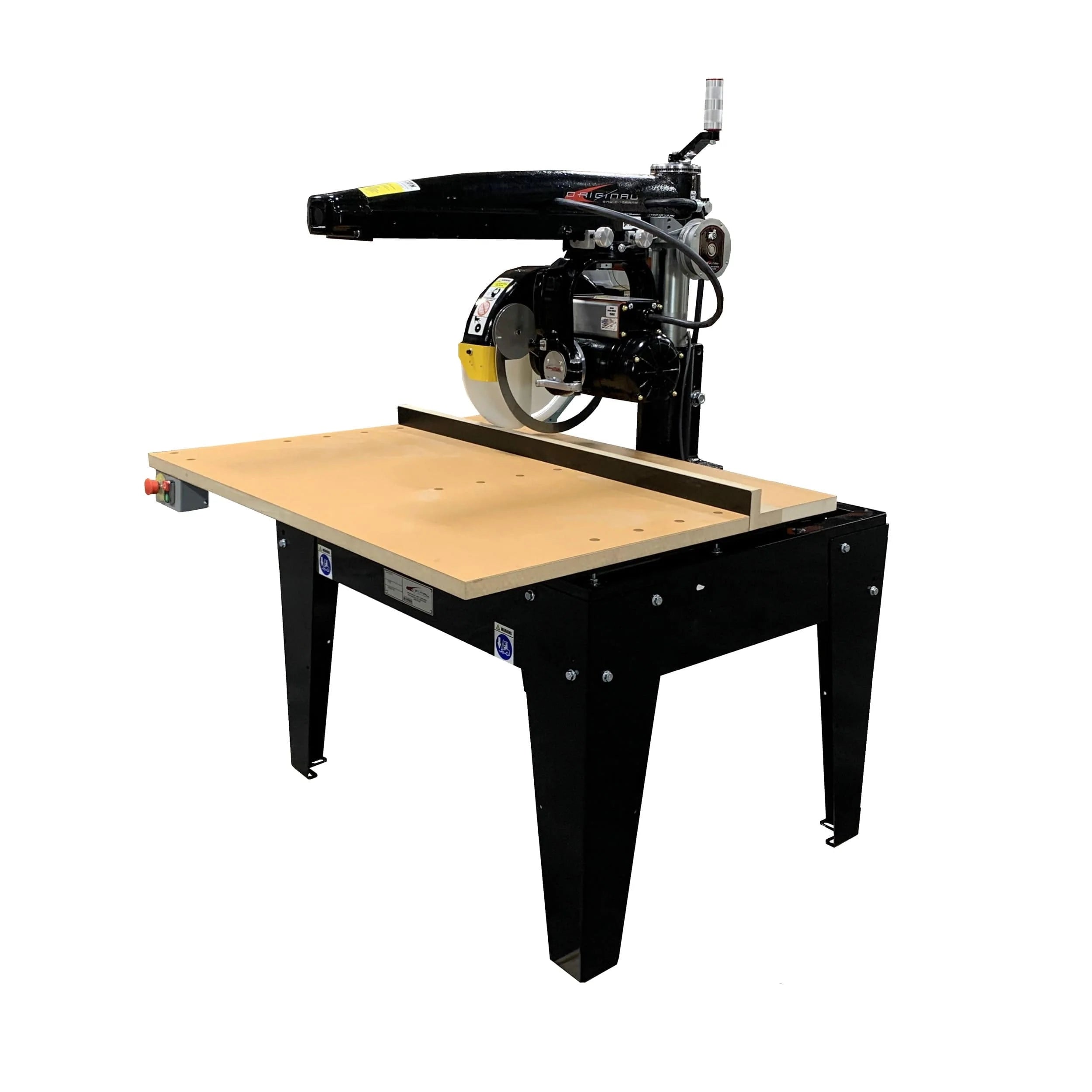

Radial Arm Saw with 14" Blade and 16" Crosscut, 5HP 3PH 208/230V

Perform straight cuts, bevel cuts, miter cuts, compound bevels, and swivel to a rip position to precisely cut down panels, all with this one Heavy Duty Series radial arm saw, model 3531-03-208/230. The versatile saw by the Original Saw Company is well suited for use in custom cabinet shops, school tech departments, lumber yards and home centers, manufacturing plants, or the serious wood shop. Add a rip conversion kit to swivel the motor parallel with the fence to precisely cut down panels.

From its flat bottom induction motor to its heavy cast iron arm and throughout its heavy gauge steel powder coated frame and legs to its oversized table top, Original Saw’s radial arm saws say quality, repeatability, accuracy, and value. Precision carriage riding on 8 wide-contact, double-row ball bearings providing a very smooth vibrations free travel. These machines have proven themselves in thousands of manufacturing companies throughout the world. Order any Original Saw 22" Extension Table to extend the versatility of your Radial Arm Saw.

Features:

• 5HP, 3Ph, 208/230V motor
• 14” Blade
• Automatic blade braking system
• Carriage return spring
• Adjustable crosscut stop
• 16” crosscut
• Precision carriage riding on eight-wide contact, double row ball bearings for a smooth, vibration-free travel
• Oversized MDF table top included
• Base column lock
• E-stop
• Powder coated heavy gauge steel frame and legs
• Standard worktable height: 33”
• Arbor nut and precision ground arbor collars
• Wrench kit (includes allen arbor wrench, flat arbor wrench, and misc. allen wrenches)
• Adjustable tension carriage return reel
• HDPE lower guard that provides full coverage
• Dimensions: 46” Depth and 41” Height
• Proudly Manufactured in the US
• Plug not include, must be hard wired direct to electrical source

Connecting Electrical Current

The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag.

Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3PH; L1 and L2 for 1PH. (See manual, page 14, left photo). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.

Shipping / Billing Information

This product ships direct from the manufacturer:

• All Radial Arm Saws are custom built upon order and will ship in approximately 8 weeks and Stations, Stands, Accessories 2-4 weeks for all other Original Saw products.
• This product is considered special order. Your account will be charged when you place your order.
• Express or overnight shipping is not available for this product.
• Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
