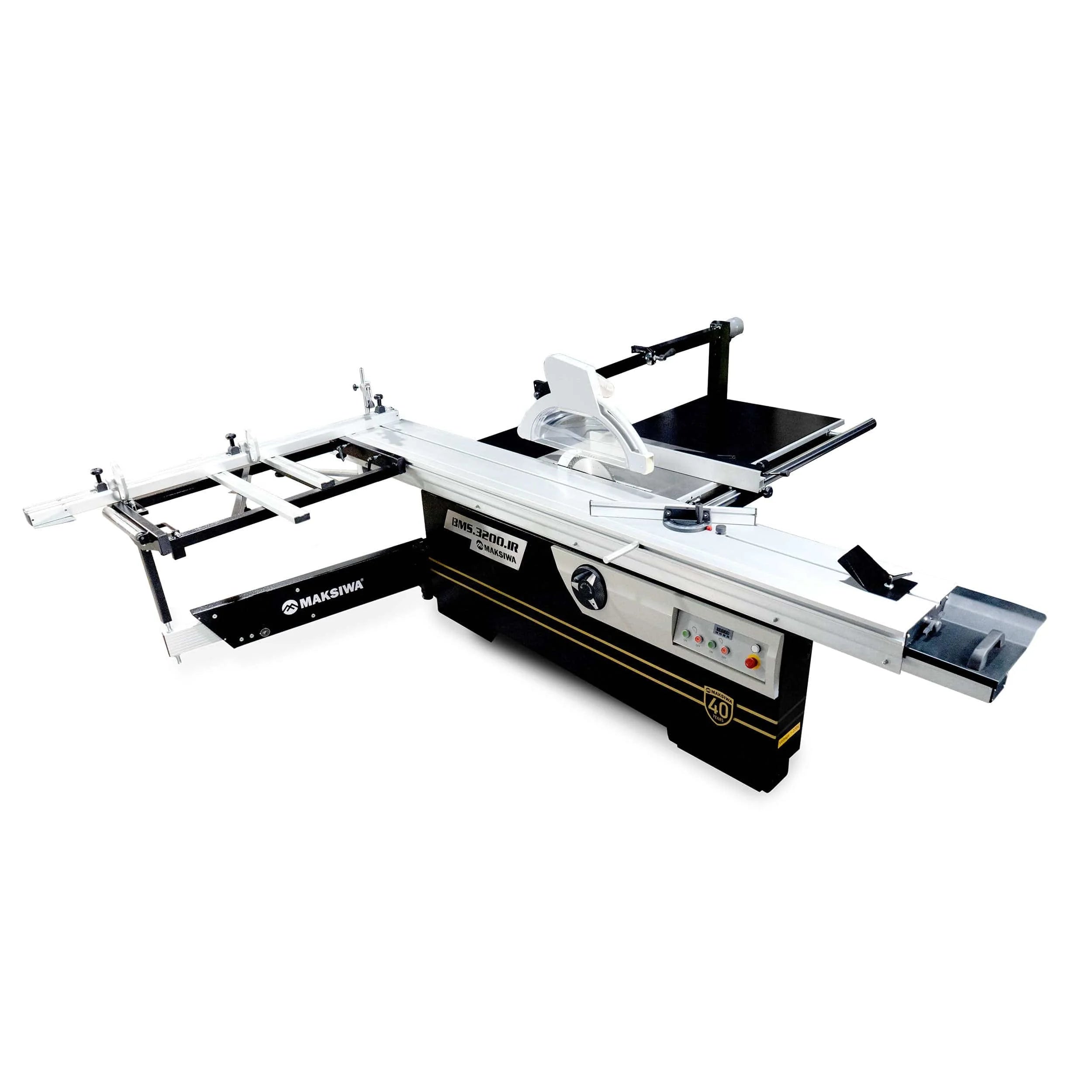

Sliding Panel Saw - 5HP 1Ph

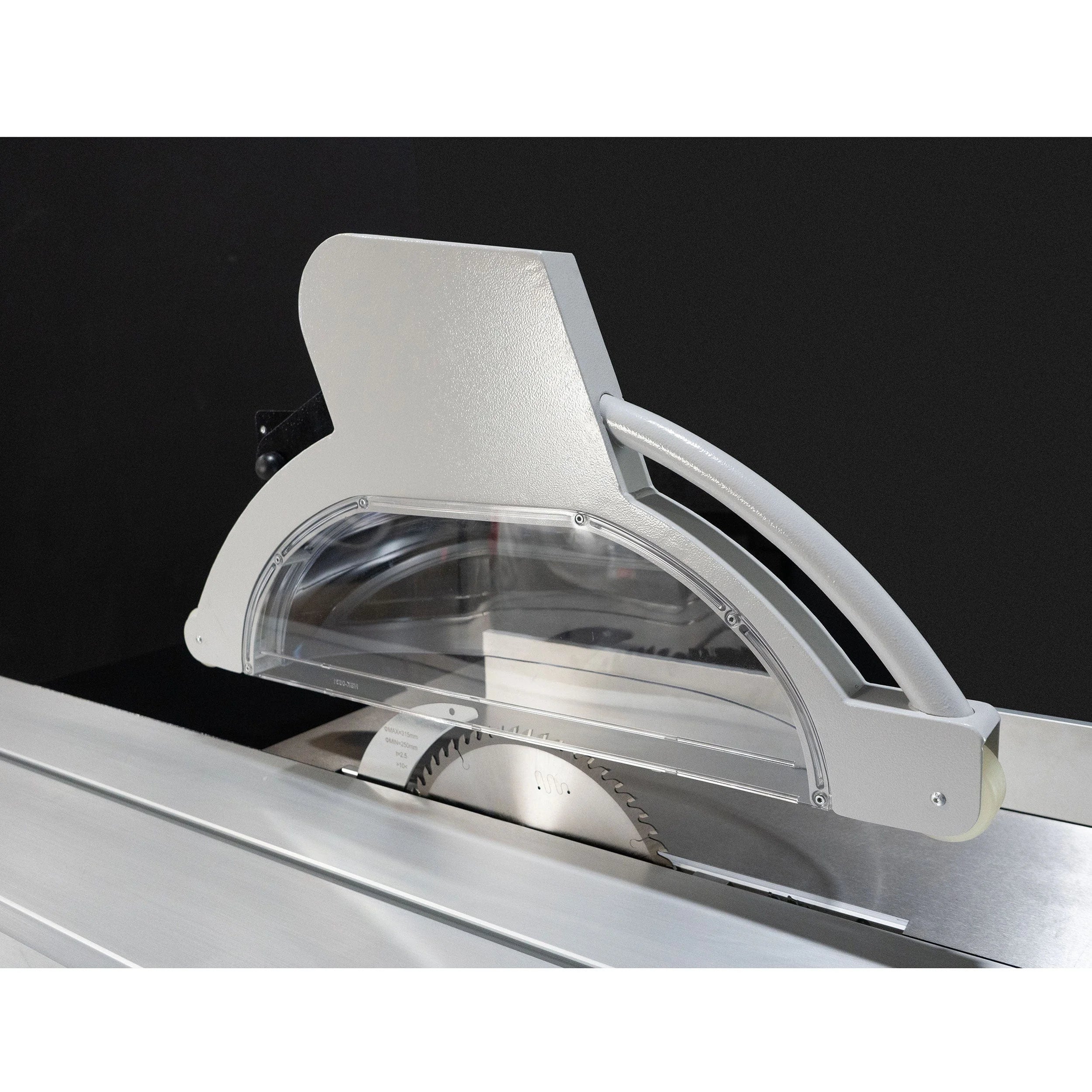

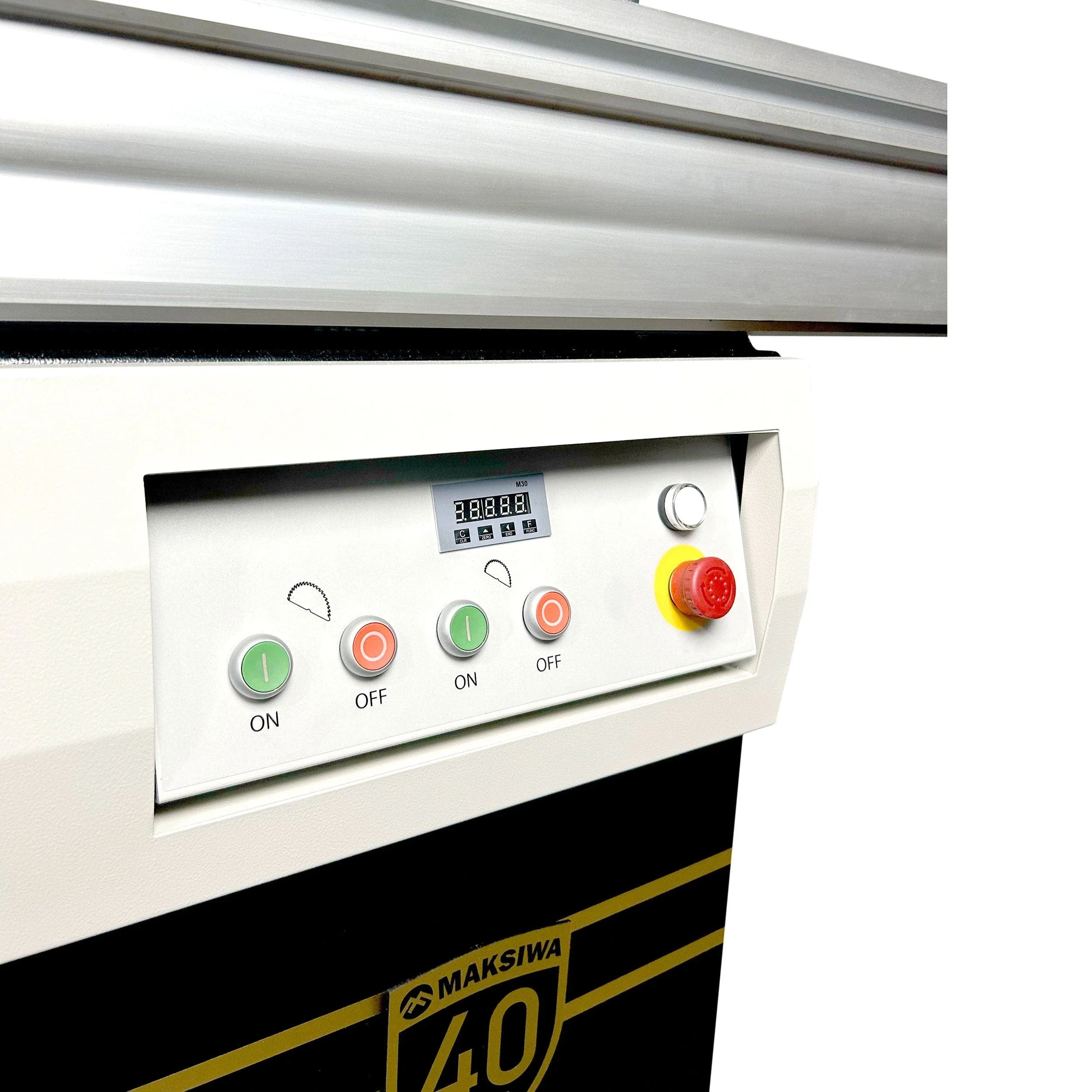

Introducing the New BMS.3200.IR 40-year Edition. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, adjustable leveling feet, dual blade covers, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel. All these improvements come at the same unbeatable price as before!
Features

• Main Motor: 5 HP/ 4000 RPM 3.7 Kw


• Max Blade Diameter: 12"/305 MM


• Main Blade Arbor: 1 3/16" 30 MM


• Main Blade Max cutting Height at 90°: 3 1/2"/90 MM


• Main Blade Cutting Height at 45°: 2 1/8" - 53 MM


• Scoring Motor: 1 HP/8000 RPM .74Kw


• Scoring Motor Blade: 4 3/4" 120 MM


• Scoring Blade Arbor: 3/4" 20 MM


• Scoring Blade Type: Conical


• Max Ripping Capacity: 51" 1295 MM


• Crosscut Capacity: 126" 3200 MM

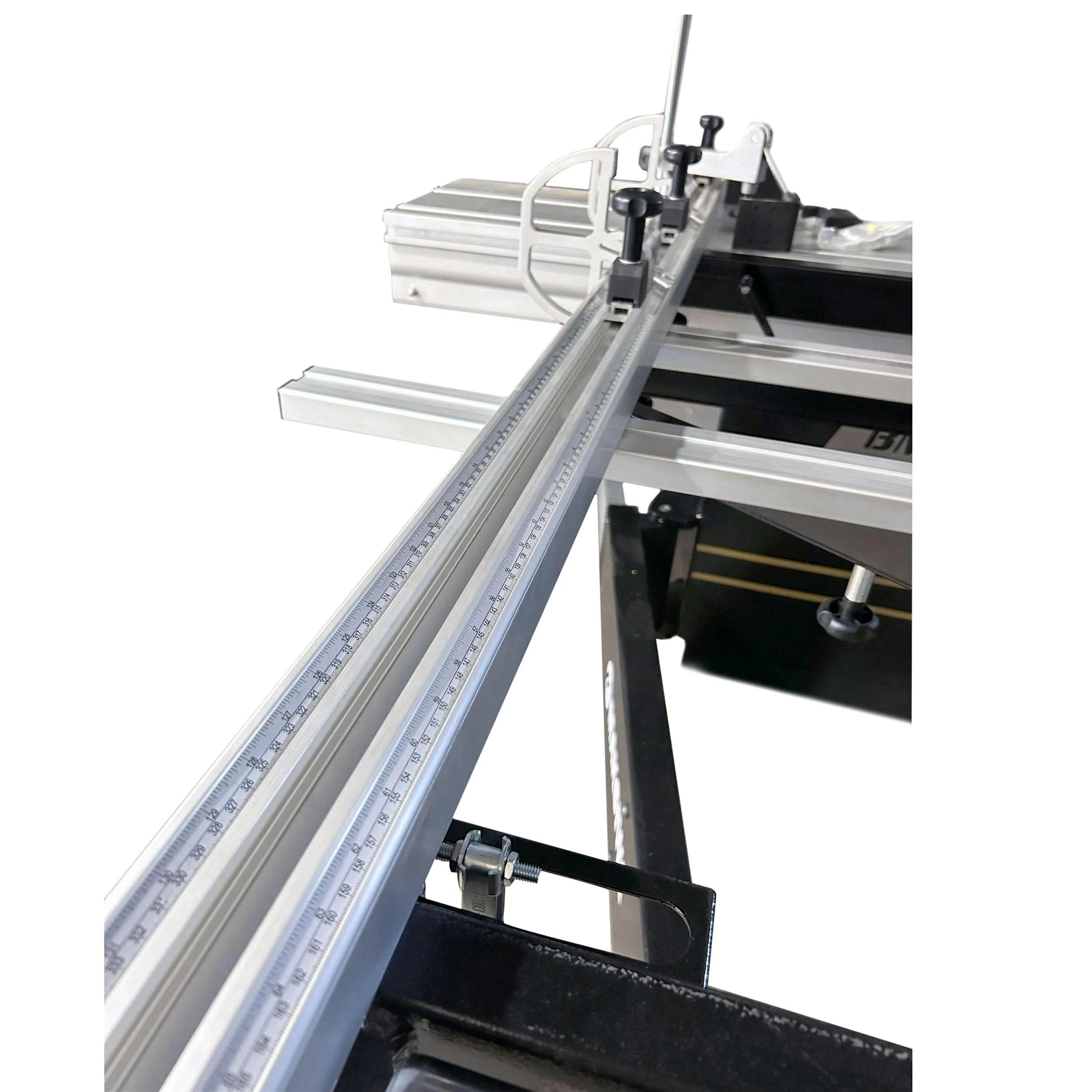

• Crosscut Fence Capacity Closed/Open: 74-3/4"/108" - 1899 MM/2743 MM


• Machine Working Dimensions: 126" x 137" x 52" - 3200 x 3480 x 1321 MM

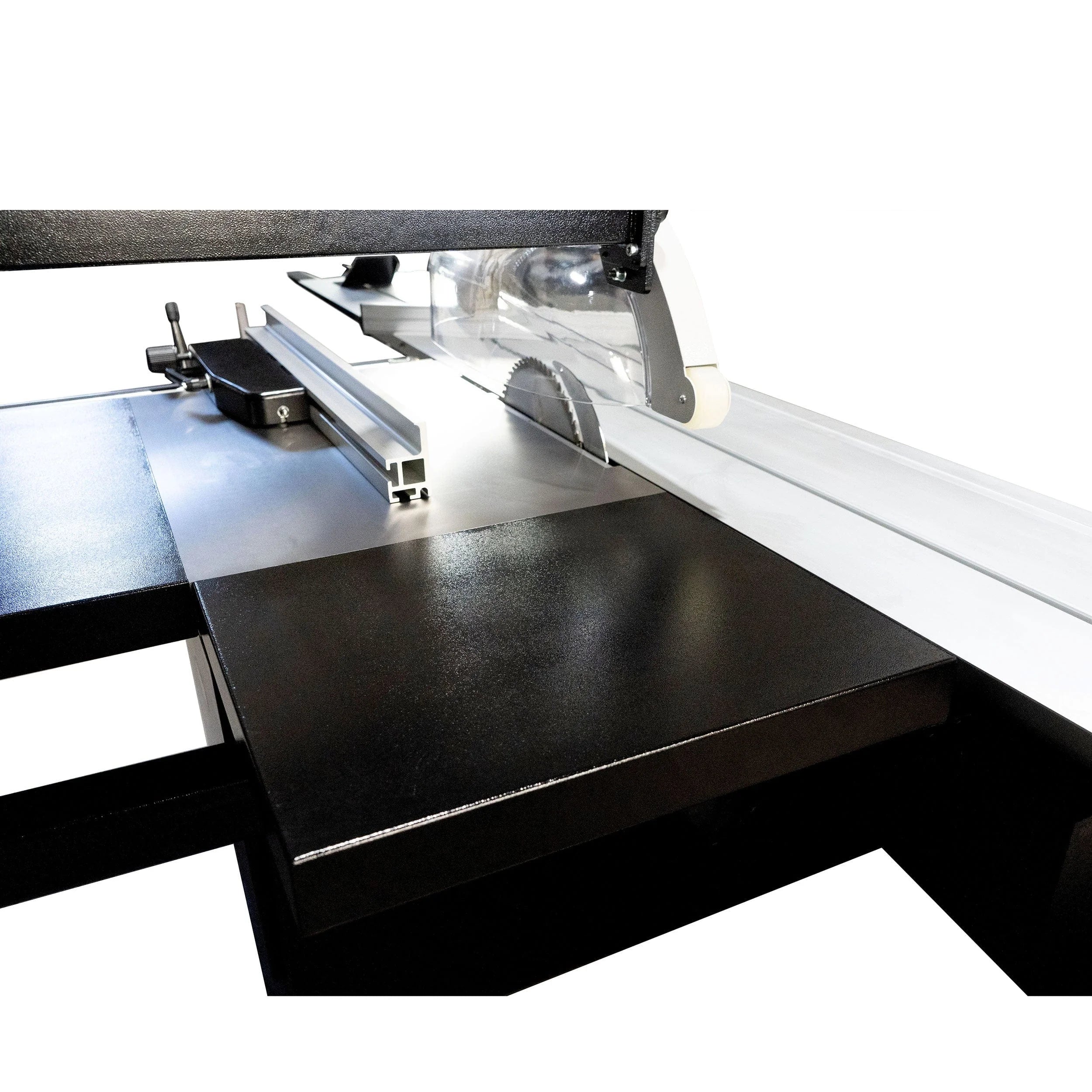

• Cast Iron Table Dimension: 31-1/2"L x 21"W x 34 3/4"H, 800 X 553 X 883 MM

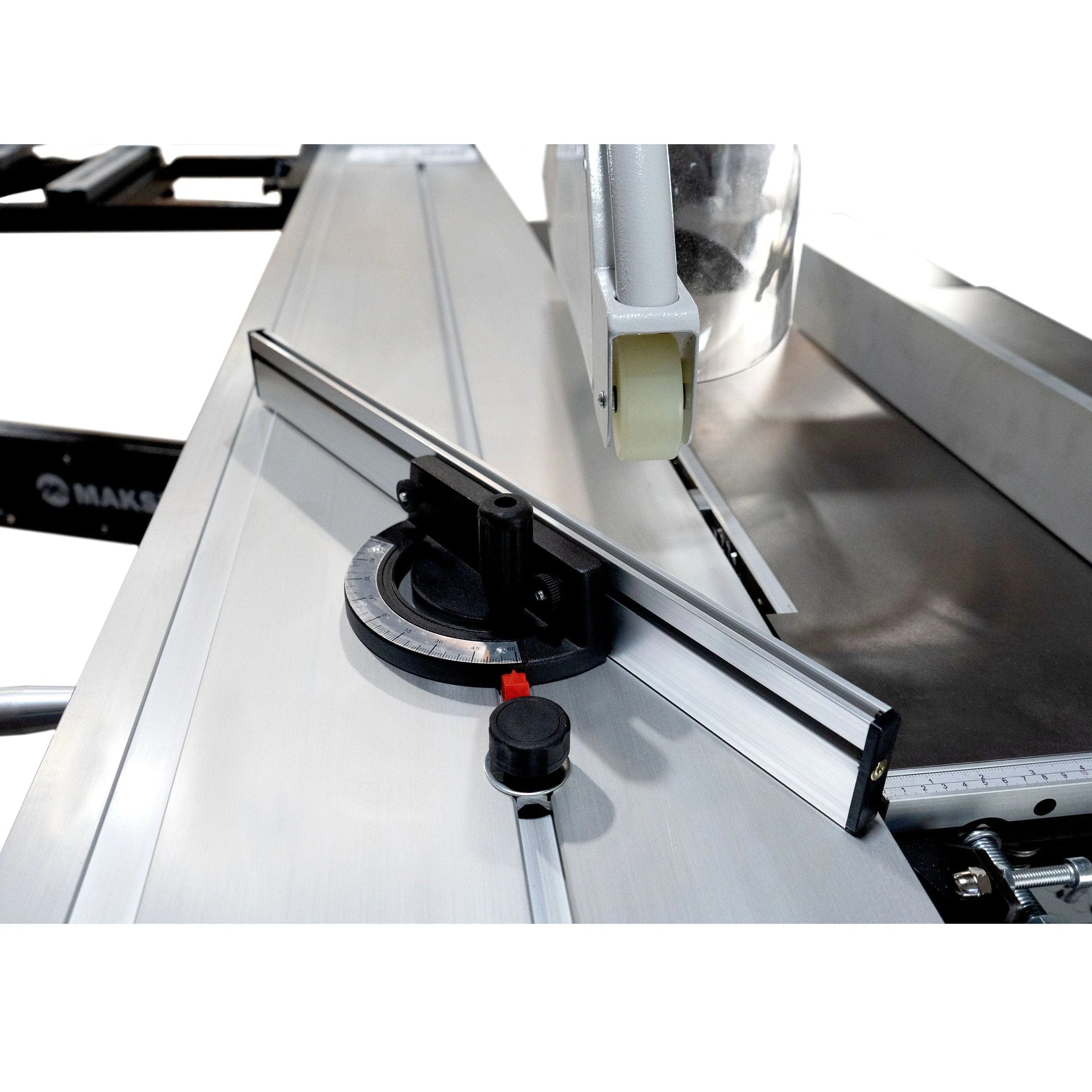

• Sliding Table Dimension: 126"L x 14-3/4"W, 3200 x 375 MM


• Dust Collection Port (2}: 4" - 100 MM


• Minimum Dust Collection Requirements: 1000 CFM/28M/MIN


• Electrical Specs: 1 Phase 220V 22 Amps 60 Hz or Optional 3 PH, 220V 11 Amps 60 Hz
