TurboCone Dust Collector with 30-Micron Bag Filter Kit - 1-3/4 HP 1 Ph 115/230V - PM1300TX

TurboCone Dust Collector with 30-Micron Bag Filter Kit - 1-3/4 HP 1 Ph 115/230V - PM1300TX

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the...
Availability: Many In Stock
$329.70
$1,099.00
$329.70
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $329.70
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description

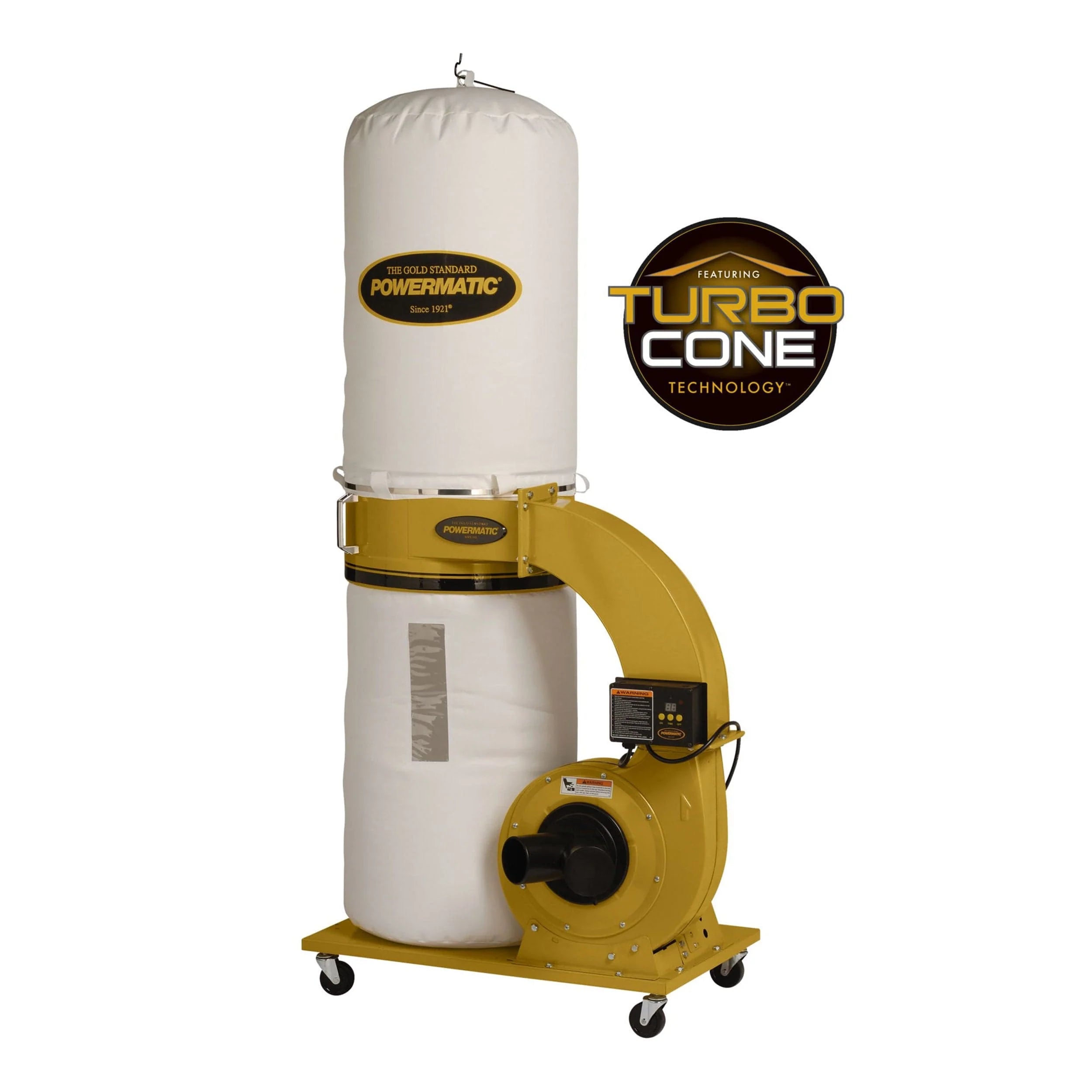

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
Performance: Only fine particles move to the filter chamber making manual cleaning easier and decreasing health concerns
Prevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature clogging
Efficiency: Chips are better contained for increased packing density requiring fewer collection bag changes

Features:
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• All-metal duct construction for rigidity and improved air flow
• Dual 4" dust ports for simultaneous collection from two machines
• 1-3/4HP motor offers plenty of power for effective air movement
• Cloth collection bag with view window uses snap ring for rapid installation/removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Tall filter bag requires less cleaning due to the larger surface area
• Four swivel casters for shop maneuverabilty
• Length : 45 inch
• Model Number: 1791078K
Specifications:
Overall Dimensions: 37" x 29" x 79"
Height: 23"
Width: 23"
Length: 45"
Net Weight: 127 lbs
Remote Control: Yes
Sound Rating: 75-90 dB
1-Hose Connection Diameter: 6"
2-Hoses Connection Diameter: 4"
Bag Diameter: 20"
Filter Bag/Canister Length: 48"
Collection Bag Capacity: 10 cubic foot
Collection Bag Length: 30"
Air Flow @ 6": 1,064 cu.ft/min
Static Pressure: 11.31 inch of water
Particle Size (Micron): 96% of 30 micron particles
Velocity @ 6": 5,374 foot per minute
Air Inlet: (1) at 6" or (2) at 4"
Impeller Diameter: 12"
Impeller Fins: 6
Impeller Material: steel
Separator Tank Diameter: 20"
Separator Tank Height: 10"
Motor Power: 1-3/4 HP
Motor Phase: 1 Ph
Motor Voltage: 115/230V
Prewired Voltage: 115V
Motor Current: 15/7.5A
