Ultra-Shear Carbide Turning Tool - Full Size Square

The Woodpeckers Ultra-Shear Turning Tool with Square Carbide Insert is built for aggressive stock removal with control that stays predictable from start to finish. It is designed for woodturners who want fast material reduction without the downtime of sharpening traditional tools. The square Ultra‑Shear carbide insert mounts to a hardened alloy steel shaft, delivering consistent cutting action while eliminating edge maintenance.

This tool works on the lathe centerline for roughing cuts, then rolls smoothly into the built‑in 45° shear scraping position once the blank is shaped. That transition allows the cutter to slice fibers cleanly instead of tearing them, reducing surface cleanup even after heavy cuts. The CNC‑machined ChroMoly shaft adds stiffness that keeps the tool stable under load and glides easily across the tool rest.

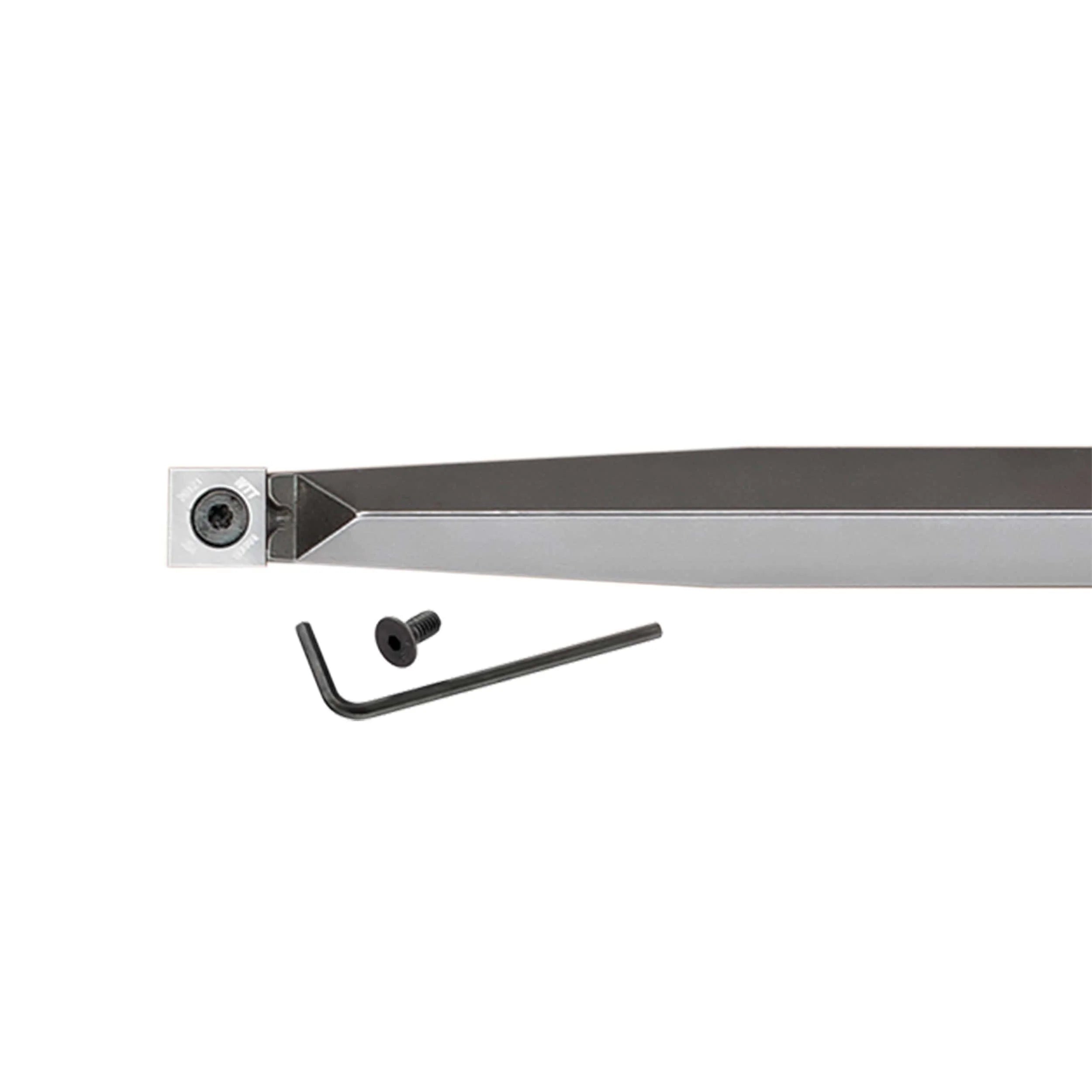

When the edge dulls, simply rotate the insert to a fresh edge, and when all edges are used, replace the insert and continue working without interruption. When removing the locking screw, first ensure the screw head pocket is completely clean of sawdust and residue, and that the wrench is fully seated in the socket before you attempt to remove it. Firmly turn the screw counterclockwise to loosen. When reinstalling the new screw, apply a light dab of anti-seize compound to the threads.

Features:

• Square cutters can remove bulk material fast and efficiently
• Radius cutters allow for some shaping and can be used to create sweeping arcs
• Useful for finishing inside bowls under 8" in diameter
• For woodworkers of all skill levels
• Utilizes a nano-grain carbide matrix for superior edge retention
• Polished mirror-finish on the cutting surface enhances performance
• Precision-ground bevel ensures the sharpest and longest-lasting inserts
• Induction-hardened ChroMoly alloy tool shafts
• Balanced, ergonomic hard rock maple handle
• CNC precision-machined insert seat
• Protective end cap displays the tool shape and size for quick selection from a tool rack

Specifications:

• Overall Length: 24"
• Cutter Type: Square Radius
• Cutter Radius: 2”
• Insert Material: Nano‑grain carbide
• Tool Bar Material: ChroMoly alloy steel
• Tool Bar: 3/4” x 7-3/4”
• Handle Length: Approximately 16”
• Handle Material: Rock Maple

What's Included:

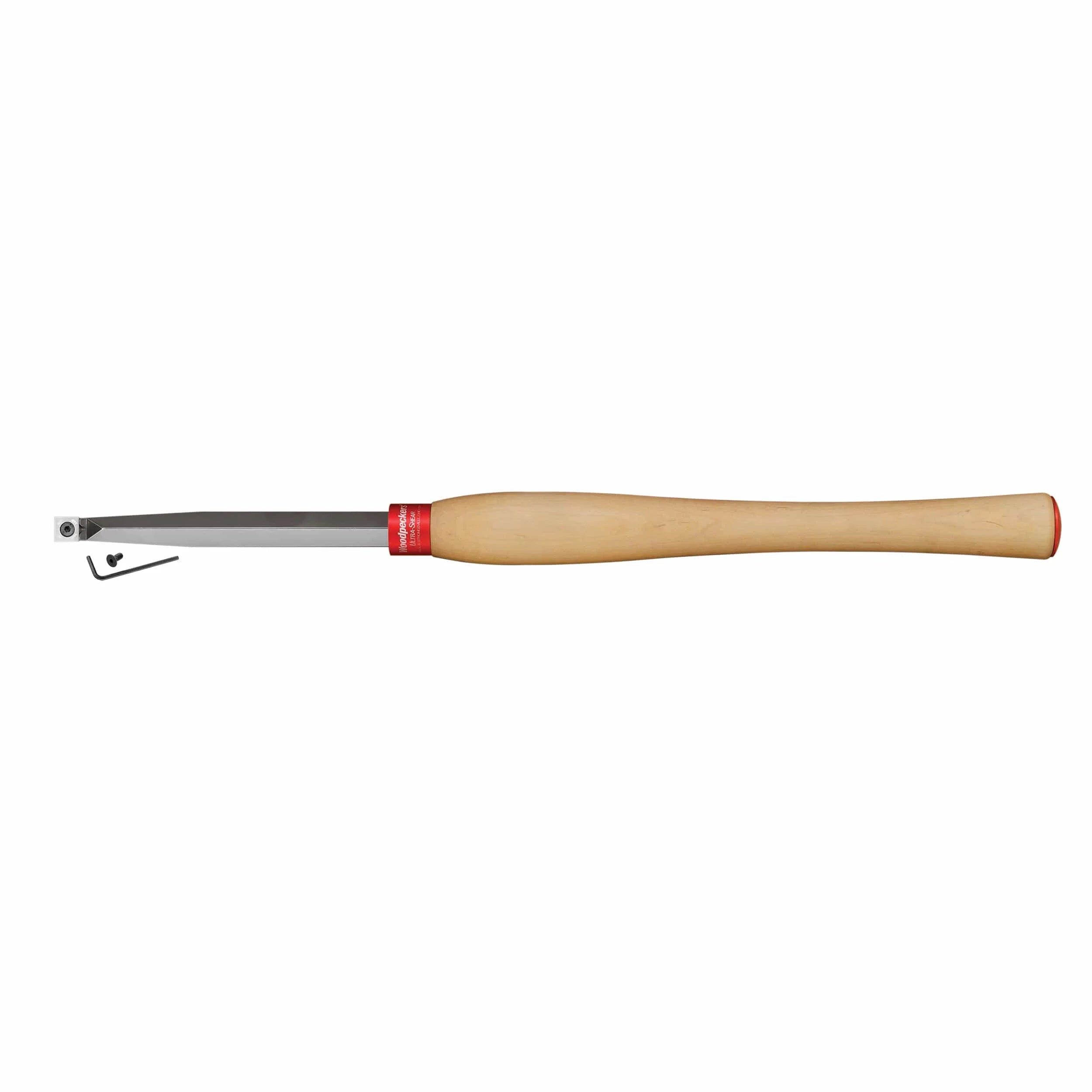

• Full Size Woodturning Tool with 2” Square Radius Carbide Insert

• (1) Hex Key

Notes:

• Purchase replacement nano-grain carbide inserts separately. Replacement cutters used are #163473: .59 Square, #163474: 2" .59 Square Radius, #163475: 4" .59 Square Radius.
