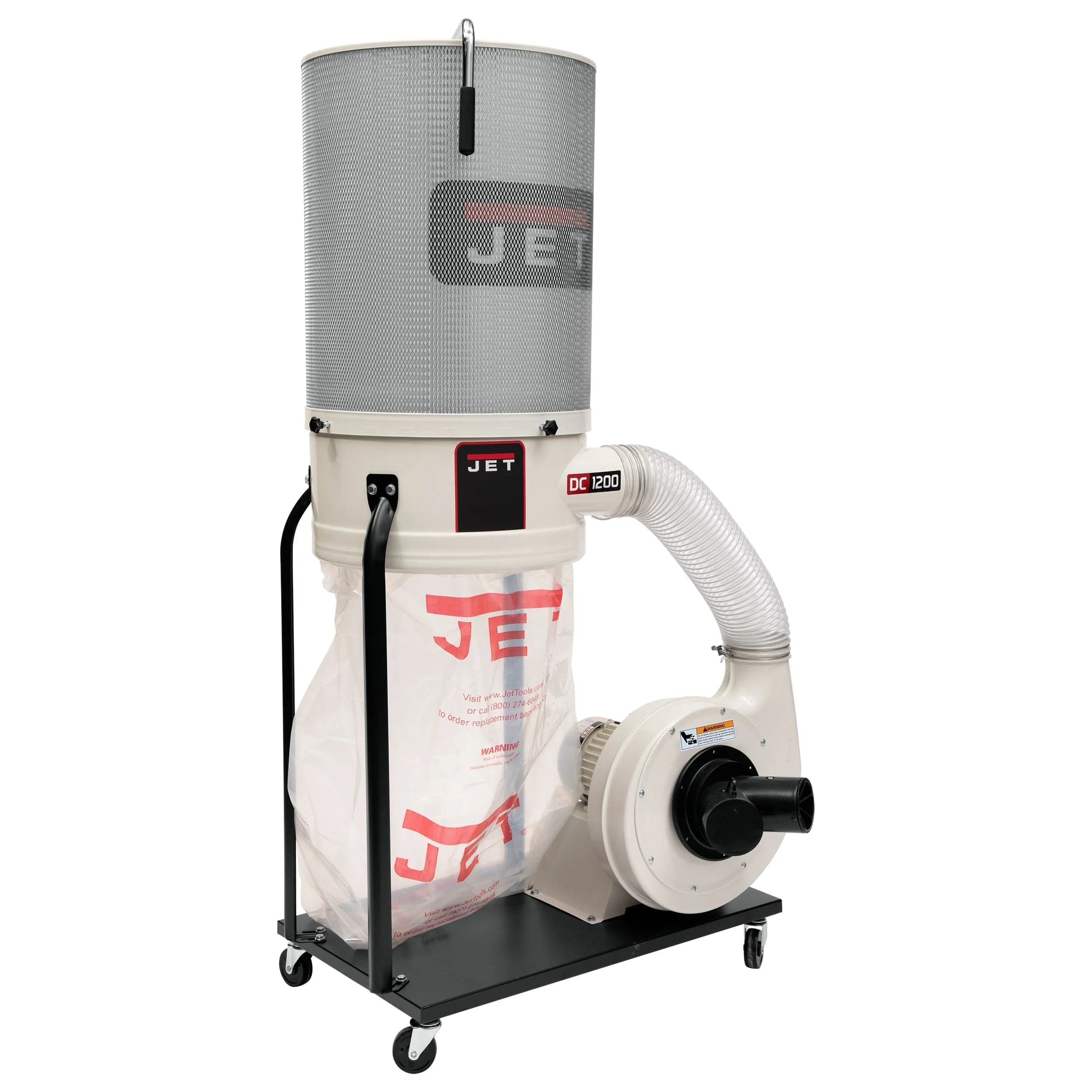

Vortex Cone Dust Collector with 2 Micron Canister Kit - 2 HP 1 Ph 230V - DC-1200VX-CK1

• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

• Model: DC-1200VX-CK1
• Motor Type: TEFC
• Motor: 2 HP
• Motor Phase: 1Ph
• Motor Voltage: 230V
• Prewired Voltage: 230V
• Motor Current: 8A
• Overall Size (L x W x H): 37" x 22" x 79"
• Net Weight: 170 lb
• Sound Rating at 3' Distance: 80-85db
• 1-Hose Connection Diameter: 6"
• 2-Hose Connection Diameter: 4"
• Bag Diameter: 20"
• Filter Bag Length (installed): 25"
• Collector Bag Capacity (cubic feet): 5.3
• Collector Bag Length: 29"
• Air Flow at 4" (CFM): 1,200
• Static Pressure (inches of water): 11-1/2"
• Filter Bag Efficiency: 98% of 2 micron particles
• Air Inlet: (1) at 6" or (2) at 4"
• Impeller Diameter: 12"
• Impeller Material: Steel
• Separator Tank Diameter: 20"
• Separator Tank Height: 10"

• (1) Jet® Vortex Cone Dust Collector with 2 Micron Canister Kit - 2 HP 1 Ph 230V - DC-1200VX-CK1

FAQs

Can this dust collector handle a planer or jointer without clogging?

Yes, the Vortex Cone design helps separate chips efficiently, allowing it to handle planers and jointers with reduced clogging. It’s well-suited for high-volume chip collection.

Is the canister easy to clean, and does the internal paddle work well?

Yes, the canister filter is easy to maintain, and the internal paddle system helps knock dust loose for quick cleaning. This keeps airflow consistent with minimal effort.
