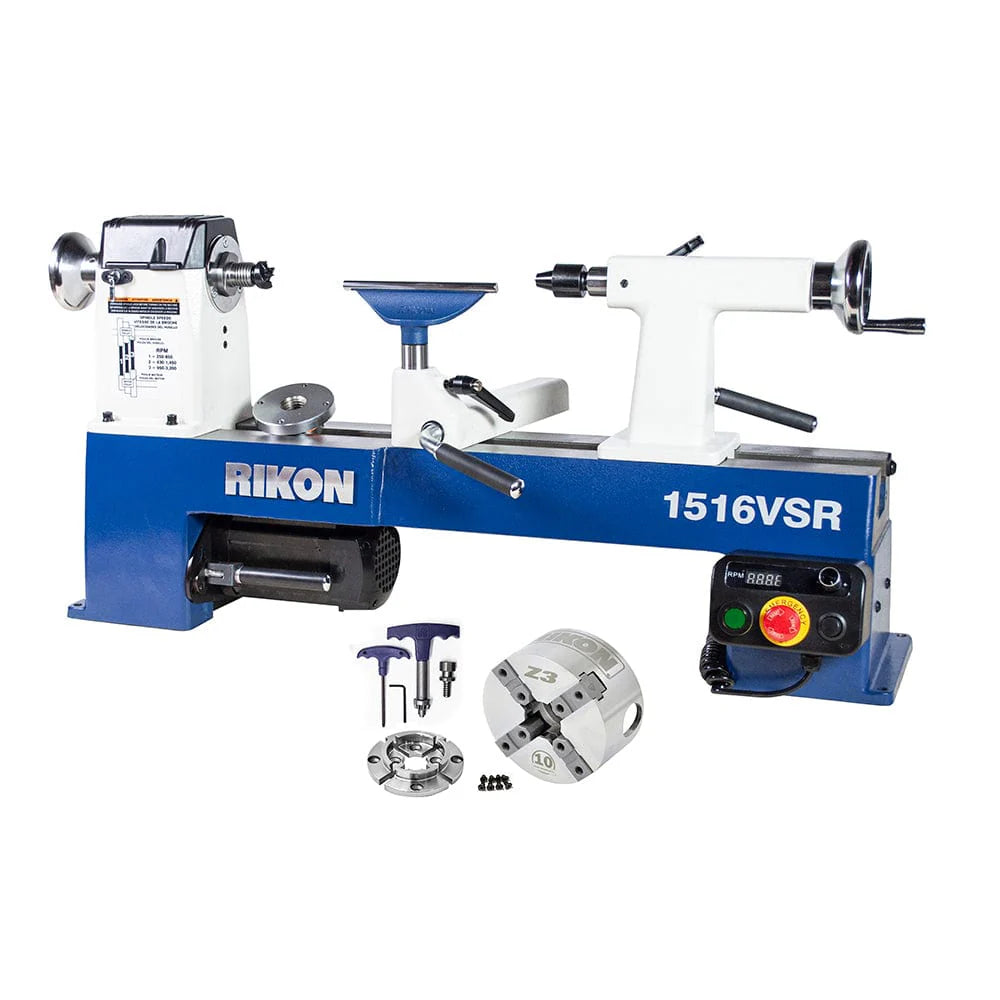

VSR Midi Lathe with Chuck - 12" x 16-1/2"

VSR Midi Lathe with Chuck - 12" x 16-1/2"

The 12” X 16-1/2” Variable-Speed RIKON Midi Lathe 70-1516VSRK has been designed to offer features seen on...
Availability: Many In Stock
$285.00
$949.99
$285.00
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $285.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.
Description
The 12” X 16-1/2” Variable-Speed RIKON Midi Lathe 70-1516VSRK has been designed to offer features seen on larger industrial lathes. An ideal lathe for novice to professional turners. Designed with a powerful 1.25HP DC BRUSHLESS motor, electronic variable speed controls, a wide range of operating speeds, digital RPM readout, ample diameter and spindle length turning capacities in forward and reverse drives.


Corded control box has a magnetic back that allows it to be moved along the front of the cast iron lathe bed, and positioned where you want it for easiest access when turning. Left, headstock end of the lathe bed is milled to take a special 13-1/2” bed extension (70-903 sold separately) to allow outboard turning of diameters up to 15”.

Features:



  • Powerful 1.25 HP DC Brushless Motor
  • Magnets on Back of the Control Box Allow it to be Placed Anywhere Easily Accessible to Turners for Quick Controlling of the Lathe Speeds or Emergency Stopping.
  • Pivoting Belt Cover for Easy Access when Changing Belt Speeds
  • Ball-Bearing Construction for Smooth, Precise Spindle Operation
  • Machined Bed and Matching Components give Precise Alignment
  • Adjustable Locking Handles Keep Components Positioned Securely
  • 1” Diameter Tool Rest Post
  • Lathe Bed Has Machined Ends for Adding Extensions to Increase Spindle Capacity


Specifications:



  • Motor: 3,200 RPM
  • Direction: Forward (C-Clockwise) & Reverse (Clockwise)
  • Number of Speeds: Variable
  • Speed Ranges: 250-850, 430-1450, 950-3200 RPM
  • Swing Over Bed: 12" (304.8 mm)
  • Swing Over Tool Rest: 9-1/4" (228.6 mm)
  • Working Distance Between Centers: 16-1/2" (406.4 mm)
  • Tool Rest Post Diameter: 1" (25.4 mm)
  • Headstock Spindle x TPI: 1" x 8TPI


What's Included:



  • (1) RIKON Lathe
  • (1) Z3 Chuck System
  • (1) 2”/50 MM Jaw Set
  • (1) Spur Center
  • (1) Live Center
  • (1) 3” Faceplate
  • (1) 6” Pro Tool Rest with 1” Diameter Post
  • Knock-Out Bars, Wrenches and Tool Holder.
